Products Network Stuff HP Aruba 6300M 48-Port PoE+...

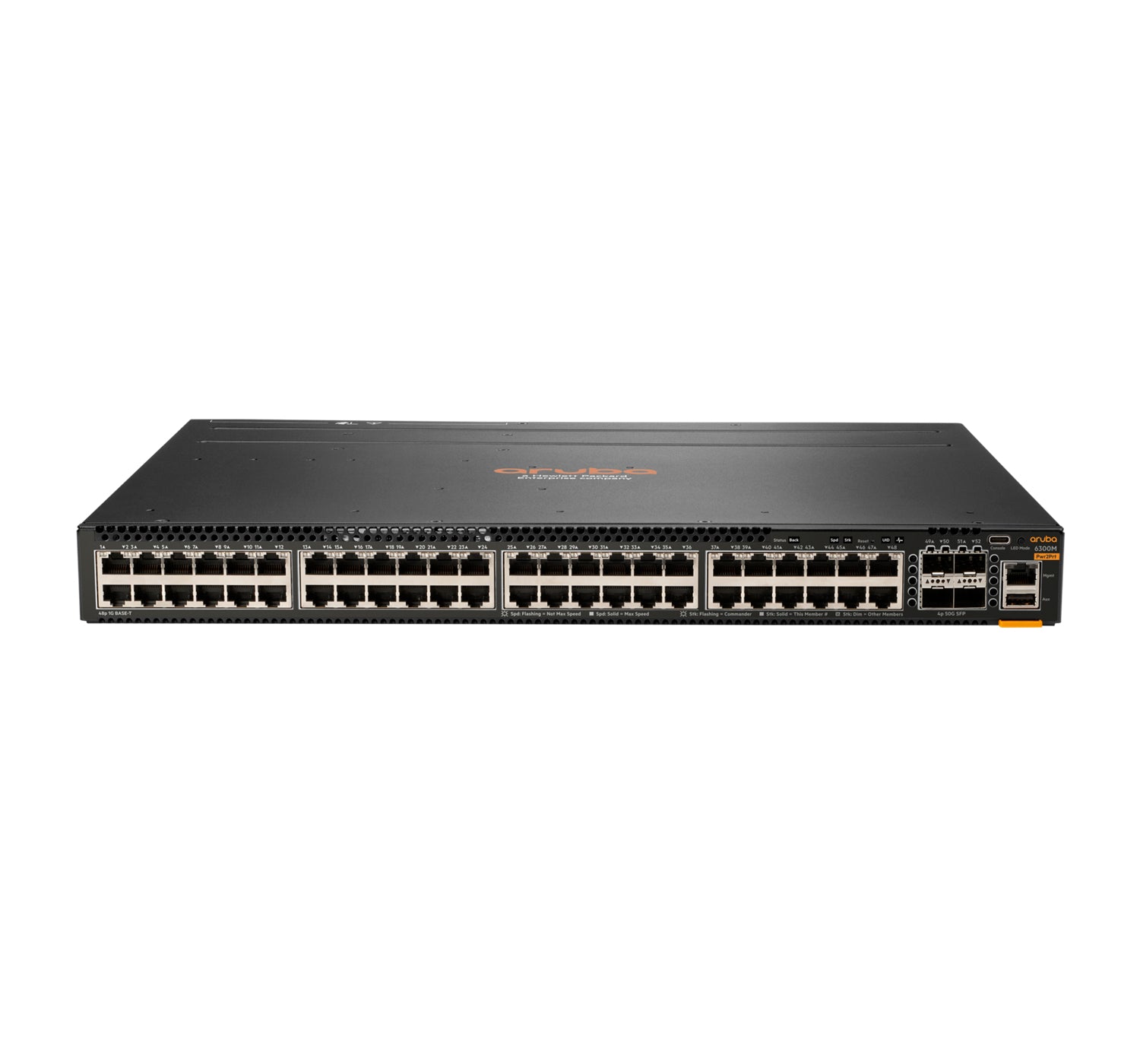

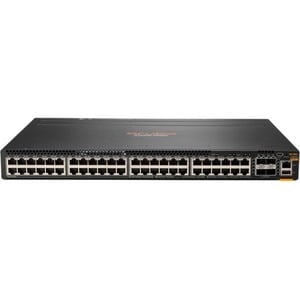

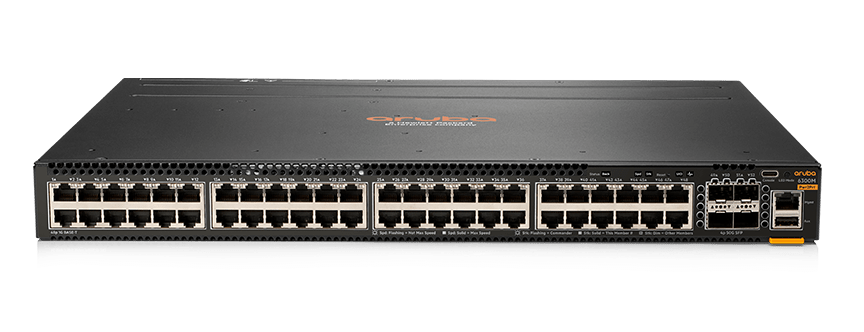

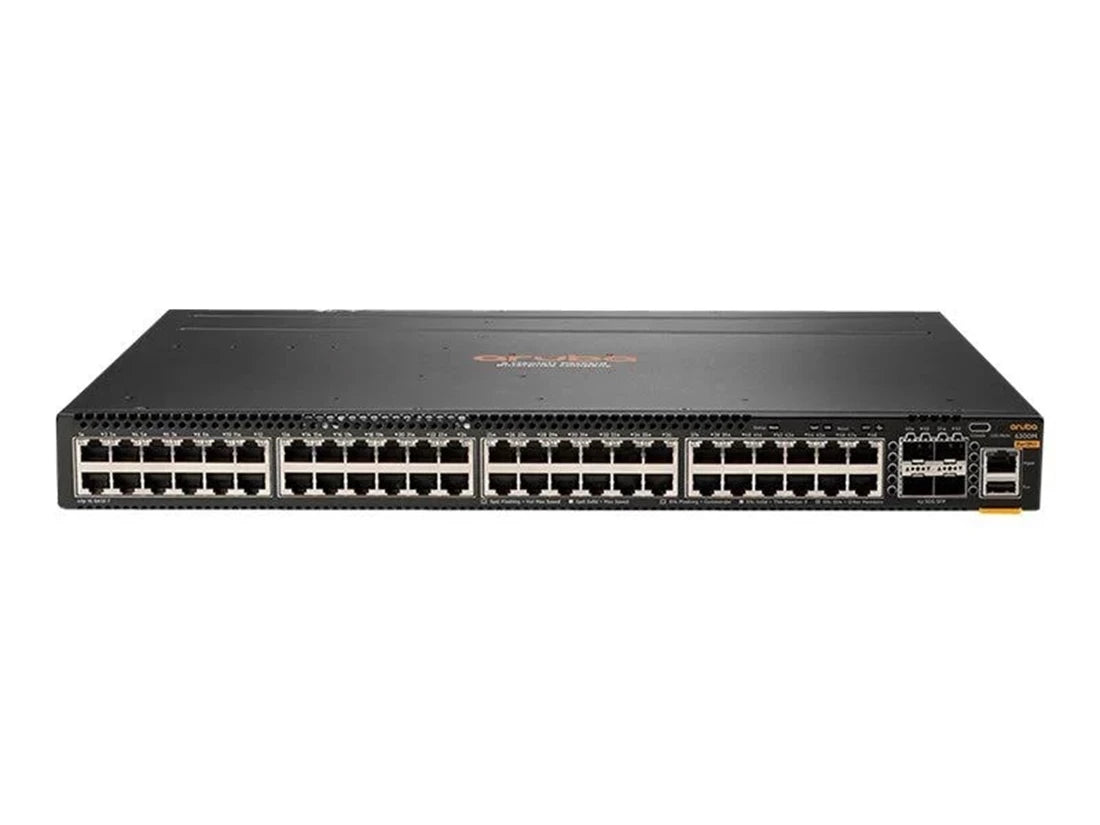

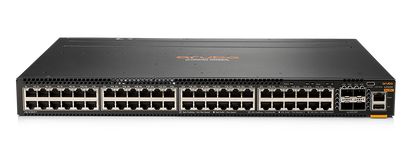

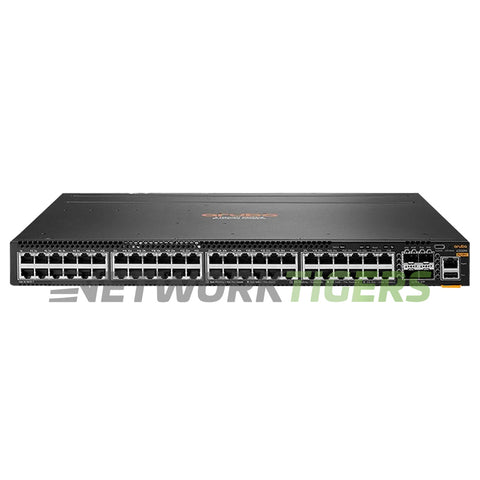

HP Aruba 6300M 48-Port PoE+ 1U Managed Switch JL762A#ABA

VENDOR: HP Mfg Part#: JL762A#ABA UPC#: 190017457697
1 5
Photo is for illustration purposes only. Actual product may be different.
$10,322.97
$10,322.97
Sale Sold out
MSRP: $13,039.00
Shipping calculated at checkout.
  • 48 10/100/1000BASE-T PoE+ ports for high-density Ethernet connectivity
  • 4 SFP ports supporting 1/10/25/50Gbps for flexible uplink options
  • Layer 3 Advanced routing protocols for enterprise-grade networking
  • ARM Cortex A72 processor with 8 GB RAM and 32 GB flash storage
  • SNMP remote management and automation support
  • Power-efficient operation with 75W maximum power draw

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-grade connectivity with 48 PoE+ Gigabit ports and high-speed uplink flexibility
  • Advanced routing, remote management protocols, and automation features reduce network complexity
  • Built with resilient hardware, including powerful CPU and memory, for consistent performance in demanding environments

Product Overview

The HP Aruba 6300M Switch (JL762A#ABA) from the Aruba CX 6300 Series is a 1U rack-mountable managed switch designed for high-performance enterprise environments. Featuring 48 PoE+ Gigabit Ethernet ports and 4 SFP ports supporting up to 50Gbps, it provides robust network flexibility. Equipped with an ARM Cortex A72 processor, 8 GB RAM, and 32 GB flash memory, it ensures operational stability. It includes a pre-installed power supply with 75W max consumption and supports Layer 3 routing and SNMP remote management. Environmental tolerances range from 0°C–45°C operation and -40°C to 70°C storage, enabling deployment in a variety of enterprise settings. Additionally, the switch is TAA-compliant and provides automation and analytics features for enhanced network performance.

Specifications

Product Overview
Product Type Managed Switch
Series Aruba CX 6300
Model JL762A#ABA
Form Factor 1U Rack-Mountable
Processor Type ARM Cortex A72
Installed RAM 8 GB
Installed Flash Memory 32 GB
Power Consumption (Typical) 75 Watts
Power Supply Included Yes
Power Supply Units Installed 1
Voltage Required 100-240 VAC
Weight 13.8 lbs.

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications See HPE compliance resources

Advanced Security Features
Routing Protocols Layer 3 Advanced
Access Control Features Switch Access Control via 802.1X
Security Features Port security, DHCP snooping, Dynamic ARP protection

Interfaces
Total Ports 52
10/100/1000BASE-T Ports 48
SFP Ports 4
Port Speeds 1/10/25/50 Gbps (SFP), 10/100/1000 Mbps (RJ-45)
Data Transfer Rate 1 Gbps (per RJ-45 port)
Data Link Protocol Gigabit Ethernet
Connectivity Technology Wired

Physical & Environmental
Width 17.4 in
Depth 15.2 in
Height 1.73 in
Minimum Operating Temperature 0°C
Maximum Operating Temperature 45°C
Minimum Storage Temperature -40°C
Maximum Storage Temperature 70°C

Cloud Management & Licensing
Remote Management Protocols SNMP
Included Features Automation and Analytics
Management Type Web GUI, CLI, Aruba Central (Cloud)
Licensing Optional Aruba software/feature licenses
