HP Aruba 8325-32C BF Switch, 100G, 1U, JL627A#ABA

VENDOR: HP Mfg Part#: JL627A#ABA UPC#: 190017328508
1 2

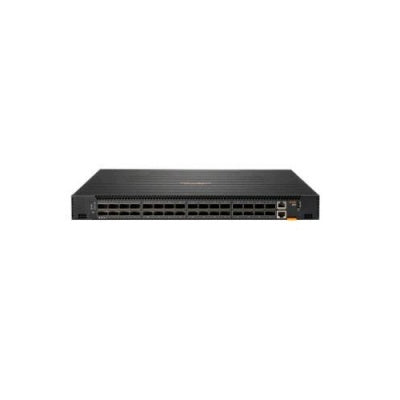

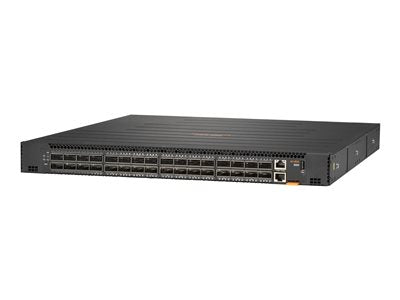

Photo is for illustration purposes only. Actual product may be different.
$38,623.05
$38,623.05
Sale Sold out
MSRP: $48,785.00
Shipping calculated at checkout.
  • - 32 x 100G QSFP28 high-speed Ethernet ports
  • - Supports Layer 2 and Layer 3 switching with advanced routing protocols
  • - SNMP v2c/v3, sFlow (RFC 3176), and RMON support for remote management
  • - Redundant 650W power supplies (2 installed), max consumption 618W
  • - Compliant with IEEE 802.1 standards and TAA regulations
  • - Compact 1U design with 17.42" width and 10.87 kg weight

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-throughput 100G connectivity across 32 ports to meet modern data center demands.
  • Advanced remote management and monitoring features streamline operations and reduce downtime.
  • Includes limited lifetime warranty and TAA compliance, supporting government and enterprise procurement standards.

Product Overview

The HP Aruba 8325-32C BF JL627A#ABA is part of the Aruba CX 8325 Series, a 1U wired switch designed for enterprise and data center environments. It features 32 QSFP28 ports supporting up to 100 Gbps, enabling high-performance Layer 2 and Layer 3 switching. Supporting standard management protocols like SNMP v2c/v3, sFlow, and RMON, it ensures real-time traffic analysis and network visibility. The unit includes redundant 650W power supplies and complies with IEEE and TAA standards. Its compact size, energy efficiency, and limited lifetime warranty provide a compelling option for scalable and reliable network topologies.

Specifications

Product Overview
Manufacturer HP
Product Name HP Aruba 8325-32C BF Switch
Model JL627A#ABA
Product Series Aruba CX 8325 Series
Type Layer 2/Layer 3 Managed Switch
Form Factor 1U
Weight 10.87 Kg
Power Requirements 100-240VAC, 50-60 Hz
Redundant Power Supplies Yes, 2 x 650W hot-swappable
Maximum Power Consumption 618 Watt
Typical Power Consumption 143 Watt
Warranty Limited Lifetime Warranty

Physical & Environmental
Dimensions (W x D x H) 17.42 x 18.62 x 1.73 in
Airflow Back-to-Front
Mounting Type Rack-mountable
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95%, non-condensing

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL, CSA, CB, CE Mark, FCC Class A, VCCI, BSMI, RCM
RoHS Compliance Yes
Safety Compliance IEC 60950-1, EN 60950-1

Wireless Features
Wireless Support No (Wired-Only Switch)

Interfaces
Total Number of Ports 32
Port Type QSFP28
Supported Port Speeds 10/25/40/50/100Gbps per port
Data Transfer Rate 100 Gbps
Aggregate Switching Capacity 6.4 Tbps
Forwarding Rate 2,380 Mpps

Cloud Management & Licensing
Cloud Management Platform Aruba Central (optional licensing)
Local Management Interface ArubaOS-CX CLI, Web GUI, REST API
Included Licensing Base OS, optional software add-ons via subscription

Advanced Security Features
Access Control 802.1X, MAC authentication, Web-based authentication
Network Traffic Monitoring sFlow, RMON
Management Security SNMPv3, SSH, HTTPS, TACACS+, RADIUS
Security Updates Yes, via ArubaOS-CX firmware
