HP Aruba 8360-16Y2C v2 Switch, 16x SFP+/SFP28, 2x QSFP28, JL703C#ABA

VENDOR: HP Mfg Part#: JL703C#ABA UPC#: 190017590738
1 2

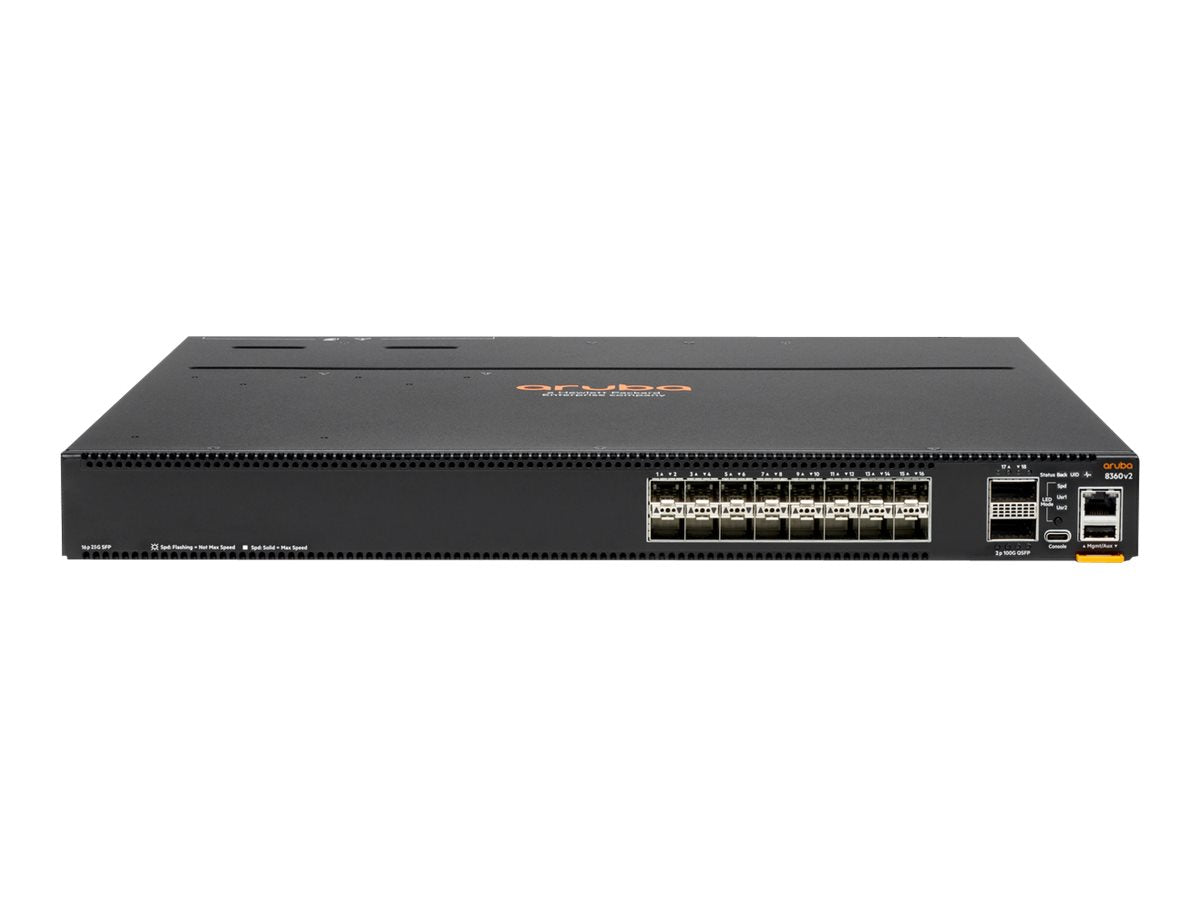

Photo is for illustration purposes only. Actual product may be different.
$23,715.35
$23,715.35
Sale Sold out
MSRP: $29,955.00
Shipping calculated at checkout.
  • 16 ports supporting 1/10/25GbE via SFP, SFP+, SFP28
  • 2 high-speed uplink ports: 40/100GbE via QSFP+/QSFP28
  • 1.8 GHz quad-core 64-bit CPU with 16 GB RAM and 32 GB flash
  • Advanced Layer 3 routing protocol support
  • MACsec encryption for secure untrusted domain connectivity
  • 325W max power consumption with dual AC supplies

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers flexible, scalable connectivity with multi-speed port support for modern high-bandwidth applications
  • Built-in MACsec encryption and Layer 3 routing enhance network security and performance across enterprise environments
  • Compact 1U design with dual power supplies ensures efficient, redundant operations and easier rack integration

Product Overview

The HP Aruba 8360-16Y2C v2 Switch is a high-performance Layer 3 network device with 16 ports of 1GbE/10GbE/25GbE and 2 ports of 40GbE/100GbE. Equipped with a quad-core 1.8 GHz CPU, 16 GB RAM, and 32 GB of flash storage, it delivers scalable routing for enterprise and data center networks. The switch supports MACsec secured connectivity, optional breakout configurations, and boasts dual redundant power supplies for enhanced uptime. Its 1U form factor, limited lifetime warranty, and TAA compliance make it a strategic choice for high-throughput networking needs.

Specifications

Product Overview
Product Type Layer 3 Switch
Model Aruba 8360-16Y2C v2
Manufacturer Part Number JL703C#ABA
Form Factor 1U
Mounting Type Rack-mountable
Processor Quad-core 1.8 GHz CPU
RAM Installed 16 GB
Flash Memory 32 GB
Switching Capacity 2.4 Tbps
Forwarding Rate 1,190 Mpps
Weight 17 lbs.
Power Consumption (Operational) 325 Watt
Max Power Consumption 325 Watt
Power Supply Type Hot-swappable, Redundant
Power Supply Units Installed 2
Voltage Required 100-127VAC, 200-240VAC

Wireless Features
Wireless Capabilities

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications FCC Class A, CE, VCCI, RCM, UL, ICES
RoHS Compliance Yes

Advanced Security Features
Encryption MACsec (802.1AE) on appropriate interfaces
Access Control RADIUS, TACACS+
Policy Enforcement Dynamic segmentation with Aruba ClearPass
Port Security Yes
Control Plane Protection Yes
Jumbo Frame Support Up to 9216 bytes

Interfaces
Total Ports 18
SFP/SFP+/SFP28 Ports 16 x 1/10/25 GbE
QSFP+/QSFP28 Ports 2 x 40/100 GbE
Optional Breakout Support Yes, supports 4x10G or 4x25G via breakout cables
Transceiver Compatibility 1GBASE-T SFP, 10GBASE-T SFP+, 25G, 100G transceivers supported
Data Link Protocols IEEE 802.3, 802.3ae, 802.3z, 802.3ab
Supported Data Rates 1Gbps / 10Gbps / 25Gbps / 40Gbps / 100Gbps

Physical & Environmental
Width 1.73 in
Height 16 in
Depth 17.4 in
Minimum Operating Temperature 0 °C
Maximum Operating Temperature 40 °C
Minimum Storage Temperature -40 °C
Maximum Storage Temperature 70 °C
Relative Humidity (Operating) 5% to 95% (non-condensing)
Noise Level 65 dB max at 25°C

Cloud Management & Licensing
Management Software Aruba AOS-CX
Cloud Management Support Yes, Aruba Central (optional license required)
CLI Support Yes
REST API Support Yes
NetEdit Support Yes
