HP Aruba 8360-24XF2C v2 Switch, 26-Port, 100GbE, Layer 3

VENDOR: HP Mfg Part#: JL722C UPC#: 190017589954
1 2

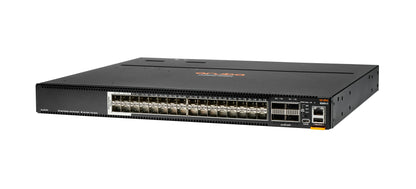

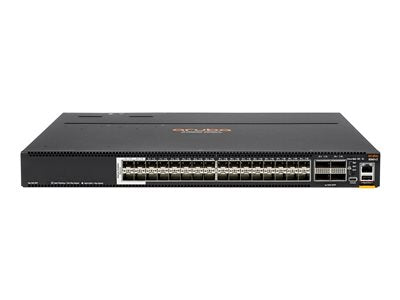

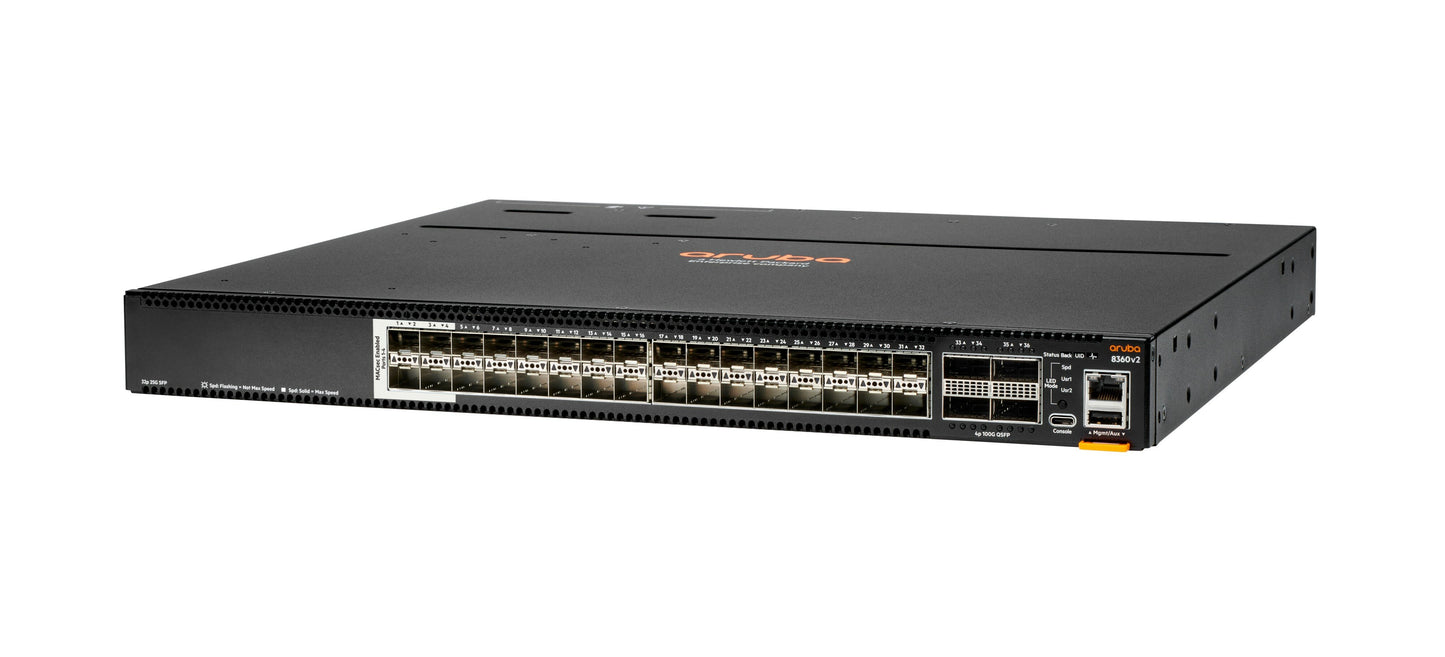

Photo is for illustration purposes only. Actual product may be different.
$24,055.78
$24,055.78
Sale Sold out
MSRP: $30,385.00
Shipping calculated at checkout.
  • 1. 26-port configuration supporting 40GbE/100GbE QSFP+/QSFP28 interfaces
  • 2. CPU: 1.8 GHz quad-core 64-bit processor with 16 GB RAM and 32 GB flash
  • 3. Layer 3 Advanced routing protocol support
  • 4. Supports breakout cables and various transceiver types including 10G/25G
  • 5. 32 MB packet buffer for high-performance data handling
  • 6. TAA compliant and includes Limited Lifetime Warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for scalable enterprise deployments requiring 100GbE performance and flexible 1/10/25GbE access
  • Offers advanced CPU and memory specifications to support demanding Layer 3 networking features and telemetry
  • Includes TAA compliance and a Limited Lifetime Warranty for investment protection in secure environments

Product Overview

The HP Aruba 8360-24XF2C v2 Switch delivers high-density enterprise switching with support for Layer 3 Advanced routing and scalable 100GbE interfaces. Engineered with a 1.8 GHz quad-core CPU, 16 GB RAM, and 32 GB flash memory, it offers optimized performance for demanding workloads. Interface options include QSFP+/QSFP28 uplinks and 1/10/25GbE ports with breakout cable and transceiver support. Its 32 MB packet buffer helps manage high-speed traffic efficiently, while power consumption of just 110 Watts enhances energy efficiency. This model supports TAA compliance and includes a Limited Lifetime Warranty, fitting seamlessly into secure, mission-critical deployments.

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Model Aruba CX 8360-24XF2C v2
Manufacturer Part Number JL722C
Processor 1.8 GHz Quad-core CPU
RAM 16 GB
Flash Memory 32 GB
Packet Buffer Size 32 MB
Switching Capacity 2.0 Tbps
Forwarding Rate 1,190 Mpps (million packets per second)
Weight 23.65 lbs.
Max Power Consumption 110 Watt
Power Supply Type Redundant hot-swappable power supplies (optional)

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CSA, CB, IEC/EN 60950, EN 55032/55024, FCC Class A, VCCI
RoHS Compliance Yes
Energy Efficiency ENERGY STAR compliant components

Advanced Security Features
Encryption Support MACsec on select ports
Access Control 802.1X, MAC authentication, Web Authentication
Security Policies Dynamic segmentation with role-based policies
DHCP Protection DHCP snooping
IP Source Guard Yes
ARP Protection Dynamic ARP protection
Traffic Filtering ACLs (Access Control Lists)

Interfaces
Total Ports 26
Port Types 24x 1GbE/10GbE SFP/SFP+, 2x 40GbE/100GbE QSFP+/QSFP28
Supported Breakout Options 4x10GbE/4x25GbE via breakout cables
Port Speed 1/10/25/40/100 Gbps (based on configuration)
Management Ports 1x RJ-45 Ethernet management, 1x RJ-45 serial console, 1x USB-C console, 1x USB-A
Transceiver Support Supports 1GBASE-T, 10GBASE-T, SFP, SFP+, QSFP+, QSFP28 modules
Uplink Ports 2x 40/100GbE QSFP+/QSFP28
MAC Address Table Size 128,000 entries

Physical & Environmental
Dimensions (H x W x D) 1.73 x 17.4 x 22.0 in
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity 5% to 95% non-condensing
Acoustic Noise <65 dB at 25°C
MTBF 951,050 hours
Cooling Field-replaceable fan trays (front-to-back or back-to-front airflow)

Cloud Management & Licensing
Management Interface Aruba NetEdit, Aruba Central, CLI, REST API, Web GUI
Licensing Model Perpetual and subscription-based options
Cloud Management Support Yes, via Aruba Central
Zero Touch Provisioning Yes
Automation Engine Aruba Network Analytics Engine (NAE)
