HP Aruba 8360-32Y4C Pwr2Prt3F2PS Bundle (JL701A#ACF)

VENDOR: HP Mfg Part#: JL701A#ACF UPC#: 190017404042
1 3

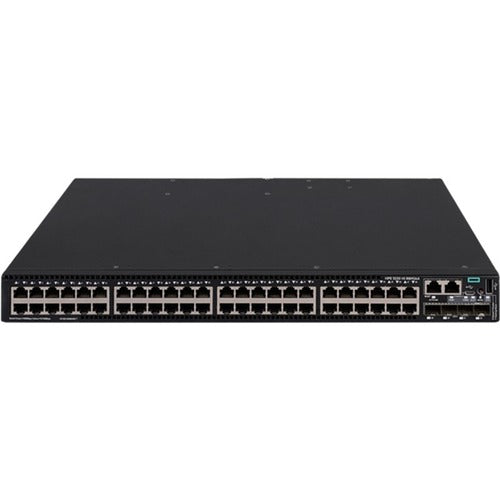

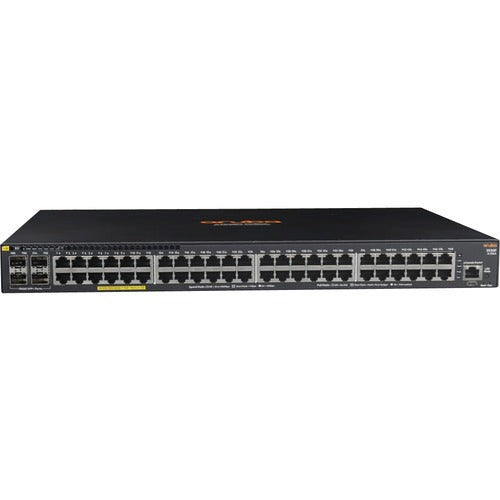

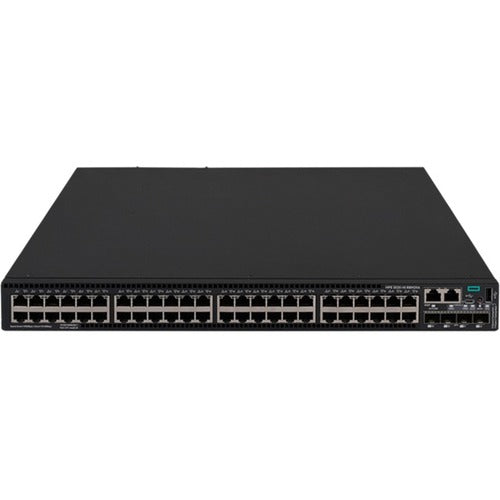

Photo is for illustration purposes only. Actual product may be different.
$32,606.14
$32,606.14
Sale Sold out
MSRP: $41,185.00
Shipping calculated at checkout.
  • - TAA compliance ensures suitability for government and enterprise IT procurements
  • - Manufactured in Singapore for traceable quality assurance
  • - Bundle configuration includes power redundancy features
  • - Part of the HP Aruba 8360 family, focused on data center and high-performance networking
  • - Designed for deployment in enterprise core or aggregation layers
  • - Well-suited for modernization with hybrid IT infrastructures

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Designed for enterprise environments requiring TAA compliance, making it ideal for regulated industries.
  • - Manufactured in Singapore, ensuring consistent quality and global supply chain transparency.
  • - Belongs to the HP Aruba 8360 series, known for scalable performance and future-ready architecture.

Product Overview

The HP Aruba 8360-32Y4C Pwr2Prt3F2PS Bundle (JL701A#ACF) is a robust enterprise network switch engineered for demanding data center and campus core environments. Manufactured in Singapore and compliant with TAA standards, this switch ensures reliable sourcing for regulatory-compliant installations. It is suitable for hybrid cloud, virtualization, and edge computing use cases. While specific port and performance data is not available, the switch's architectural design supports operational scalability and redundant power support. Key technical details remain unspecified, and prospective buyers should verify exact feature sets for deployment needs.

Specifications

Product Overview
Product Type Modular Ethernet Switch
Model Aruba 8360-32Y4C Pwr2Prt3F2PS Bundle
Part Number JL701A#ACF
Form Factor 1U Rack-mountable
Weight 8.74 kg
Power Supply Dual hot-swappable 200W PSUs included
Redundant Power Support Yes
Power Consumption (Typical) 140 W
Target Use Case Data centers, enterprise core, aggregation
Switching Capacity 2.4 Tbps
Forwarding Rate 1785 Mpps

Physical & Environmental
Dimensions (W x D x H) 44 x 49.9 x 4.4 cm
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise 62.7 dB
Cooling Front-to-back airflow with redundant fans
Rack Units 1U
Mounting Rack mount kit included

Cloud Management & Licensing
Management Interface ArubaOS-CX CLI, Web GUI, REST APIs
Cloud Management Aruba Central supported
Licensing Model Subscription-based for Aruba Central
Included Management Software ArubaOS-CX

Interfaces
Total Ports 36
25GbE SFP28 Ports 32
40/100GbE QSFP28 Uplink Ports 4
Management Ports 1x RJ-45 (out-of-band), 1x USB
Console Ports 1x RJ-45 serial console, 1x micro-USB
Port Speed 10/25/100 Gbps
Data Transfer Rate Up to 100 Gbps per port
Packet Buffer 42 MB
MAC Address Table Size 128,000 entries

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL, CB, FCC Class A, VCCI, ICES, BSMI, CCC
Harmonized System (HS) Code 8517.62.0090

Advanced Security Features
Access Control 802.1X, MAC authentication, Web-based authentication
Security Features Dynamic Segmentation, Policy-Based Automation
Encryption Support SSH, SNMPv3, HTTPS
Network Protection MACsec ready (license required)
Routing Protocols OSPF, BGP, VRF, EVPN-VXLAN
