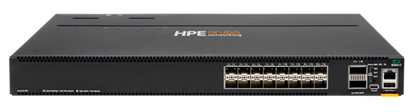

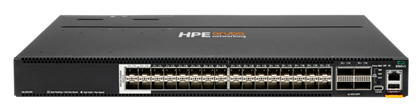

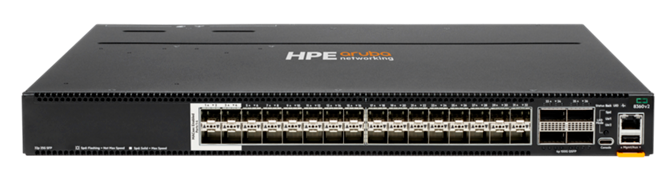

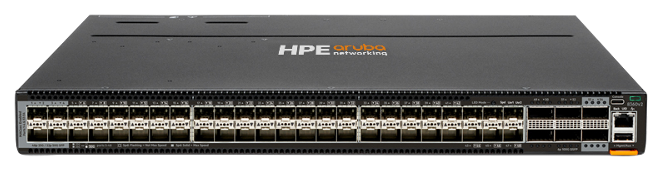

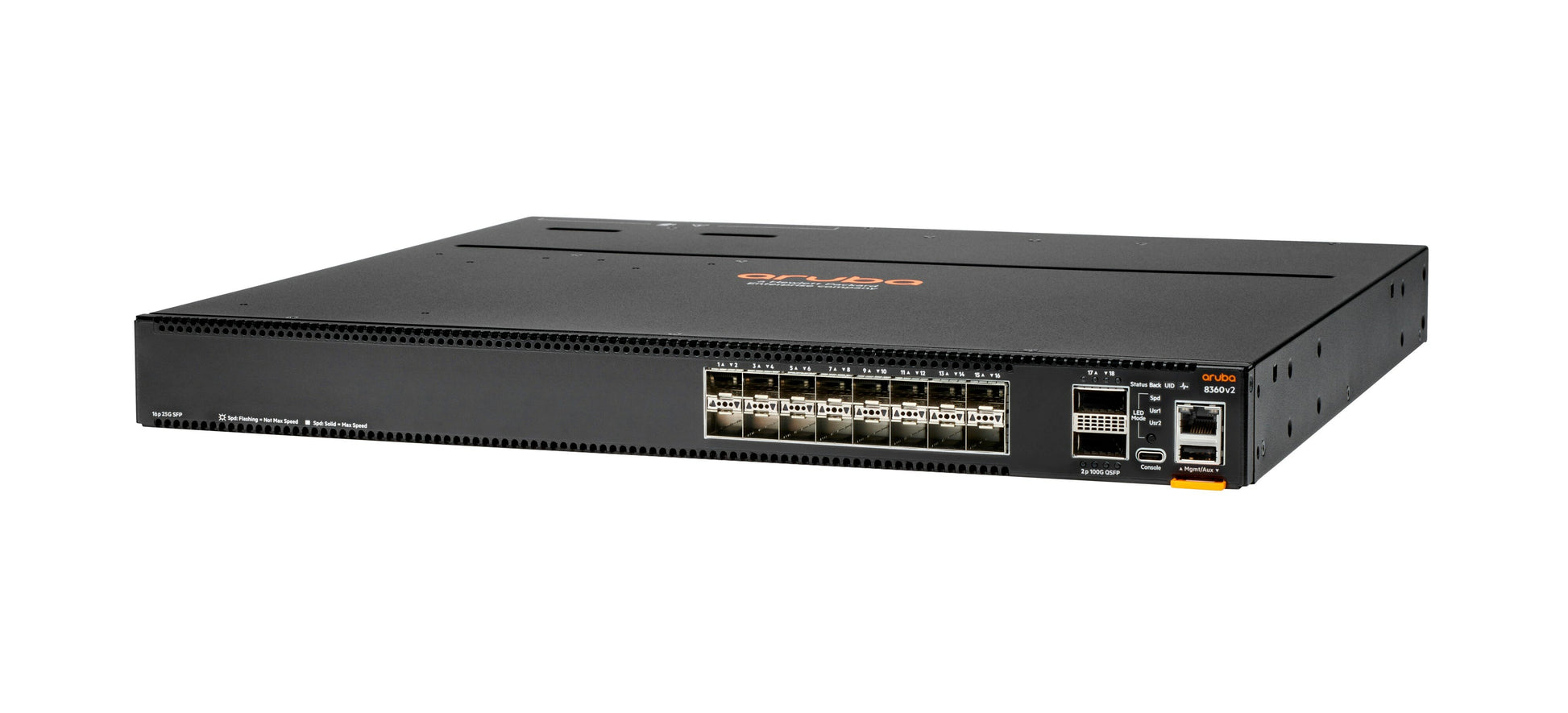

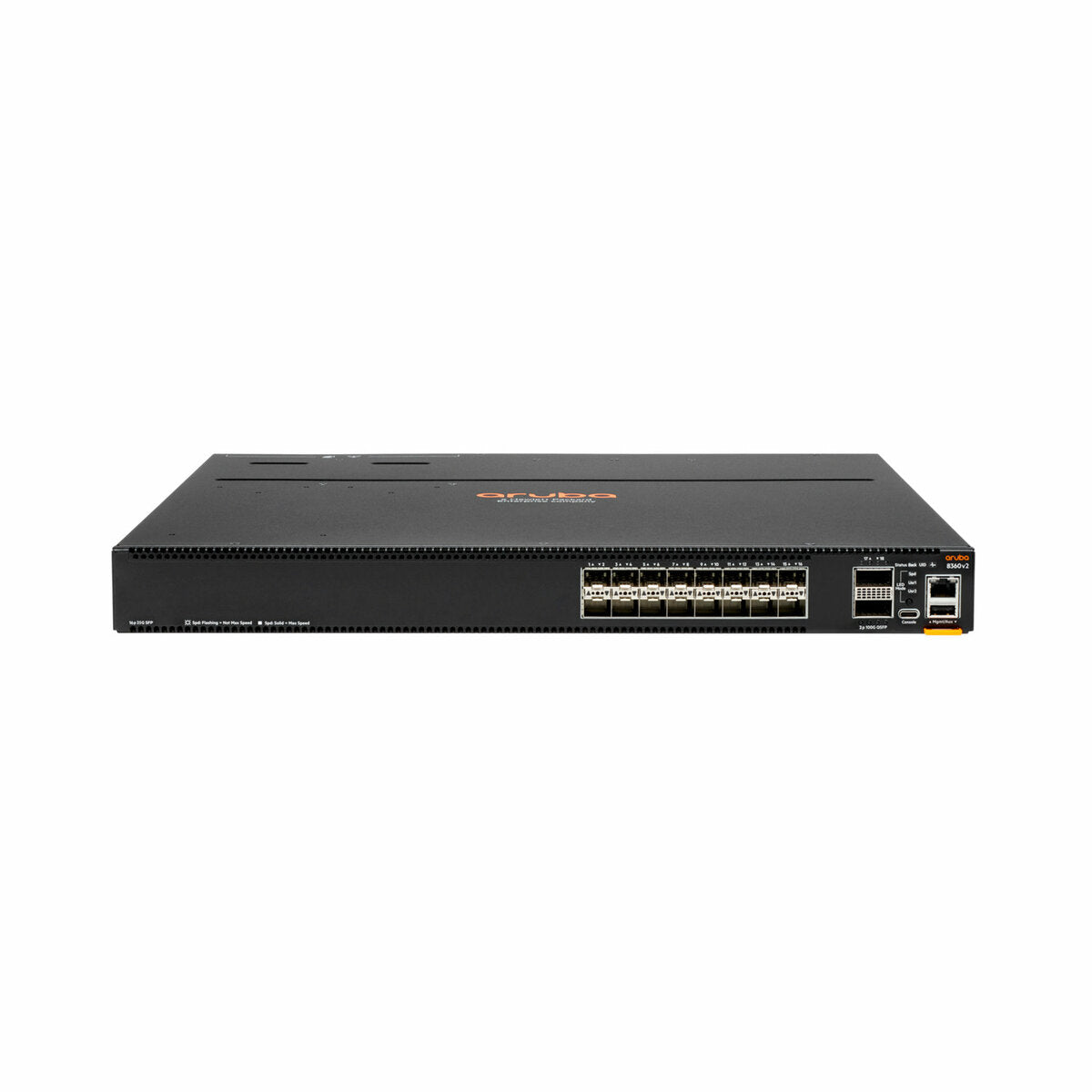

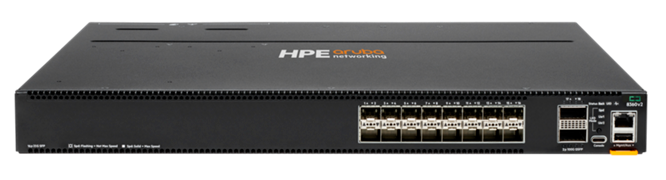

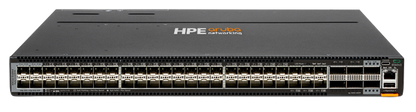

HP Aruba 8360-48Y6C v2 Switch Bundle, 48-Port, Layer 3, 110W

VENDOR: HP Mfg Part#: R9G23A#ABA UPC#: 190017599526
1 5
Photo is for illustration purposes only. Actual product may be different.
$35,620.45
$35,620.45
Sale Sold out
MSRP: $46,645.00
Shipping calculated at checkout.
  • 1. 1.8 GHz 4-core 64-bit processor with 16 GB RAM and 32 GB flash storage
  • 2. Interface options up to 48 ports of 1GbE/10GbE/40GbE/100GbE with optional breakout cables
  • 3. Layer 3 Advanced routing capabilities for robust network control
  • 4. Packet buffer size of 32 MB for optimized throughput
  • 5. Operational power consumption of 110 Watts
  • 6. Limited Lifetime Warranty and TAA compliance for U.S. deployment

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports versatile high-speed interfaces, including 100GbE, enabling flexible integration into diverse networking infrastructures.
  • Powered by a high-performance quad-core CPU and large memory pool, ensuring sustained performance under load.
  • Includes a limited lifetime warranty and is TAA-compliant for reliable, compliant deployment in government and enterprise environments.

Product Overview

The HP Aruba CX 8360-48Y6C v2 Switch Bundle delivers enterprise-grade Layer 3 switching and interface flexibility across 1GbE to 100GbE ports. Featuring a 1.8 GHz quad-core CPU, 16 GB of RAM, and 32 MB packet buffer, this switch is optimized for high-throughput, scalable networks. It supports varied port configurations and breakout cable options, enabling tailored deployments in data-intensive environments. With TAA compliance, English localization, and a limited lifetime warranty, this U.S. model ensures reliability and compliance for mission-critical networks.

Specifications

Product Overview
Type Managed Layer 3 Switch
Form Factor 1U rack-mountable
Part Number R9G23A#ABA
Model Aruba CX 8360-48Y6C v2
Weight 23.65 lbs.
Power Consumption (Typical) 110 Watt
Power Supply Type Dual redundant modular power supplies (optional)

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CB, FCC Class A, VCCI, CE, BSMI
Safety Compliance UL 60950-1, IEC 60950-1
Environmental Compliance RoHS, WEEE, REACH

Advanced Security Features
Access Control 802.1X, MAC authentication, Web authentication
Policy Enforcement Aruba Dynamic Segmentation, user- and port-based
MACsec Encryption Supported on select ports
Secure Management HTTPS, SSH, SNMPv3, RADIUS, TACACS+
Network Protection DHCP protection, ARP protection, ND snooping
DoS Protection Yes

Interfaces
Total Ports 48 x 100M/1GbE/10GBASE-T
Uplink Ports 6 x 40GbE/100GbE QSFP+/QSFP28
Supported Breakout Options 4x10GbE/25GbE per QSFP port
Port Types QSFP+/QSFP28, SFP/SFP+, 10GBASE-T
Switch Fabric Capacity 6.4 Tbps
Forwarding Rate 2,380 Mpps
Packet Buffer Size 32 MB
MAC Address Table Size 128,000 entries
Routing Protocols Supported OSPF, BGP, static routing, PIM, IS-IS

Physical & Environmental
Dimensions (W x D x H) 17.44 x 20.71 x 1.73 in (443 x 526.1 x 43.9 mm)
Operating Temperature Range 32°F to 113°F (0°C to 45°C)
Storage Temperature Range -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise 66 dB max
Cooling Redundant variable-speed fans
Mounting Options Rack-mountable with included kit

Cloud Management & Licensing
Management Platform Aruba Central, Aruba NetEdit, CLI, Web UI, REST API
Licensing Model Perpetual and subscription-based options available
Included Licenses Base OS included, advanced features require licenses
Telemetry & Automation REST APIs, Python scripting, event-driven automation
Cloud Monitoring Support Yes, via Aruba Central
