Products Network Stuff HP Aruba 9300-32D Power2Por...

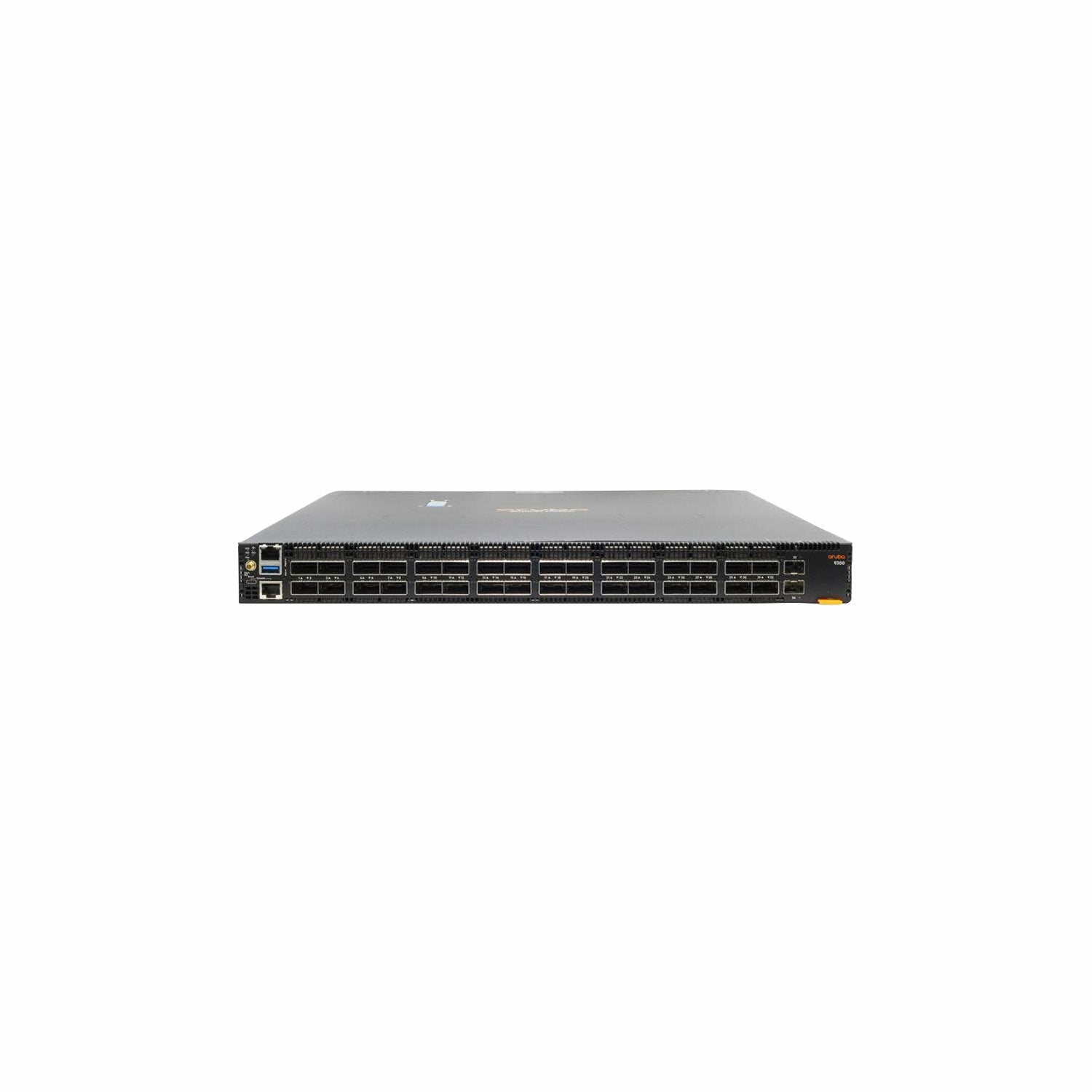

HP Aruba 9300-32D Power2Port Switch Bundle, 32-Port, 400Gbps

VENDOR: HP Mfg Part#: S1D08A#ABG
1 2
Photo is for illustration purposes only. Actual product may be different.
$91,634.18
$91,634.18
Sale Sold out
MSRP: $119,995.00
Shipping calculated at checkout.
  • 32 high-performance QSFP-DD ports for 400Gbps networking
  • 32GB RAM for enhanced data processing and performance
  • 128MB flash memory for faster boot and configuration storage
  • Fully compliant with TAA standards for secure deployments
  • Manufactured in Taiwan for trusted component sourcing

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports ultra-high data throughput, ideal for enterprise and data center applications
  • TAA compliance ensures suitability for government and federal procurements
  • Future-ready 32-port QSFP-DD design maximizes ROI by supporting high-density networks

Product Overview

The HP Aruba 9300-32D Power2Port Switch Bundle (part number S1D08A#ABG) delivers robust networking performance designed to meet the requirements of high-bandwidth environments. Equipped with 32 QSFP-DD ports and supporting up to 400Gbps throughput, this switch enables massive data flow capacity ideal for backbone infrastructure, hyperscale data centers, or large-scale aggregation layers.

With integrated 32GB RAM and 128MB of flash memory, this system ensures stable and efficient data handling, reducing latency and enhancing platform responsiveness. Designed in compliance with TAA regulations and manufactured in Taiwan, this switch adheres to government procurement standards, making it suitable for security-sensitive deployments.

The Aruba 9300 Series provides a future-ready switching architecture, offering high-speed port density and advanced scalability features. It supports power-efficient operations and future-proof port capabilities, making it a long-term investment for IT infrastructure aiming for maximum ROI and performance continuity.

Specifications

Product Overview
Product Type Data Center Switch
Series Aruba CX 9300 Series
Model Aruba 9300-32D Power2Port
Form Factor 1U Rack-mountable
Switching Capacity 25.6 Tbps
Throughput 400 Gbps per port
Packet Buffer 64 MB
Flash Memory 128 MB
System Memory (RAM) 32 GB
Power Supply Type Hot-swappable
Redundant Power Supply Yes
Hot-swappable Fans Yes
Typical Power Consumption 500 W
Maximum Power Consumption 900 W

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL, CE, FCC, IC, VCCI, BSMI, RCM, CCC

Advanced Security Features
Access Control Lists (ACLs) Supported
MACsec Encryption Supported on select ports
802.1X Authentication Supported
Role-based Access Control Yes
Secure Shell (SSH) Yes
Port Security Yes

Interfaces
Number of Total Ports 32
Port Type QSFP-DD
Uplink Interface QSFP-DD (400G)
Port Speed Options 400G/200G/100G
Management Ports 1x RJ-45 (10/100/1000 Mbps), 1x RJ-45 Serial Console, 1x USB-C Console
Out-of-Band Management Port Yes
USB Port 1x USB 3.0
Expansion Slots None (fixed ports model)

Physical & Environmental
Chassis Dimensions 4.39 x 43.72 x 53.97 cm
Chassis Weight 13.6 kg
Operating Temperature 0°C to 45°C
Storage Temperature -40°C to 70°C
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Acoustic Noise 57.6 dB (typical)

Cloud Management & Licensing
Cloud Management Platform Aruba Central (optional)
Management Interface Web GUI, CLI, REST API, SNMP
Switch Operating System Aruba AOS-CX
License Model Subscription-based (for additional features)
Zero Touch Provisioning Supported
