| Type | Layer 3 Switch |
| Model | Aruba CX 8320 Switch Series |
| Manufacturer Part Number | JL581A#B2E |
| Form Factor | 1RU |
| CPU | 2 GHz |
| System Memory (RAM) | 16 GB |
| Solid State Drive (SSD) | 64 GB |
| Flash Memory | 8 GB |
| Power Consumption (Max) | 348 Watt |
| Power Requirements | 100–127 VAC / 200–240 VAC @ 50/60 Hz |
| Service & Support | 5-year Warranty |
| Weight | 20.94 lbs |

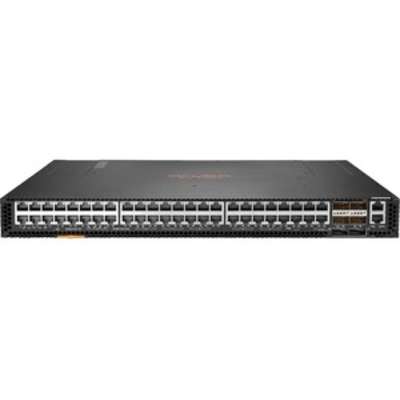

HP Aruba CX 8320 48-Port 10GBASE-T Switch, JL581A#B2E
Photo is for illustration purposes only. Actual product may be different.
Regular price
$37,443.42
Regular price
Sale price
$37,443.42
Unit price
per
MSRP: $47,295.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 48 10GBASE-T/1000BASE-T ports and 6 40GbE QSFP+ uplinks for high port density
- Layer 3 advanced routing protocol support for scalable enterprise networks
- 2GHz processor with 16GB RAM, 8GB flash, and 64GB SSD for responsive performance
- 1RU form factor with a depth of 18.6 inches, saving rack space
- Power efficient with 348W maximum operational consumption
- TAA compliant and backed by a 5-year warranty from HP
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Maximize infrastructure ROI with 48 multi-rate ports and 6 high-speed uplinks in a 1RU chassis
- Upgrade network performance and responsiveness with enterprise-grade hardware: 2GHz CPU, 16GB RAM, and SSD
- Government and public sector ready thanks to TAA compliance and 5-year warranty support
Product Overview
The HP Aruba CX 8320 48-Port Switch (JL581A#B2E) is designed for high-performance enterprise and campus core networks. It offers (48) 10GBASE-T/1000BASE-T ports and (6) 40GbE QSFP+ ports, delivering strong throughput in a 1RU form factor. With a 2GHz CPU, 16GB RAM, and a 64GB SSD plus 8GB flash, the system provides high-speed processing and storage for configurations and analytics. It supports a maximum power draw of 348W and accommodates AC voltage inputs across global standards. Designed with TAA compliance and backed by a 5-year warranty, this switch is well-suited for mission-critical deployments.
Specifications
Product Overview
Advanced Security Features
| Access Control Lists (ACLs) | Yes |
| Traffic Mirroring | Yes |
| System-level Security | Secure Shell (SSH), Secure Web Interface (HTTPS), SNMPv3 |
| 802.1x Authentication | Yes |
| MACsec Encryption | Yes |
| Role-Based Access Control (RBAC) | Yes |
Physical & Environmental
| Dimensions (W x D x H) | 1.71 x 18.6 x 17.4 in |

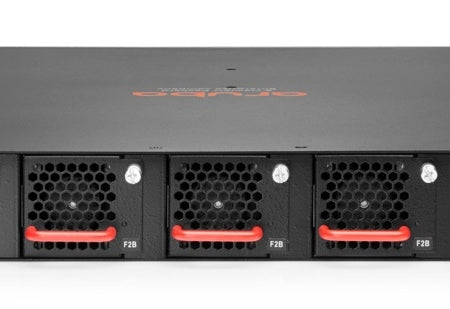

| Cooling | Front-to-back airflow |
| Mounting | Rack-mountable |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Humidity | 10% to 95% (non-condensing) |
| Acoustic Noise | 54 dB max |
Interfaces
| Total Ports | 57 |
| 10GBASE-T/1000BASE-T Ports | 48 |
| 40GbE QSFP+ Ports | 6 |
| Dedicated Management Port | Yes |
| Console Ports | 1 x RJ45, 1 x USB-C |
| USB Ports | 1 x USB Type-A |
| Data Transfer Rate | 40 Gbps |
| Data Link Protocols | 10/100/1000BASE-T, 10GBASE-T, 40GBASE-X |
| Routing Protocols Supported | OSPF, BGP, VRF, PIM, MSDP |
Cloud Management & Licensing
| Management Interface | Aruba AOS-CX CLI, Web GUI, Aruba Central (Cloud) |
| Cloud Management Support | Yes, via Aruba Central |
| License Required | Yes, for advanced features |
| Included Licensing | Limited Lifetime License included |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | UL, cUL, CB, FCC Class A, EN 55032 Class A, VCCI Class A, BSMI, CCC |
| Environmental Standards | RoHS, WEEE, REACH |
