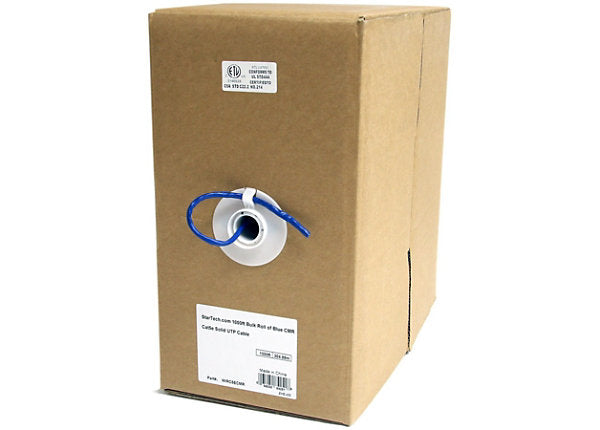

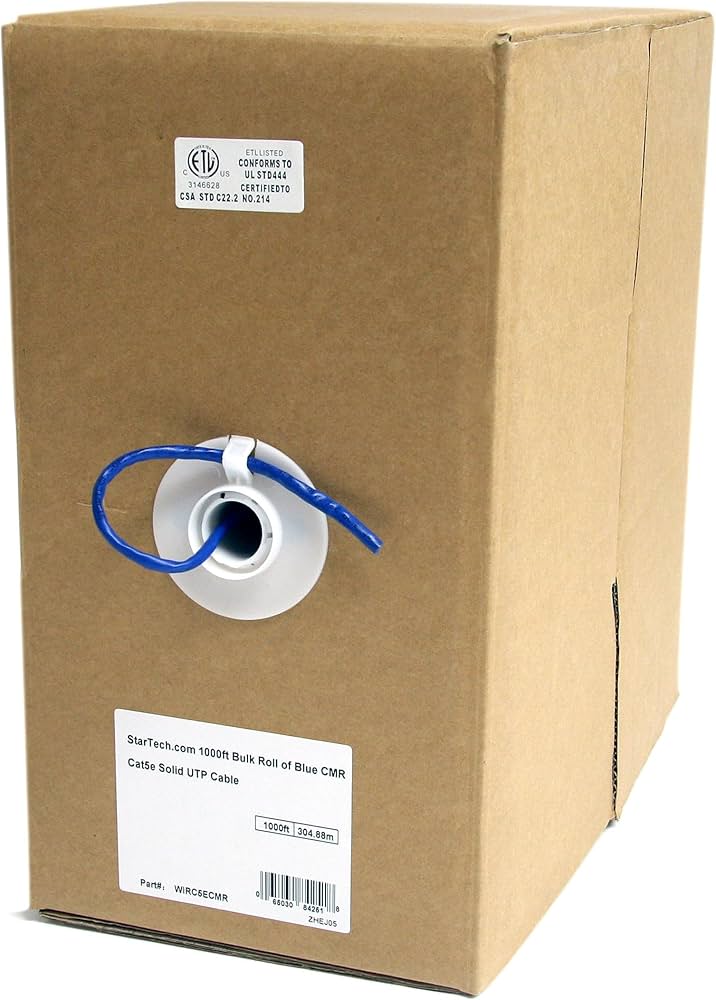

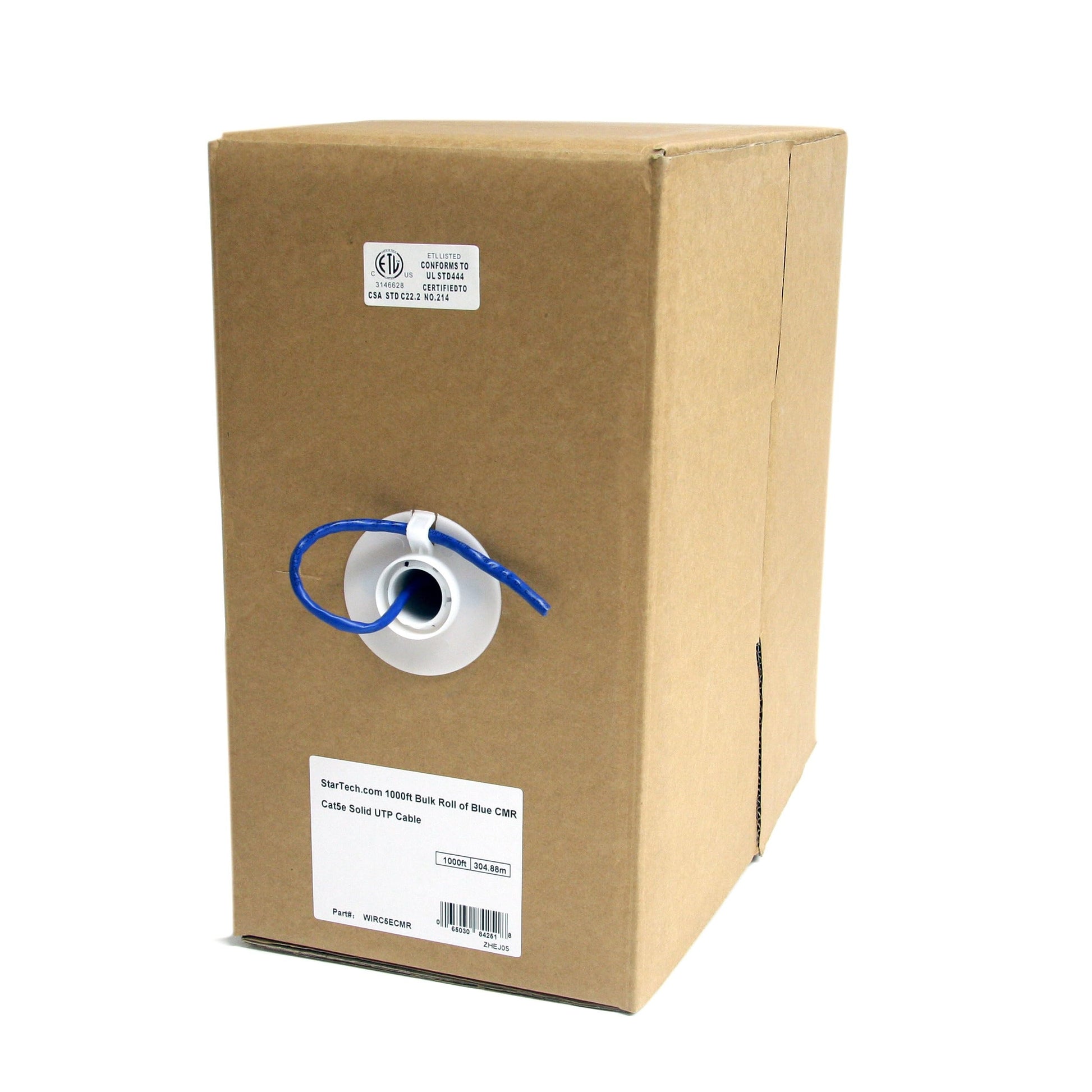

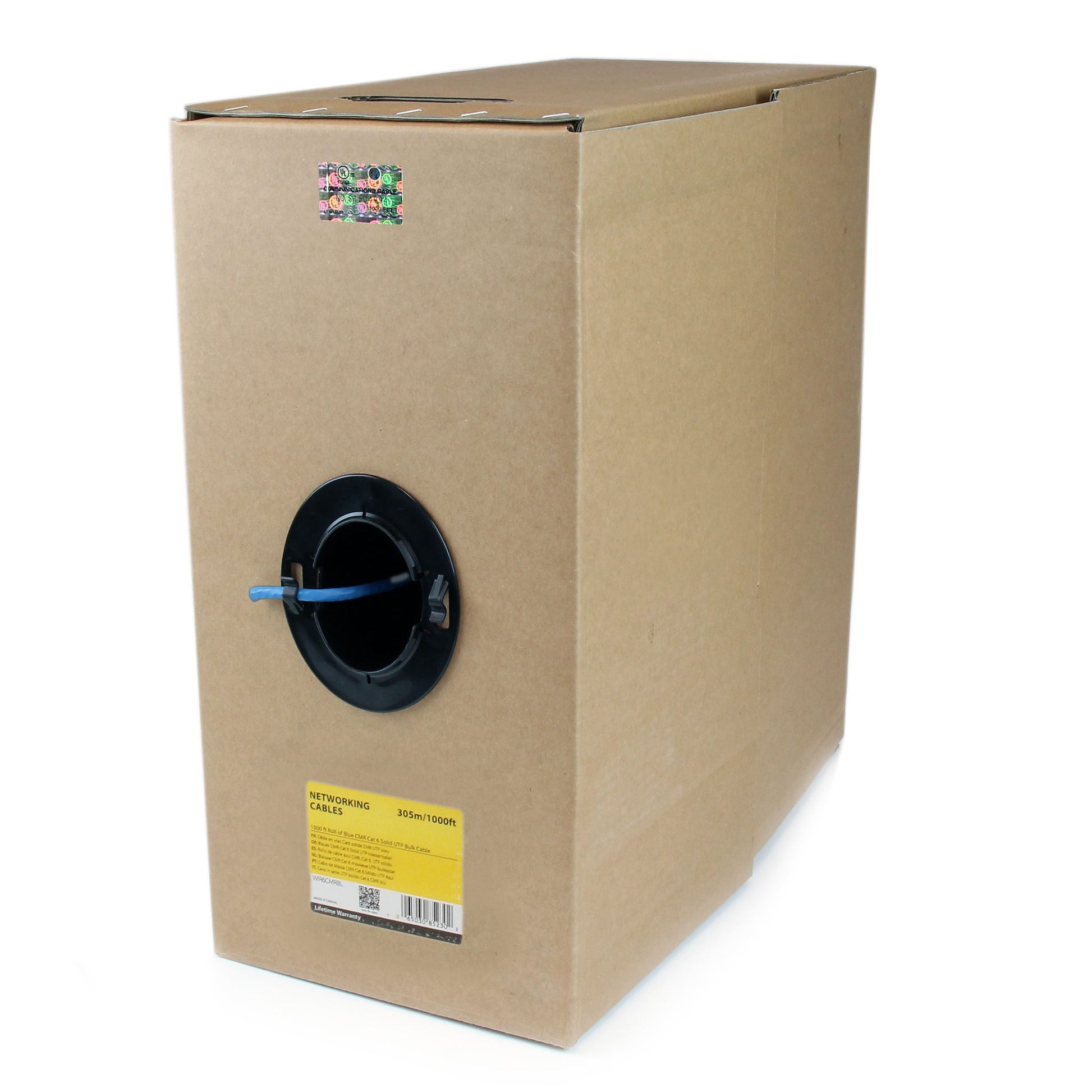

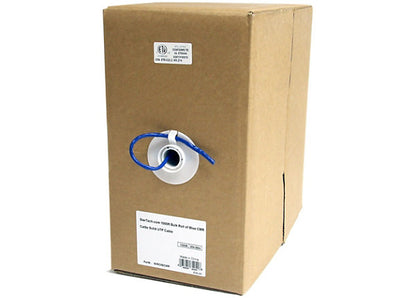

StarTech 1000ft Cat5e CMR Solid UTP Ethernet Cable - Blue, TAA Compliant

VENDOR: STARTECH Mfg Part#: WIRC5ECMR UPC#: 065030842518
1 5
Photo is for illustration purposes only. Actual product may be different.
$173.66
$173.66
Sale Sold out
MSRP: $177.99
Shipping calculated at checkout.
  • 1000 ft. (304,8m) solid CAT5e cable with 24 AWG pure bare copper conductors
  • Supports up to 1000 Mbps Ethernet and 350 MHz bandwidth
  • CMR rated for safe riser and in-wall installations
  • Unshielded Twisted Pair (UTP) technology with PVC jacket
  • Power over Ethernet (PoE) compatible for efficient cable runs
  • TAA compliant and backed by lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise-grade 1000 Mbps networks where high throughput and PoE support are crucial.
  • CMR rating ensures it meets fire safety requirements for in-wall and vertical building cable routes.
  • High-quality copper construction minimizes crosstalk and signal degradation, delivering consistent performance and ROI.

Product Overview

1000 ft. (304,8m) Blue 4 Pair UTP Cat5e cable for 1000 Mbps networks - High-quality copper conductors - Keep Near End Crosstalk (NEXT) within acceptable limits - For where CMR fire rating is required - 350 MHz; PoE; Solid; 24AWG; CMR Rated; TAA

Specifications

Product Overview
Product Type Bulk Ethernet Cable
Cable Category Cat5e
Cable Length 1000 ft (304.8 m)
Cable Jacket Material PVC - Polyvinyl Chloride
Conductor Type Solid
Conductor Material Pure Bare Copper
Wire Gauge 24 AWG
Color Blue
PoE Support Yes
Rated Frequency 350 MHz
Data Rate Support 10/100/1000 Mbps
Fire Resistance Rating CMR (Riser)
Application Use Riser in-wall installations (between floors, elevator shafts)
TAA Compliant Yes

Physical & Environmental
Outer Diameter 5.7 mm
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -20°C to 75°C (-4°F to 167°F)
Installation Temperature 0°C to 60°C (32°F to 140°F)
Maximum Tensile Load 110 N
Bend Radius (Installation) 4x cable OD
Maximum Pulling Force 25 lbf (110 N)

Cloud Management & Licensing
Managed via Cloud Platform
Licensing Required

Interfaces
Cable Type Unshielded Twisted Pair (UTP)
Pairs per Cable 4
Shielding Unshielded
Connector Type None (bulk cable)
Interface Standard IEEE 802.3 (Ethernet)

Compliance & Origin
Country of Origin Taiwan
Certifications TIA/EIA-568-C.2, ISO/IEC 11801, RoHS
Standards Compliance ANSI/TIA-568-C.2 Cat5e, ISO/IEC 11801, EN 50173-1
Environmental Compliance RoHS, REACH
Warranty Lifetime
UPC 065030842518
Manufacturer Part Number WIRC5ECMR

Advanced Security Features
Fire Rated CMR for Secure Installations Yes
Supports Secure Indoor Routing Yes
