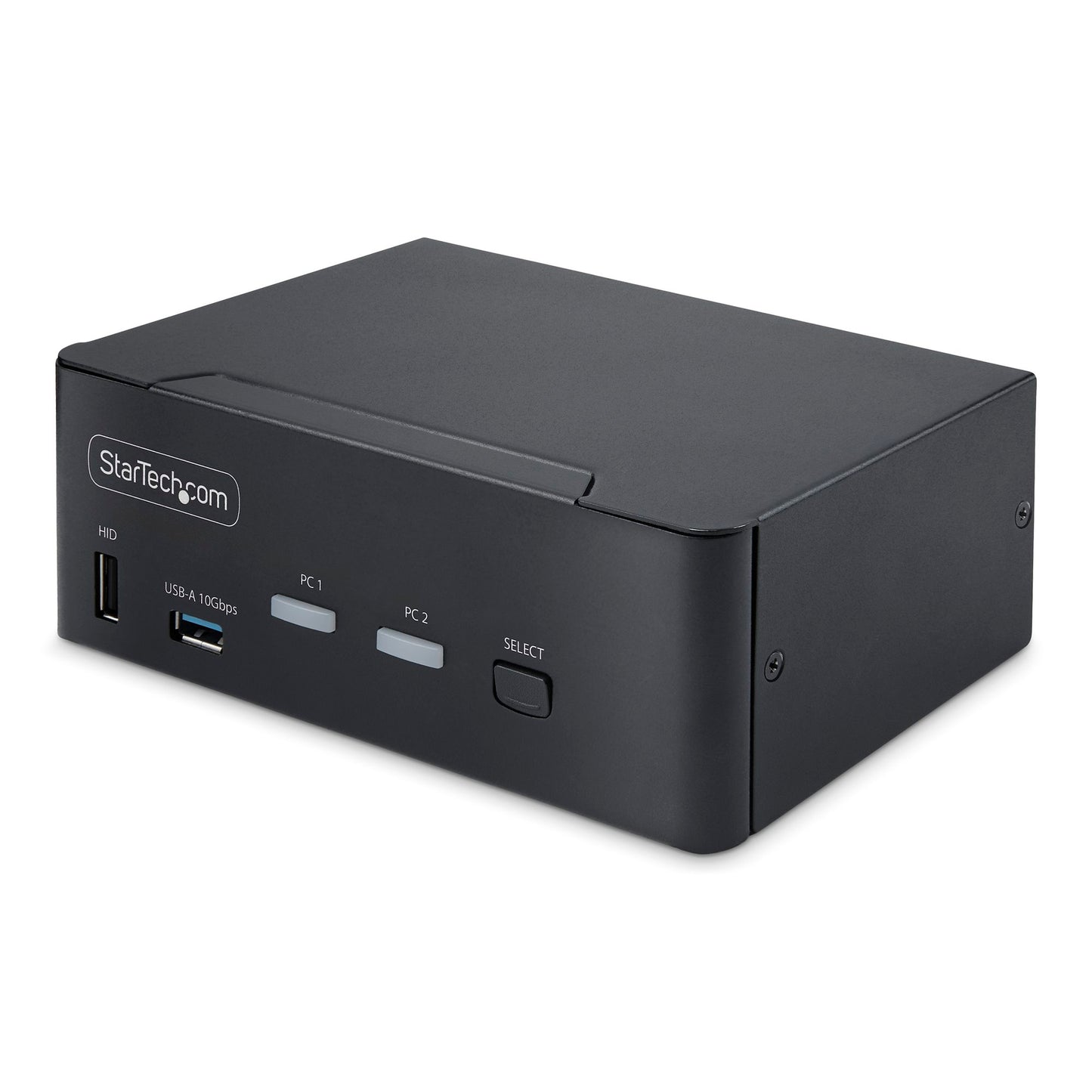

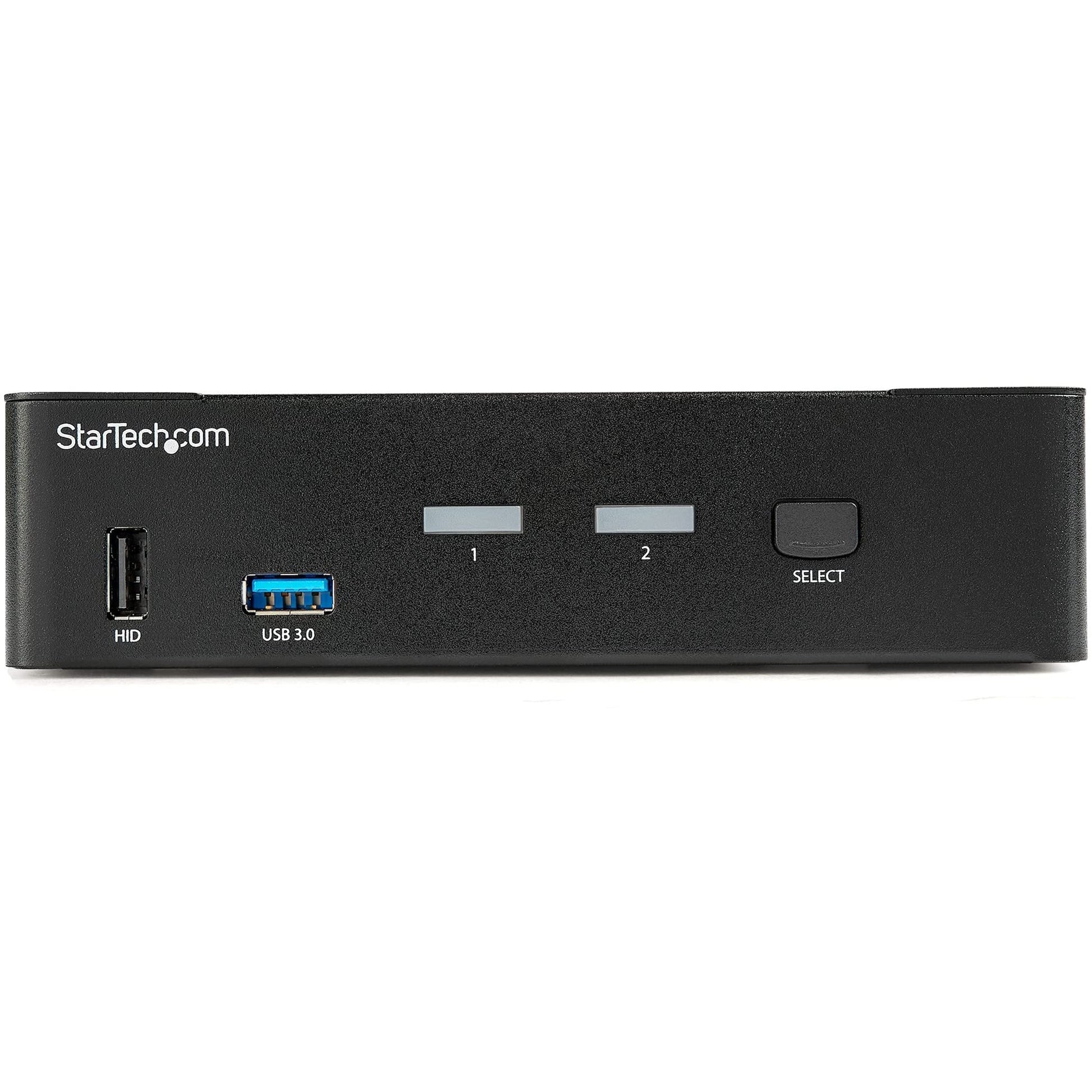

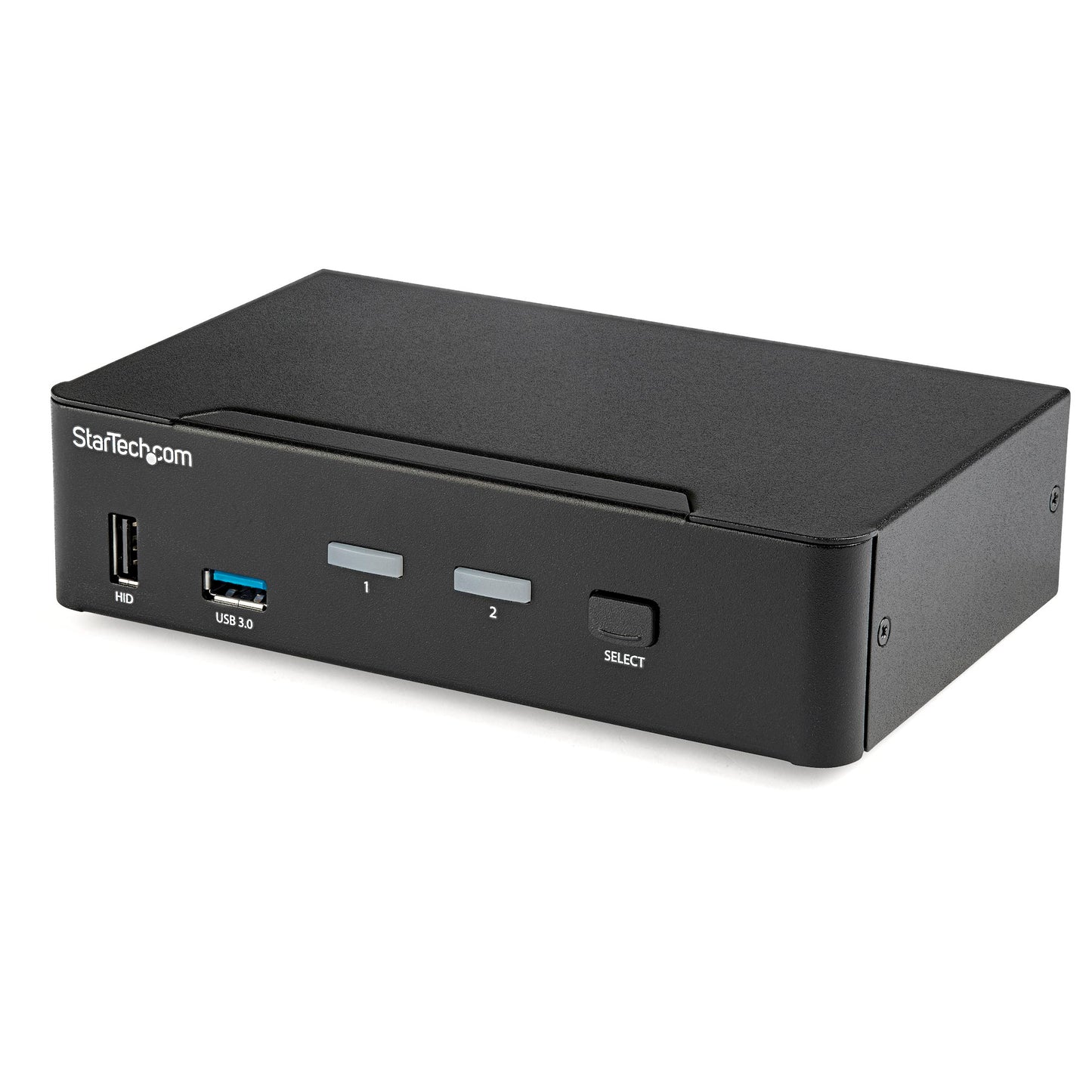

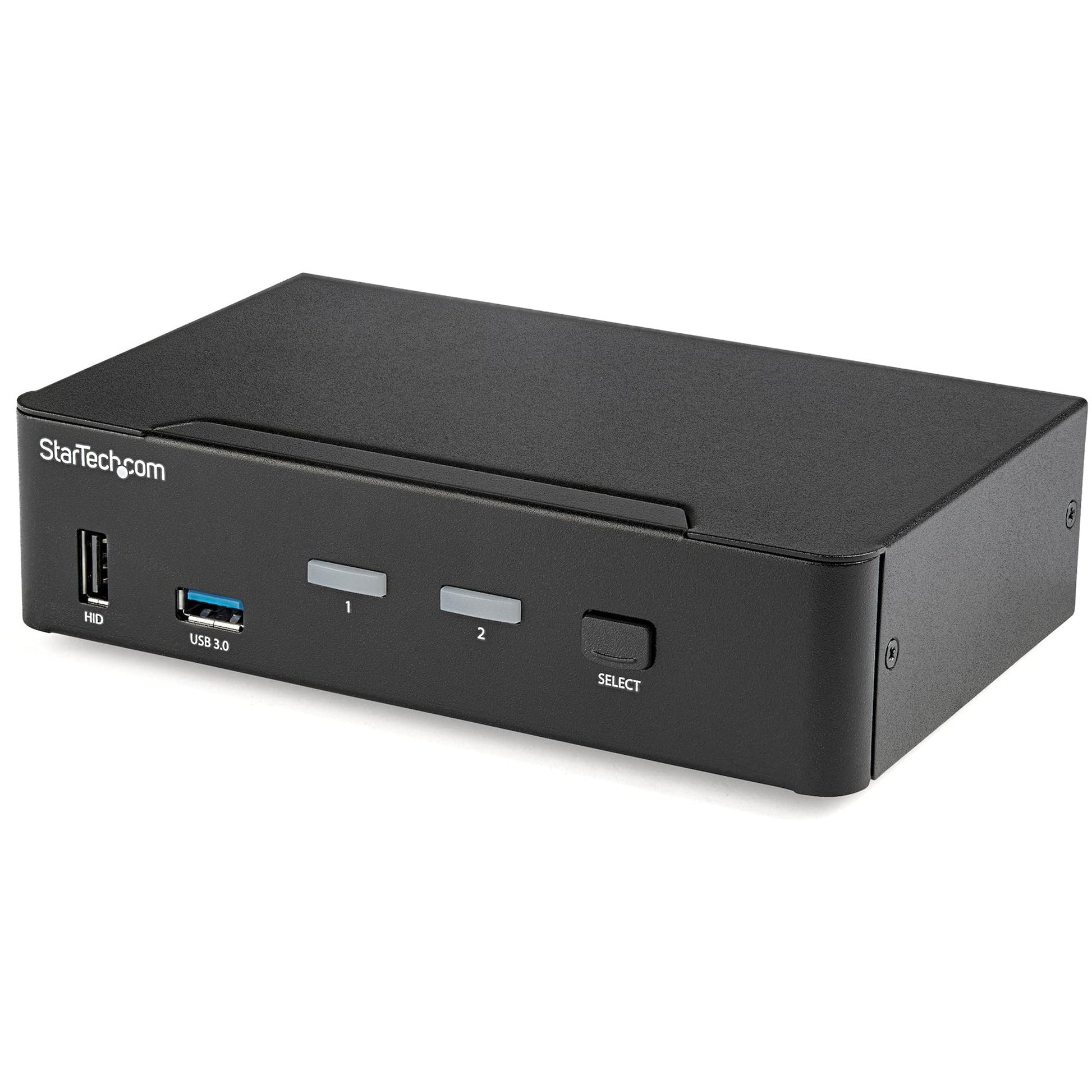

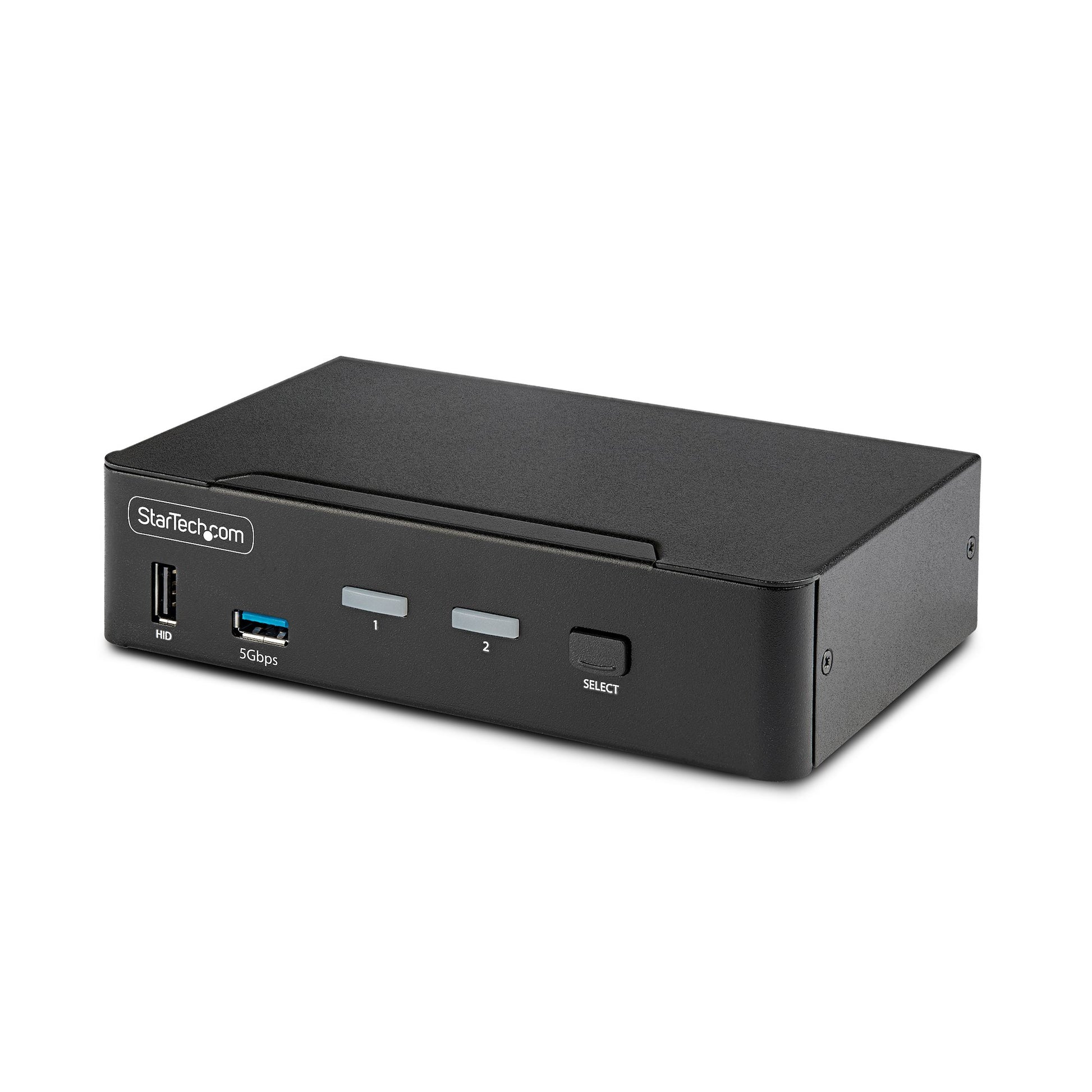

STARTECH 2-Port DisplayPort KVM Switch 4K 60Hz USB3.0 TAA Compliant

VENDOR: STARTECH Mfg Part#: SV231DPU34K UPC#: 065030880121
1 5
Photo is for illustration purposes only. Actual product may be different.
$388.99
$388.99
Sale Sold out
Shipping calculated at checkout.
  • Supports 3840 x 2160 resolution at 60Hz for ultra-HD displays
  • USB 3.0 hub with 5 Gbps data transfer rate
  • 2-port wired KVM switch with DisplayPort connectivity
  • Four USB HID interfaces for keyboard and mouse
  • MST passthrough and 3.5mm audio integration
  • Sturdy steel housing with TAA compliance and 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables efficient Dual-PC control in high-resolution environments with 4K 60Hz support
  • Includes USB 3.0 and USB HID ports to simplify peripheral sharing and save desk space
  • Meets TAA compliance and features a steel housing, ensuring government readiness and durability

Product Overview

2 Port DisplayPort KVM Switch w/USB Hub hotkey/push button switching - 3840 x 2160 60Hz - 4K UHD - HDCP 2.2 - DP 1.2 - USB 3.0 - 4x USB HID - MST Passthrough - 3.5mm Audio - Steel housing - OS Independent works w/HP Dell Lenovo - 2 year warr - TAA

Specifications

Product Overview
Product Type 2-Port DisplayPort KVM Switch
Model Number SV231DPU34K
Form Factor Desktop
Power Requirements Universal AC adapter (Input: 100-240V AC, Output: 12V DC, 1.5A)
Weight 865 g
Enclosure Material Steel
Color Black
Hotkey Support Yes
Push Button Switching Yes
Audio Support Yes, 3.5mm stereo audio
Operating System Compatibility OS Independent
HDCP Support Yes, HDCP 2.2
MST Passthrough Yes

Physical & Environmental
Width 3.9 in (100 mm)
Depth 6.3 in (160 mm)
Height 1.6 in (40 mm)
Product Weight 1.9 lb (865 g)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 0% - 80% RH, non-condensing
Storage Humidity 0% - 95% RH, non-condensing

Cloud Management & Licensing
Management Method Local only (no cloud management)
Software/Driver Requirements None - OS independent

Interfaces
Host Video Interface 2 x DisplayPort (DP 1.2)
Console Video Interface 1 x DisplayPort
USB Hub Interface 4 x USB 3.0 Type-A (2 for keyboard & mouse, 2 for HID/peripherals)
Audio Jacks 2 x 3.5mm stereo (input/output)
KVM Ports 2
Console Ports 1 x DisplayPort, 2 x USB, 2 x 3.5mm Audio
Maximum Video Resolution 3840 x 2160 @ 60Hz (4K UHD)
USB Host Connection 2 x USB Type-B
Data Transfer Rate 5 Gbps (USB 3.0)
Display Protocol DisplayPort 1.2
Number of Computers Controlled 2
Console Keyboard/Mouse Ports USB

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
Environmentally Friendly Yes

Advanced Security Features
Keyboard/Mouse Emulation Yes, active emulation to prevent sync loss
Secure Switching No – standard non-secure KVM
