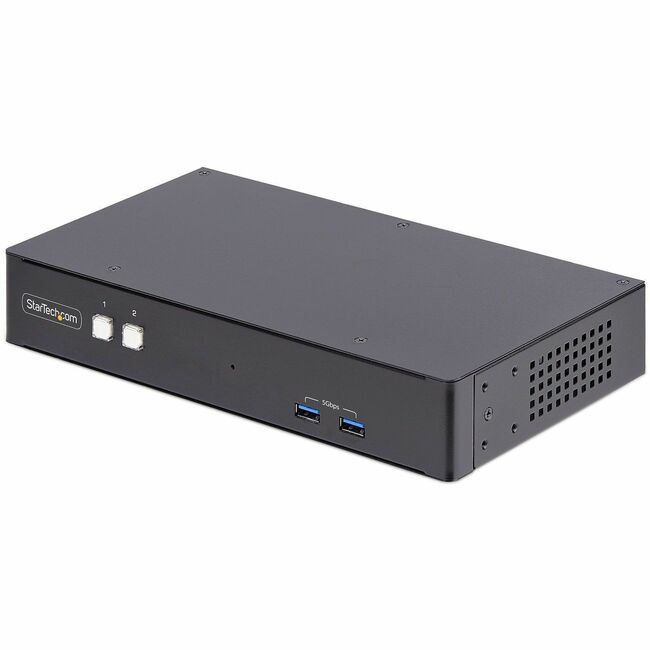

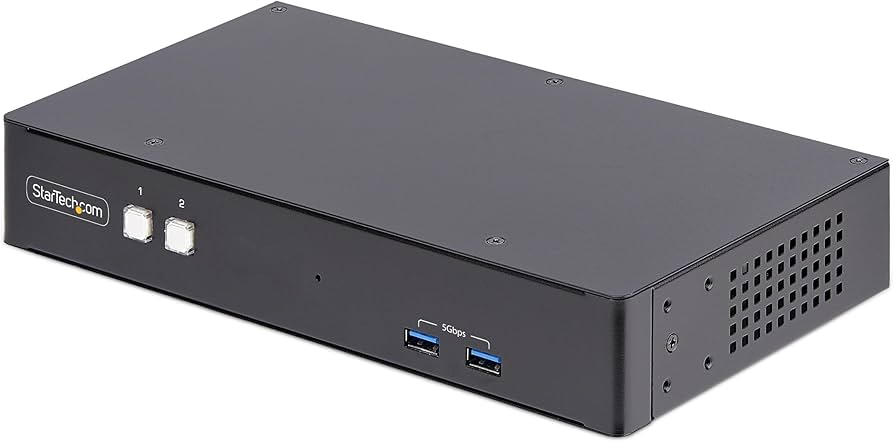

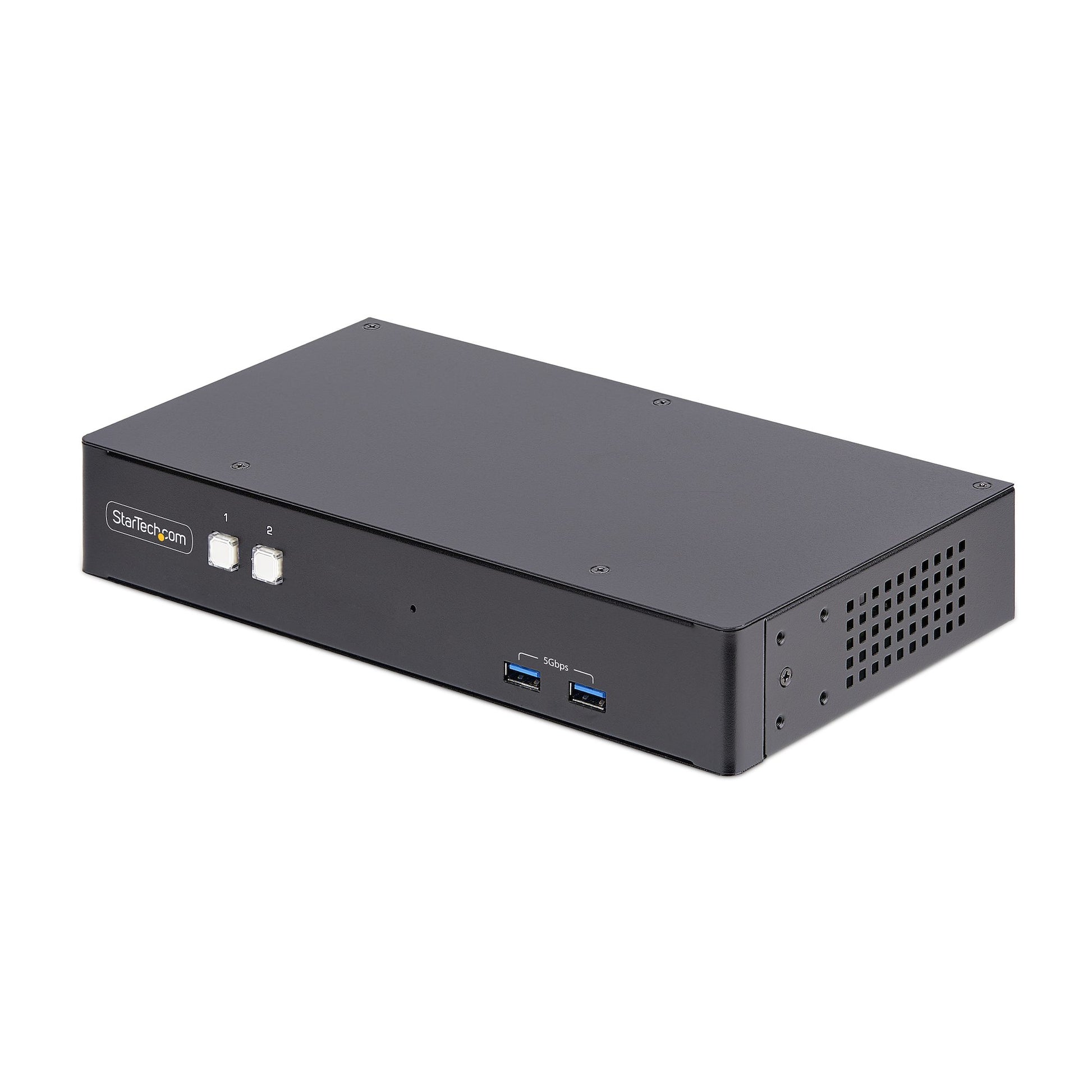

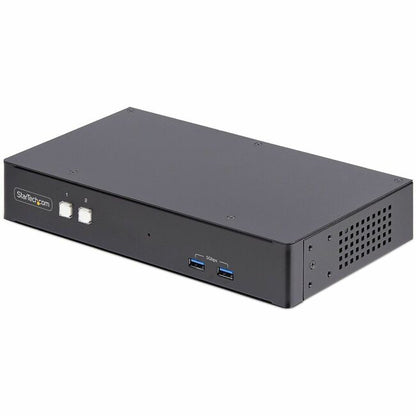

STARTECH 2-Port Dual-Monitor DisplayPort KVM Switch, 4K 60Hz, RS232, USB Hub

VENDOR: STARTECH Mfg Part#: P2DD46A22-KVM-SWITCH UPC#: 065030900485
1 5
Photo is for illustration purposes only. Actual product may be different.
$654.99
$654.99
Sale Sold out
Shipping calculated at checkout.
  • Dual-monitor DisplayPort KVM with support for 4K at 60Hz resolution
  • RS232 serial control for external KVM management and configuration
  • EDID and USB emulation for faster and consistent switching
  • Two USB 5Gbps hub ports for high-speed peripheral connectivity
  • Two USB 2.0 HID ports for keyboard and mouse input
  • TAA compliant and manufactured in Taiwan for regulated use cases

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for high-resolution workflows with dual-monitor DisplayPort and 4K60 support
  • Integrates seamlessly into secure or government environments with full TAA compliance
  • RS232 control and independent switching provide flexible automation and desktop customization

Product Overview

2-Port Dual-Monitor DisplayPort KVM Switch features RS232 control for changing settings/switching desktops; Independently switch PC/RS232/Audio; DisplayPort EDID and USB Emulation for faster switching; USB 5Gbps Ports; No Drivers or software required

Specifications

Product Overview
Product Type KVM Switch
Number of Computers Supported 2
Number of Monitors Supported 2
Supported Video Formats DisplayPort 1.2 with Multi-Stream Transport (MST)
Maximum Resolution 3840x2160 (4K) at 60Hz
Power Requirements 12V DC, 1.5A (included power adapter)
Form Factor Desktop
Weight 960 g

Physical & Environmental
Product Dimensions (W x D x H) 191 x 130 x 57 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 0% to 80% RH (non-condensing)
Color Black
Enclosure Type Steel

Cloud Management & Licensing
Software Required No
Drivers Required No
Cloud Management Support No

Interfaces
Computer Port Type DisplayPort, USB Type-B, 3.5mm Audio
Console Port Type DisplayPort, USB Type-A, 3.5mm Audio
Number of USB Hub Ports 2 x USB 3.0 Type-A (5 Gbps)
USB HID Ports 2 x USB 2.0 Type-A
Serial Interface 1 x RS-232 DB9
Audio Ports 3.5 mm Stereo Speaker and Microphone jacks
DisplayPort Version 1.2
Hotkey Switching Support Yes
Push Button Switching Yes
RS-232 Serial Switching Yes
Display EDID Emulation Yes
USB Emulation Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
FCC Compliant Yes
CE Certified Yes

Advanced Security Features
OSD Menu No
Secure Keyboard/Mouse Emulation Yes
