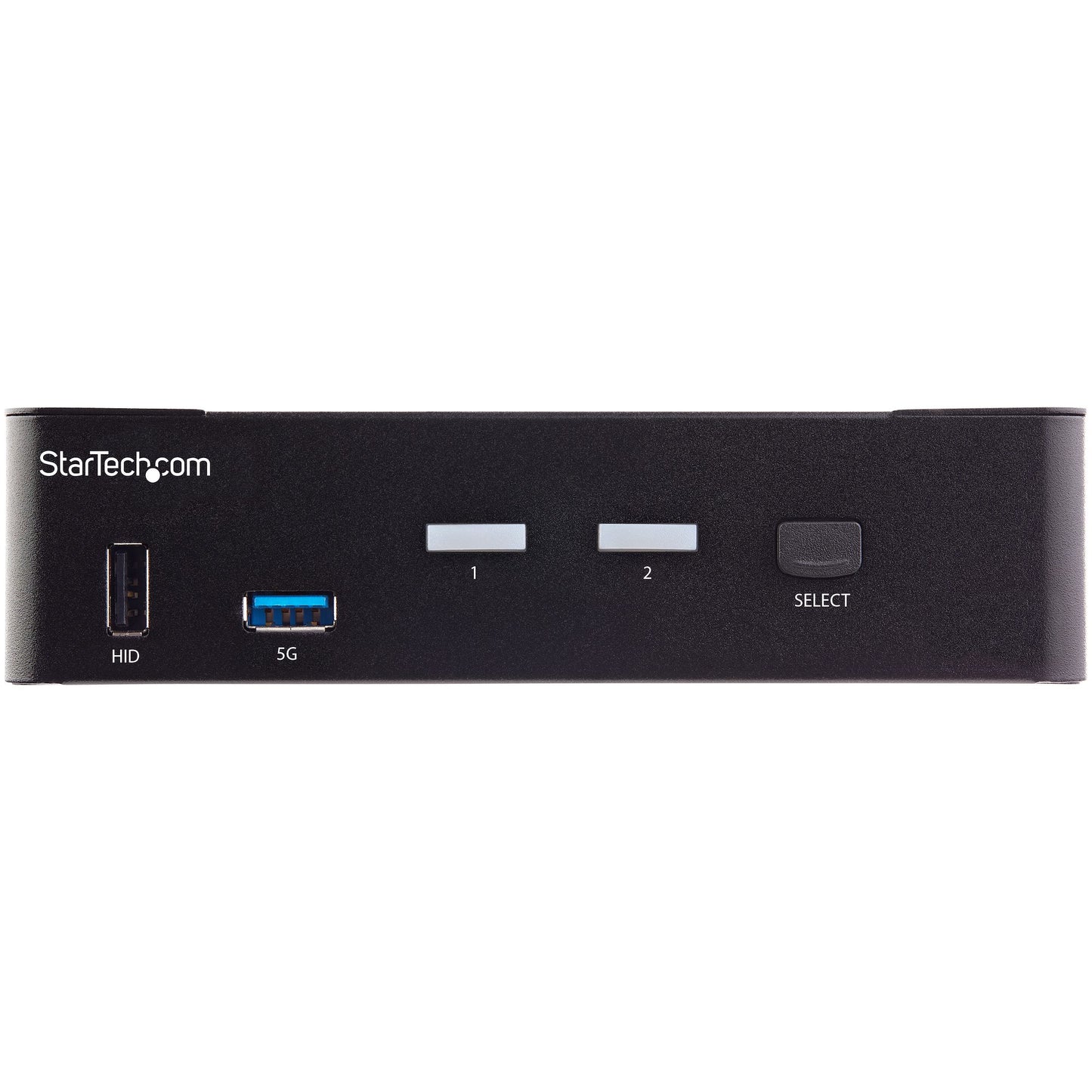

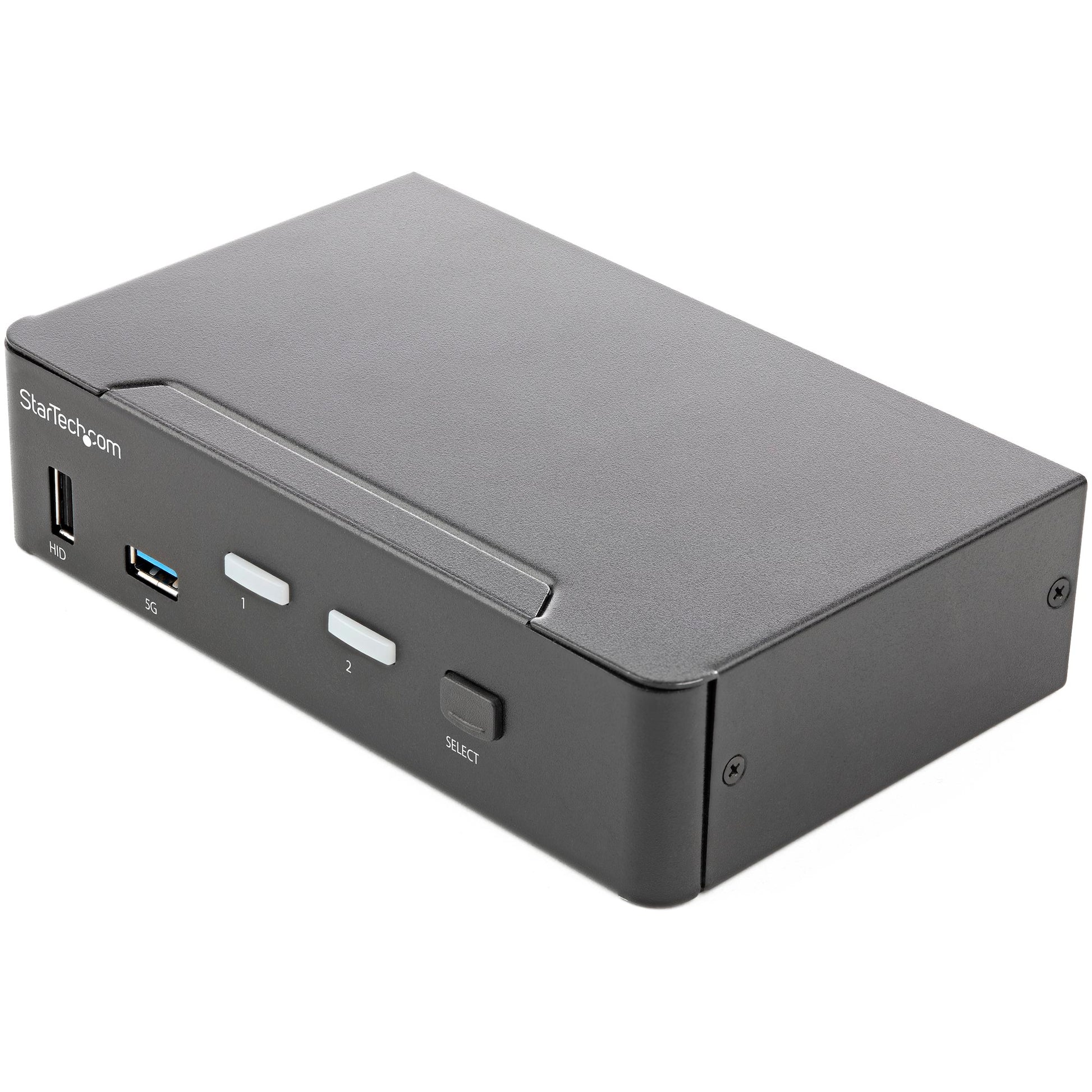

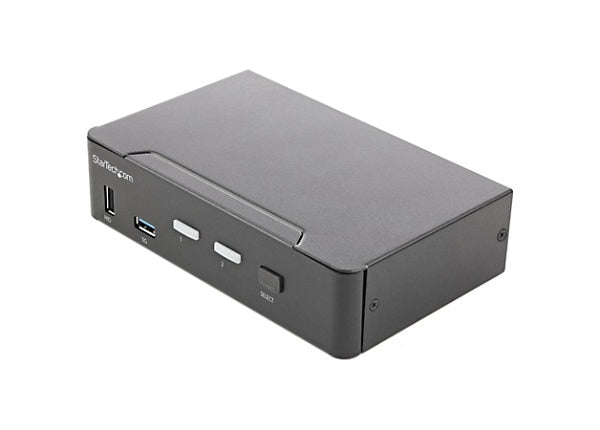

StarTech 2-Port HDMI KVM Switch with USB Hub, 4K 60Hz SV231HU34K6

VENDOR: STARTECH Mfg Part#: SV231HU34K6 UPC#: 065030882002
1 5
Photo is for illustration purposes only. Actual product may be different.
$317.99
$317.99
Sale Sold out
Shipping calculated at checkout.
  • Supports Ultra HD 4K resolution at 60Hz (3840 x 2160)
  • Built-in 2-port USB 3.0 hub with 5Gbps data transfer rate
  • EDID and HDCP emulation for uninterrupted switching
  • Hotkey and push button control for system access
  • Supports 2-channel and 7.1-channel audio output
  • TAA compliant and OS independent design

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers superior video fidelity with 4K 60Hz HDR10 and HDCP 2.2 support, ideal for high-resolution workspaces
  • Integrated USB 3.0 hub offers efficient connectivity for high-speed peripherals
  • TAA compliance and 2-year warranty make it a robust option for government and enterprise deployments

Product Overview

2 Port HDMI KVM Switch with 2 Port USB 3.0 Hub 5Gbps - Hotkey/Push Button - Ultra HD 4K 60Hz HDR10 HDMI 2.0 (3840x2160) - HDCP 2.2 - EDID, HDCP Emulation - Front Facing USB 3.0 Port - 4x USB HID - 2 or 7.1ch Audio - OS Independent - 2 Year Warr - TAA

Specifications

Product Overview
Product Type 2-Port HDMI KVM Switch
Form Factor Desktop
Product Model SV231HU34K6
Color Black
Weight 0.8 kg
Power Adapter Input AC 100-240V
Power Adapter Output DC 12V 1.5A
Power Consumption 9W (Max)
Included Accessories Universal Power Adapter, Quick Start Guide, Rubber Feet
Warranty 2 Years

Physical & Environmental
Width 3.9 in (100 mm)
Depth 6.3 in (160 mm)
Height 1.6 in (40 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 0% - 80% RH, non-condensing
Enclosure Materials Steel

Cloud Management & Licensing
Software Independent Yes
OS Compatibility OS Independent (Windows, macOS, Linux)

Interfaces

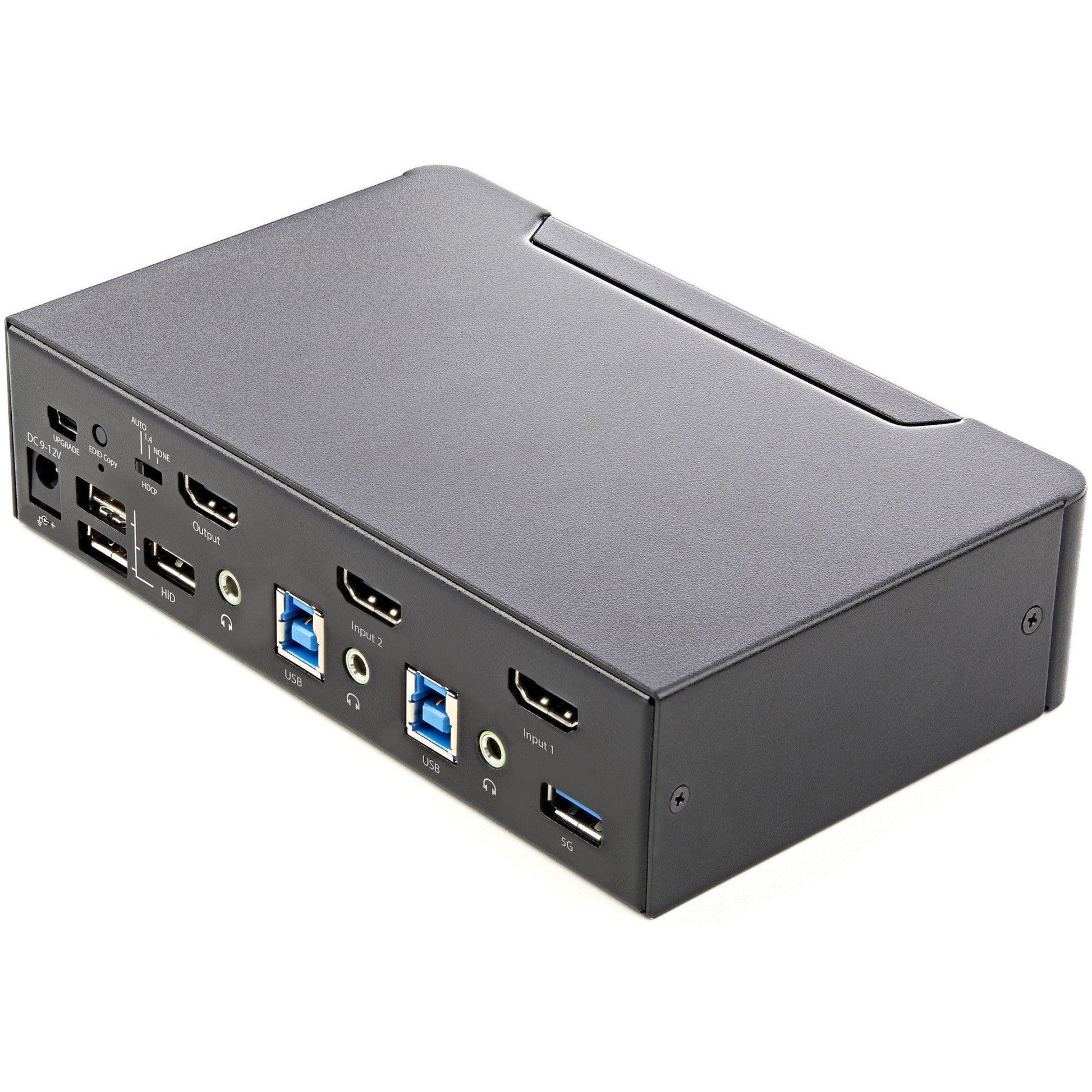

Host Video Input Ports 2 x HDMI 2.0
Host USB Input Ports 2 x USB Type-B
Console Video Output 1 x HDMI 2.0
Console USB Output 2 x USB Type-A (Keyboard/Mouse), 2 x USB 3.0 Type-A
Audio Output 1 x 3.5mm Stereo Audio Jack
Audio Input 2 x 3.5mm Audio Jacks (per PC)
Hotkey Switching Yes
Push Button Switching Yes
USB Hub 2-Port USB 3.0 Hub (shared)
USB HID Interface 4 Ports (Keyboard & Mouse emulation)
Video Bandwidth 18 Gbps
Maximum Video Resolution 3840 x 2160 @ 60Hz
HDMI Version 2.0
HDCP Support HDCP 2.2
EDID Support Yes (Emulation)

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Certifications FCC, CE, RoHS, REACH

Advanced Security Features
Keyboard/Mouse Emulation Yes
Secure Switching No (Non-secure KVM)
