| Type | 2-Port Quad Monitor DisplayPort KVM Switch |
| Model | SV231QDPU34K |
| Form Factor | Desktop |
| Enclosure Color | Black |
| Weight | 1.57 lb (0.71 kg) |
| Power Requirements | 12V DC, 3A |
| Included Accessories | 1 x KVM switch, 1 x universal power adapter (NA/EU/UK/AU), 1 x quick-start guide |
| Warranty | 2 Years |
| Hotkey Support | Yes |
| Push Button Selection | Yes |

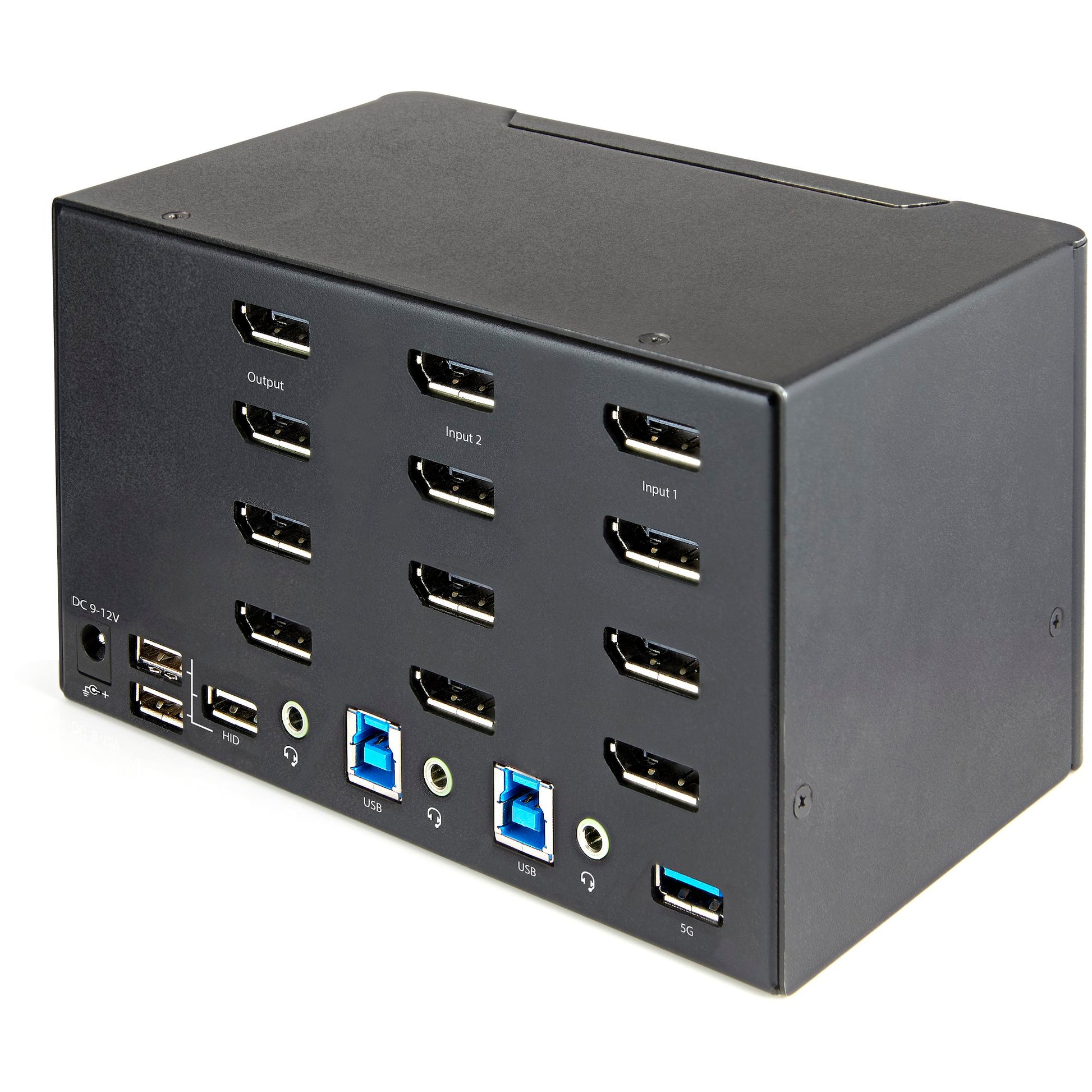

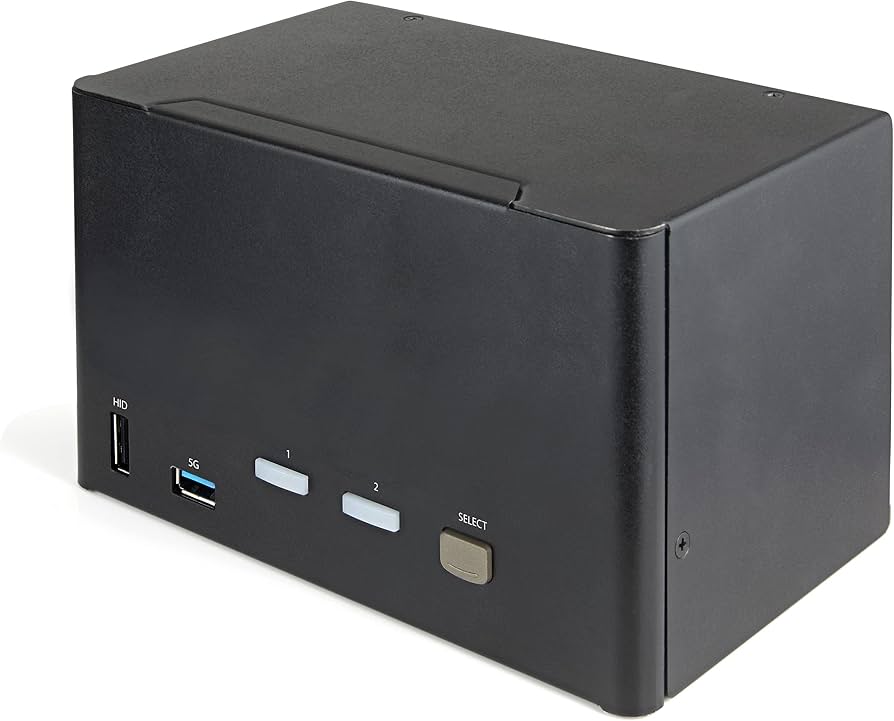

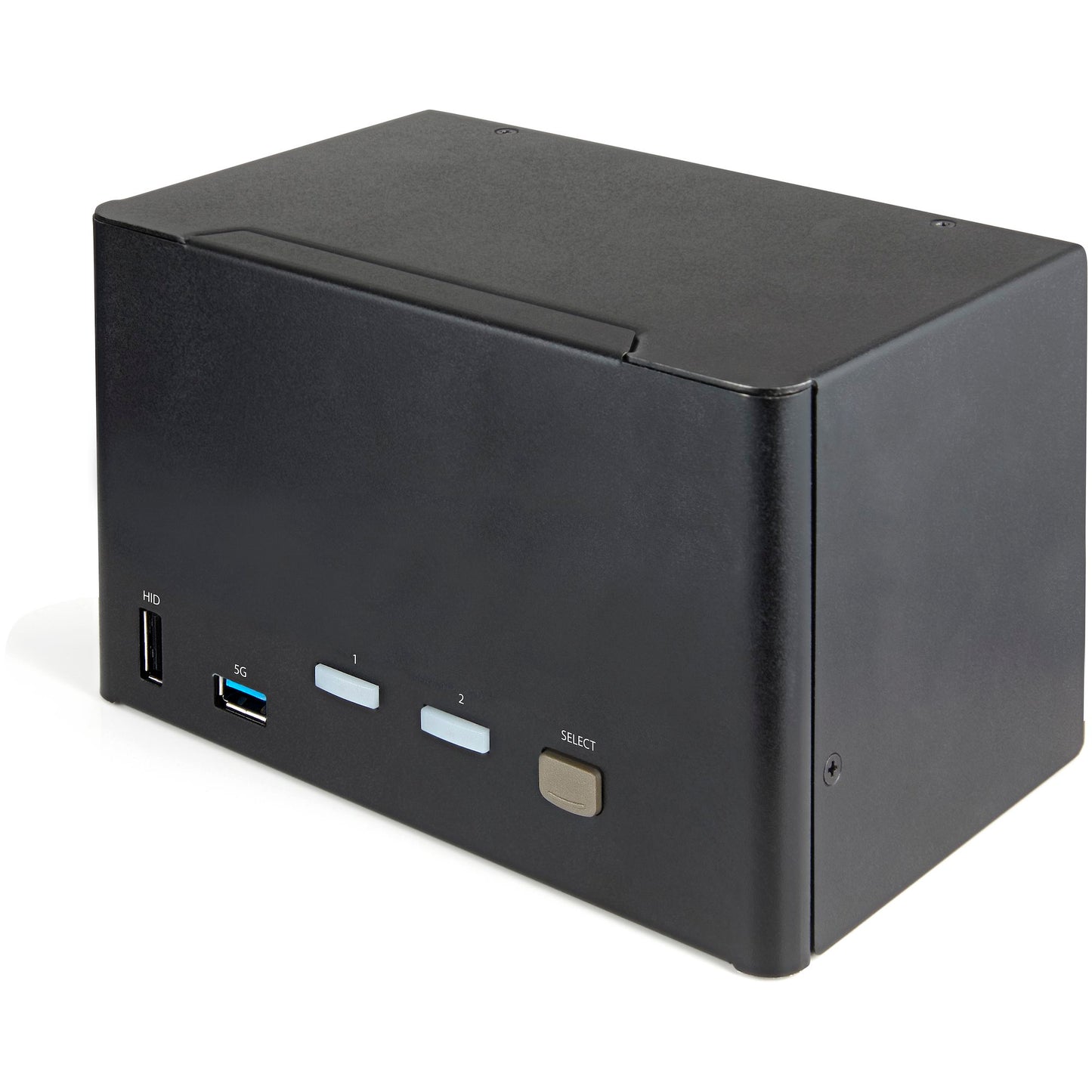

STARTECH 2-Port Quad Monitor DisplayPort KVM Switch, SV231QDPU34K
Photo is for illustration purposes only. Actual product may be different.
Regular price
$608.99
Regular price
Sale price
$608.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 2-Port KVM switch supporting four DisplayPort 1.2 monitors per system at 3840x2160 60Hz
- Integrated USB 3.0 hub with 5 Gbps transfer rate and front-accessible USB port
- Supports multi-channel 2 or 7.1 audio switching
- Wired connectivity with hotkey and push-button control options
- HDCP 2.2 and HDR10 compliant for high-quality content delivery
- TAA compliant device with 2-year manufacturer support
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers seamless quad-display control and USB 3.0 peripheral sharing for improved workstation efficiency
- Supports 4K UHD resolution with HDR10 and HDCP 2.2, ensuring top-tier visual fidelity for demanding applications
- TAA compliance and 2-year warranty provide trusted performance in government and enterprise installations
Product Overview
2 Port Quad Monitor DisplayPort KVM Switch with 2 Port USB 3.0 Hub 5Gbps - Hotkey/push button - Quad UHD 4K 60Hz HDR10 DP 1.2 (3840x2160) - HDCP 2.2 - Front facing USB 3.0 Port, 4x USB HID - 2 or 7.1ch Audio - OS Independent - 2 Year Warranty - TAASpecifications
Product Overview
Physical & Environmental
| Width | 3.9 in (100 mm) |
| Depth | 6.3 in (160 mm) |
| Height | 3.6 in (91 mm) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity (Operating) | 20% to 80% RH (non-condensing) |
| Housing Material | Steel |
Cloud Management & Licensing
| OS Compatibility | OS Independent; compatible with Windows, macOS, Linux |
| Software/Drivers Required | No |

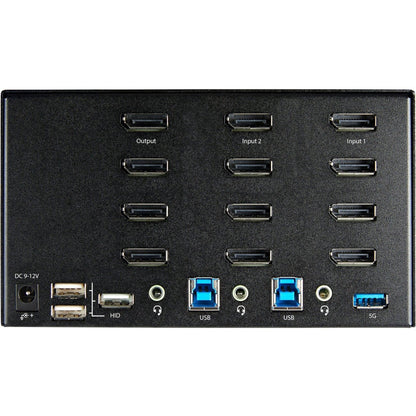

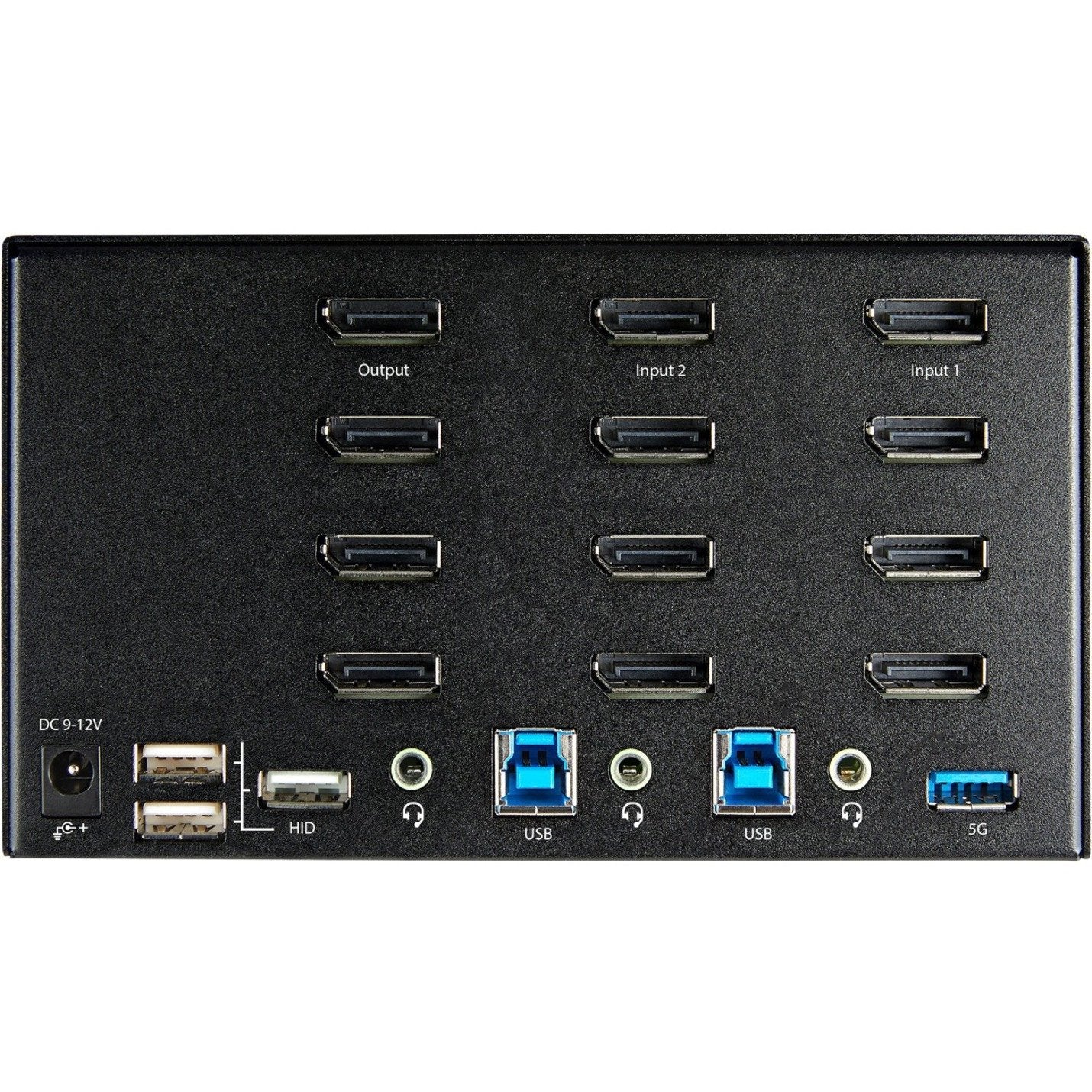

Interfaces
| Console Video Ports | 4 x DisplayPort (female) |
| Computer Video Ports | 8 x DisplayPort (female) |
| Console USB Ports | 2 x USB 3.0 Type-A (front), 4 x USB HID (rear) |
| Computer USB Ports | 4 x USB Type-B |
| Audio Ports | 4 x 3.5mm audio (2x line out, 2x mic in) |
| USB Hub | 2-Port USB 3.0 Hub (5Gbps) |
| Max Digital Resolution | 3840 x 2160 @ 60Hz (4K) on each display |
| HDCP Support | Yes, HDCP 2.2 |
| DisplayPort Version | 1.2 |
| Audio Support | 2 or 7.1 channel audio |
| Number of Computers Supported | 2 |
| Number of Monitors Supported per Computer | 4 |
| Number of USB Peripherals Supported | Up to 6 total |
| Data Transfer Rate | 5 Gbps (USB 3.0) |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | CE, FCC, RoHS, REACH |
Advanced Security Features
| USB Port Isolation | Supports USB HID only on dedicated ports to prevent unauthorized data access |
| EDID Preservation | Yes, active EDID emulation for each DisplayPort channel |
