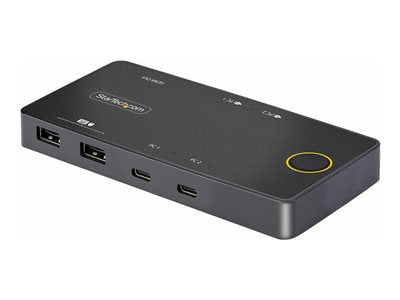

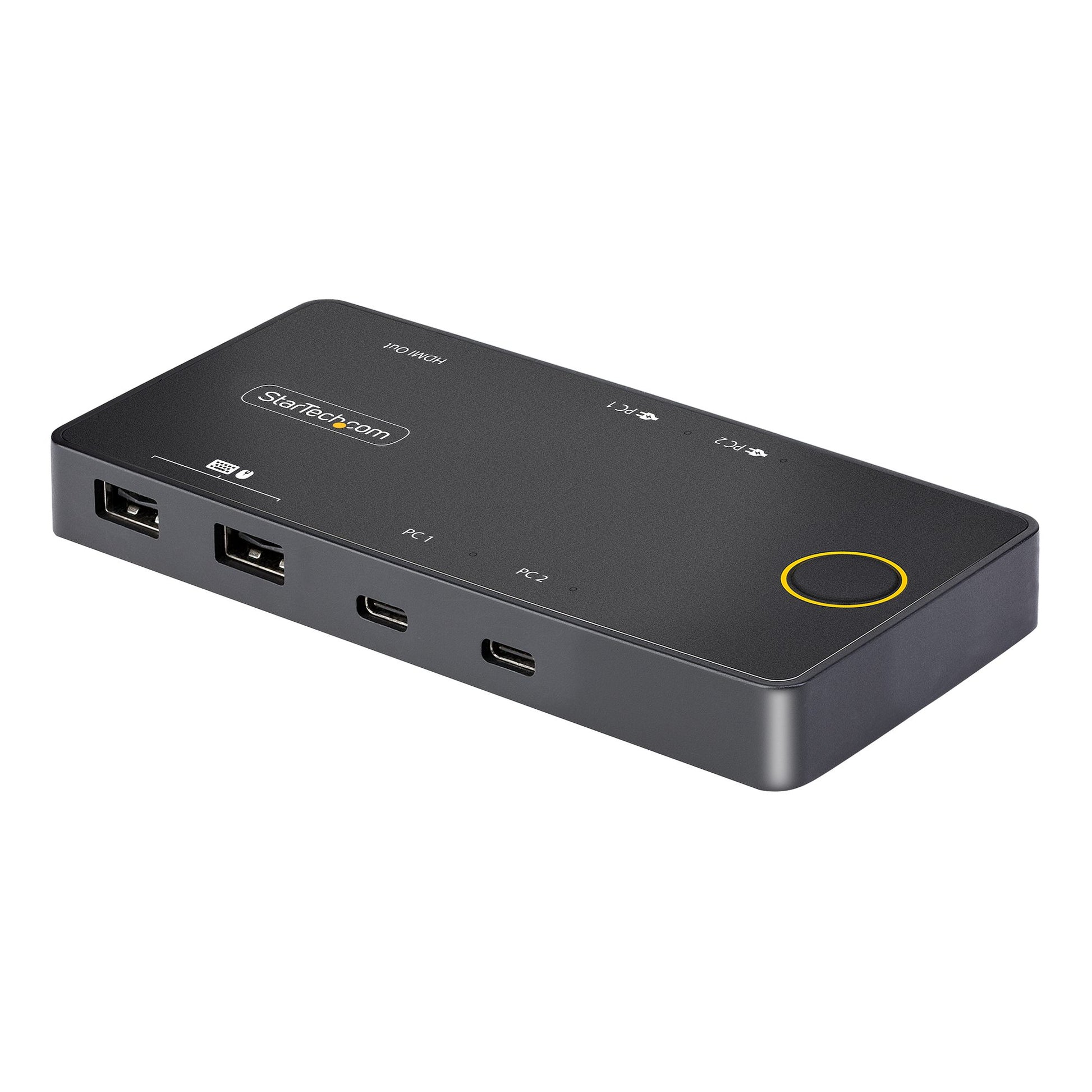

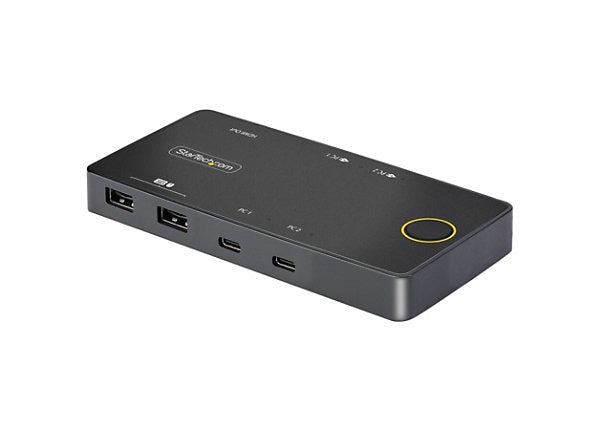

StarTech 2-Port USB-C KVM Switch with 4K HDMI and Dual 100W PD

VENDOR: STARTECH Mfg Part#: C2-H46-UC2-PD-KVM UPC#: 065030897648
1 5
Photo is for illustration purposes only. Actual product may be different.
$202.10
$202.10
Sale Sold out
MSRP: $203.99
Shipping calculated at checkout.
  • Supports switching between two USB-C enabled laptops with DP Alt Mode
  • Single 4K 60Hz HDMI monitor output for high-resolution display needs
  • Dual Power Delivery passthrough ports; supports up to 90W charging per host
  • Fully bus powered; no external power supply required
  • Compatible with USB-C, USB4, and Thunderbolt 3/4
  • TAA compliant, suitable for government and regulated environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables efficient multi-device workflows by sharing a single display and peripherals between two laptops
  • Reduces cable clutter and enhances mobility with a bus-powered, plug-and-play design
  • Supports up to 90W charging for each host, minimizing downtime and maintaining device readiness

Product Overview

2-PORT USB-C KVM SWITCH ENABLES SWITCHING OF A MOUSE, KEYBOARD, AND 4K 60HZ HDMI DISPLAY BETWEEN TWO USB TYPE-C DP ALT MODE ENABLED LAPTOPS; DUAL PD PASSTHROUGH PORTS ALLOW 90W CHARGING FOR EACH HOST AT THE SAME TIME; BUS POWERED; OS INDEPENDENT

Specifications

Product Overview
Product Type 2-Port USB-C KVM Switch
Form Factor Desktop
Power Requirements Bus-powered via USB-C
Supported Resolutions Up to 3840 x 2160 @ 60Hz (4K60)
Power Delivery Up to 100W per USB-C host port (90W output)
OS Compatibility OS Independent – No driver or software required
Number of Computers Supported 2
Number of Monitors Supported 1
Max Digital Resolution 3840 x 2160 (4K) @ 60Hz

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications FCC, CE
Warranty 2 Years

Advanced Security Features
Data Isolation Yes, USB data is routed per switched input
Hotkey Support No
Auto-scan Function No
Security Compliance Meets USB device security best practices

Interfaces
Host Interface USB-C (with DP Alt Mode)
Video Output 1 x HDMI 2.0
USB Ports 2 x USB-C host ports, 2 x USB-A for peripheral sharing
Port Selection Push-button
Data Transfer Rate Up to 5Gbps (USB 3.2 Gen 1)
Peripheral Ports 2 x USB-A (shared keyboard and mouse)
Console Ports 1 x HDMI, 2 x USB-A

Physical & Environmental
Color Black
Enclosure Type Metal and plastic
Product Dimensions 9.0 x 5.9 x 2.4 in (229 x 150 x 60 mm)
Weight 1.4 lb (640 g)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 0% – 80% RH, non-condensing

Cloud Management & Licensing
Management Interface User-side push-button switch
Cloud Management
Licensing Requirement No licensing required
