STARTECH 4 Bay Thunderbolt 3 NVMe Enclosure, M2E4BTB3

VENDOR: STARTECH Mfg Part#: M2E4BTB3 UPC#: 065030886406
1 5
Photo is for illustration purposes only. Actual product may be different.
$423.99
$423.99
Sale Sold out
Shipping calculated at checkout.

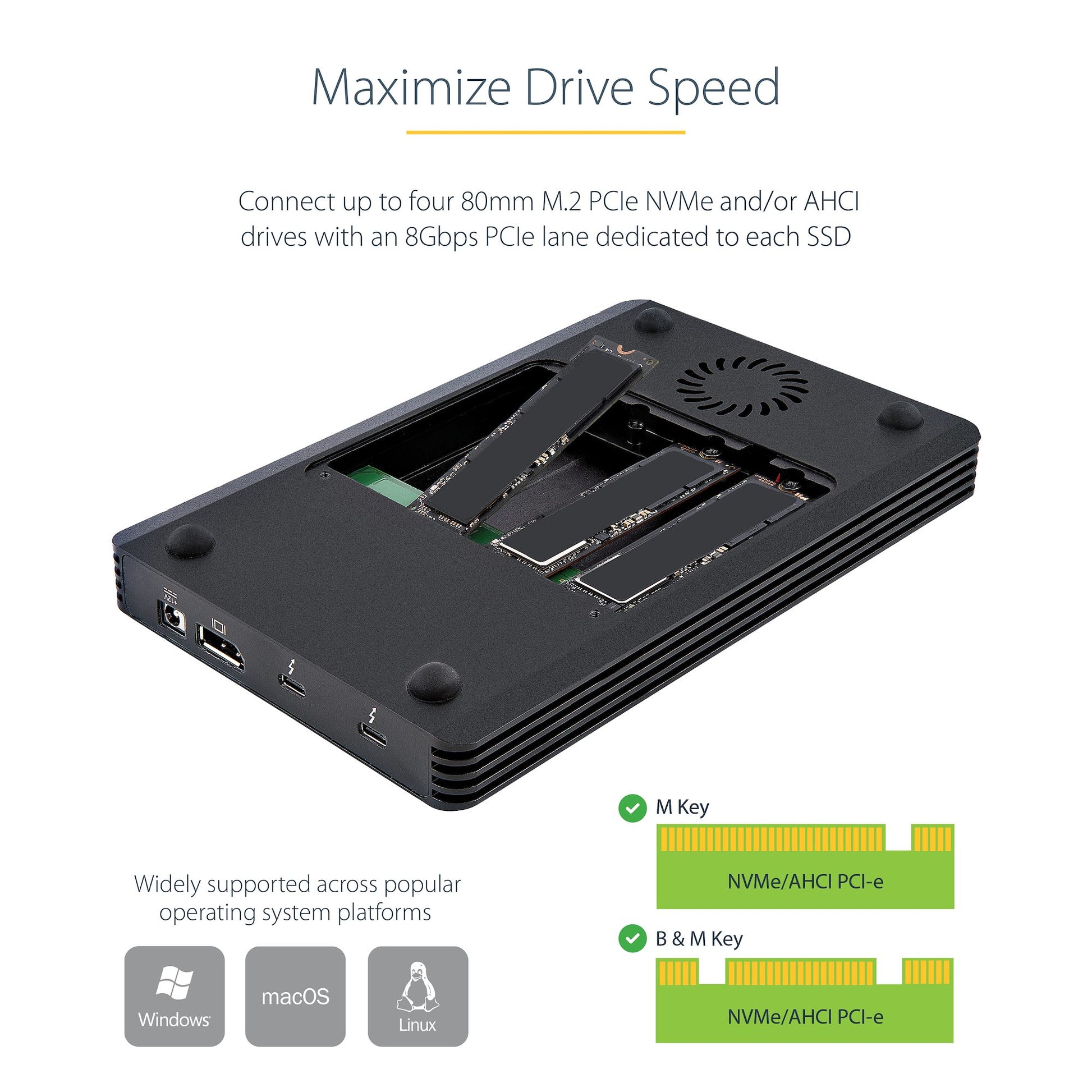

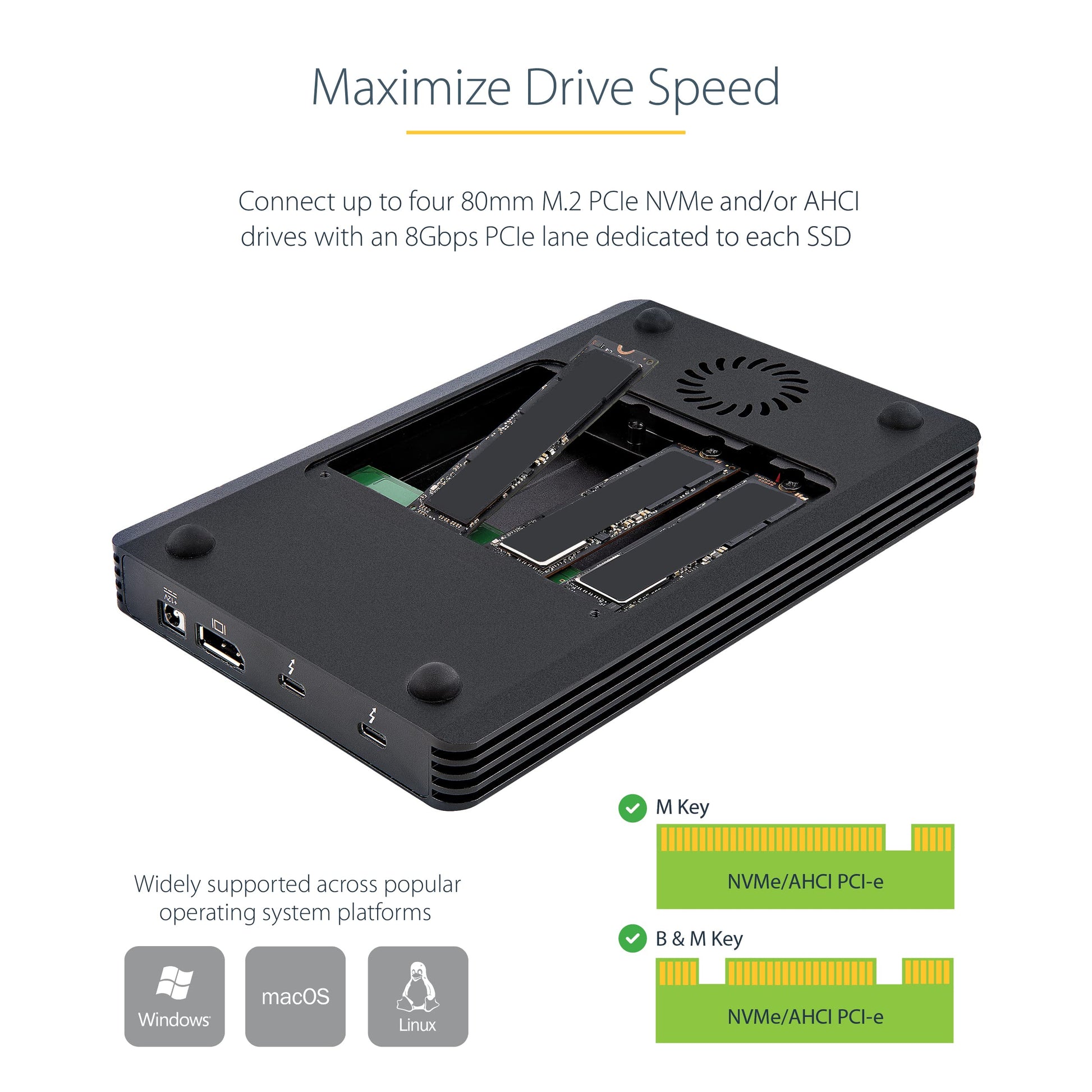

  • Supports up to four 80mm PCIe M.2 M-Key SSDs (NVMe or AHCI)
  • Thunderbolt 3 certified interface with up to 40Gbps data transfer rate

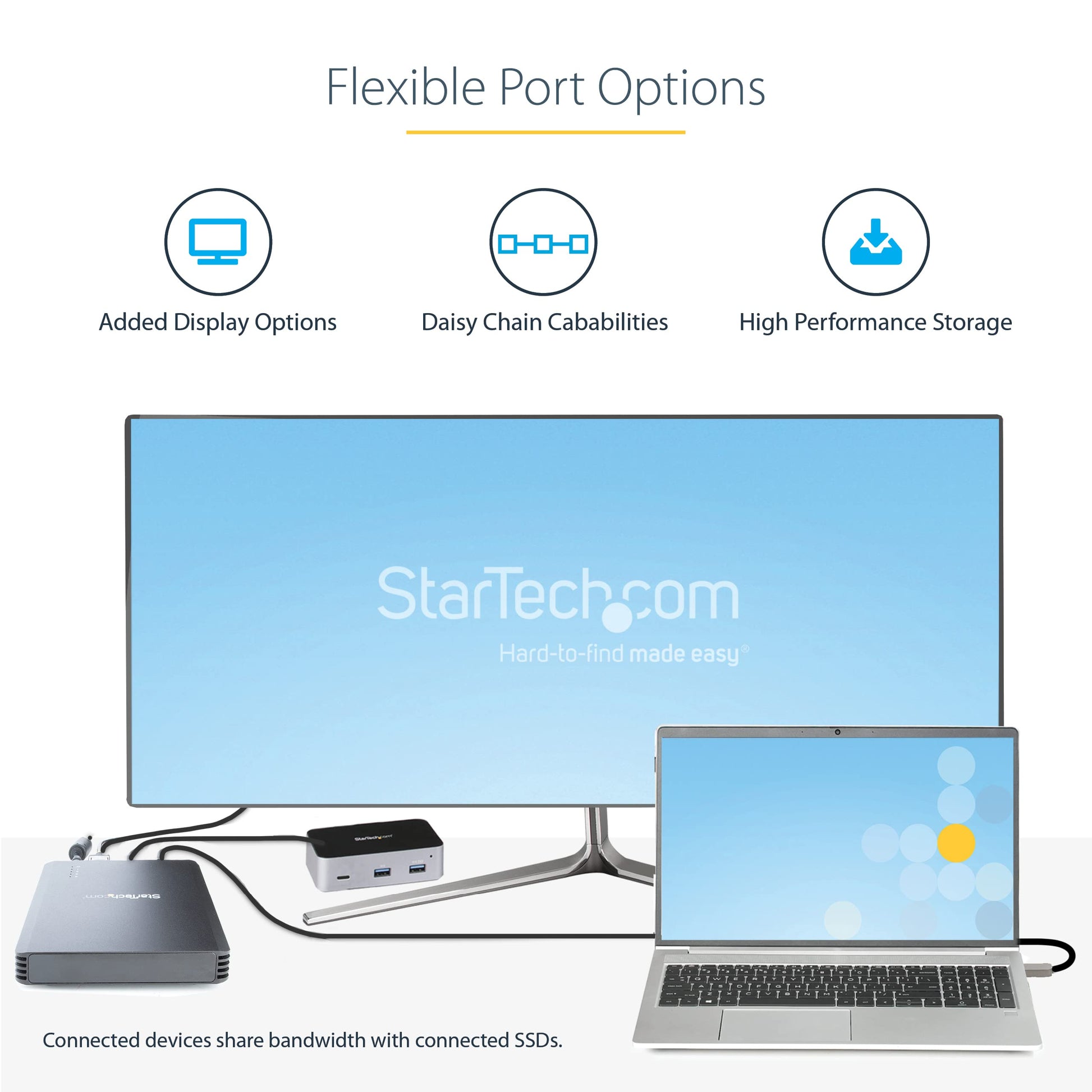

  • Includes downstream Thunderbolt 3 port and DisplayPort (supports 4K at 60Hz)
  • 72W EPS power supply for stable, high-performance operations
  • Compact black enclosure: 6.3" width x 4.7" depth x 0.8" height
  • TAA compliant; includes 2-year warranty for enterprise/government use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers industry-leading 40Gbps transfer speeds via Thunderbolt 3—ideal for demanding workloads like 4K video editing or data rendering.
  • Supports high-density storage configurations with up to four M.2 SSDs in one compact enclosure, boosting storage scalability and flexibility.
  • Meets government and enterprise procurement standards with TAA compliance and a robust 2-year warranty, reducing operational risk.

Product Overview

4 x 80mm PCIe M.2 M-Key NVMe and/or AHCI SSD to Thunderbolt 3 enclosure - Data transfer speeds up to 40Gbps - Downstream TB3 port - DisplayPort output w esolutions up to 4K 60Hz - Thunderbolt 3 Certified - 72W EPS power supply - 3.3ft TB3 cable

Specifications

Product Overview
Product Type External NVMe SSD Enclosure
Enclosure Type 4-Bay Thunderbolt 3 NVMe Enclosure
Form Factor Desktop
Drive Compatibility PCIe M.2 NVMe and/or AHCI SSDs
Drive Size Supported M.2 2230, 2242, 2260, 2280
Chipset ID Intel DSL6540 + ASMedia ASM2824
Number of Drives Supported 4
Number of Drives Installed 0 (User-supplied)
Weight 1150 g
Power Input External AC Adapter (72W EPS Power Supply)
Cable Type Thunderbolt 3 (included, 0.8m / 2.6 ft)
Cooling System Active Cooling - Integrated Fan

Physical & Environmental
Color Black
Width 160 mm (6.3 in)
Depth 120 mm (4.7 in)
Height 20 mm (0.8 in)
Material Aluminum and Plastic
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 65°C (14°F to 149°F)
Humidity 10% to 90% RH (non-condensing)

Cloud Management & Licensing
Cloud Managed

Interfaces
Host Interface Thunderbolt 3 (USB-C)
Data Transfer Rate 40Gbps (Thunderbolt 3)
Port Configuration 1 x Upstream TB3, 1 x Downstream TB3, 1 x DisplayPort
Number of Thunderbolt 3 Ports 2
DisplayPort Version DisplayPort 1.2
Maximum Display Resolution 4K @ 60Hz
Drive Interface PCIe 3.0 x2/x4 NVMe or AHCI
UASP Support No - Native NVMe protocol

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC, Thunderbolt 3 Certified
Warranty 2 Years

Advanced Security Features
Hardware Encryption No
Drive Locking Mechanism Tool-less Access with Tray Locking
Security Slot Kensington Security Slot (K-Slot)
