StarTech 4-Port Dual DisplayPort KVM Switch 4K60 - SV431DPDDUA2

VENDOR: STARTECH Mfg Part#: SV431DPDDUA2 UPC#: 065030867863
1 5
Photo is for illustration purposes only. Actual product may be different.
$750.99
$750.99
Sale Sold out
Shipping calculated at checkout.
  • Supports up to 4 computers with a single set of peripherals
  • Dual DisplayPort video outputs with 4K resolution at 60Hz (3840 x 2160)
  • 500 Mbps data transfer rate for smooth performance
  • TAA compliant, ideal for government and enterprise applications

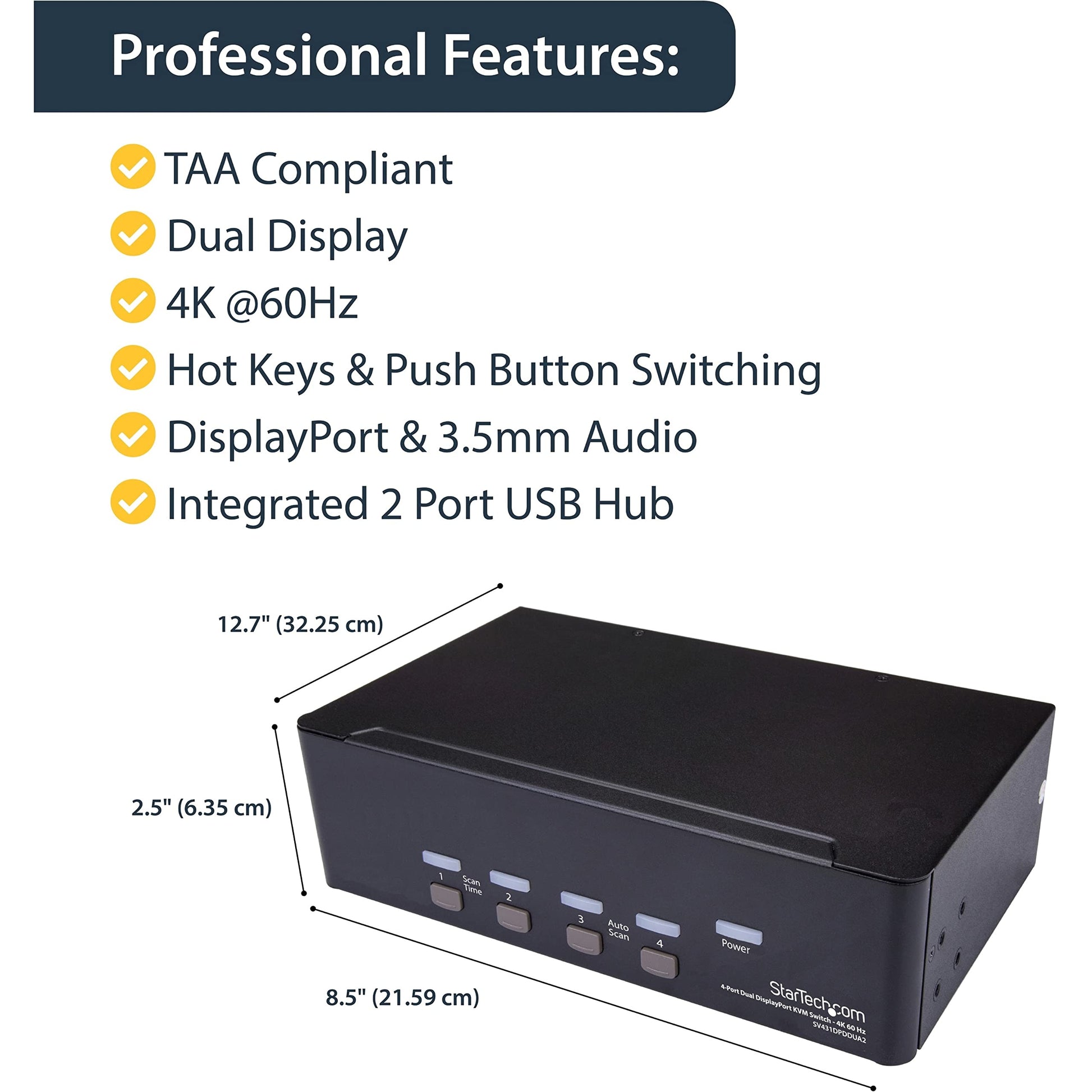

  • Compact form factor: 8.5” W x 5” D x 2.5” H
  • Includes 2-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports dual 4K 60Hz displays, making it ideal for high-resolution workflows like CAD, video editing, and broadcasting.
  • TAA compliance and Taiwan origin make it suitable for secure government or controlled procurement environments.
  • Wired connectivity and robust data throughput ensure reliable switching across four connected systems without latency.

Product Overview

This 4 port Dual DisplayPort KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC or MAC computers - 4 port KVM / Desktop KVM switch / DisplayPort KVM / DisplayPort KVM switch / Dual DisplayPort KVM switch

Specifications

Product Overview
Manufacturer StarTech
Product Name 4-Port Dual DisplayPort KVM Switch 4K60
Model SV431DPDDUA2
Device Type KVM Switch
Form Factor Desktop
Enclosure Color Black
Power Requirements 12V DC, 2A (included power adapter)
Power Consumption (Operating) 9W (typical)

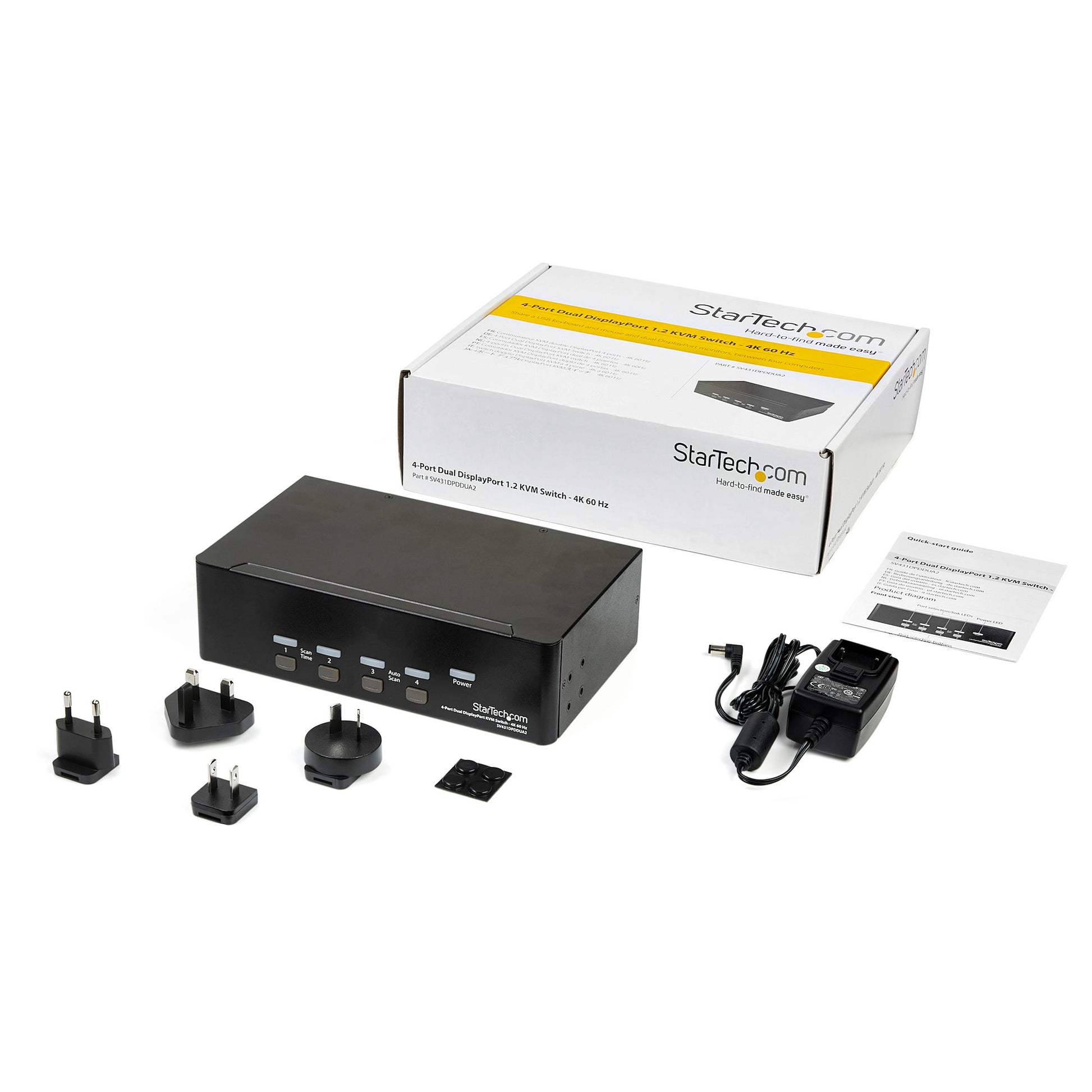

What's Included 1 - KVM Switch, 1 - Power Adapter, 1 - Quick Start Guide
UPC 065030867863

Video Support
Number of Displays 2 per system (dual monitor support)
Max Resolution Supported 3840 x 2160 (Ultra HD 4K) @ 60Hz
Display Technology DisplayPort 1.2
Display Modes Supported Extended, Mirrored, Primary Display

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
Environmental Compliance RoHS, REACH

Advanced Security Features
Keyboard/Mouse Emulation Yes
EDID Emulation Yes
Security Features Push button and hotkey switching requires physical or authorized user access

Interfaces
KVM Ports 4
Console USB Ports 2 x USB Type-A (Keyboard & Mouse)
Console Display Ports 2 x DisplayPort (Digital) Female
Host Display Ports 8 x DisplayPort (2 per PC)
Host USB Ports 8 x USB Type-B (2 per PC)
Audio Ports 4 x 3.5mm stereo (2 in, 2 out)
Hotkey Selection Yes (via keyboard)

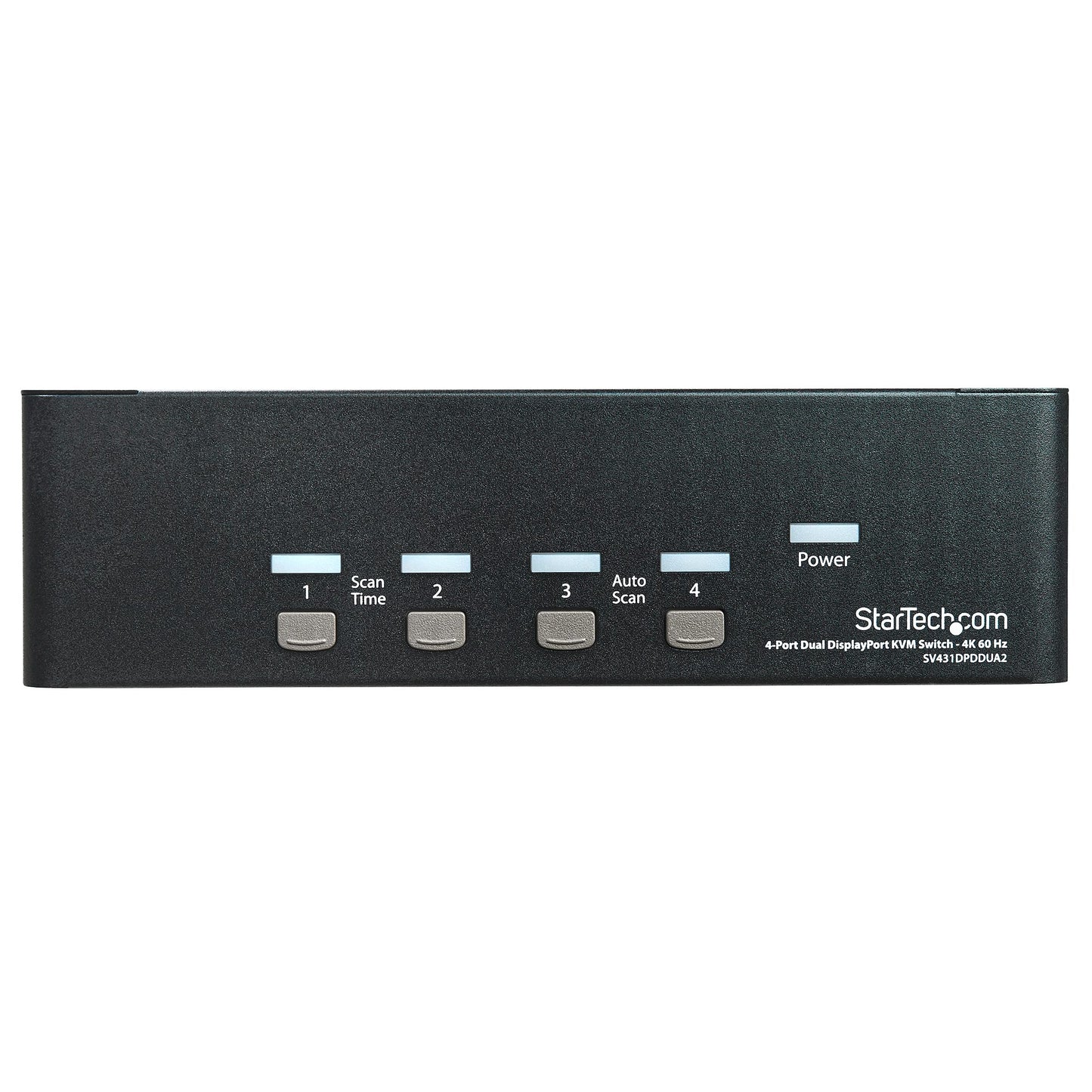

Push Button Selection Yes (front panel)
Data Transfer Rate 500 Mbps
USB Hub Integrated 2-Port USB 2.0 Hub (pass-through)

Physical & Environmental
Width 8.5 in (21.6 cm)
Depth 5 in (12.7 cm)
Height 2.5 in (6.35 cm)
Weight 1.9 lbs (850 g)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 0% to 80% RH (non-condensing)

Cloud Management & Licensing
Remote Management Support No
Cloud Management
Licensing Requirements None
