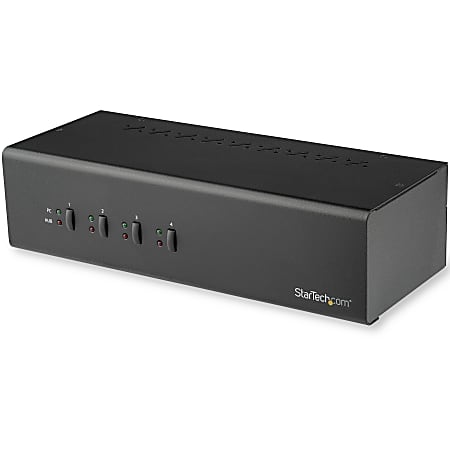

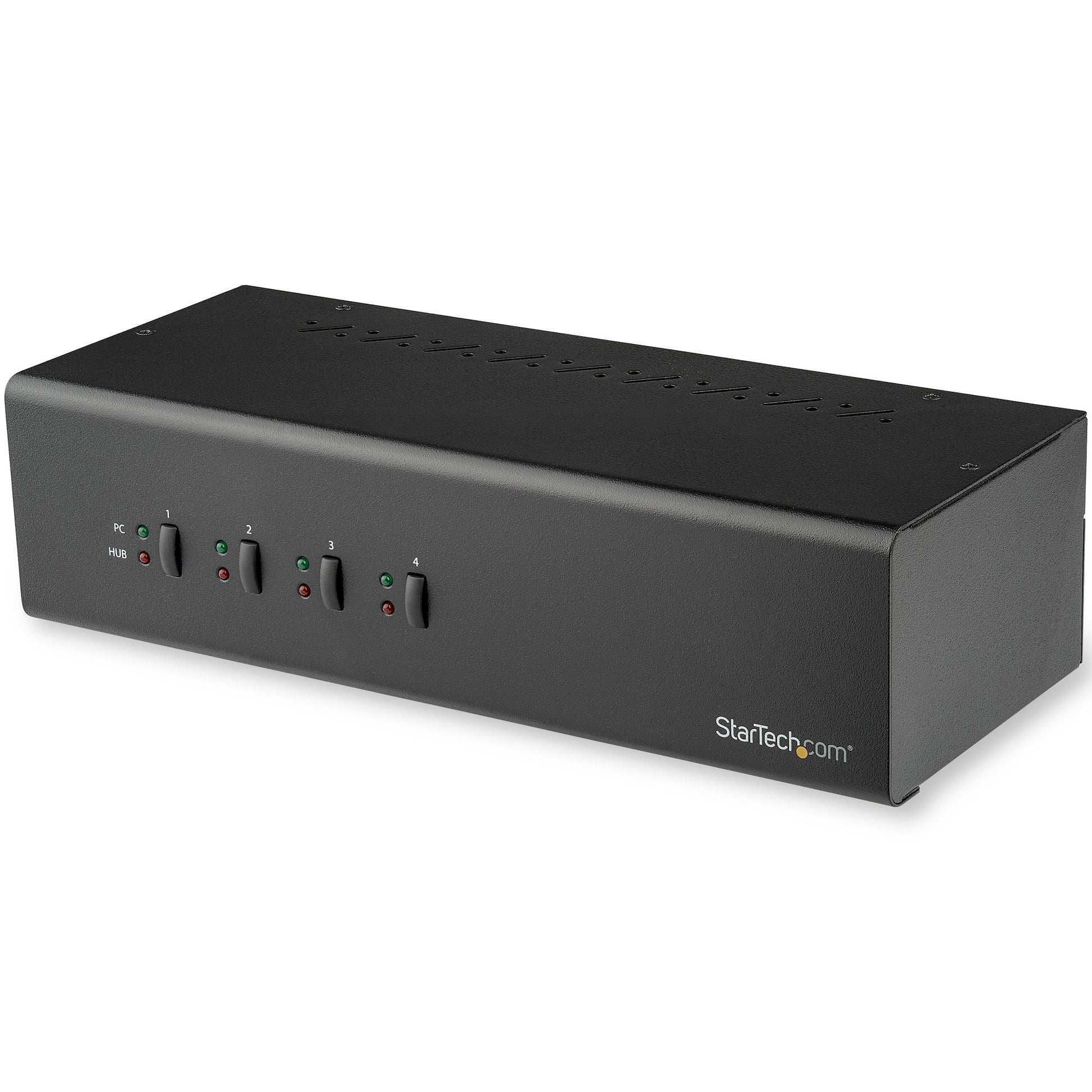

STARTECH 4-Port Dual Monitor DVI KVM Switch SV431DL2DU3A

VENDOR: STARTECH Mfg Part#: SV431DL2DU3A UPC#: 065030858496
1 4
Photo is for illustration purposes only. Actual product may be different.
$414.99
$414.99
Sale Sold out
Shipping calculated at checkout.
  • Dual Monitor support for up to 4 computers with Dual-Link DVI
  • Hotkey and manual push-button switching between systems
  • Integrated 2-Port USB 3.0 Hub for peripheral sharing
  • Supports up to 2560x1600 (digital) and 2048x1536 (analog) resolutions
  • Includes audio and microphone switching functionality
  • Rugged steel housing with TAA compliance and 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for power users managing multiple systems with dual-monitor DVI setups.
  • Integrated USB 3.0 hub and audio switching reduce peripheral duplication and enhance workflow.
  • TAA compliance makes it suitable for secure government and enterprise environments.

Product Overview

4 Port Dual Monitor Dual Link DVI USB KVM Switch w/hotkey/manual switching - Dual Screen Display - 2048x1536 Analog - 2560x1600 or 1440p Digital - Dual View KVM - Audio & mic switching - Compact steel housing Integrated 2Port USB 3.0 Hub 2Yr warr TAA

Specifications

Product Overview
Product Type 4-Port Dual Monitor Dual Link DVI USB KVM Switch
Model Number SV431DL2DU3A
Form Factor Rack-mountable or desktop
Housing Material Heavy-duty steel enclosure
Color Black
Power Requirements 12 VDC, 3A
Power Supply Included Yes
Keyboard & Mouse Support USB
Weight 1.6 kg (3.5 lb)

Physical & Environmental
Width 3.9 in (100 mm)
Depth 10 in (255 mm)
Height 2.6 in (65 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity Range 0% - 80% RH (non-condensing)
Mounting Options Desktop or rack-mount with included mounting brackets

Cloud Management & Licensing
Remote Management No (local only)
Software Included No

Interfaces
Number of Ports 4
Monitor Ports (per channel) 2 x DVI-I Dual Link (Digital/Analog)
Keyboard/Mouse Ports 4 x USB Type-B (host), 2 x USB Type-A (console)
Audio Ports 4 x 3.5 mm audio (input/output), 1 x 3.5 mm console mic, 1 x 3.5 mm console speaker
USB Hub 2-Port USB 3.0 Integrated Hub
Maximum Digital Resolution 2560 x 1600 @ 60Hz
Maximum Analog Resolution 2048 x 1536 @ 60Hz
PC Interface USB and DVI
Console Interface USB and DVI with 3.5 mm audio
DVI Type Dual Link DVI-I

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
Warranty 2 Years Standard Manufacturer Warranty

Advanced Security Features
Hotkey Switching Support Yes
Push-Button Switching Yes
OS Compatibility Windows, macOS, Linux
EDID Support Yes, EDID emulation per port
