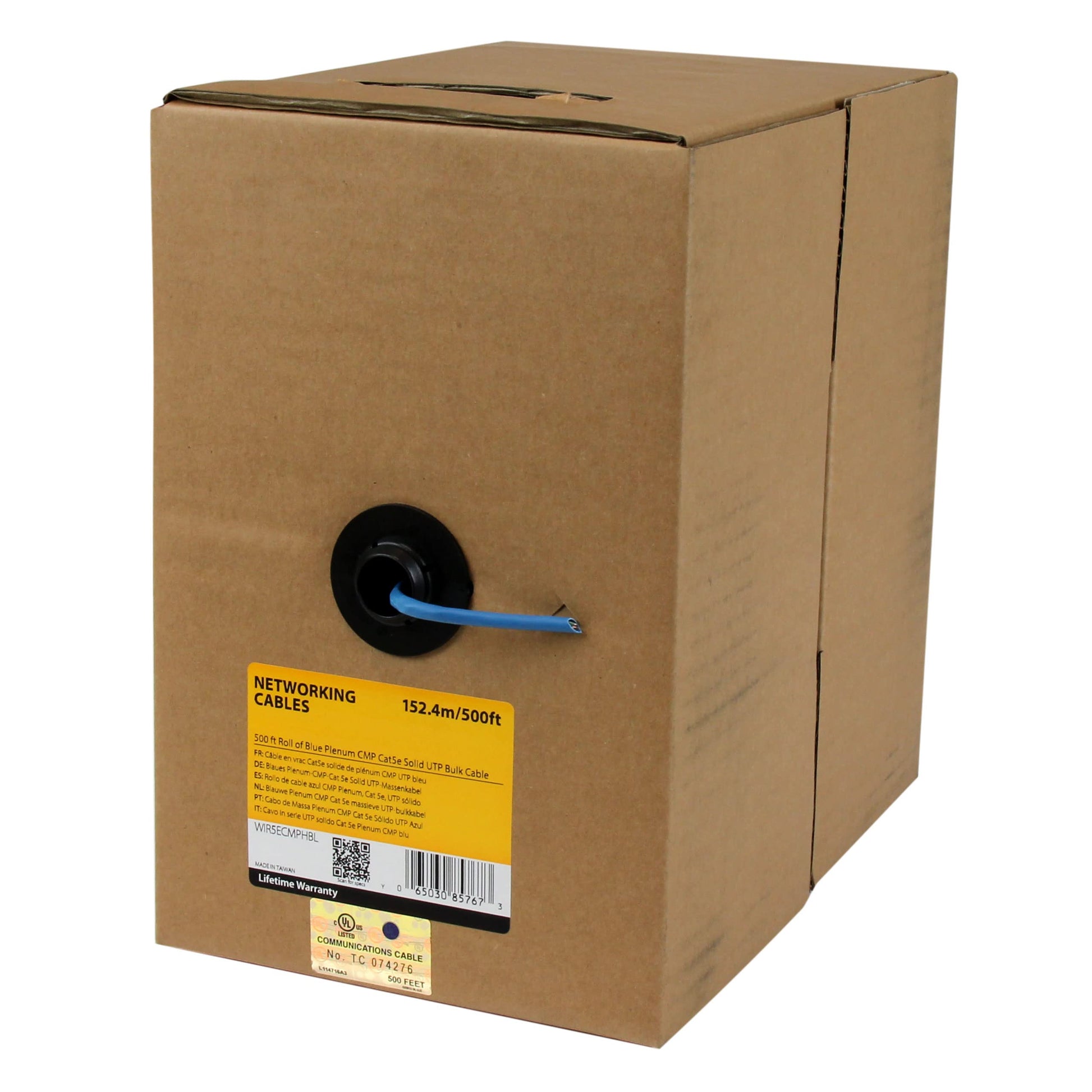

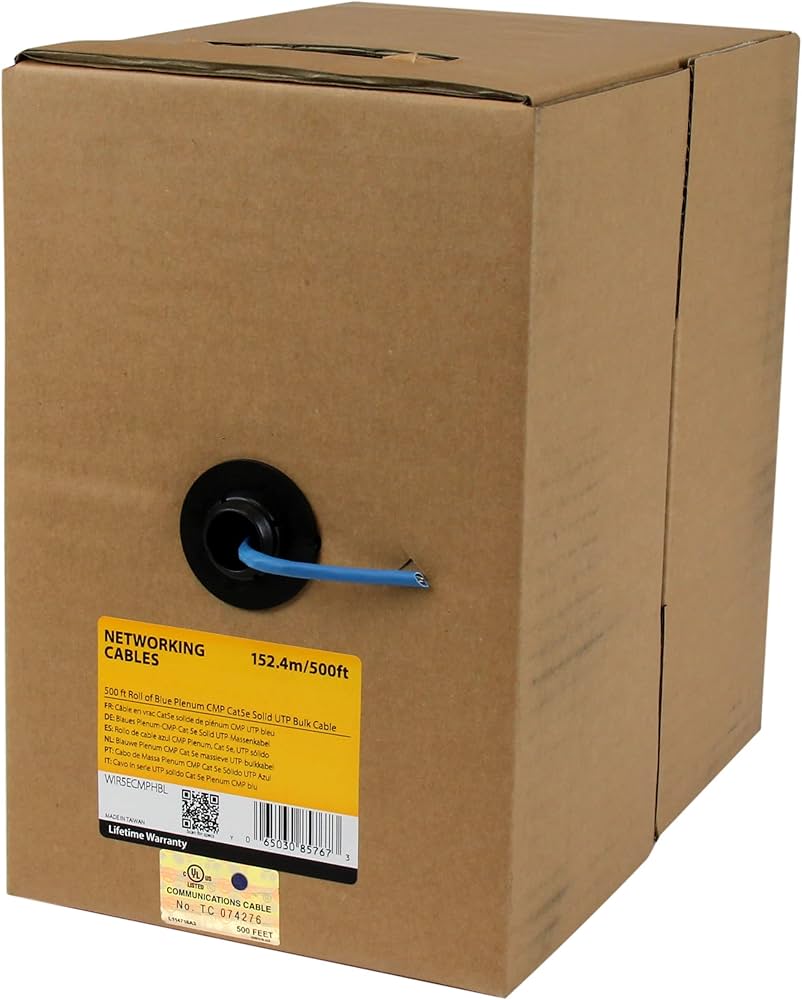

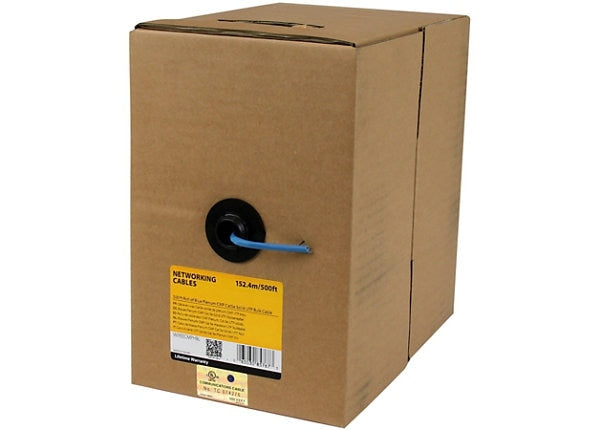

STARTECH 500ft Cat5e CMP Plenum Ethernet Cable, Blue, Solid Copper, TAA

VENDOR: STARTECH Mfg Part#: WIR5ECMPHBL UPC#: 065030857673
1 5
Photo is for illustration purposes only. Actual product may be different.
$205.60
$205.60
Sale Sold out
MSRP: $206.99
Shipping calculated at checkout.
  • 500 ft solid UTP Cat5e bulk Ethernet cable with 24 AWG copper conductors
  • CMP/FT6-plenum rated PVC jacket for safe installation in air plenums and ducts
  • Supports up to 1000 Mbps and 350 MHz bandwidth for high-speed networks
  • TAA compliant for federal government procurement requirements
  • Optimized for Gigabit Ethernet and compatible with PoE applications
  • Minimized Near End Crosstalk (NEXT) for improved signal integrity

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Complies with CMP/FT6 plenum safety standards for installation in air handling spaces
  • TAA compliance makes it suitable for federal government and public sector projects
  • Includes a lifetime warranty, offering long-term value and reducing total cost of ownership

Product Overview

Make reliable horizontal Ethernet connections in applications requiring plenum rated Cat5e Cable - 500ft Cat5e Ethernet Bulk Cable - 500ft Roll Blue Plenum Cat5e Bulk Cable - 500 ft Blue Cat5e Wiring - Plenum Rated Cat5e Cable - CMP / FT6 - 24 AWG

Specifications

Product Overview
Product Type Plenum Rated Cat5e Ethernet Cable
Cable Type Unshielded Twisted Pair (UTP)
Cable Length 500 ft
Conductor Type Solid
Conductor Material 100% Bare Copper
Frequency Rating Up to 350 MHz
Bandwidth Capacity Up to 1 Gbps
Supported Data Rates 10/100/1000 Mbps
Power over Ethernet (PoE) Support Yes
TAA Compliant Yes
Color Blue
AWG (American Wire Gauge) 24 AWG
Wire Pair Count 4 pairs
Warranty Lifetime Warranty

Physical & Environmental
Jacket Type Plenum Rated (CMP)
Jacket Material PVC - Polyvinyl Chloride
Flame Rating CMP / FT6
Installation Environment Plenum spaces, air ducts, walls, conduits, ceilings
Number of Conductors 8 (4 twisted pairs)
Insulation Material Polyolefin
Outer Diameter Approx. 5.5 mm
Packaging Type Pull box

Advanced Security Features
Crosstalk Control Designed to minimize Near End Crosstalk (NEXT)

Wireless Features
Wireless Support Not applicable (wired cable)

Interfaces
Application Horizontal Ethernet runs, patch installations, networking infrastructure
Connector Type None (bulk cable)
Maximum Data Rate 1 Gbps

Compliance & Origin
Certifications RoHS, TIA/EIA-568-C.2, ISO/IEC 11801
Country of Origin Taiwan
Standards Compliance TIA/EIA-568-B.2 Category 5e
