StarTech 8-Port 1U Rackmount USB VGA KVM Switch SV831DUSBU

VENDOR: STARTECH Mfg Part#: SV831DUSBU UPC#: 065030837255
1 5

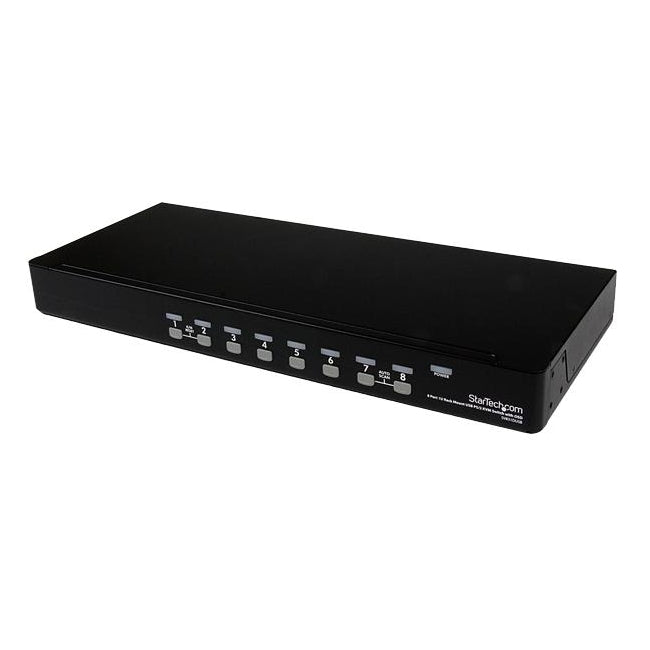

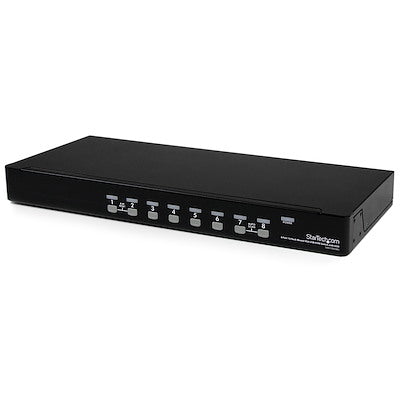

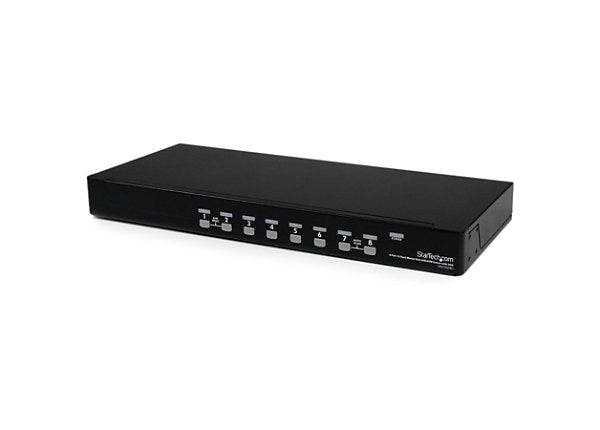

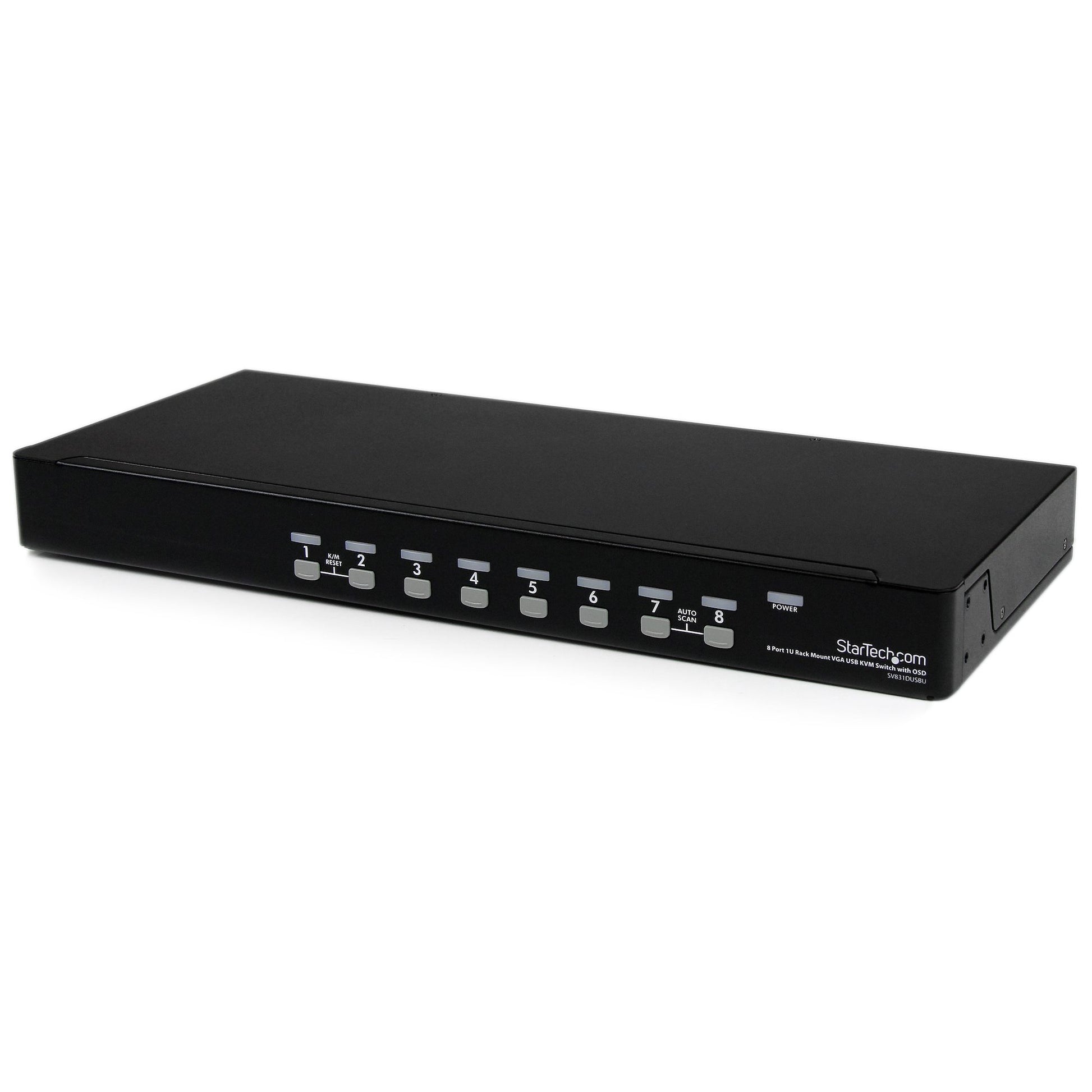

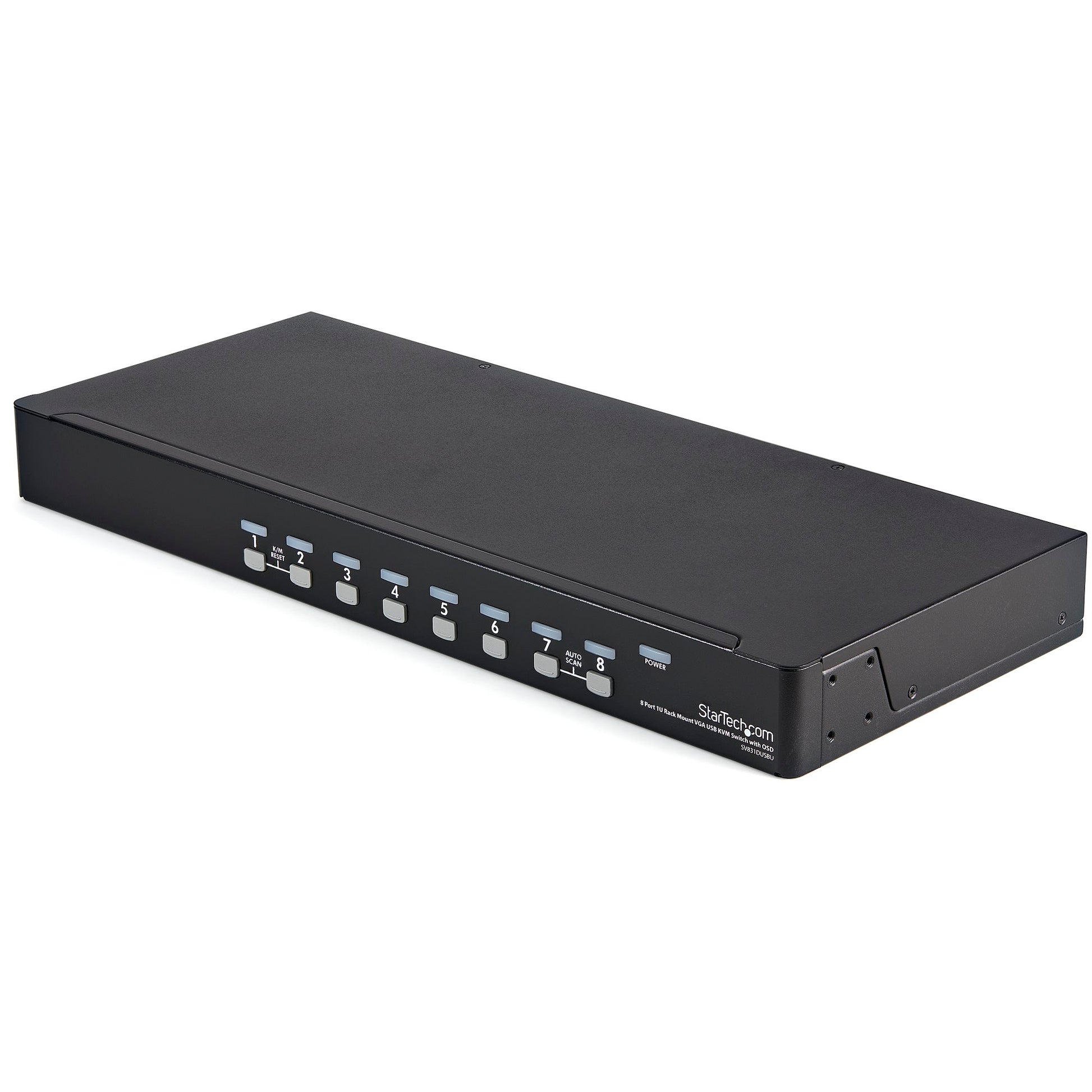

Photo is for illustration purposes only. Actual product may be different.
$417.99
$417.99
Sale Sold out
Shipping calculated at checkout.
  • 8-port USB KVM switch with VGA support for centralized control
  • 1U rackmount form factor designed for professional server environments
  • Supports high video resolutions up to 1920 x 1440@60Hz / 1920 x 1200@60Hz (wide screen)
  • Wired connectivity with console interface for seamless switching
  • OS-independent installation—no software or drivers required
  • TAA compliant with a 3-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Eliminates clutter and simplifies access to 8 USB/VGA computers from one console, ideal for IT professionals
  • High-resolution video support ensures crisp display output, critical for monitoring and diagnostics
  • Secure OSD access with password protection provides safe and efficient multi-system management

Product Overview

Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor - usb kvm switch - 8 port kvm switch - vga kvm switch -rack mount kvm - OSD security allows each PC to be password protected

Specifications

Product Overview
Type KVM Switch
Form Factor 1U Rackmount
Model Number SV831DUSBU
Enclosure Color Black
Power Requirements DC 9V, 1A (power adapter included)
Weight 2.7 kg (6.0 lb)
Included Accessories 1 x SV831DUSBU KVM Switch, 1 x Universal Power Adapter (NA/EU/UK/AU), 1 x Mounting Kit, 1 x Instruction Manual
OS Compatibility OS Independent – No software or drivers required
Service & Support 3-Year Warranty

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
REACH Compliance Yes

Advanced Security Features
On-Screen Display (OSD) Functionality Yes – with password protection for each computer
Hotkey Security Features Yes – customizable hotkey combinations for access

Interfaces
Computer Interface Ports 8 x SPHD-15 Female (Yellow)
Console Ports 1 x VGA (HD-15) Female, 2 x USB Type-A Female
Port Selection Support Hotkey, Front Panel Button, OSD (On-Screen Display)
Keyboard/Mouse Interface USB
Video Interface VGA
Video Resolution (Max) 1920 x 1440 @ 60Hz
Wide Resolution Support 1920 x 1200 @ 60Hz
Number of Computers Supported 8
Daisy-Chain Support Up to 64 computers using additional StarTech KVMs

Physical & Environmental
Width 43.8 cm (17.2 in)
Depth 18 cm (7.1 in)
Height 4.5 cm (1.8 in)
Product Weight 2.7 kg (6.0 lb)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity (Operating) 0% ~ 80% RH (non-condensing)
MTBF 420,000 Hours

Cloud Management & Licensing
Remote Management No
