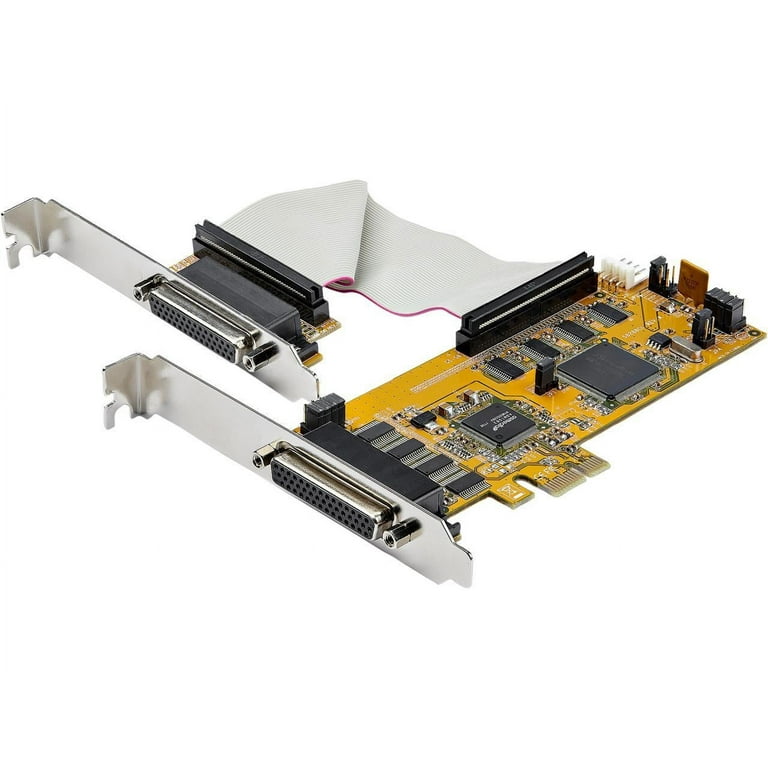

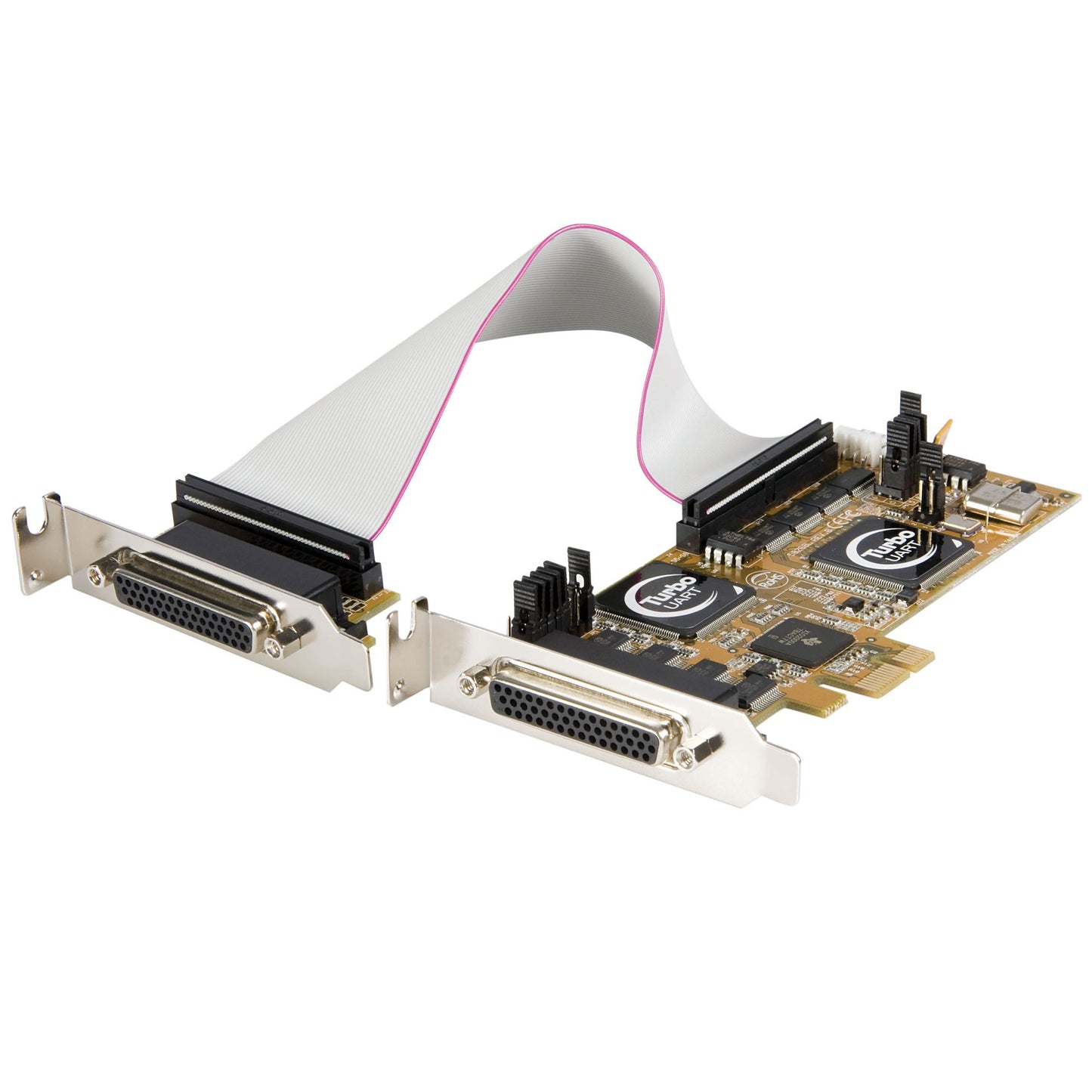

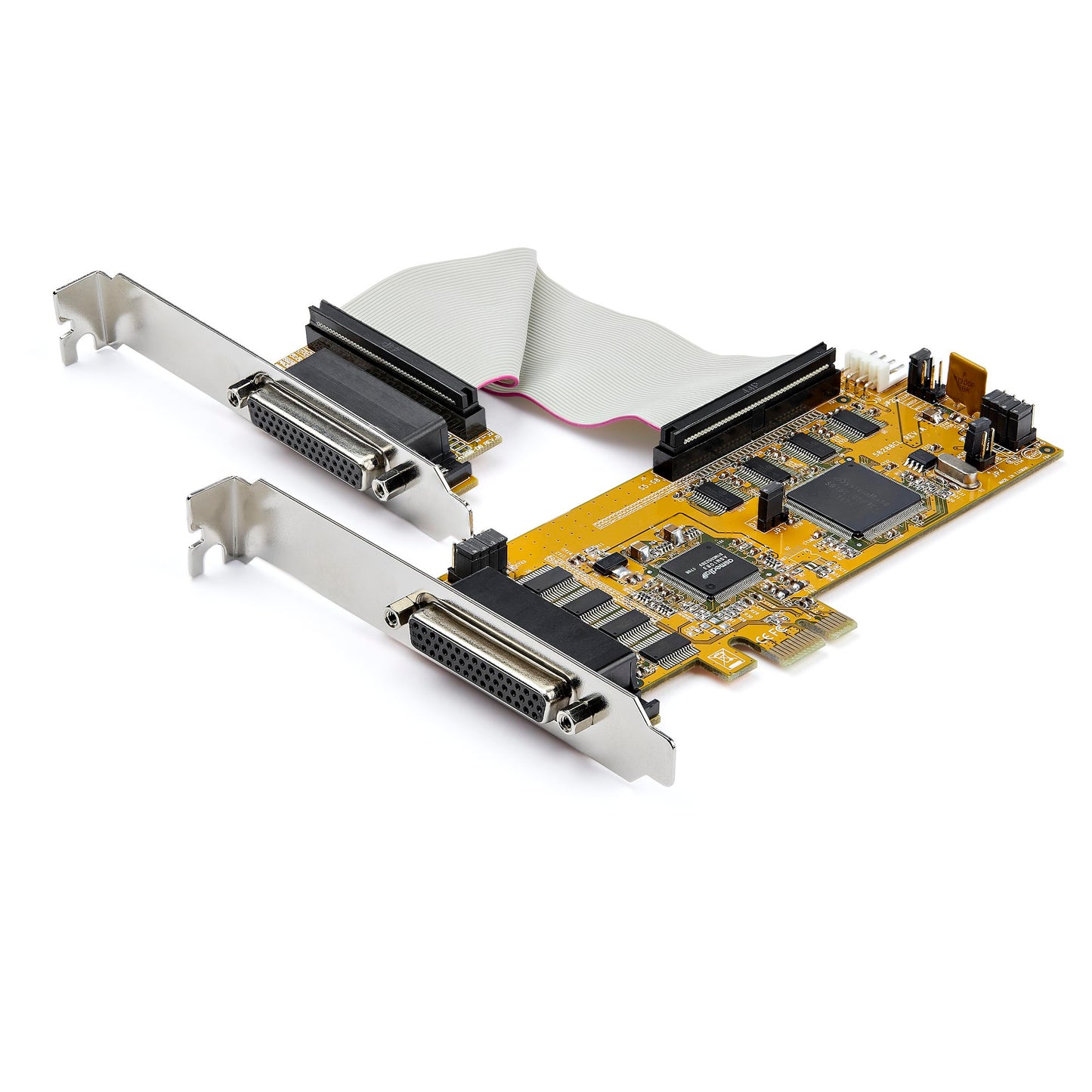

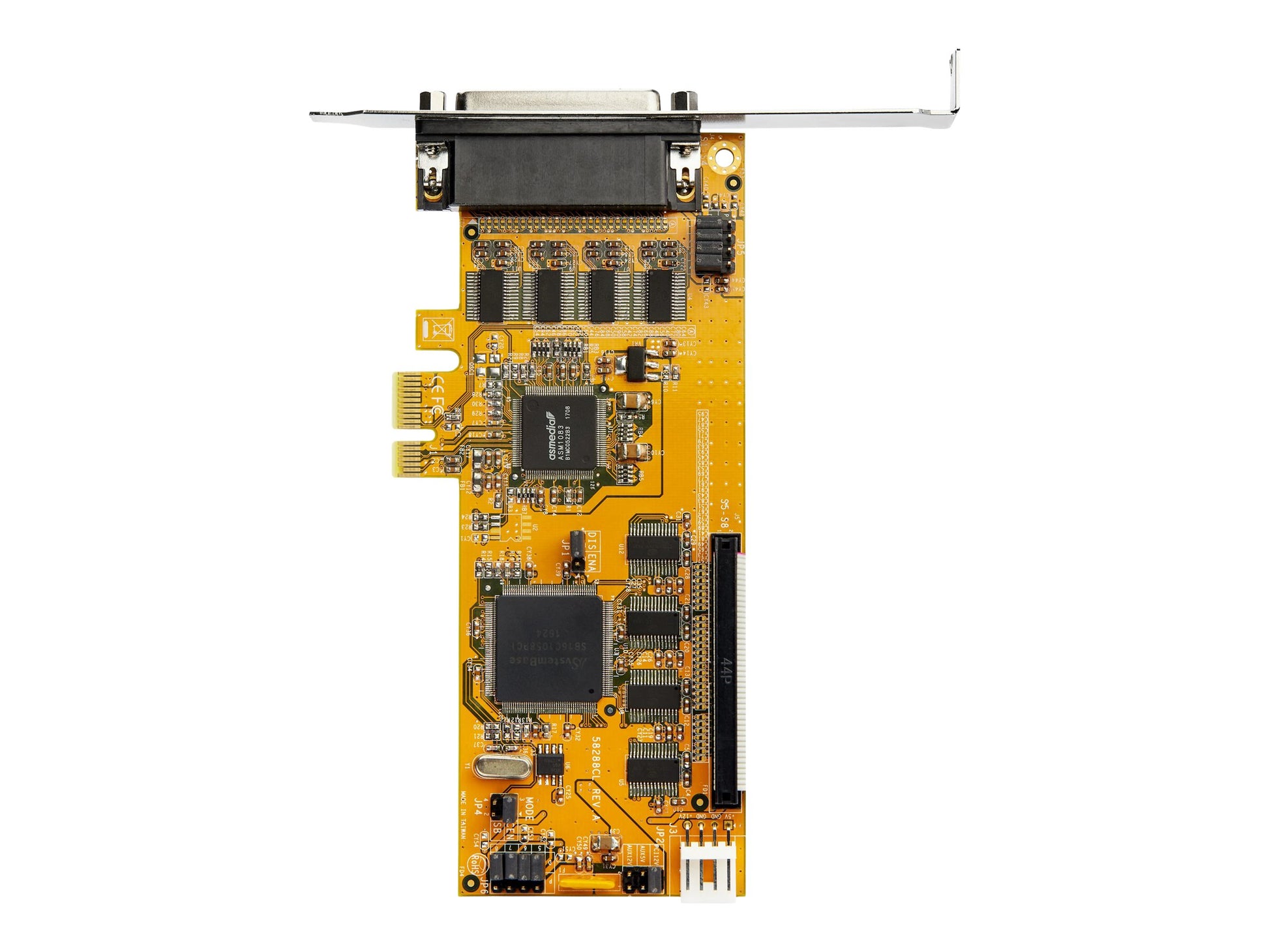

STARTECH 8-Port PCIe RS-232 Serial Card, Low Profile, PEX8S1050LP

VENDOR: STARTECH Mfg Part#: PEX8S1050LP UPC#: 065030886574
1 5
Photo is for illustration purposes only. Actual product may be different.
$208.74
$208.74
Sale Sold out
MSRP: $209.99
Shipping calculated at checkout.
  • 8 RS-232 DB9 serial ports via 2x DB44 cables with hex nuts
  • 16C1050 UART with 256-byte FIFO per port
  • Bi-directional data speed up to 921.6Kbps per port
  • Pin 9 power output: 5V or 12V, up to 3A max total
  • 15kV ESD protection on all ports
  • Constructed from steel and TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides high-density serial connectivity—ideal for legacy system integration or industrial automation.
  • Includes pin 9 power support (5V/12V, 3A max) across ports to enable powered device support without external PSUs.
  • Backed by STARTECH's lifetime warranty and robust steel construction, ensuring long-term reliability.

Product Overview

8-Port PCI Express RS232 serial adapter card 16C1050 UART 15kV ESD; Low Profile - Bi-directional speed 921.6Kbps/port 256byte FIFO - Controller card; Pin 9 power 5v/12v, 3A max - 2xDB44 to DB9 cables w/Hex nuts - Windows only; Systembase SB16C1058PCI

Specifications

Product Overview
Product Type Serial Adapter Card
Form Factor Low Profile (Half Height)
Chipset Systembase SB16C1058PCI
Card Interface PCI Express x1
Max Data Rate (Per Port) 921.6 Kbps
UART Type 16C1050 UART
FIFO Size 256 bytes
Power Output on Pin 9 5V / 12V selectable, up to 3A
Weight 170 g
Power Requirements Powered via PCIe slot

Physical & Environmental
Enclosure Color Yellow
Product Material Steel
Width 0.9 Inch
Depth 5.7 Inch
Height 2.4 Inch
Humidity Tolerance 5% to 95% RH
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)

Cloud Management & Licensing
Software Compatibility Windows 11, 10, 8, 7 only

Interfaces
Number of Ports 8
Connector Type DB9 (via DB44 breakout cables)

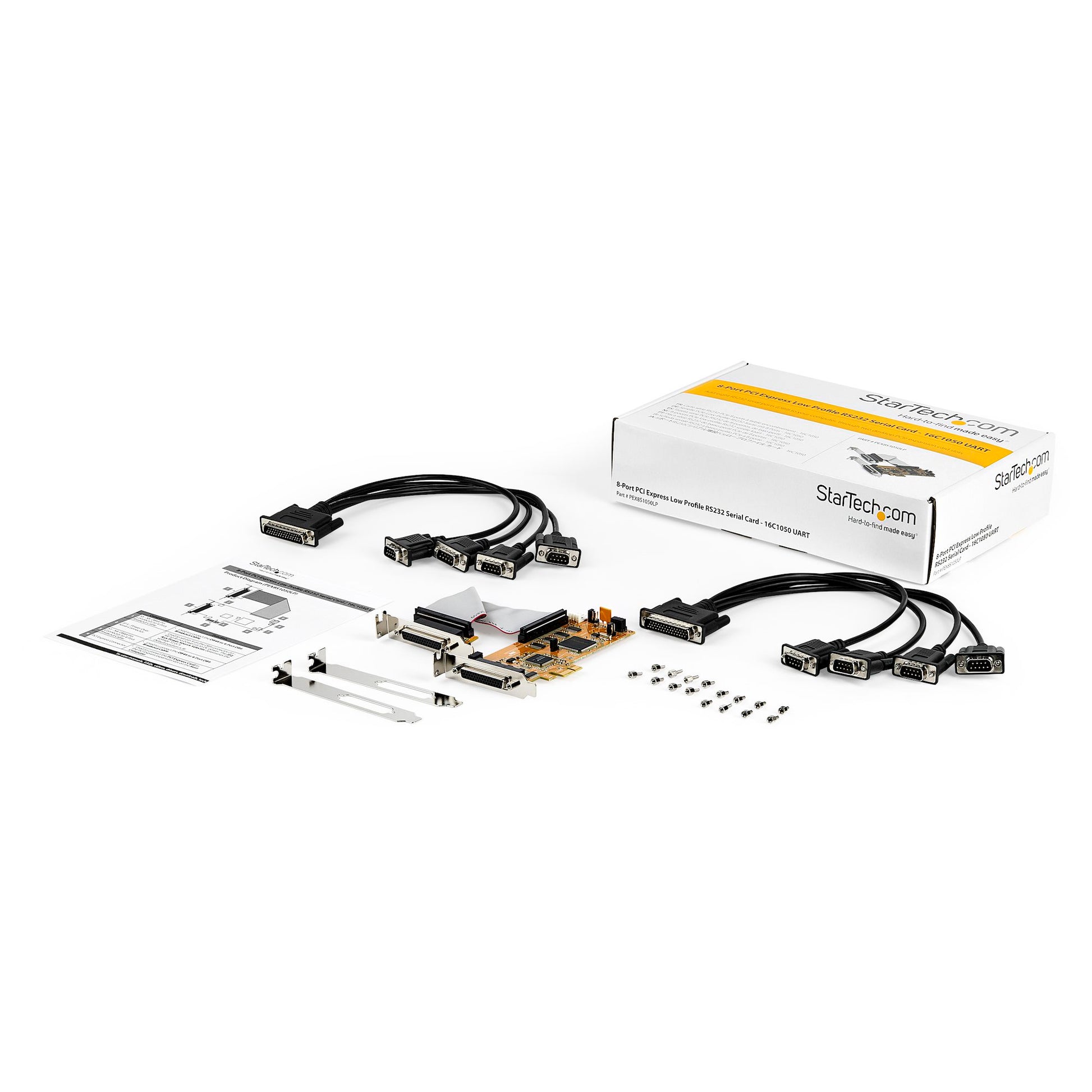

Included Cables 2 x DB44 to 4 x DB9 breakout cables
Port Type RS-232 (DB9)
Interface Bus PCIe 2.0 x1
Flow Control Hardware and Software
Parity Odd, Even, Mark, Space, None
Stop Bits 1, 1.5, 2
Data Bits 5, 6, 7, 8
Speed Per Port Up to 921.6 Kbps

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
ESD Protection 15kV (Air) / 8kV (Contact)
Certifications CE, FCC
RoHS Compliant Yes

Advanced Security Features
Serial Interface Protection 15kV Built-in ESD protection
