StarTech 8-Port USB VGA KVM Switch with Audio, SV831DUSBAU

VENDOR: STARTECH Mfg Part#: SV831DUSBAU UPC#: 065030837248
1 5
Photo is for illustration purposes only. Actual product may be different.
$539.99
$539.99
Sale Sold out
Shipping calculated at checkout.
  • Supports up to 8 computers via USB and VGA connections
  • Maximum resolution of 1920 x 1440@60Hz (1920 x 1200 for widescreen displays)
  • Front panel push-button and hotkey switching; no drivers needed
  • Rack-mountable 1U design in black enclosure
  • Audio support for connected systems
  • OS-independent and TAA-compliant; made in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Streamline control of multiple legacy systems with efficient 8-port switching and VGA compatibility
  • OS-independent operation with no software or driver installation simplifies deployment and minimizes setup time
  • Supports enterprise and government procurement requirements with TAA compliance and 3-year warranty

Product Overview

Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor - usb kvm switch - 8 port kvm switch - vga kvm switch -rack mount kvm - Supports Hotkey and front panel push-button switching

Specifications

Product Overview
Type Rackmount USB VGA KVM Switch
Form Factor 1U Rack-Mountable
Weight 2.8 kg (6.2 lb)
Power Requirements 110V-240V AC, 50/60Hz, 0.8A (with 12V DC, 1.5A adapter)
Device Model SV831DUSBAU
Enclosure Color Black
System Requirements OS Independent; No software or drivers required

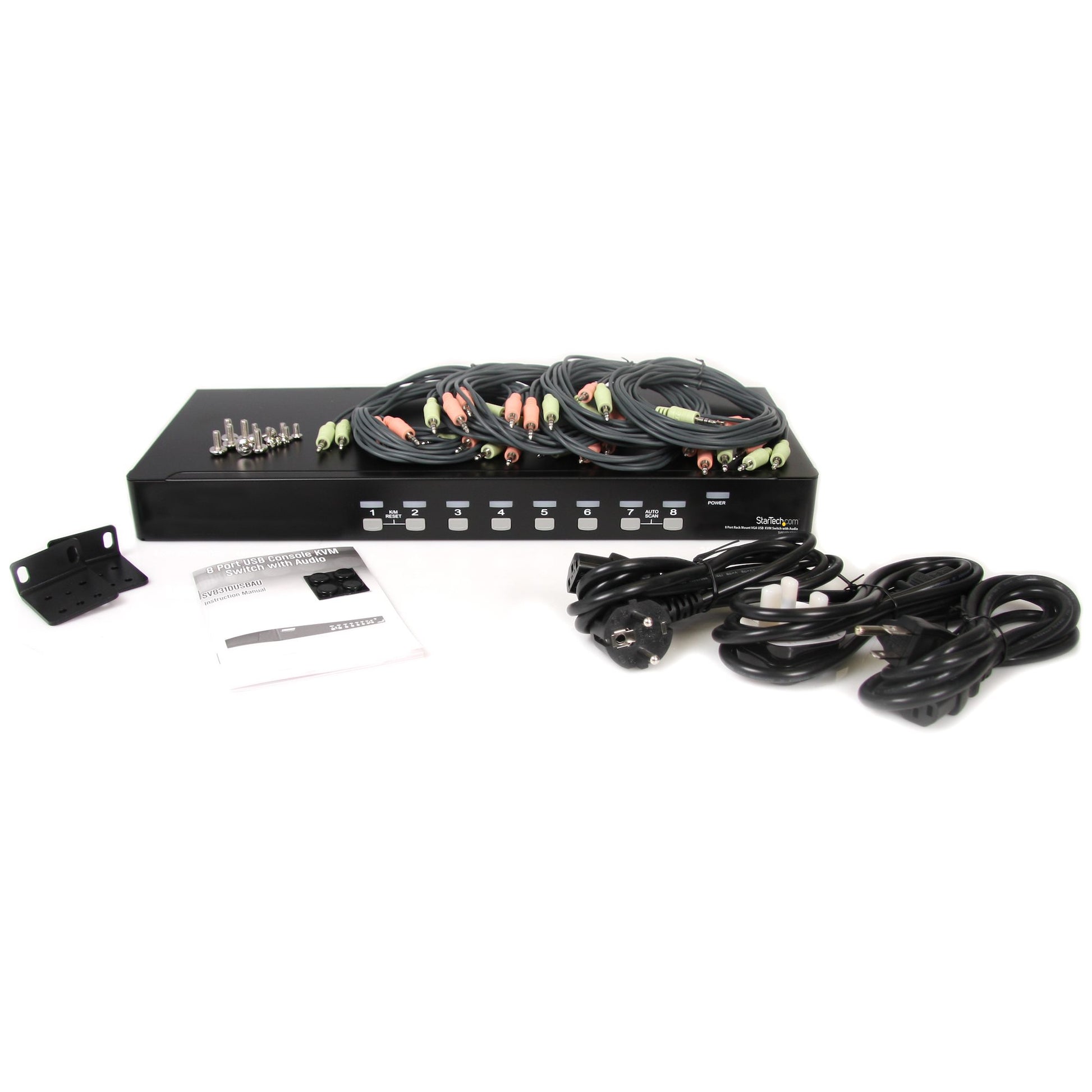

Package Contents 1 - 8-Port USB VGA KVM Switch, 1 - Universal Power Adapter (NA/UK/EU/AUS), 1 - Rack Mount Kit, 1 - User Manual

Physical & Environmental
Width 21.3 in (540 mm)
Depth 7.1 in (180 mm)
Height 1.8 in (45 mm)
Mounting Type Rack-mount (brackets included)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 0% to 80% RH, non-condensing

Cloud Management & Licensing
Remote Management No (Local switch only)
Software Requirements None required

Interfaces
Computer Port Interface 8 x VGA + 8 x USB Type B
Console Interface 1 x VGA, 2 x USB Type A, 1 x 3.5 mm Audio In, 1 x 3.5 mm Audio Out
Port Count 8
Video Input Type VGA
Audio Support Yes, 3.5 mm stereo audio
Control Buttons Front panel push-buttons and keyboard hotkeys
Data Transfer Rate USB 2.0 (up to 480 Mbps)
LED Indicators 8 x Port status LEDs

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC, RoHS

Advanced Security Features
User Authentication No authentication required (direct console access only)
Data Isolation Yes, signal filtering between channels for port isolation
