| Product Type | SFP Fiber to Ethernet Media Converter |
| Form Factor | DIN Rail Mountable |
| Weight | 200 g |
| Power Input | 12V to 56V DC |
| Power Consumption | 2.1W |

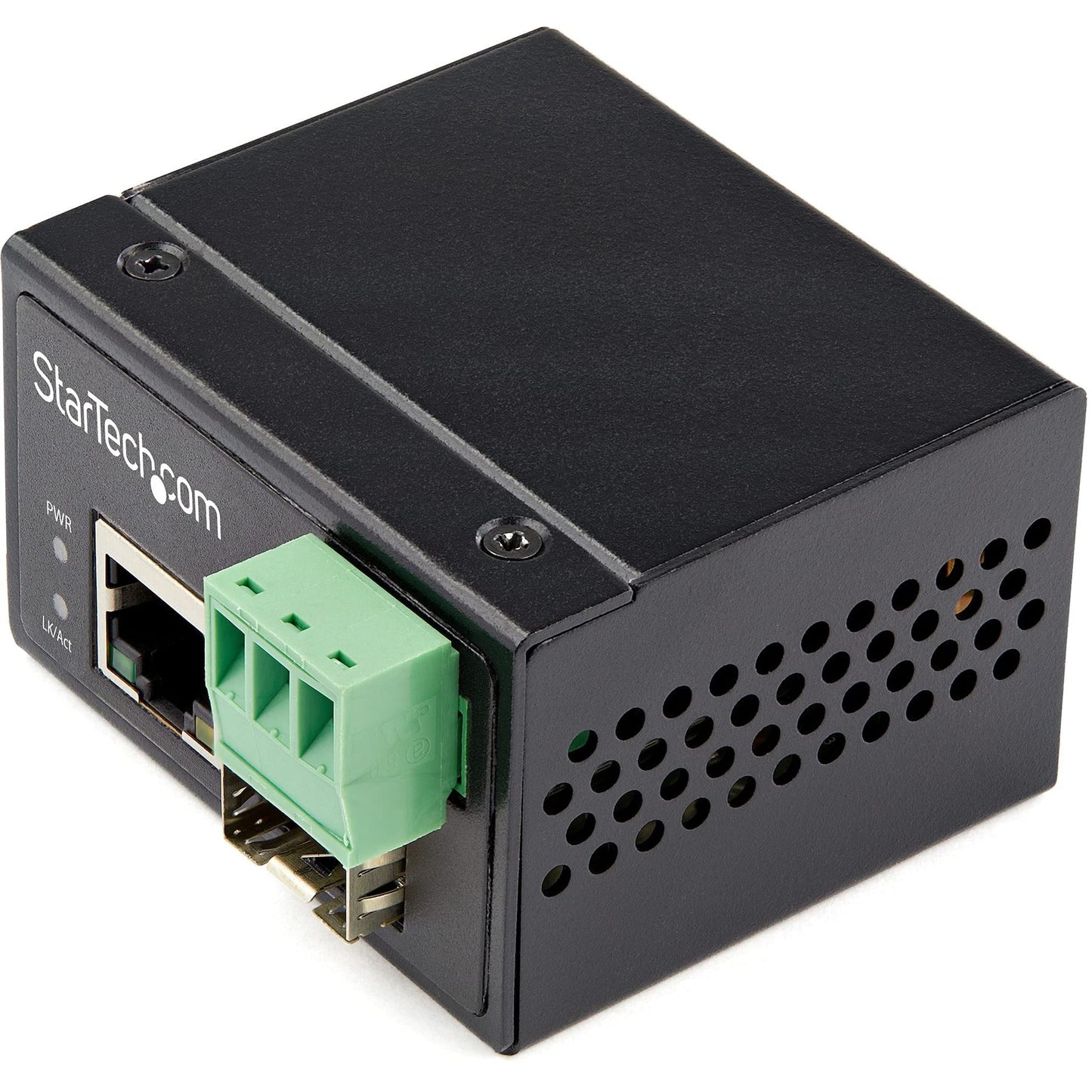

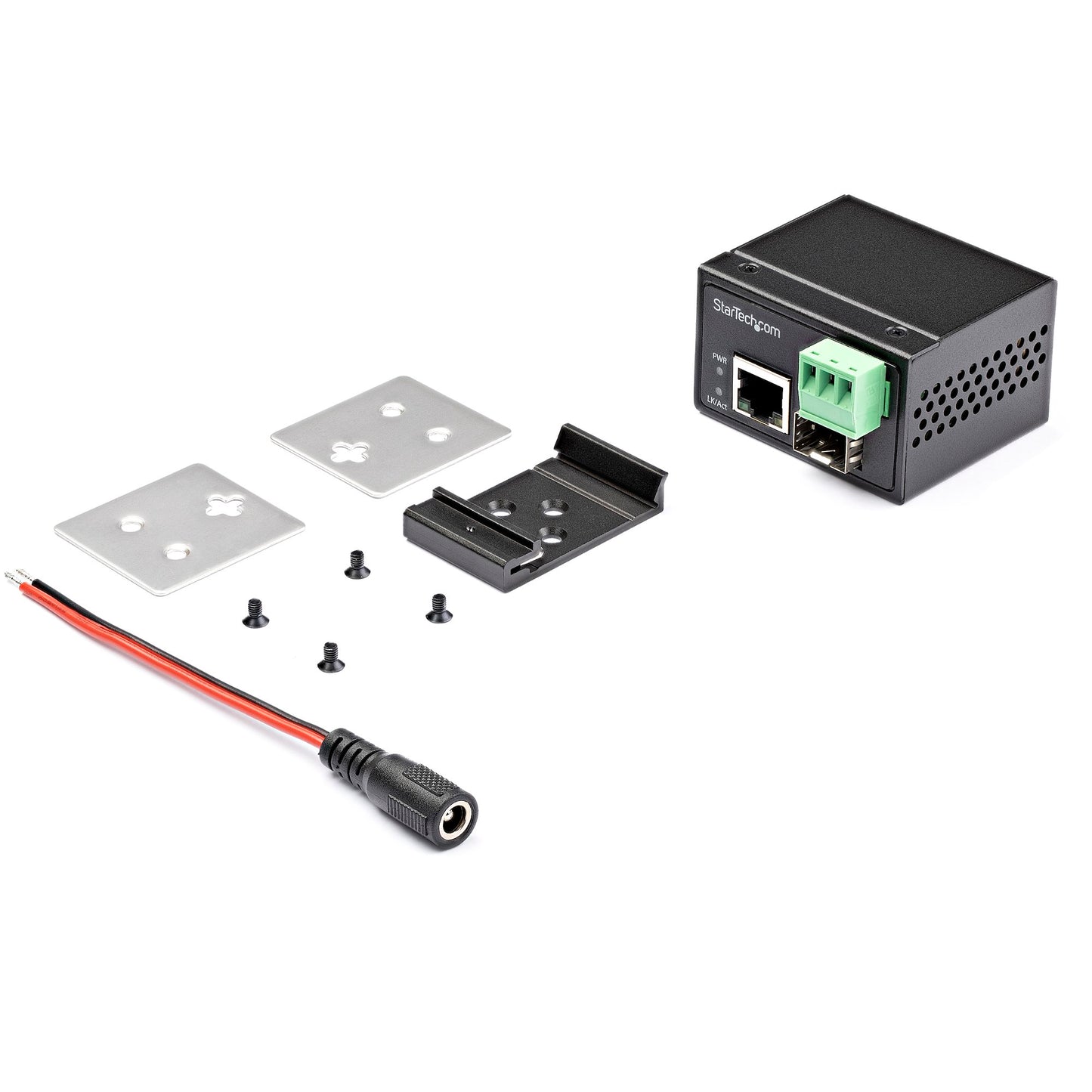

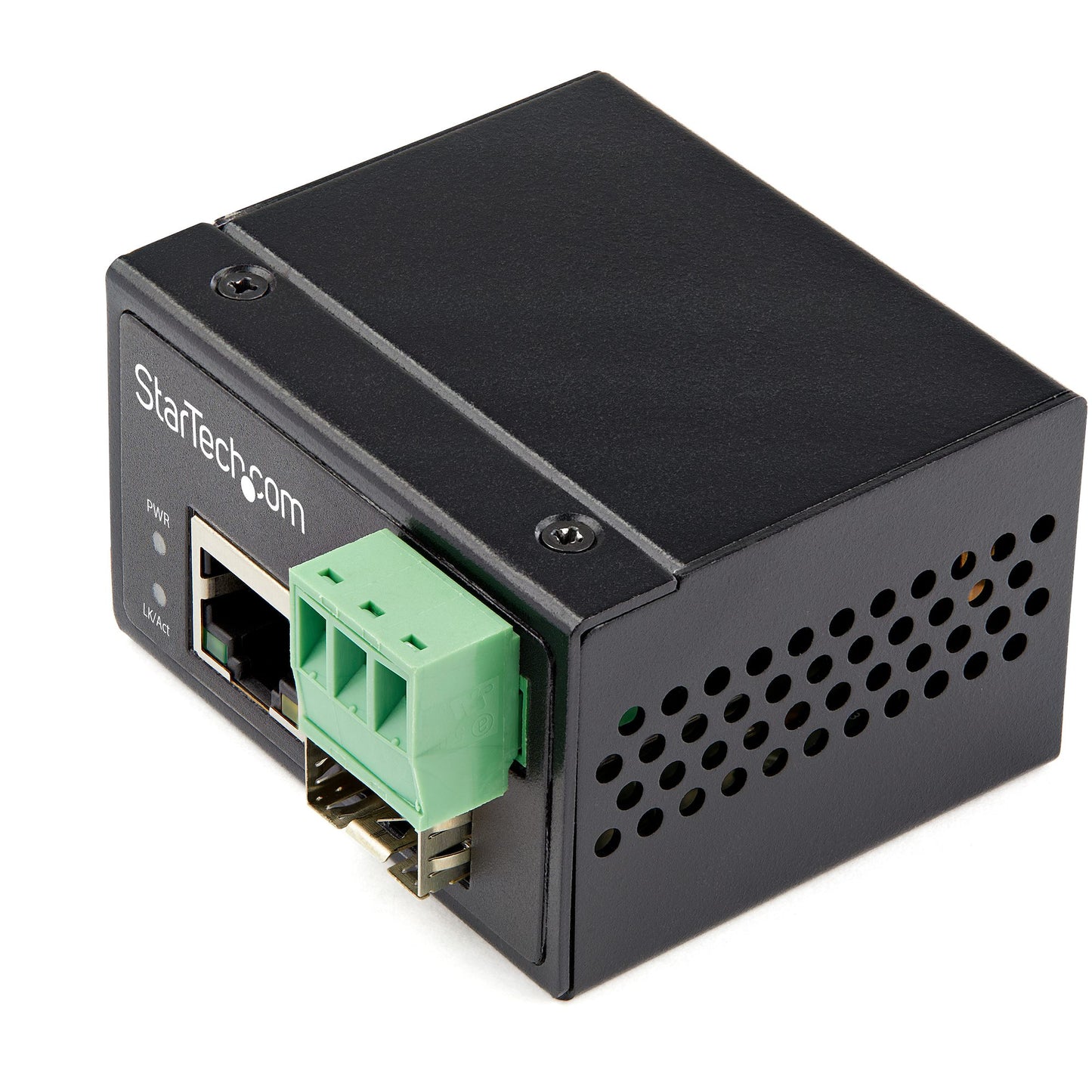

StarTech IMC100MSFP SFP Fiber to Ethernet Media Converter
Photo is for illustration purposes only. Actual product may be different.
Regular price
$111.00
Regular price
Sale price
$111.00
Unit price
per
MSRP: $118.99
Shipping calculated at checkout.
Couldn't load pickup availability
- Supports both Single Mode (SMF) and Multimode (MMF) fiber cabling
- 100 Mbps data transfer rate for stable connectivity
- Compatible with Gigabit Ethernet data link protocol
- Open SFP form factor for flexible transceiver options
- Rugged industrial design with -40°C to 75°C operating temperature range
- IP-30 rated aluminum case for installation in harsh environments
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Ideal for industrial environments with wide temperature support (-40°C to 75°C) and IP-30 casing
- Open SFP design allows users to choose transceivers tailored to specific fiber distances or types
- TAA compliance and 2-year warranty enhance reliability for government and enterprise applications
Product Overview
Fiber to Ethernet Media Converter extends networks & converts optical fiber to RJ45 Copper/CAT6 - Industrial Hardened -40 to 75C temp - 100Mbps - Open SFP - 12V-56VDC - Single Mode (SMF) or Multimode Fiber (MMF) - IP-30 Case 2 Year WarrantySpecifications
Product Overview
Wireless Features
| Wireless Support |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | CE, FCC, RoHS, REACH |
| EMI/EMC Standards | EN 55032 Class A, EN 61000-4-2/-3/-4/-5/-6/-8/-11, EN 61000-6-2, EN 61000-6-4 |
| Shock Resistance | IEC 60068-2-27 |
| Vibration Resistance | IEC 60068-2-6 |
| Free-fall Resistance | IEC 60068-2-32 |
Advanced Security Features
| MAC Address Filtering | No |
| VLAN Support | No (dependent on connected switches) |
| Firewall Support | |
| Managed Security Features | None – Unmanaged Device |
Interfaces
| Network Interface | 1 x RJ-45 (10/100Base-TX) |
| SFP Interface | 1 x SFP Slot (100Base-FX) |
| Ethernet Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Duplex Modes | Full/Half Duplex |
| Auto-MDIX | Yes |
| SFP Module Supported | Open SFP, compatible with MSA-compliant 100Mbps SFP modules |
| Flow Control | IEEE 802.3x Flow Control (Full Duplex); Back Pressure (Half Duplex) |
Physical & Environmental
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| Housing Type | IP-30 Rated Industrial Metal Enclosure |
| Mounting Options | DIN Rail or Wall Mountable |
| Dimensions (WxDxH) | 74 mm x 95 mm x 30 mm |
| Cooling | Passive (Fanless) |
Cloud Management & Licensing
| Remote Management | No onboard management interface; unmanaged |
| Cloud Features | |
| Licensing Requirement | None |
