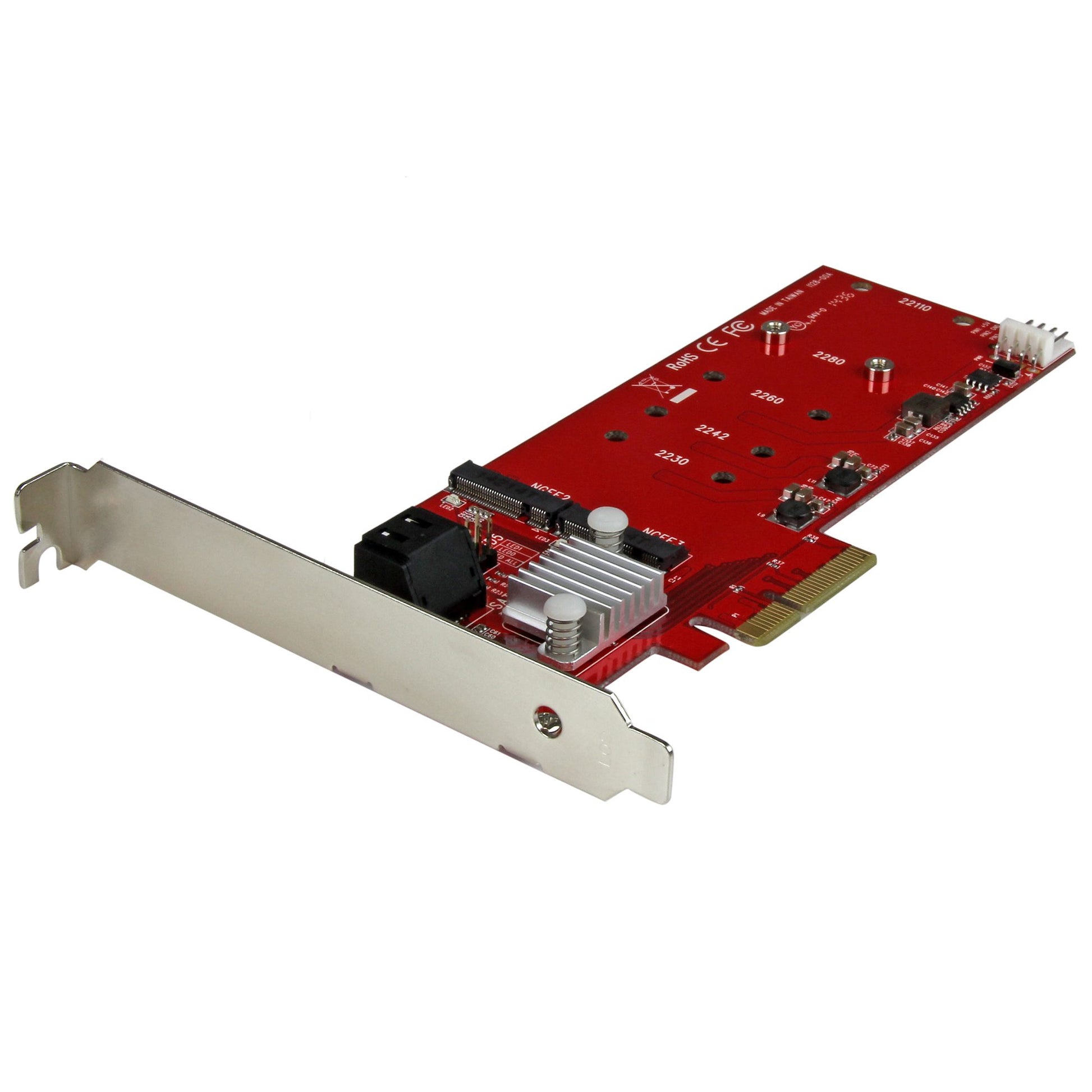

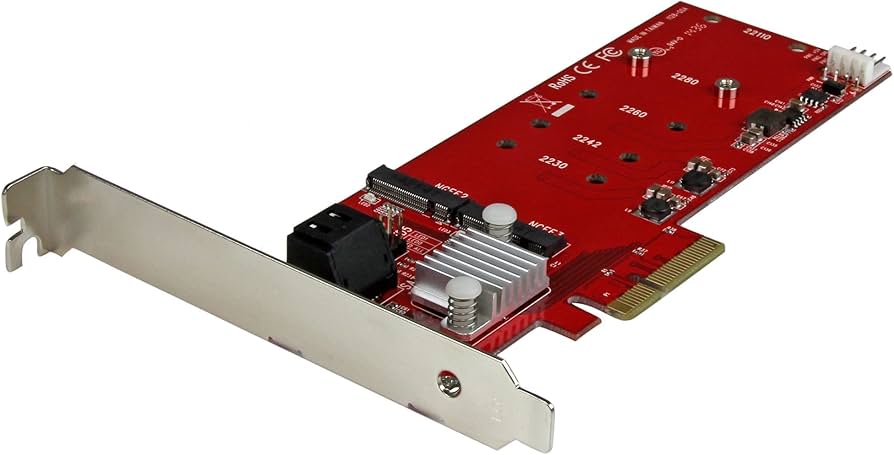

STARTECH M.2 RAID Controller Card + 2x SATA Ports, PCIe x4 Host Adapter

VENDOR: STARTECH Mfg Part#: PEXM2SAT3422 UPC#: 065030863766
1 5
Photo is for illustration purposes only. Actual product may be different.
$82.08
$82.08
Sale Sold out
MSRP: $87.99
Shipping calculated at checkout.
  • Supports two M.2 NGFF SSDs and two SATA III ports
  • RAID modes supported: JBOD, RAID 0, 1, 10
  • PCI Express x4 interface for high-speed communication
  • Data transfer rate of up to 6 Gbps
  • Standard profile form factor with dimensions: 0.8" (W) x 7.1" (D) x 4.7" (H)
  • TAA-compliant design with 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enhance workstation storage capacity with dual M.2 SSD slots and additional SATA ports in one card
  • Optimize performance and redundancy with support for multiple RAID levels including 0, 1, and 10
  • Ensure compliance and long-term support with TAA certification and a 2-year warranty

Product Overview

Add two Next Generation Form Factor M.2 SSDs and two SATA ports to your PC through PCIe - 2x M.2 NGFF SSD RAID Controller Card plus 2x SATA III Ports - PCIe - 2-Slot PCI Express M.2 RAID Card - SATA 3 Controller Host Card Adapter - Storage Controller

Specifications

Product Overview
Product Type RAID Controller
Manufacturer StarTech
Manufacturer Part Number PEXM2SAT3422
UPC 065030863766
Form Factor Standard Profile
Power Requirements Powered via PCI Express Slot
RAID Levels Supported JBOD, RAID 0, RAID 1, RAID 10
Cooling Passive heatsink

Physical & Environmental
Width 0.8 inches (21 mm)
Depth 7.1 inches (180 mm)
Height 4.7 inches (120 mm)
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Humidity 15% ~ 90% RH
Enclosure Type Steel

Cloud Management & Licensing
Management Interface BIOS-level configuration utility
Software Included RAID Management Utility (included via download)
Licensing Requirements No license required

Interfaces
Interface Type PCI Express 2.0 x4
Host Bus Interface PCIe x4 (PCIe 2.0)
Drive Interfaces 2 x M.2 + 2 x SATA III (6 Gbps)
M.2 Interface B and B+M Key socket
SATA Ports 2
M.2 Ports 2
Maximum Data Transfer Rate 6 Gbps per SATA port
Maximum Bandwidth Up to 20 Gbps (PCIe 2.0 x4)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
CE Certified Yes
FCC Certified Yes
REACH Compliant Yes

Advanced Security Features
Bootable RAID Support Yes
Data Redundancy for OS Drive Supported via RAID 1
