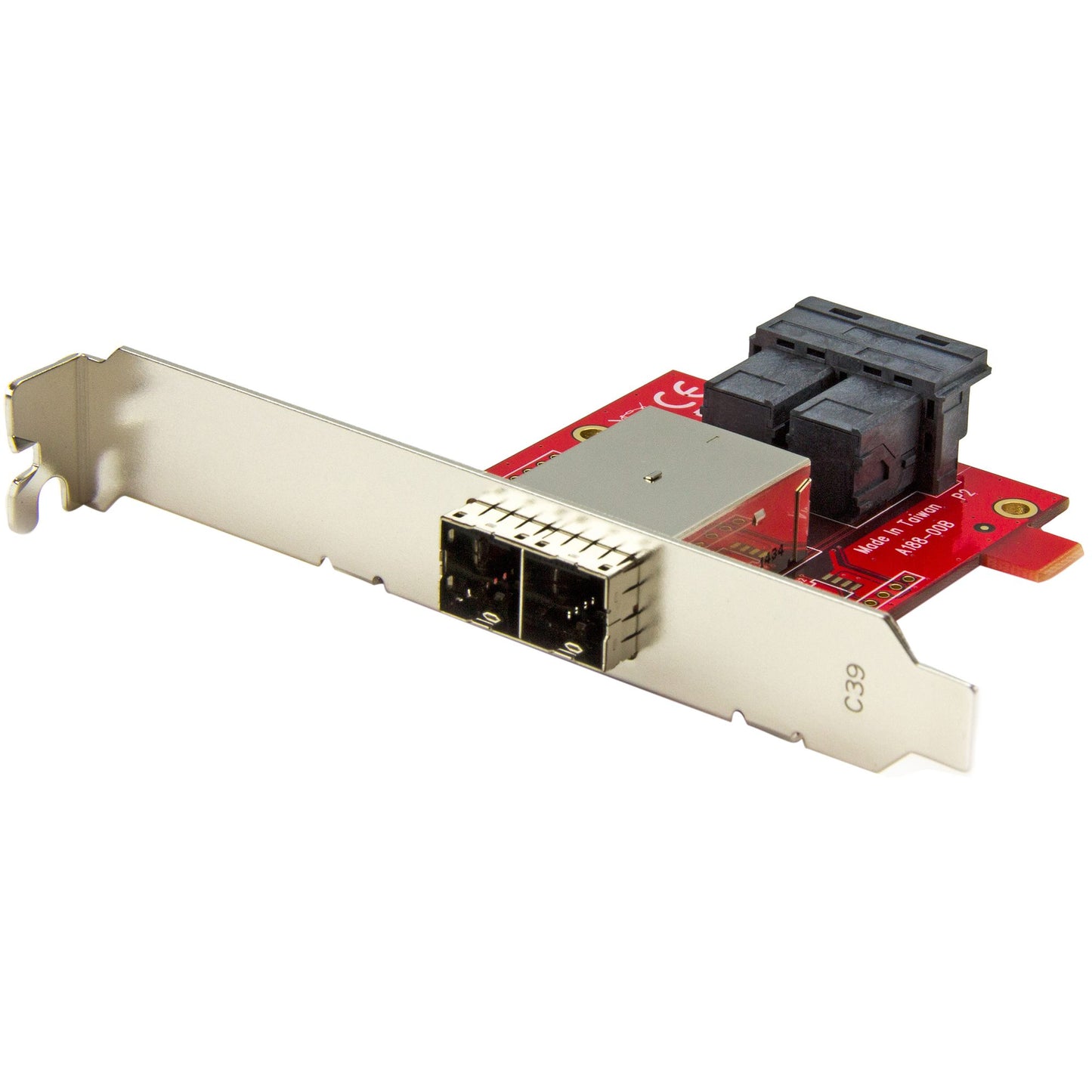

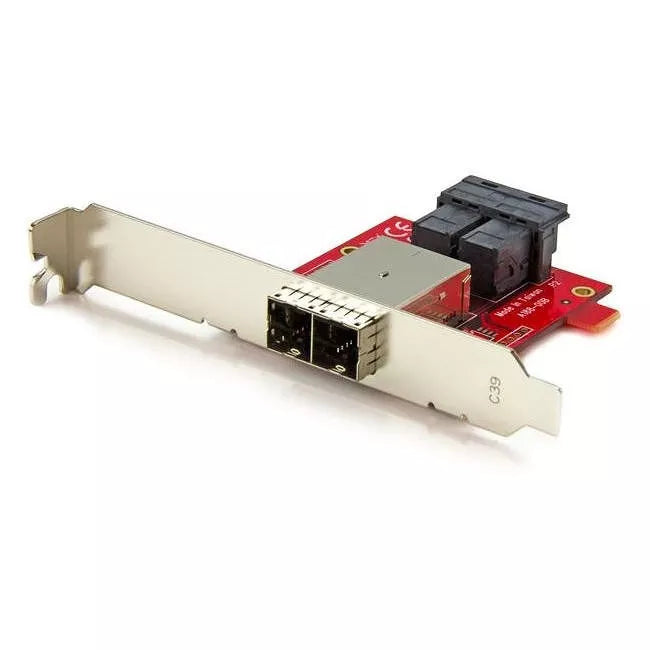

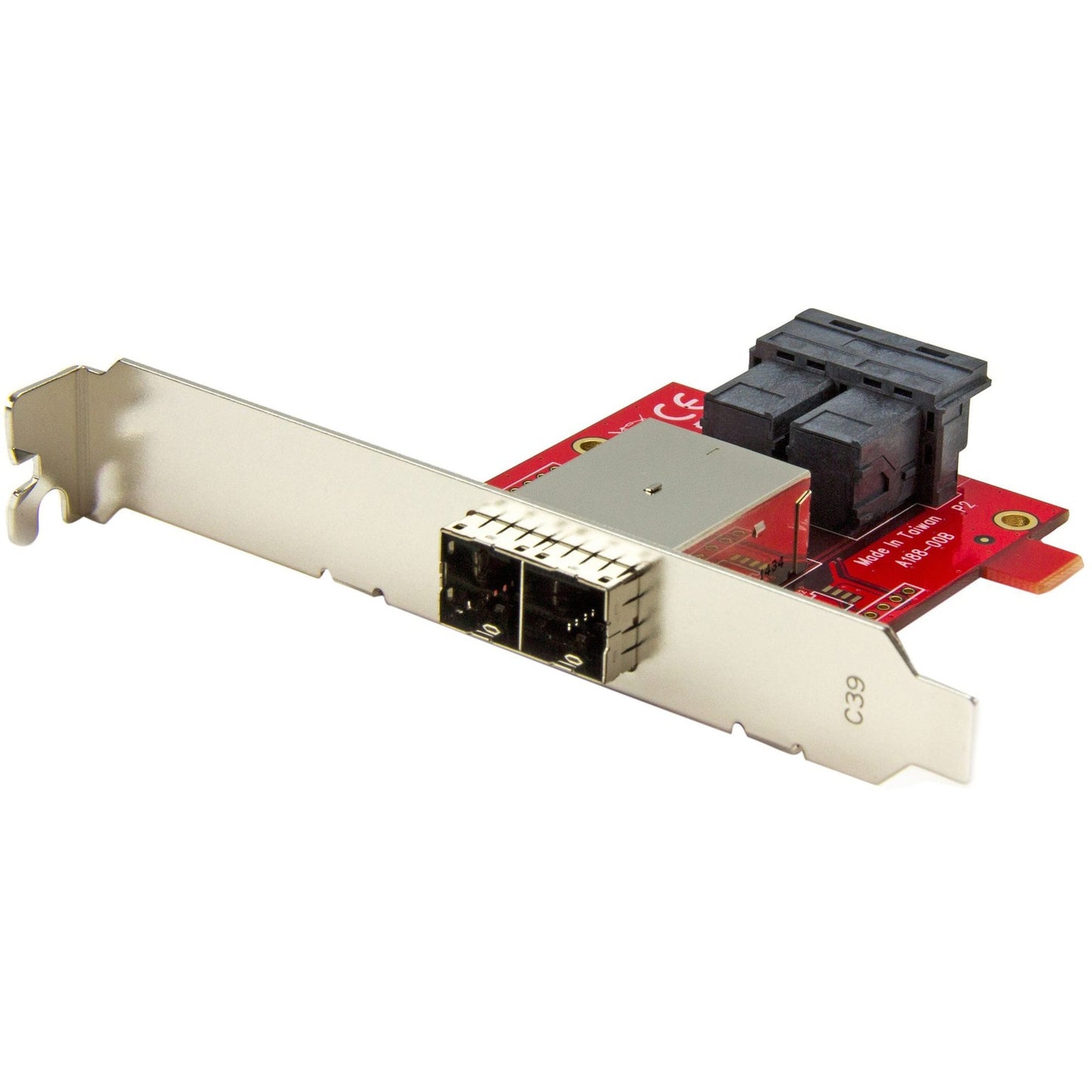

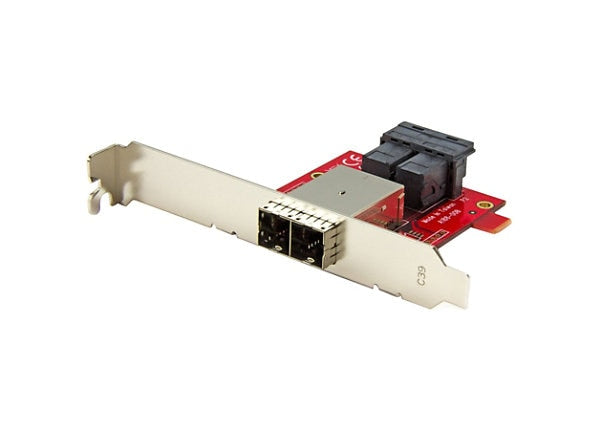

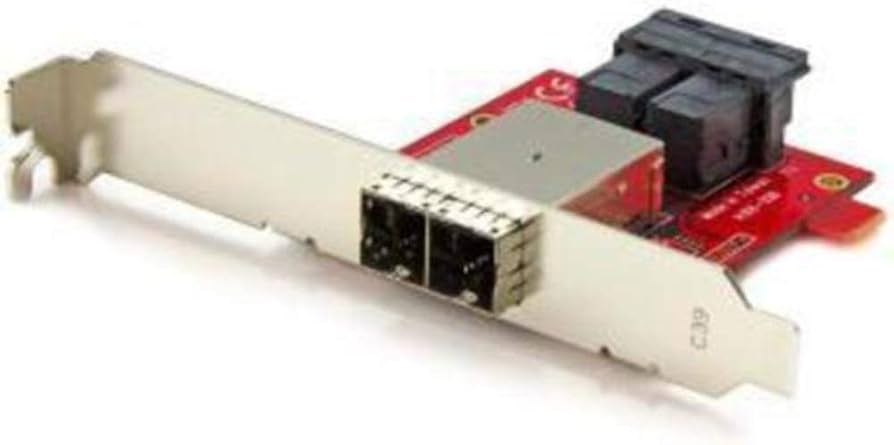

STARTECH Mini-SAS Adapter Dual SFF-8643 to SFF-8644, 12Gbps

VENDOR: STARTECH Mfg Part#: SFF86448PLT2 UPC#: 065030866484
1 5
Photo is for illustration purposes only. Actual product may be different.
$82.08
$82.08
Sale Sold out
MSRP: $87.99
Shipping calculated at checkout.
  • Converts dual internal SFF-8643 to dual external SFF-8644 connections
  • Supports up to 12Gbps transfer rates with backward compatibility for 6Gbps SAS and SATA
  • Includes full and low-profile brackets for versatile installation
  • Compact size (4.7" x 2.9" x 0.9") and lightweight design (1.9 oz)
  • TAA compliant; manufactured in Taiwan
  • Backed by a 2-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • 12Gbps throughput enables high-speed SAS connectivity for enterprise storage environments
  • Dual bracket support allows flexible integration with full or low-profile server cases
  • TAA compliance makes it suitable for government and institutional procurement

Product Overview

Convert two internal SFF-8643 ports into two external SFF-8644 ports - Mini SAS Adapter - SFF-8643 to SFF-8644 - Dual SFF-8643 to Dual SFF-8644 - 12Gbps - with Full and Low-Profile Brackets

Specifications

Product Overview
Product Type Mini-SAS Adapter
Form Factor Internal to External Bracket Adapter
Weight 1.9 oz [54 g]
Power Requirements Bus-powered
Included Accessories Full-profile and low-profile brackets
Compatibility 12Gbps SAS, backward compatible with 6Gbps SAS and SATA
Bracket Profile Options Full-profile and Low-profile PCI brackets
Part Number SFF86448PLT2
UPC 065030866484
Color Red
Service & Support 2 Years Warranty

Physical & Environmental
Width 4.7 inch [119 mm]
Depth 2.9 inch [74 mm]
Height 0.9 inch [22 mm]
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 20% to 80% RH (Non-condensing)
Storage Humidity 10% to 90% RH (Non-condensing)

Cloud Management & Licensing
Management Interface
Cloud-Based Management
Subscription Licensing

Interfaces
Internal Connector Type Dual SFF-8643 (Mini-SAS HD Internal)
External Connector Type Dual SFF-8644 (Mini-SAS HD External)
Number of Internal Ports 2 x SFF-8643
Number of External Ports 2 x SFF-8644
Maximum Data Transfer Rate 12 Gbps per channel
Drive Interface Supported SAS / SATA
Backward Compatibility 6Gbps SAS and SATA

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC, REACH

Advanced Security Features
Integrated Security Features
Encryption Support
