| Product Type | Network Card Adapter |
| Form Factor | Plug-in card |
| Bus Type | PCI Express x1 |
| Chipset | Realtek RTL8161 |
| Card Profile | Standard and Low Profile Brackets included |
| Power Consumption | 2.5 W (typical) |
| Bracket Type | Full-height and low-profile (included) |
| Enclosure Color | Green |
| Weight | 67 g |

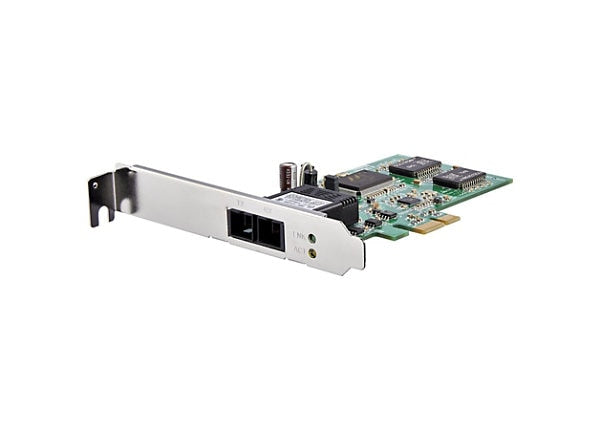

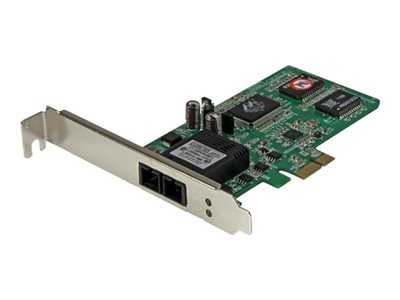

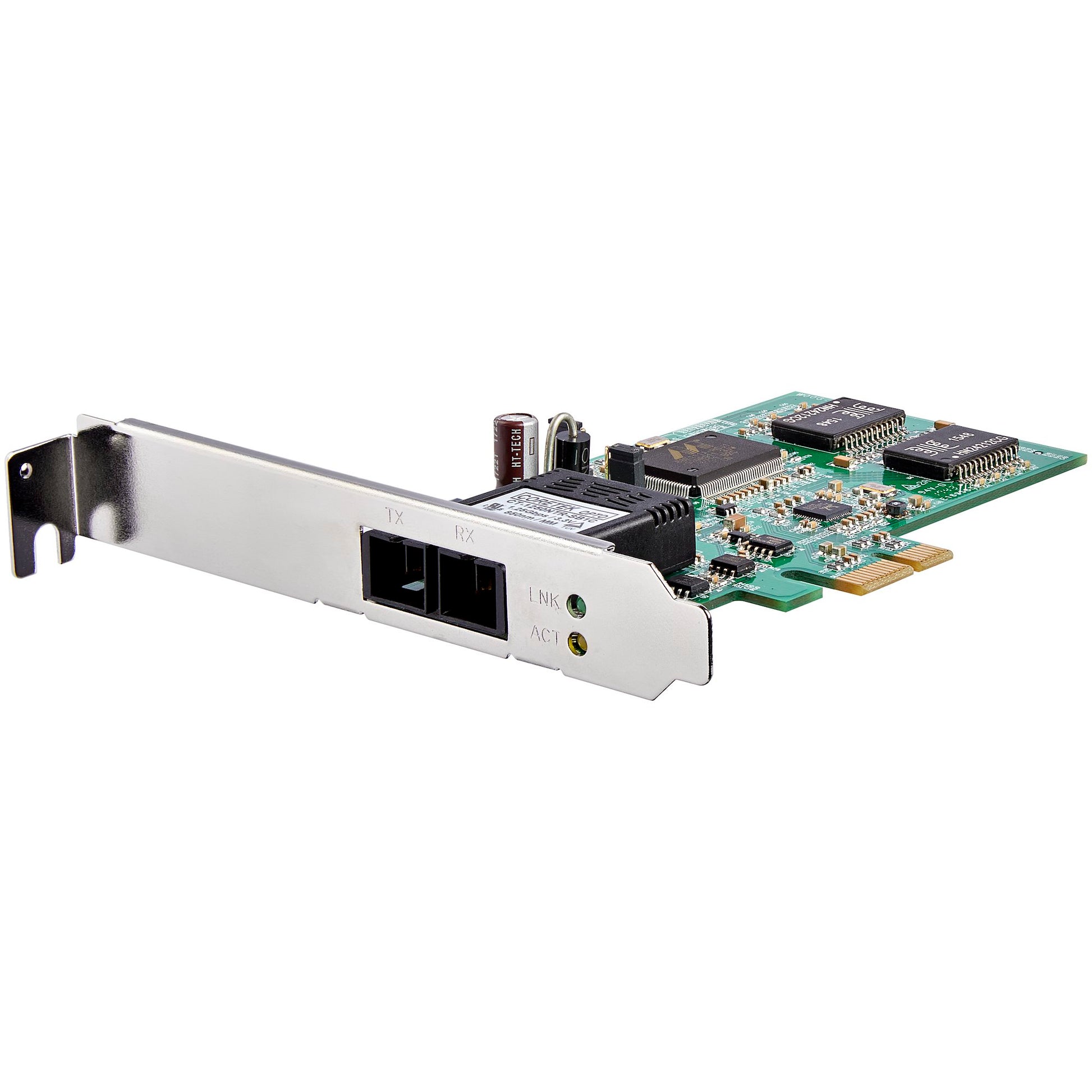

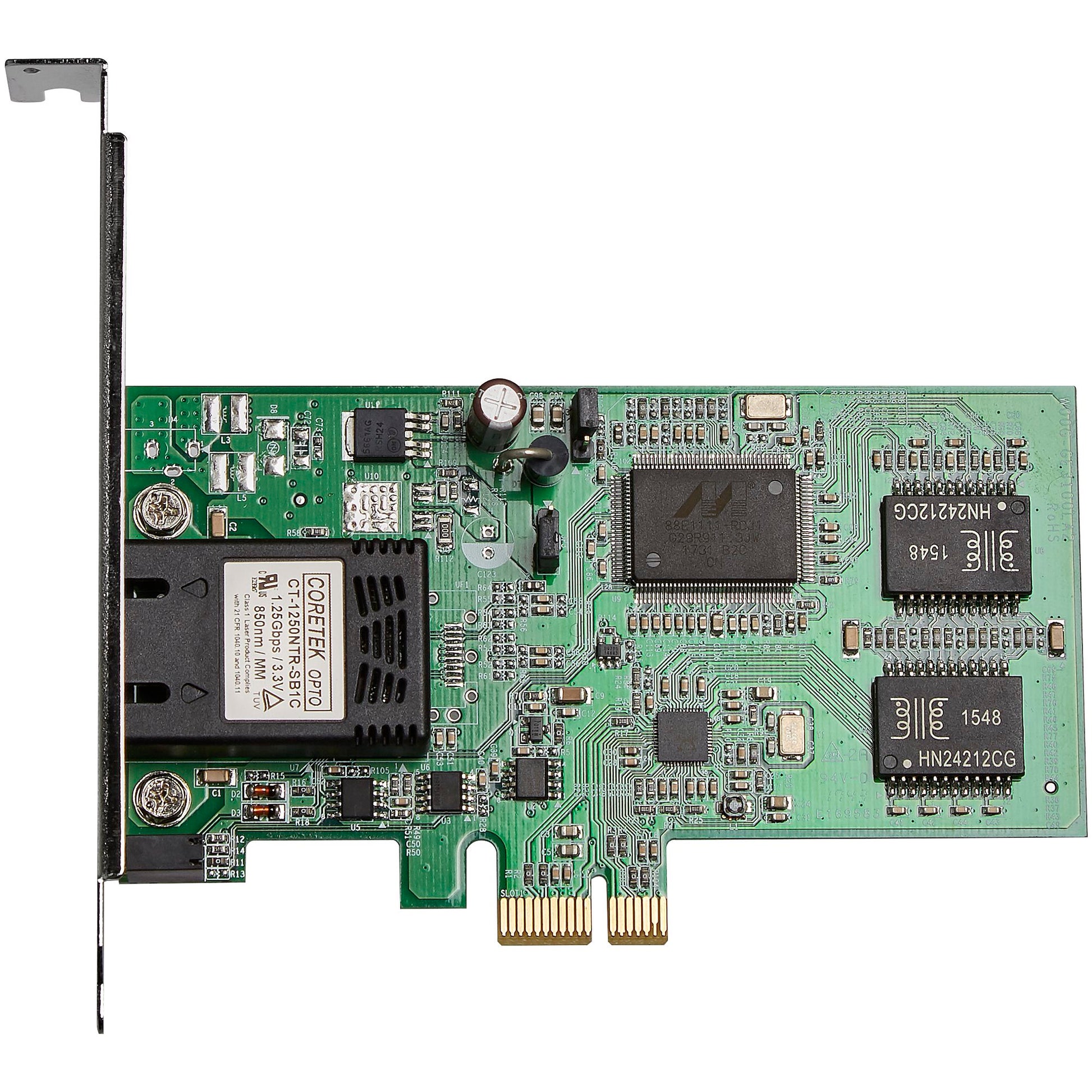

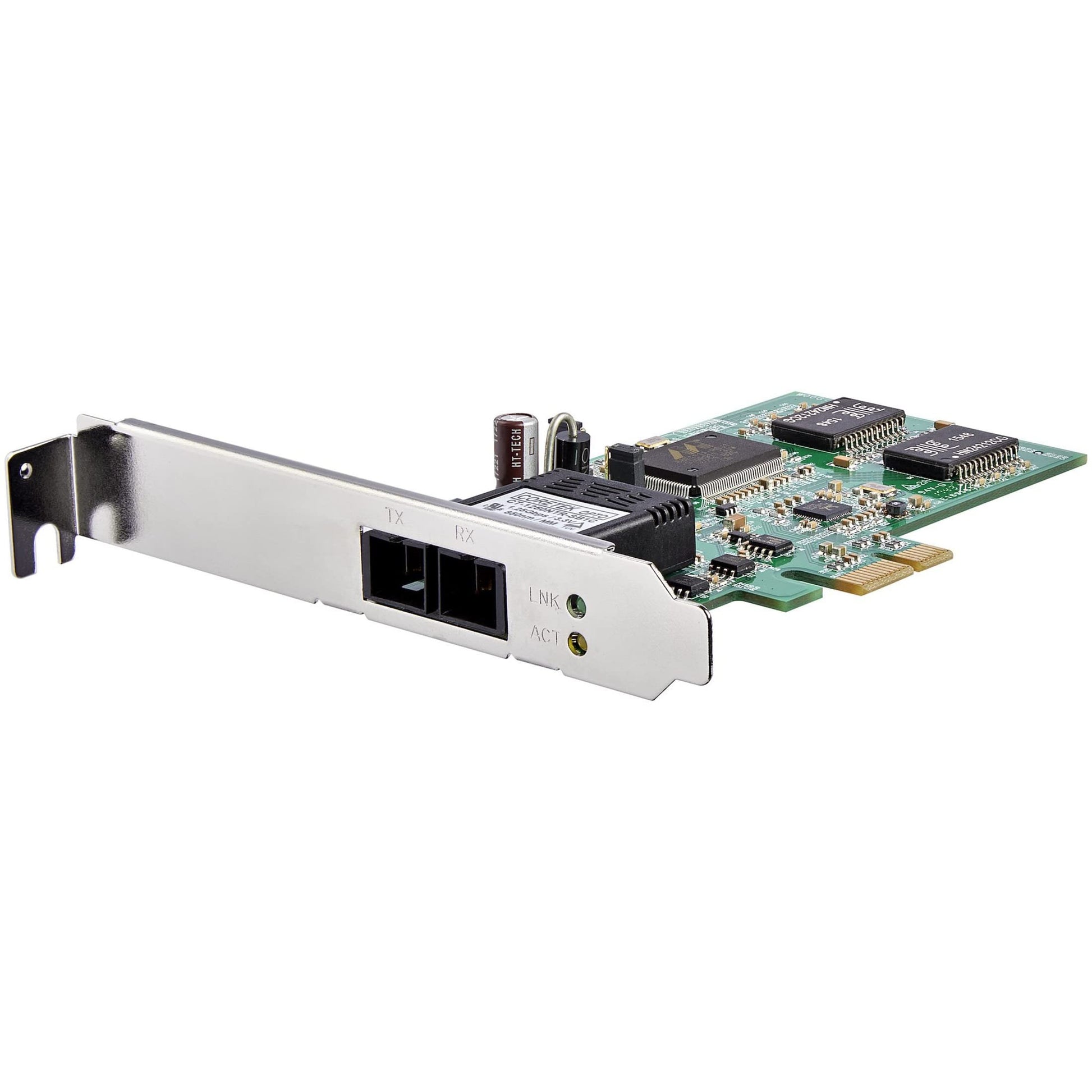

StarTech PCIe Gigabit SC Fiber Network Adapter - PEX1000MMSC2
Photo is for illustration purposes only. Actual product may be different.
Regular price
$198.60
Regular price
Sale price
$198.60
Unit price
per
MSRP: $199.99
Shipping calculated at checkout.
Couldn't load pickup availability
- PCIe interface supporting Gigabit Ethernet connection
- SC Duplex multimode fiber port with up to 1 Gbps data rate
- Compliant with IEEE802.3z for fiber Ethernet standards
- Supports wired connectivity for interference-resilient networking
- Compact external form factor: 0.7" (W) x 4.6" (D) x 4.7" (H)
- TAA compliant and RoHS certified for regulatory assurance
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers interference-resistant gigabit networking via SC fiber for secure, high-EMI environments
- Easy integration with PCI Express systems ensures compatibility with modern desktops and servers
- Backed by a 2-year manufacturer warranty and standards compliance (TAA, RoHS) for installation confidence
Product Overview
Connect a PCIe based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network - PCI Express Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC - 550m - PCIe GbE Fiber Optic Network Card - SC Fiber Gigabit Ethernet CardSpecifications
Product Overview
Physical & Environmental
| Width | 1.8 cm |
| Depth | 11.7 cm |
| Height | 12 cm |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Operating Humidity | 20% to 80% RH |
| Storage Humidity | 20% to 90% RH |
Cloud Management & Licensing
| Management Interface |
Wireless Features
Interfaces
| Interface Type | PCI Express 2.0 x1 |
| Ports Qty | 1 |
| Connector Type | SC Duplex Multimode Fiber |
| Cabling Type | Ethernet 1000Base-SX |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | Gigabit Ethernet |
| Connectivity Technology | Wired |
| Fiber Mode Supported | Multimode |
| Fiber Core/Cladding Diameter | 62.5/125 µm, 50/125 µm |
| Transmission Distance | 550 m |
Compliance & Origin
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| Certifications | CE, FCC, REACH |
| Country of Origin | Taiwan |
Advanced Security Features
| OS Compatibility | Windows 11, 10, 8, 7; Linux Kernel 2.4.x or later |
| Jumbo Frame Support | Yes |
| Full Duplex Support | Yes |
| Wake-on-LAN Support | Yes |
