| Product Type | Thunderbolt 3 to PCIe Expansion Chassis |
| Form Factor | External chassis |
| Model Number | TB31PCIEX16 |
| Power Device Type | AC adapter |
| Power Provided | 65 Watt |
| Power Input Voltage | 100 - 240V AC |
| Power Output via PCIe Slot | 25 Watt |
| Power Output via LP4 Connector | Up to 30 Watt between 12V and 5V rails |
| Power Adapter Type | 12V 5A universal power adapter |
| Power Adapter Compatibility | NA/JP, UK, EU, ANZ |

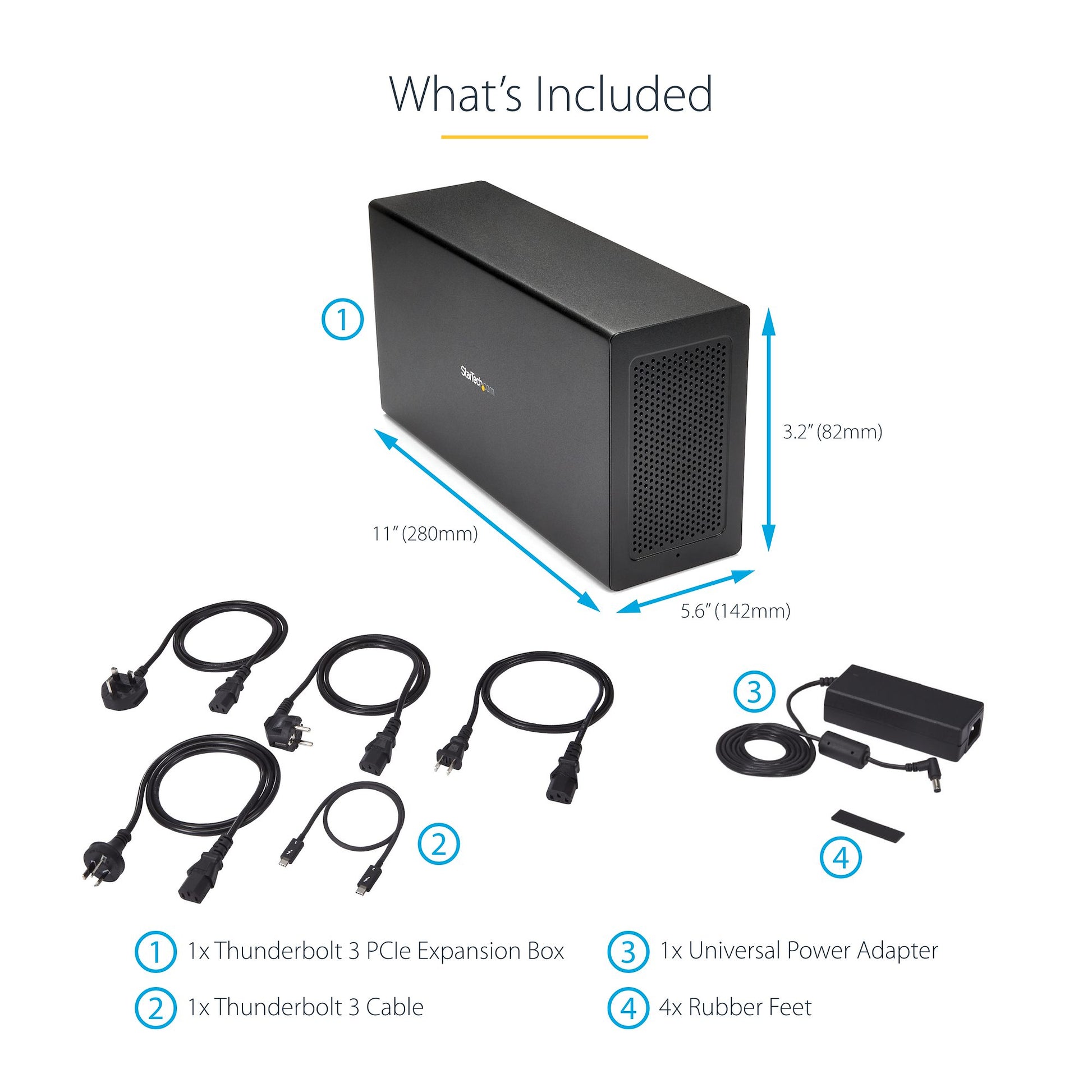

| Included Accessories | Thunderbolt 3 cable, power adapter |
| Warranty | 2 Years |

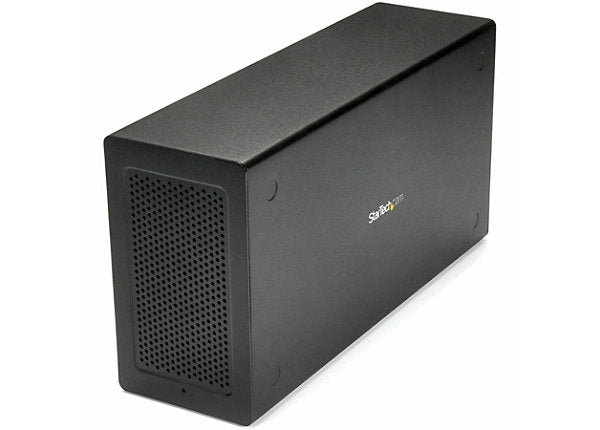

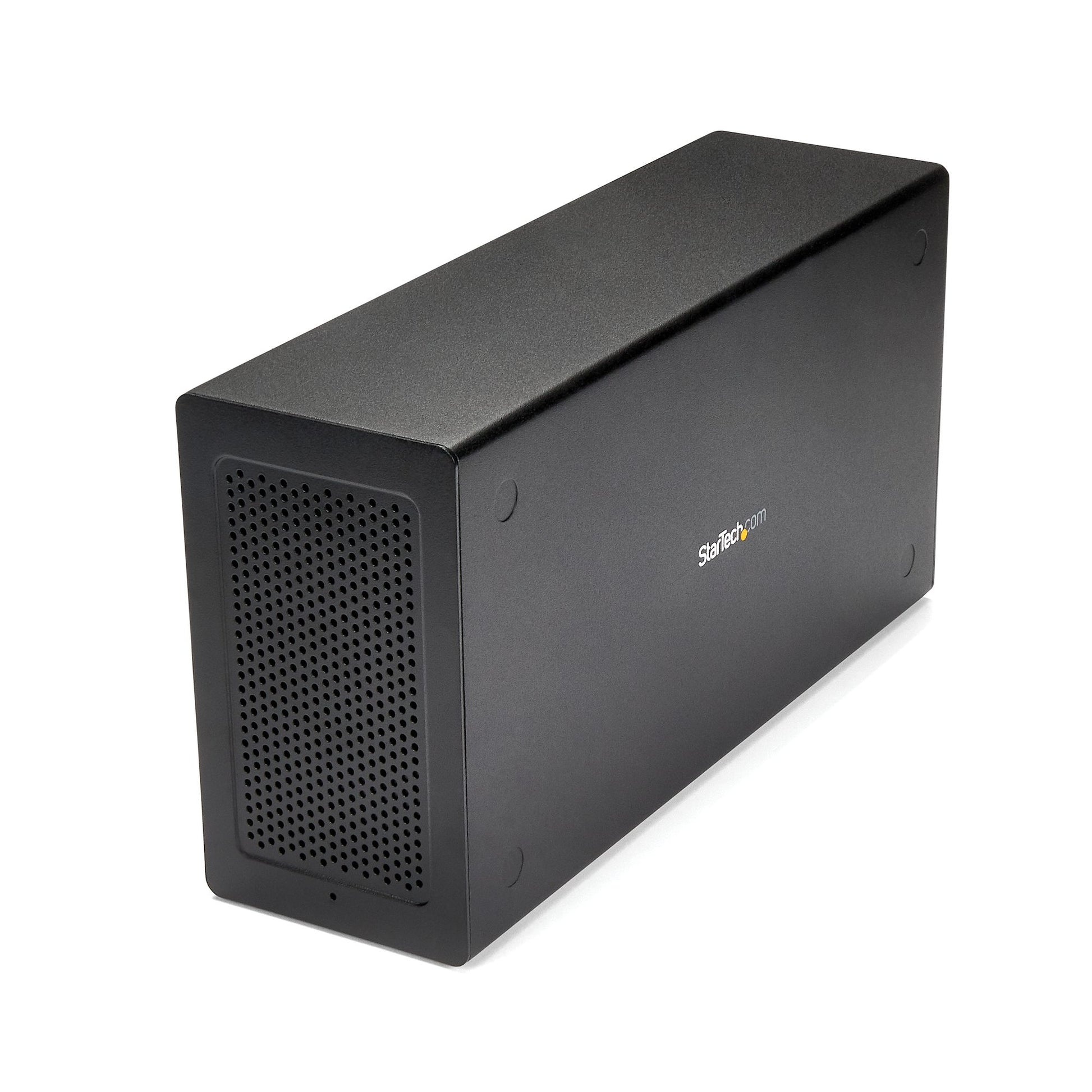

StarTech TB31PCIEX16 Thunderbolt 3 PCIe Expansion Chassis
Photo is for illustration purposes only. Actual product may be different.
Regular price
$319.99
Regular price
Sale price
$319.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

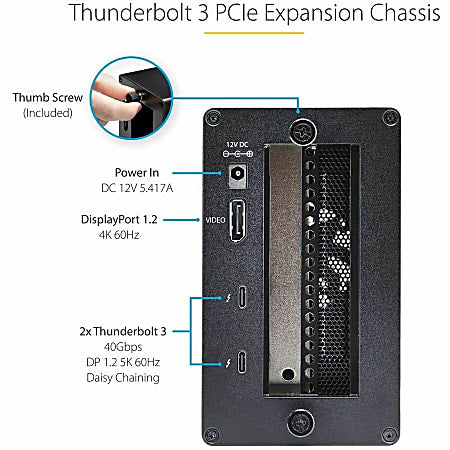

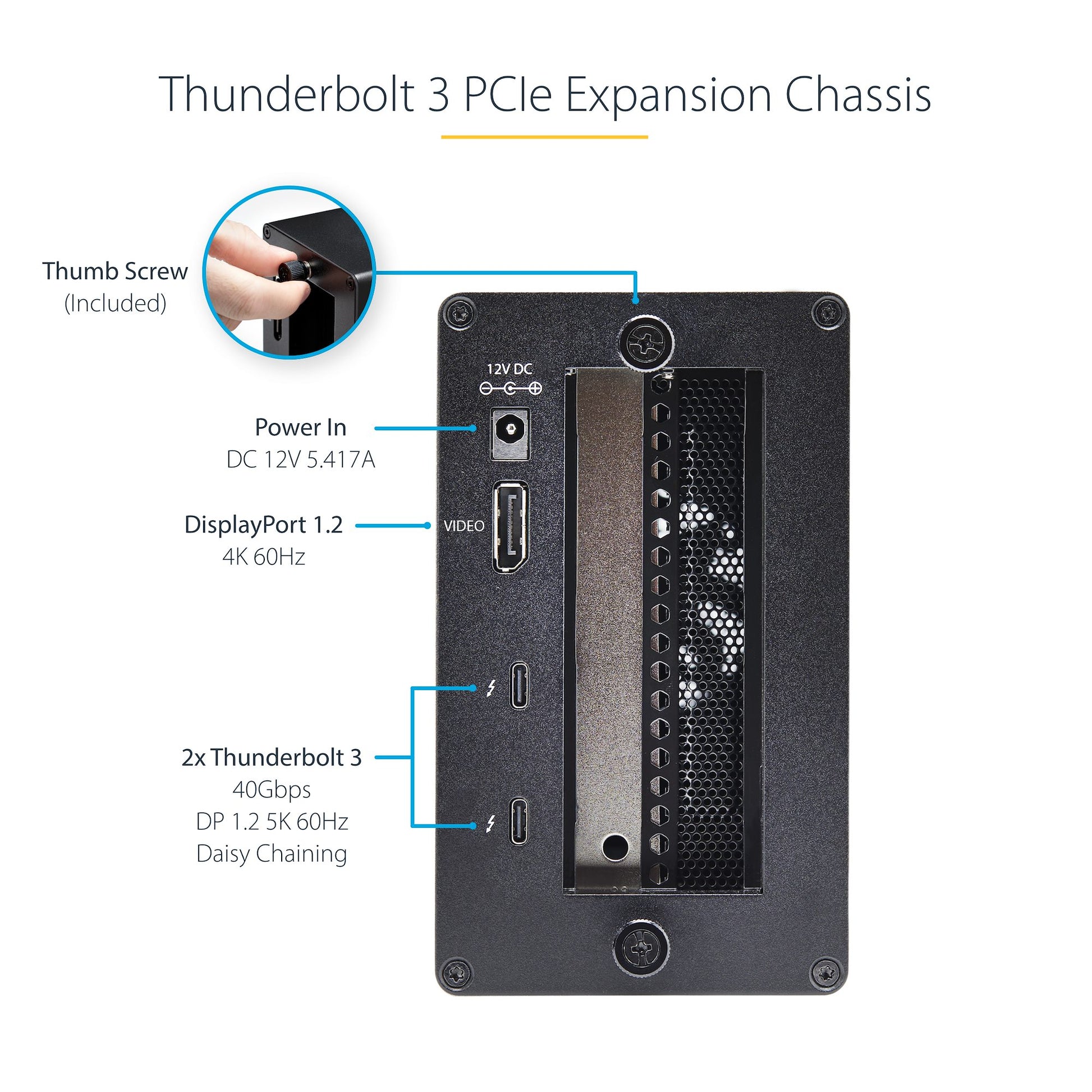

- Thunderbolt 3 PCIe expansion chassis with PCIe 3.0 x16 slot
- DisplayPort and TB3 video output support up to 5K/4K at 60Hz
- Aluminum toolless design with active fan cooling for single-width cards up to 8"
- Includes 65W universal power adapter (100–240V AC input)
- Delivers 25W via PCIe slot and 30W via LP4 port with 12V/5A support
- Compatible with macOS, Windows, Linux; supports TB3/4 daisy-chaining
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Enables professional-grade expandability for Thunderbolt-enabled laptops with PCIe 3.0 x16 slot
- Built-in DisplayPort integration supports high-resolution displays up to 5K at 60Hz, ideal for multimedia workflows
- TAA-compliance and cross-platform driverless compatibility meet the needs of enterprise and government deployments
Product Overview
Add an external PCI Express 3.0 x16 slot and a DP connection to a Thunderbolt 3 MacBook or laptop - Add a PCIe card such as an, SSD, Ethernet, Fiber, video capture, USB, FireWire, or eSATA card to a Thunderbolt 3 laptop - Thunderbolt 3 to PCIeSpecifications
Product Overview
Wireless Features
| Wireless Support |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| RoHS Compliance | Yes |
Advanced Security Features
| Security Features |
Interfaces
| Host Interface | Thunderbolt 3 (USB-C) |
| Thunderbolt Ports | 1 x Thunderbolt 3 |
| PCIe Slot Interface | PCI Express 3.0 x16 (x4 mode) |
| Display Output | 1 x DisplayPort |
| Data Transfer Rate | Up to 40Gbps via Thunderbolt 3 |
| Expansion Slot Count | 1 PCIe slot |
| Supported PCIe Card Length | Up to 8 inches (20.3 cm) |
| Daisy Chain Support | Yes, via Thunderbolt 3/4 |
Physical & Environmental
| Color | Black |
| Material | Aluminum |
| Toolless Design | Yes |
| Cooling | Built-in fan for active cooling |
| Width | 5.6 inch (142.2 mm) |
| Depth | 11.0 inch (279.4 mm) |
| Height | 3.2 inch (81.3 mm) |
| Operating System Compatibility | macOS, Windows, Linux |
| GPU Compatibility | Not compatible with GPU graphic cards |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature Range | -10°C to 65°C (14°F to 149°F) |
| Operating Humidity | 10% to 90% RH non-condensing |
Cloud Management & Licensing
| Driver Requirement | Driverless |
| Software Requirement | None |
