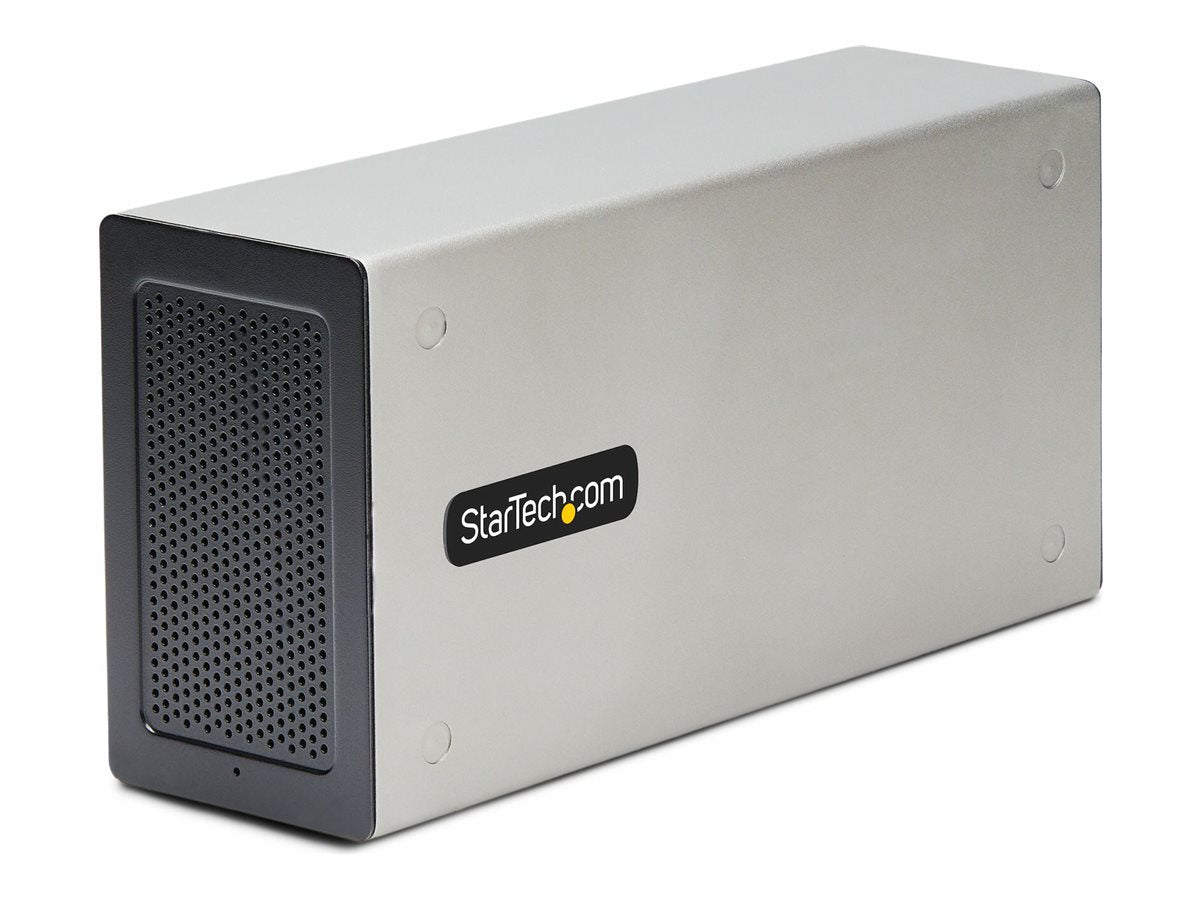

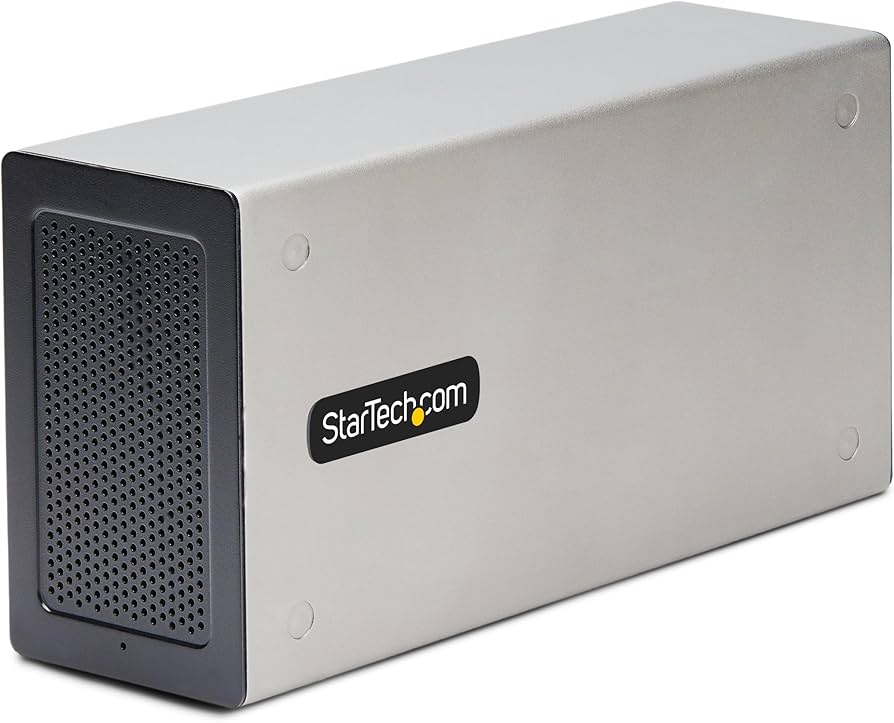

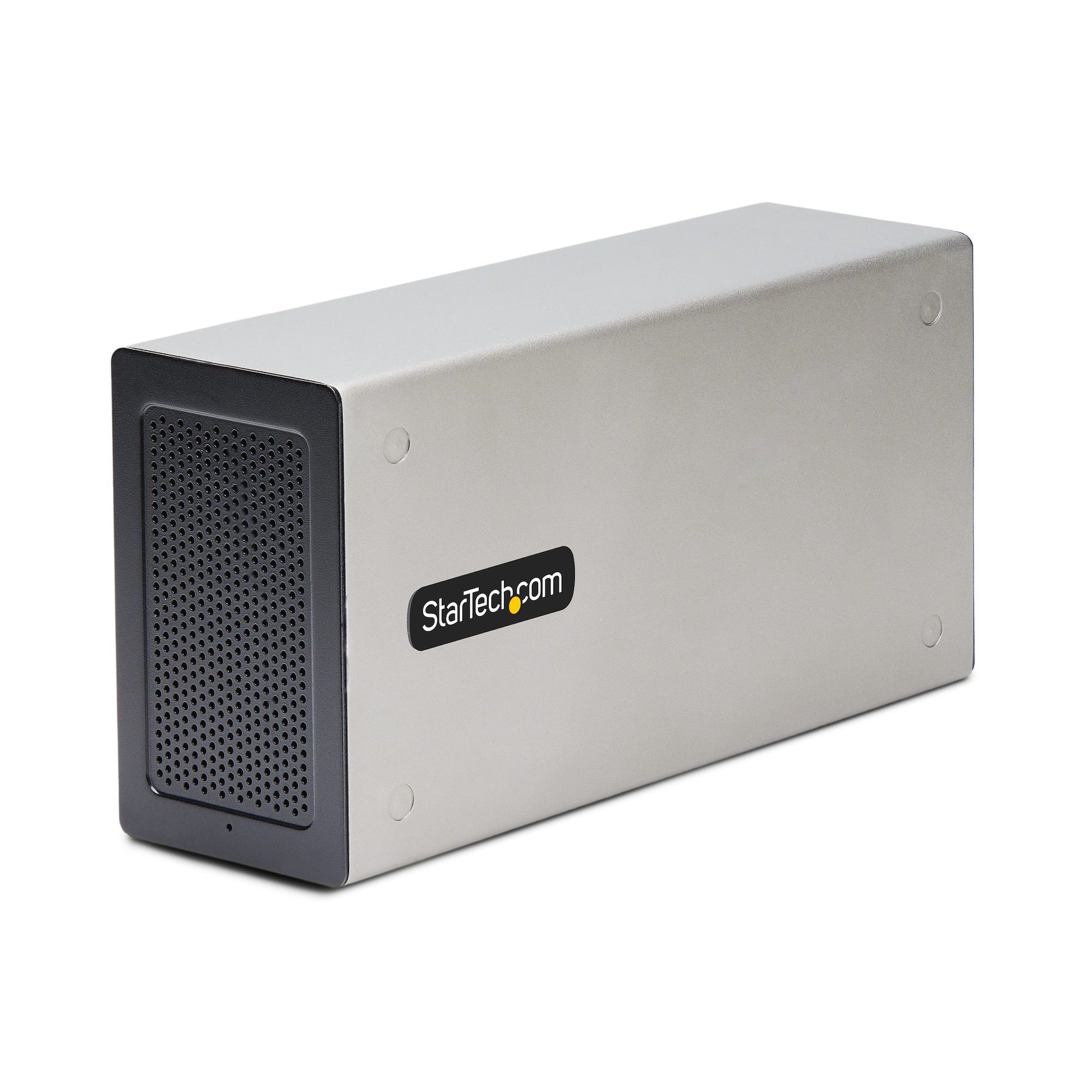

StarTech Thunderbolt 3 Dual PCIe Expansion Chassis, 8K/4K Output, Toolless

VENDOR: STARTECH Mfg Part#: 2TBT3-PCIE-ENCLOSURE UPC#: 065030895002
1 5
Photo is for illustration purposes only. Actual product may be different.
$548.99
$548.99
Sale Sold out
Shipping calculated at checkout.
  • Dual PCIe 3.0 slots supporting up to 21.6Gbps per slot
  • Toolless aluminum enclosure design for easy access and efficient cooling
  • Supports 8K/4K video output via DisplayPort 1.4 and Thunderbolt 3 ports
  • Compatible with Thunderbolt 3/4 laptops, desktops, and all-in-one PCs
  • Driverless installation for streamlined deployment
  • TAA compliant and manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables rapid PCIe expansion for Thunderbolt 3/4 systems, perfect for professionals needing high-speed flexible I/O
  • Supports ultra-high-resolution 8K/4K video output, ideal for graphic-intensive tasks and media production
  • Toolless and driverless design simplifies setup, minimizing downtime and improving operational efficiency

Product Overview

THUNDERBOLT 3 PCIE EXPANSION CHASSIS FOR THUNDERBOLT 3/4 LAPTOPS - EXTERNAL ENCLOSURE W/ DUAL PCI-E 3.0 SLOTS (UP TO 21.6GBPS PER SLOT) - FOR VIDEO CAPTURE/FIBER/ETHERNET CARDS - TOOLLESS DESIGN AND ALUMINUM CONSTRUCTION - 8K/4K VIA DP 1.4/TB3 PORTS

Specifications

Product Overview
Product Type Thunderbolt 3 Dual PCIe Expansion Chassis
Form Factor External Enclosure
Chassis Material Aluminum
Tool-less Design Yes
Power Supply External AC Adapter (Included)
Power Input 100–240V AC, 50/60Hz
Power Output 12V DC, 10A
Supports GPU Cards No
Weight 2.34 kg (5.16 lb)

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
CE Certified Yes
FCC Compliant Yes
REACH Compliant Yes

Advanced Security Features

Interfaces
Host Interface Thunderbolt 3
Number of Thunderbolt 3 Ports 2
PCIe Interface PCI Express 3.0
PCIe Slot Count 2x PCIe x8 Slots (open-ended)
Data Transfer Rate per Slot Up to 21.6 Gbps
DisplayPort Output 1x DisplayPort 1.4
Display Support Up to 8K at 60Hz or Dual 4K at 60Hz via DisplayPort 1.4 and Thunderbolt 3

Physical & Environmental
Product Color Black
Enclosure Type Aluminum Housing
Cooling Type Built-in Fan
Operating Temperature 5°C to 35°C (41°F to 95°F)
Storage Temperature -20°C to 50°C (-4°F to 122°F)
Operating Humidity 20% to 80% RH (non-condensing)
Storage Humidity 10% to 90% RH (non-condensing)
Product Dimensions 282 mm x 139 mm x 138 mm (11.1 in x 5.5 in x 5.4 in)
