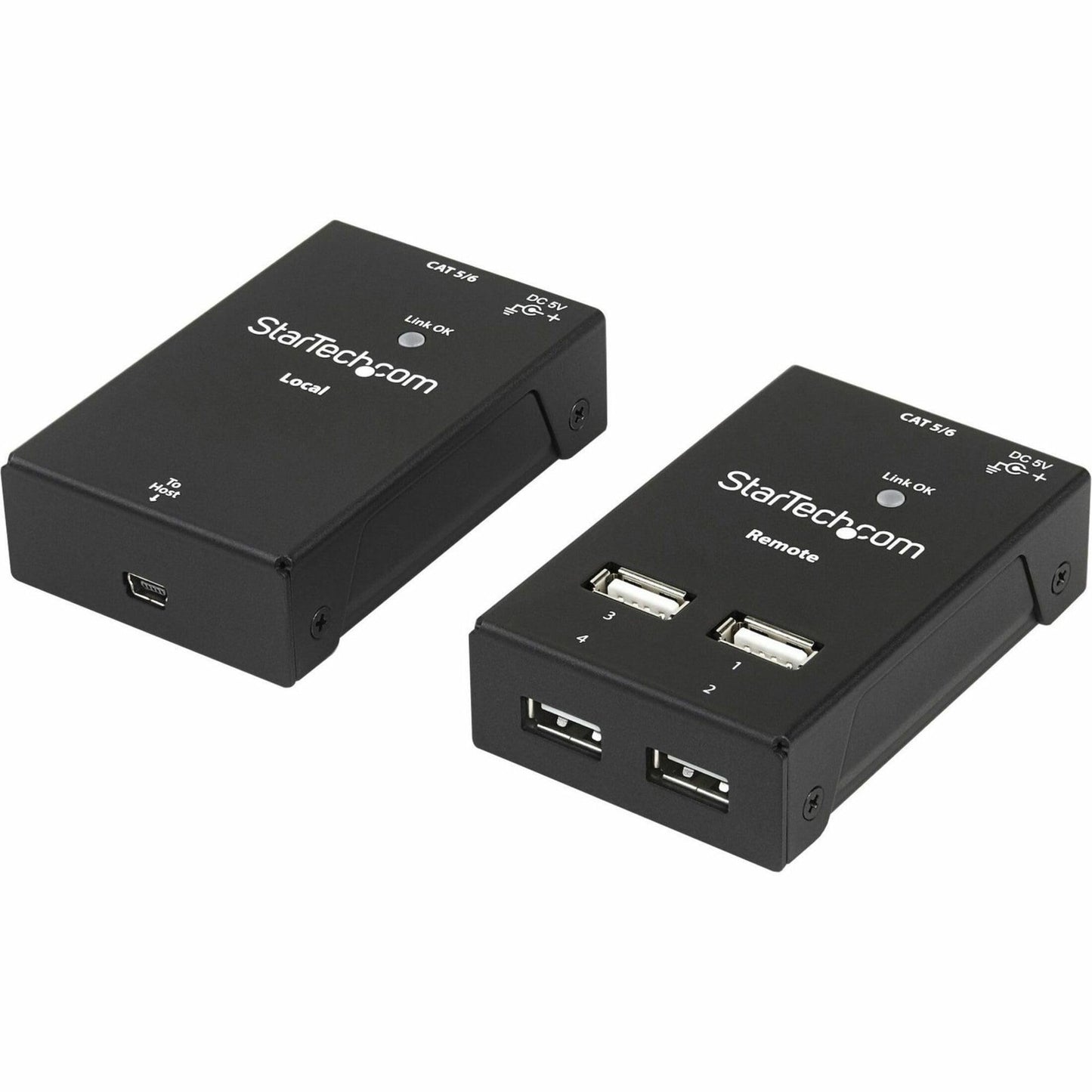

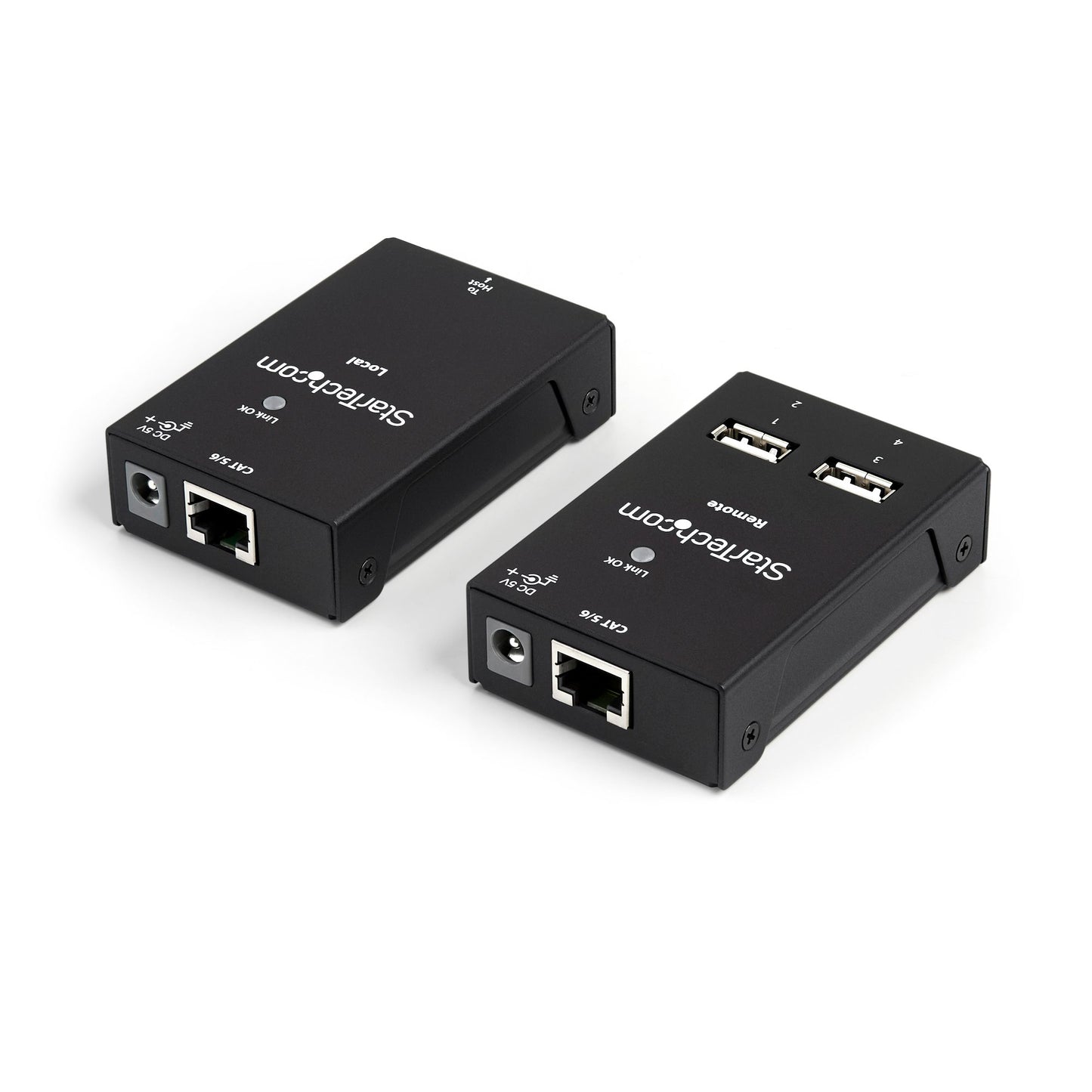

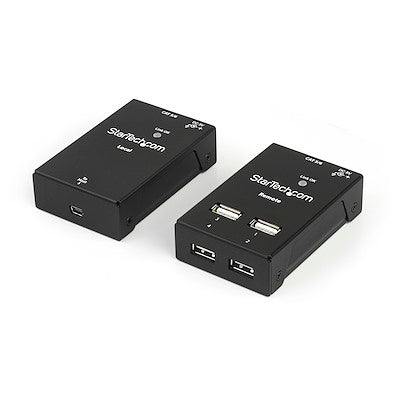

StarTech USB2004EXTV 4-Port USB 2.0 Extender over Cat5/6 (130ft, Compact Design)

VENDOR: STARTECH Mfg Part#: USB2004EXTV UPC#: 065030860031
1 5
Photo is for illustration purposes only. Actual product may be different.
$181.00
$181.00
Sale Sold out
MSRP: $181.99
Shipping calculated at checkout.
  • Supports USB 2.0 data transfer speeds up to 480 Mbps
  • Extends USB connectivity up to 130ft (40m) over a single Cat5/Cat6 cable
  • Includes local unit with USB Mini-B and RJ-45 connectors
  • Compact design with 2 top-facing ports for easy access
  • Operating system independent for broad compatibility
  • TAA compliant and backed by a 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Extend USB functionality up to 130ft, ideal for remote workstation setups
  • Cost-effective USB extender solution requiring only one Ethernet cable
  • Meets TAA compliance standards, making it suitable for government and institutional use

Product Overview

Connect four USB 2.0 devices away from your computer over Cat5 or Cat6 up to 130ft (40m) - Cost-effective & compact USB extension over single Ethernet cable - 2 top ports - OS independent - Kit includes transmitter & hub receiver

Specifications

Product Overview
Device Type USB Extender
Form Factor Compact
Number of USB Ports 4
Maximum Extension Distance 40 m (130 ft)
Power Requirements 5V DC, 2A
Included Power Adapter Yes (for remote unit)
Power Connector Type Center-positive barrel (5.5 mm OD, 2.1 mm ID)
Chipset ID GL850G
OS Compatibility OS independent; No drivers required
Warranty 2-year warranty

Physical & Environmental
Local Unit Dimensions (LxWxH) 84 mm x 55 mm x 25 mm
Remote Unit Dimensions (LxWxH) 84 mm x 55 mm x 25 mm
Local Unit Weight 0.12 kg (0.26 lb)
Remote Unit Weight 0.12 kg (0.26 lb)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 20% to 80% RH (non-condensing)
LED Indicators Power, Link, Activity
Enclosure Type Plastic

Cloud Management & Licensing
Cloud Managed No
Software or Licensing Required No

Interfaces
USB Port Type USB Type-A (downstream), USB Mini-B (upstream)
USB Specification USB 2.0
USB Data Transfer Rate 480 Mbps
Number of Downstream USB Ports 4
Number of Upstream USB Ports 1
Host Interface USB Mini-B (5-pin)
Network Interface RJ-45 (Cat5/6)
Cabling Requirements Cat5e or Cat6 UTP
Extender Type Over Ethernet (Point-to-Point)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
Environmentally Friendly Yes
Packaging Information Retail Box
