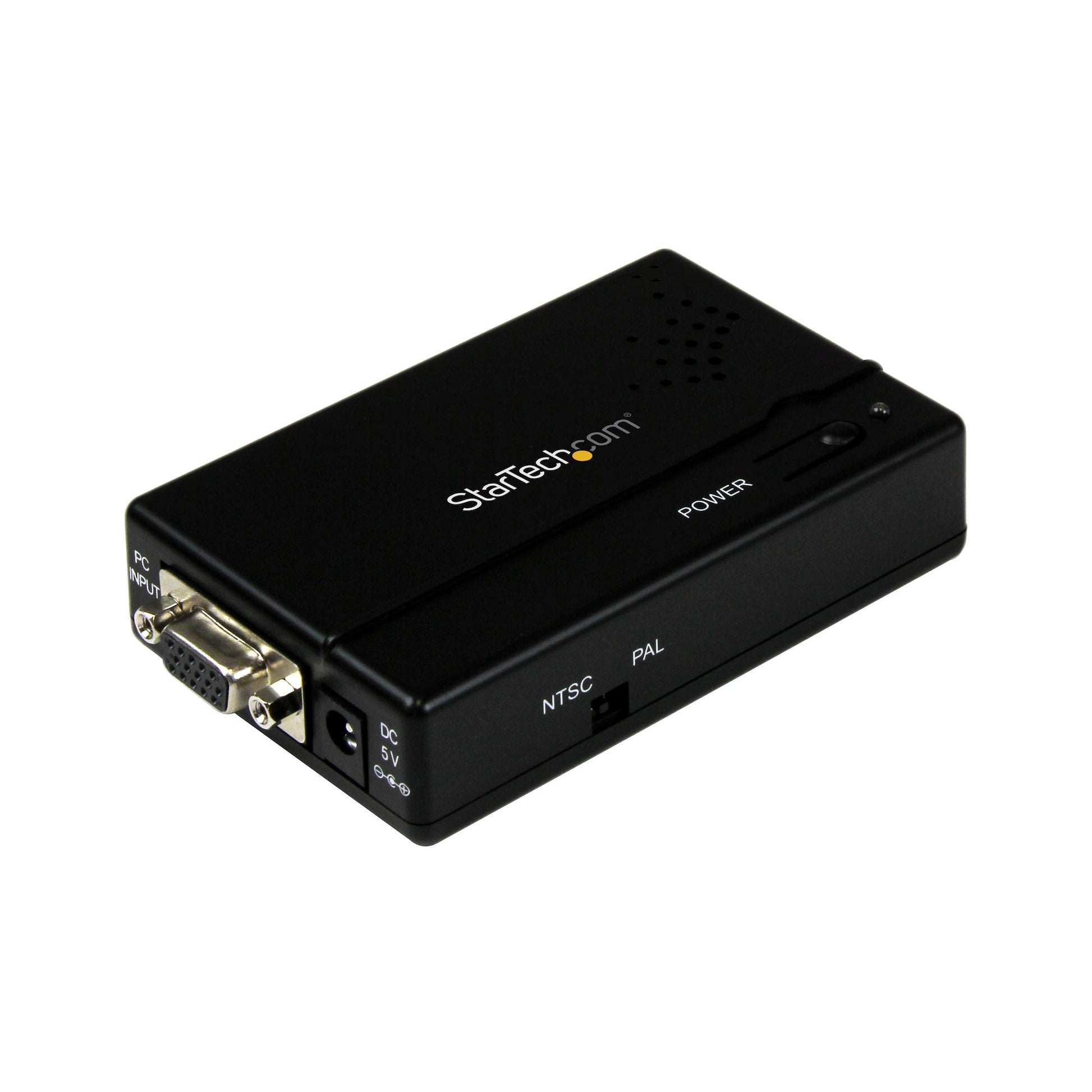

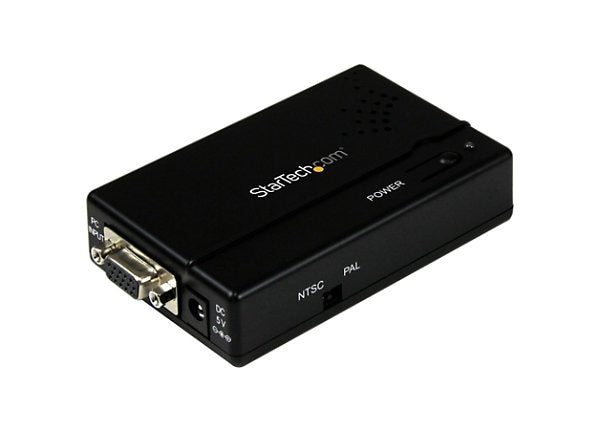

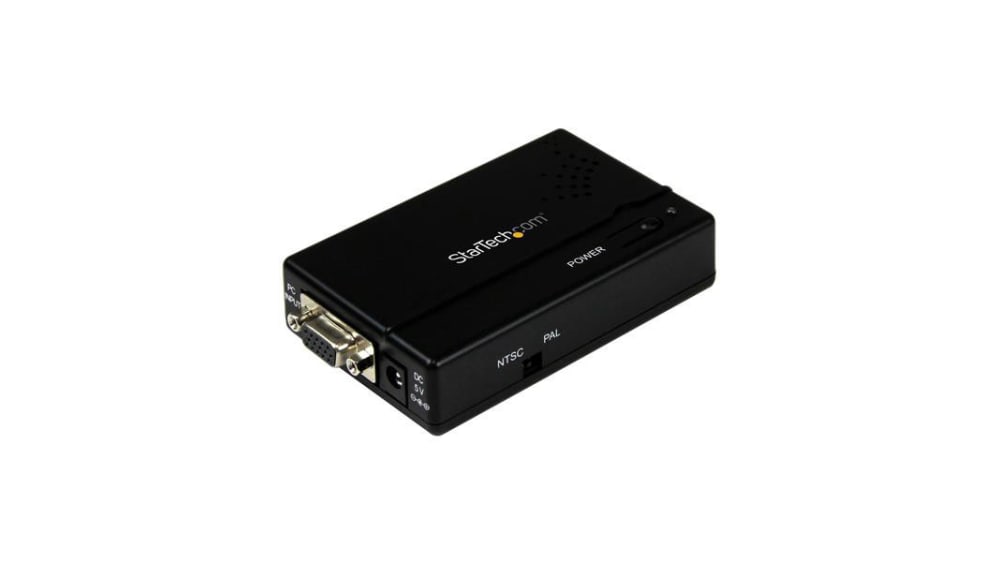

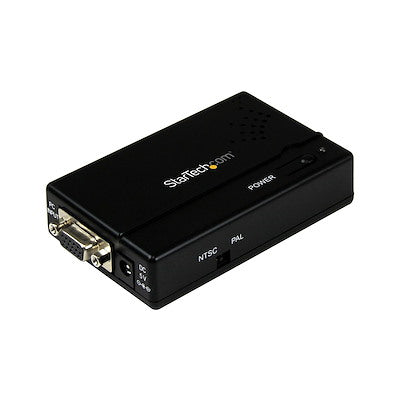

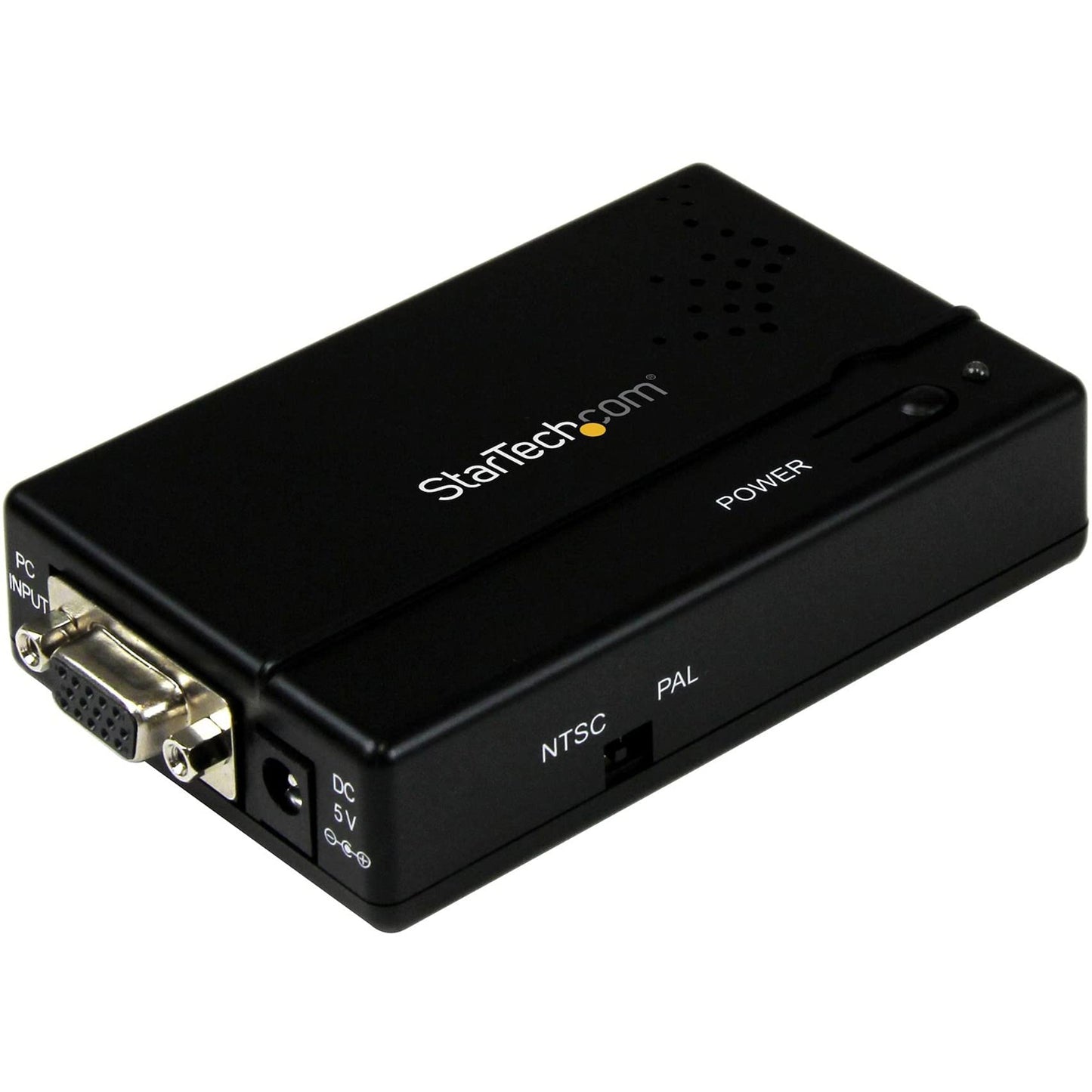

StarTech VGA to Composite/S-Video Converter VGA2VID

VENDOR: STARTECH Mfg Part#: VGA2VID UPC#: 065030830591
1 5
Photo is for illustration purposes only. Actual product may be different.
$114.33
$114.33
Sale Sold out
MSRP: $122.99
Shipping calculated at checkout.
  • Supports output via Composite or S-Video formats for legacy displays
  • VGA input via 15-pin high-density D-Sub interface
  • Maximum supported resolution: 1600 x 1200 @ 60 Hz
  • Compact design: 2.5" wide, 3.9" deep, 0.7" high
  • TAA-compliant and manufactured in Taiwan
  • Includes 2-year limited service and support warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports both composite and S-Video outputs, offering versatile compatibility with a wide range of legacy AV equipment
  • Delivers high-resolution output up to 1600 x 1200 @ 60 Hz, ensuring optimal display quality on older screens
  • Backed by a 2-year warranty and TAA-compliant, making it suitable for government and professional use

Product Overview

Connect a PC with VGA output to a composite or S-Video TV - vga to s video - vga to composite - pc to tv converter - rgb to tv - pc to tv adapter - Provides output in both composite and S-Video formats

Specifications

Product Overview
Product Type VGA to Composite/S-Video Converter
Form Factor External Adapter
Model VGA2VID
Enclosure Color Black
Power Source External Power Adapter (Included)
Power Consumption 5V DC, 1A
Mounting Type Portable/Desktop
Product Weight 70 g
Key Function Converts VGA signal to Composite or S-Video output
Package Contents 1 x VGA to Composite/S-Video Converter, 1 x RCA Video Cable, 1 x S-Video Cable, 1 x VGA Cable, 1 x Power Adapter, 1 x Instruction Manual

Physical & Environmental
Width 63 mm (2.5 inches)
Depth 100 mm (3.9 inches)
Height 18 mm (0.7 inches)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 10% to 85% RH, Non-Condensing
Storage Humidity 5% to 90% RH, Non-Condensing
Housing Material Plastic

Cloud Management & Licensing
Cloud Management

Interfaces
Input Interface 1 x VGA (HD-15)
Output Interfaces 1 x Composite RCA, 1 x S-Video
Video Input Type Analog RGB (VGA)
Video Output Types Composite Video, S-Video
Supported Resolutions 1600 x 1200 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1024 x 768 @ 60 Hz
Refresh Rate 60 Hz
Number of VGA Ports 1 Input, 1 Loop-through Output
Number of S-Video Ports 1
Number of Composite Ports 1

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC
RoHS Compliance Yes
WEEE Compliance Yes
