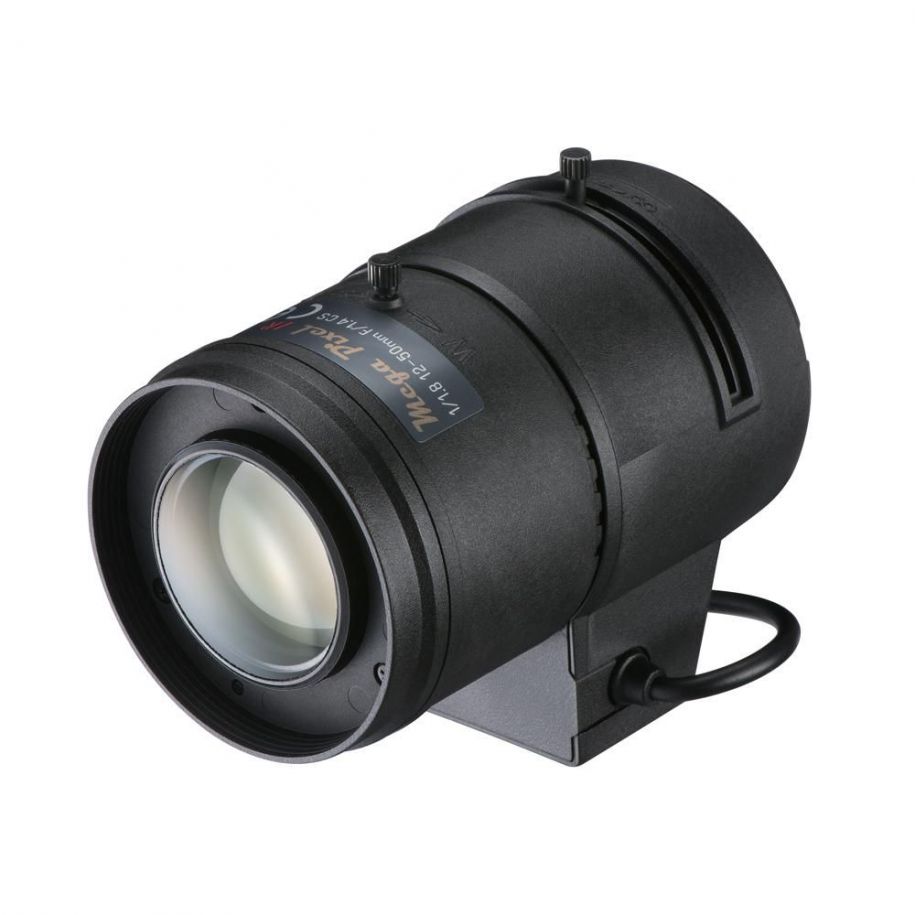

BOSCH Varifocal Lens 12-50mm 5MP CS Mount

VENDOR: BOSCH Mfg Part#: M118VG1250IR
1 3
Photo is for illustration purposes only. Actual product may be different.
$433.00
$433.00
Sale Sold out
Shipping calculated at checkout.
  • Focal length range of 12 mm to 50 mm with 4.2x optical zoom
  • Fast F/1.4 maximum aperture for enhanced low-light performance
  • IR corrected optics for clear imaging in infrared surveillance
  • Auto iris (DC) function for dynamic light adjustment
  • Manual focus adjustment and minimum focus distance of 3.3 ft
  • Compatible with 1/1.8" sensors and 5MP resolution systems

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-resolution surveillance capability with 5MP support and 12–50mm focal range
  • IR-corrected design ensures consistent image clarity during day and night using infrared
  • TAA-compliant, made in Japan, meeting government and enterprise procurement requirements

Product Overview

The BOSCH Varifocal Lens M118VG1250IR offers 12–50mm focal length with 4.2x optical zoom, providing flexibility from wide-angle to zoomed-in surveillance shots. A fast F/1.4 aperture ensures strong low-light performance, and IR correction maintains imaging clarity under infrared lighting. With auto iris (DC) control, manual focus adjustment, and compatibility with 1/1.8" sensors, this CS-mount lens is optimized for 5MP high-definition CCTV systems. TAA compliance and a lightweight 4.62 oz design make it ideal for critical security applications.

Specifications

Product Overview
Type CCTV lens
Form Factor CS-mount
Weight 4.62 oz
Power Requirements Auto iris (DC)
Intended For Surveillance
Equipment Category Lenses - CS-mount - auto iris (DC) - vari-focal

Optical Features
Focal Length 12 mm - 50 mm
Optical Zoom 4.2 x
Lens Aperture F/1.4
Minimum Aperture F/360
Minimum Focus Distance 3.3 ft
Focus Adjustment Manual
Zoom Adjustment Manual
Iris Control Auto (DC)
Image Correction IR corrected
Supported Image Resolution 5 Megapixels
Optical Construction Designed for high-resolution CCTV performance

Compliance & Origin
Country of Origin Japan
TAA Compliance Yes
RoHS Compliance Yes
REACH Compliance Yes
WEEE Compliance Yes

Advanced Security Features
Intrusion Detection
IR Cut Filter Yes (IR corrected)

Interfaces
Mount Type CS-mount
Interface Compatibility CCTV cameras with CS-mount and auto iris (DC) support
Sensor Compatibility 1/1.8"

Physical & Environmental
Dimensions (Diameter x Length) Approx. 45 x 81.5 mm
Operating Temperature -10 °C to +50 °C
Storage Temperature -20 °C to +60 °C
Relative Humidity (Operating) 20% to 90% (non-condensing)
Lens Housing Material Metal
