Product Overview

COOPER LIGHTING

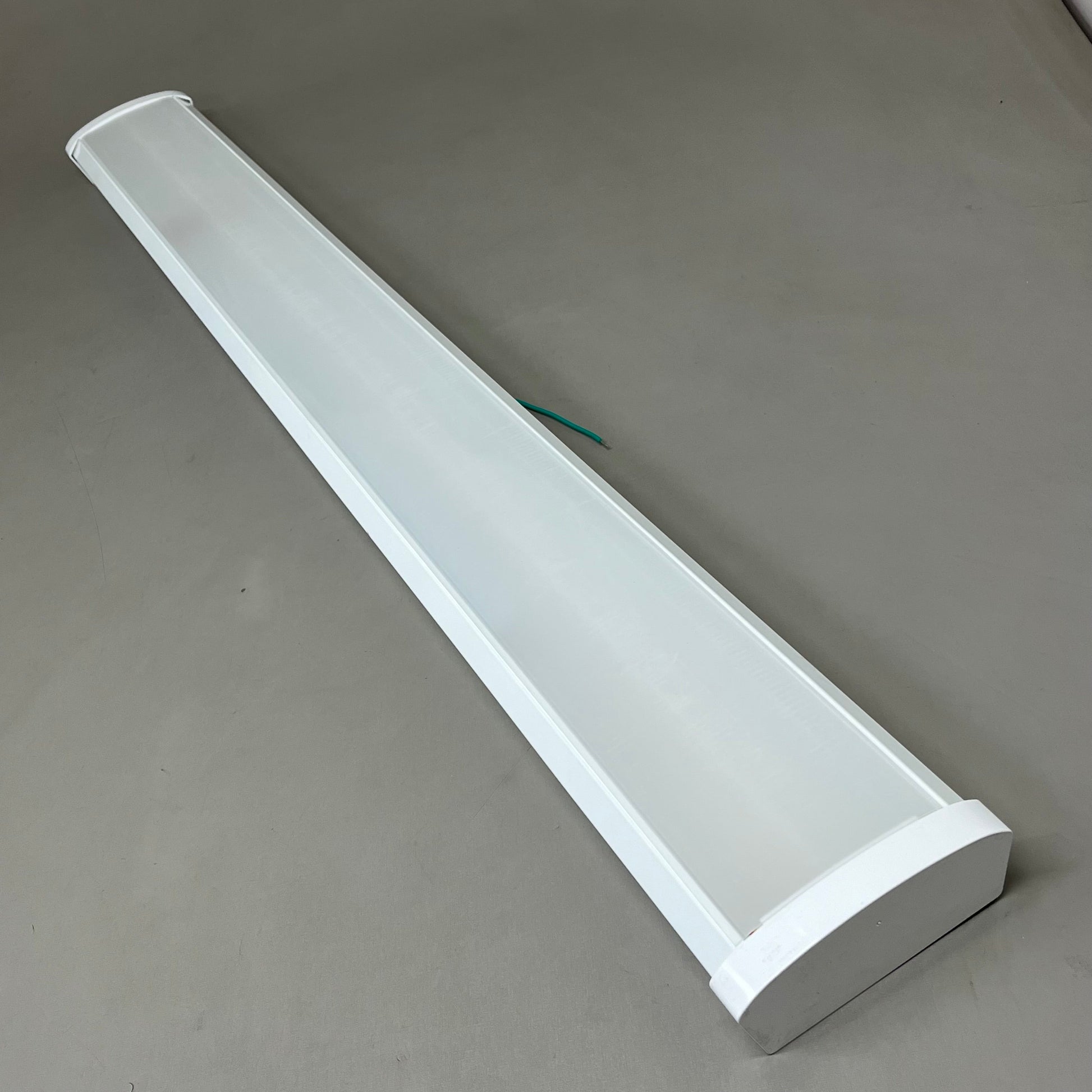

Wraparound w/ 3 Selectable CCT Lumens Glare Free 4 ft

Condition: New

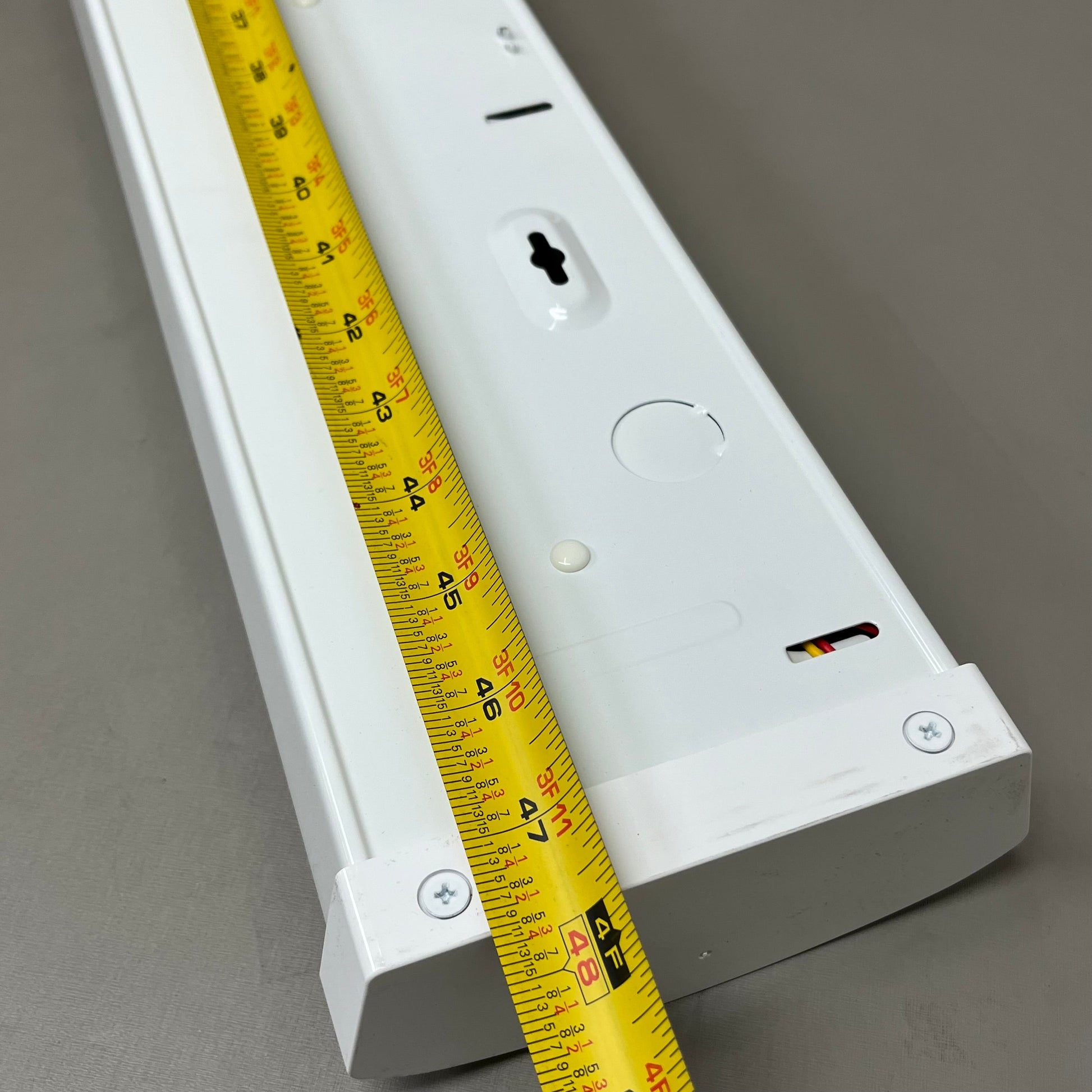

Size: 4ft, 3 Selectable Lumens

• Projected life of L70 at 50,000 hours

• Efficacy up to 143 lm/W

• Phase cut dimming down to 10% (120V)

• 0-10V dimming down to 10% for UNV skus (120-277V)

Color: 3500K, 4000K, 5000K, 3500 Lumens

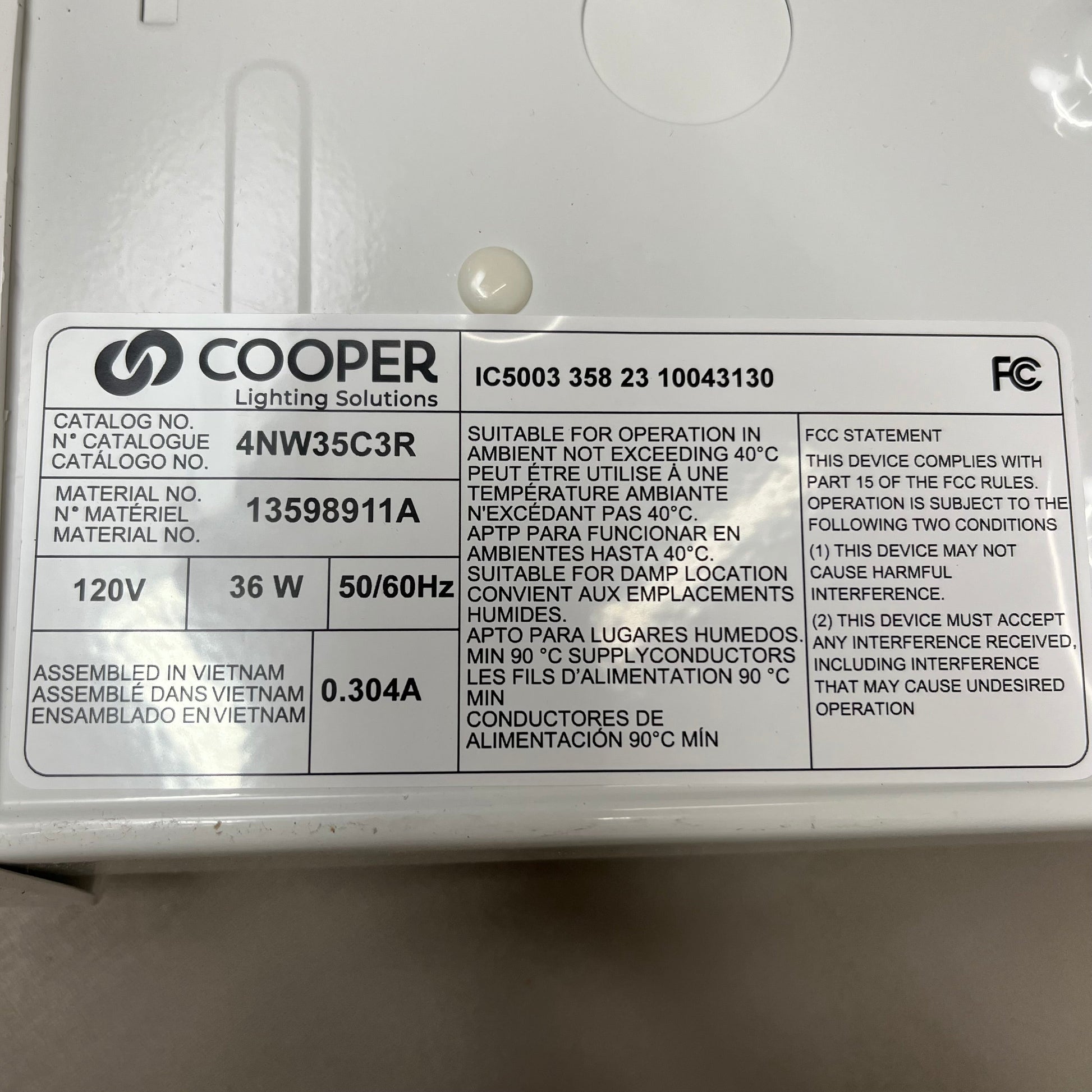

Model: 4NW35C3R

Description:

Construction

• Cold rolled steel die form housing with finished ends

• Post painted with high gloss white powder coating

• High-impact plastic end caps

Shielding

• Smooth white lens provides glare-free performance

• Standard LED blended for wide area coverage

• Replaces 2 or 3-lamp fluorescents up to 96W

Installation

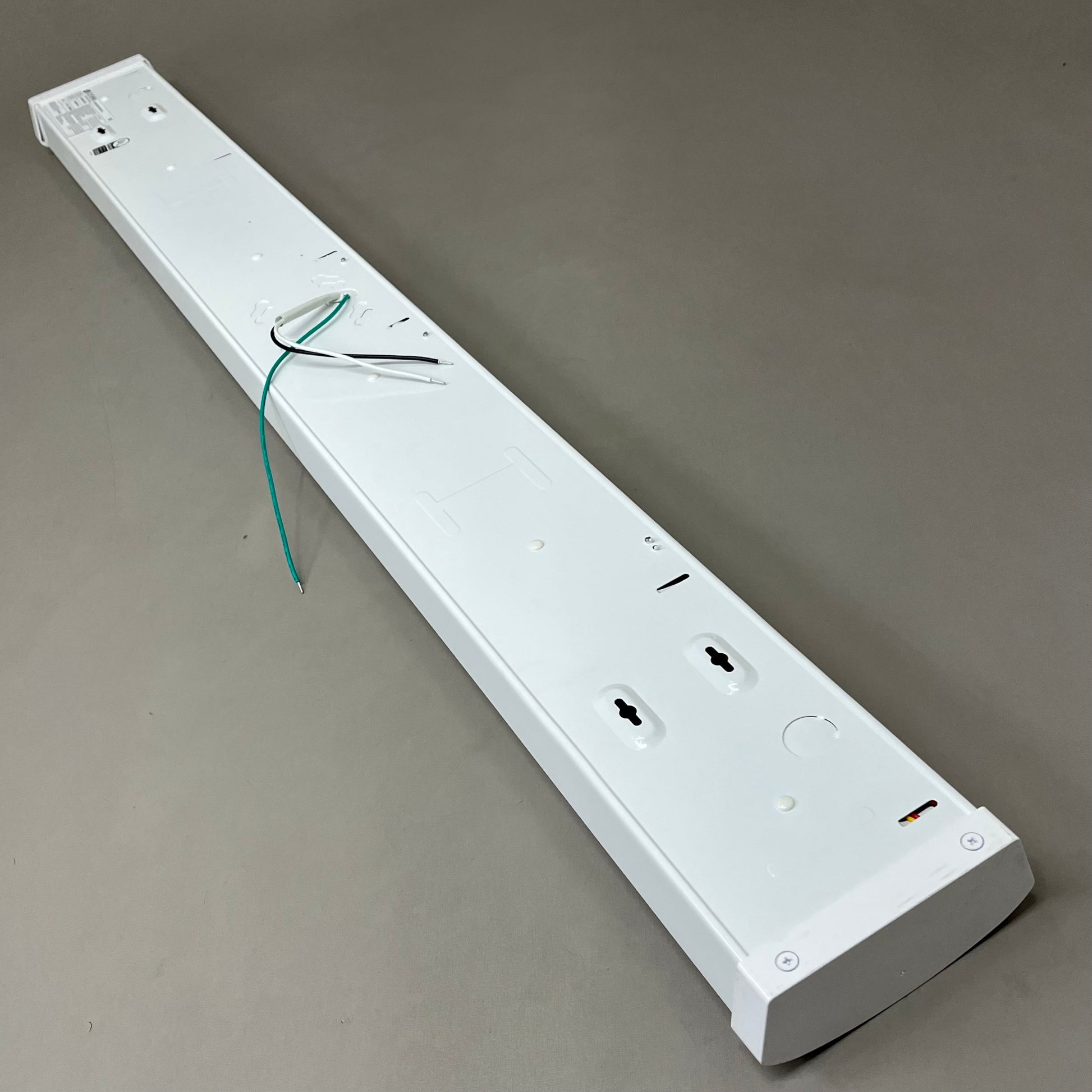

• Surface (wall or ceiling) mount via junction box or direct to surface

• Suspension mount capable using standard V-hook or Y-toggle mounting kits

Electrical

• Projected life of L70 at 50,000 hours

• Efficacy up to 143 lm/W

• Phase cut dimming down to 10% (120V)

• 0-10V dimming down to 10% for UNV skus (120-277V)

• User installed, remote mount, 7 & 14 Watt LED emergency battery pack options are available

Compliance

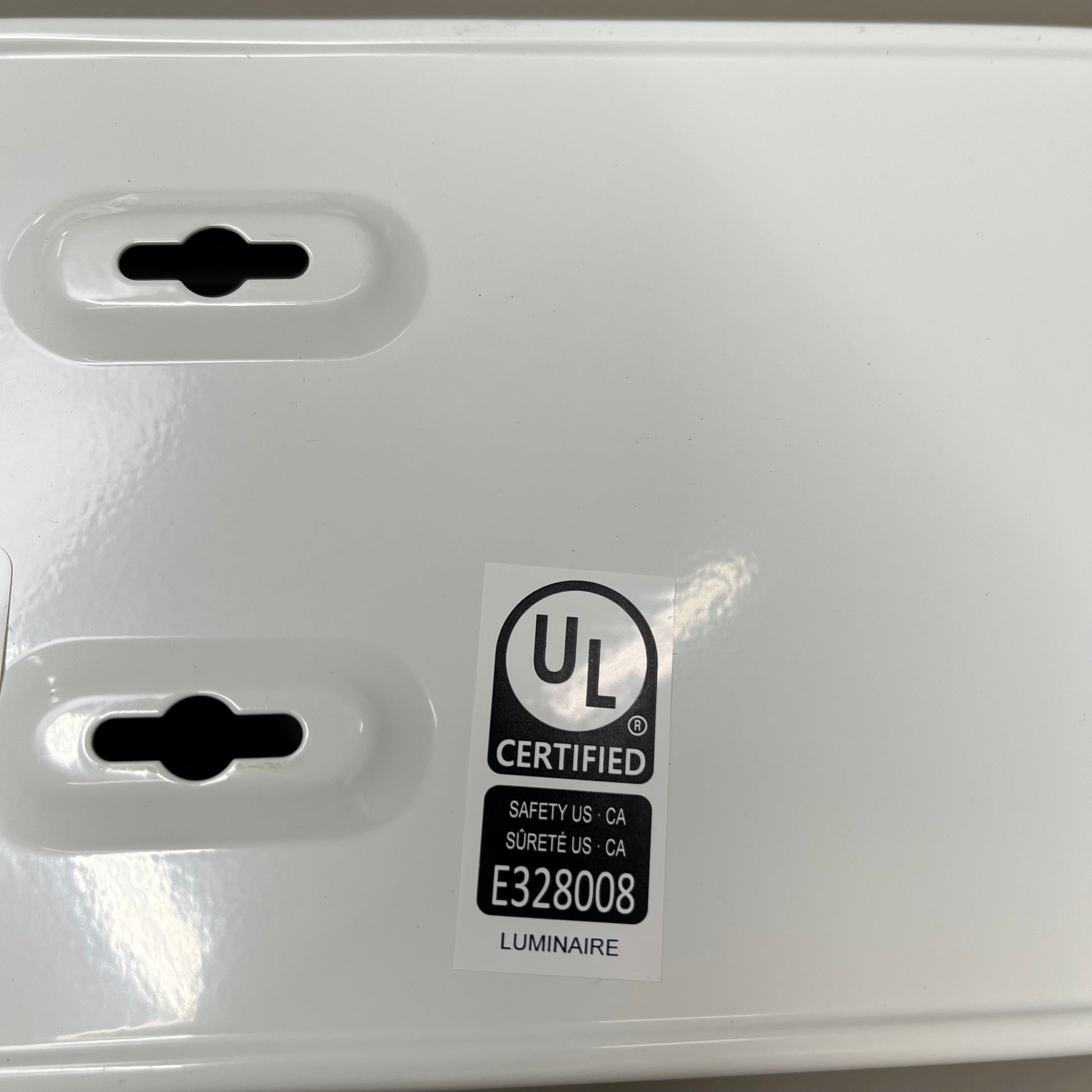

• UL/cUL listed for damp location

• Rated for -4F (-20C) to 104F (40C) ambient operating temperatures

• Meets FCC Part 15 Class B requirements

• RoHS compliant

• LED complies with IESNA LM-79 and LM-80

• ENERGY STAR Certified luminaire (For 120V sku only) - consult ENERGY STAR® Certified Product List

• DLC 5.1 Standard Qualified
