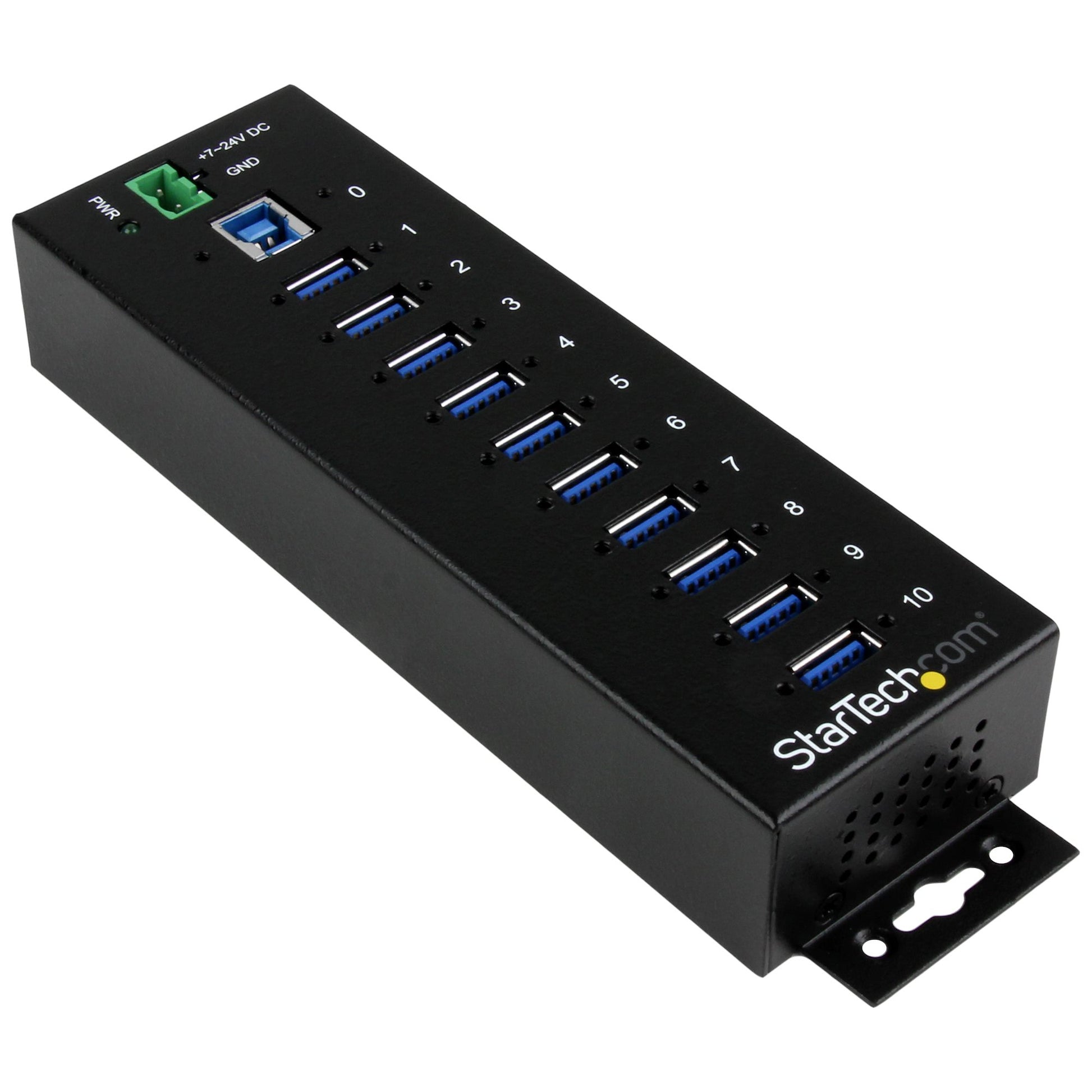

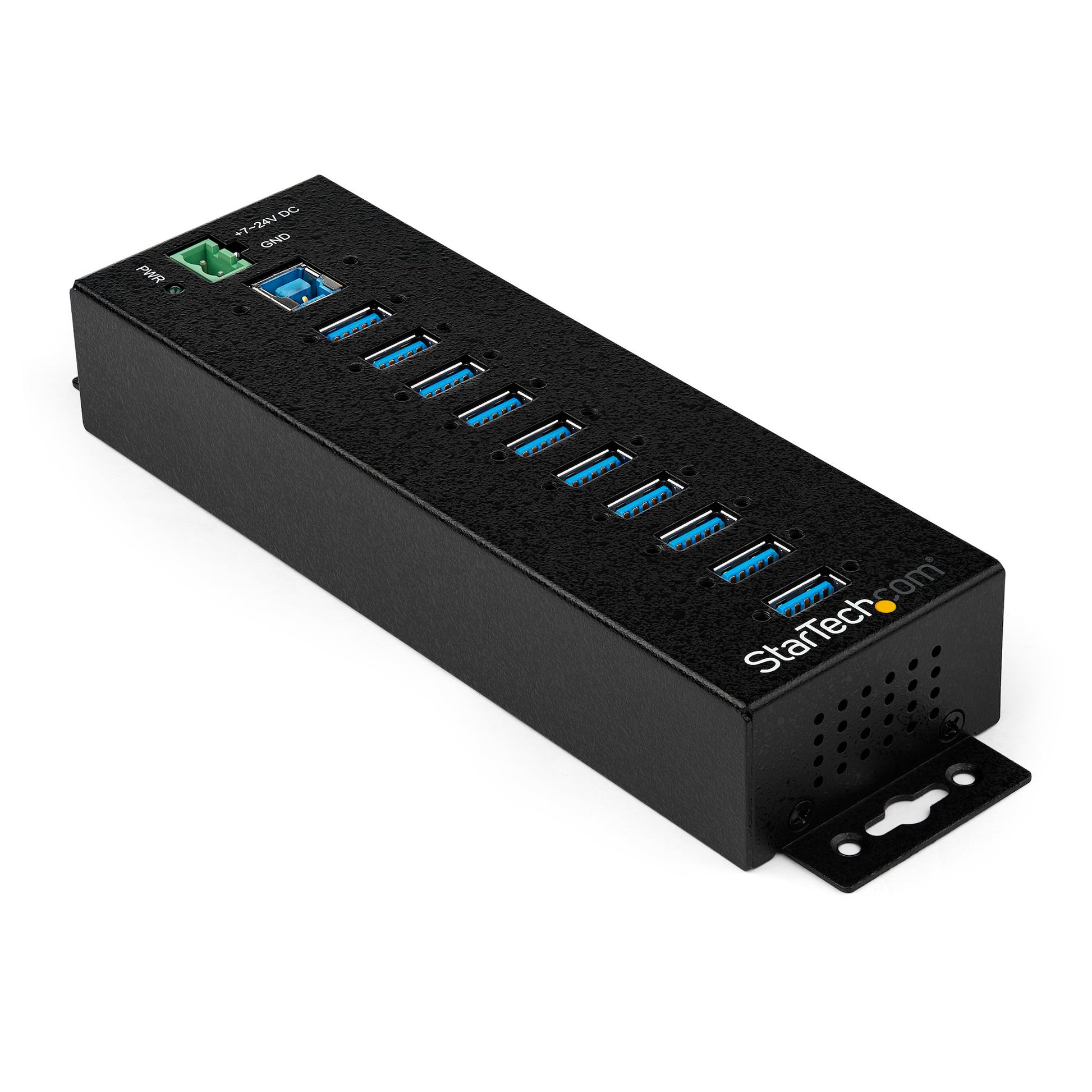

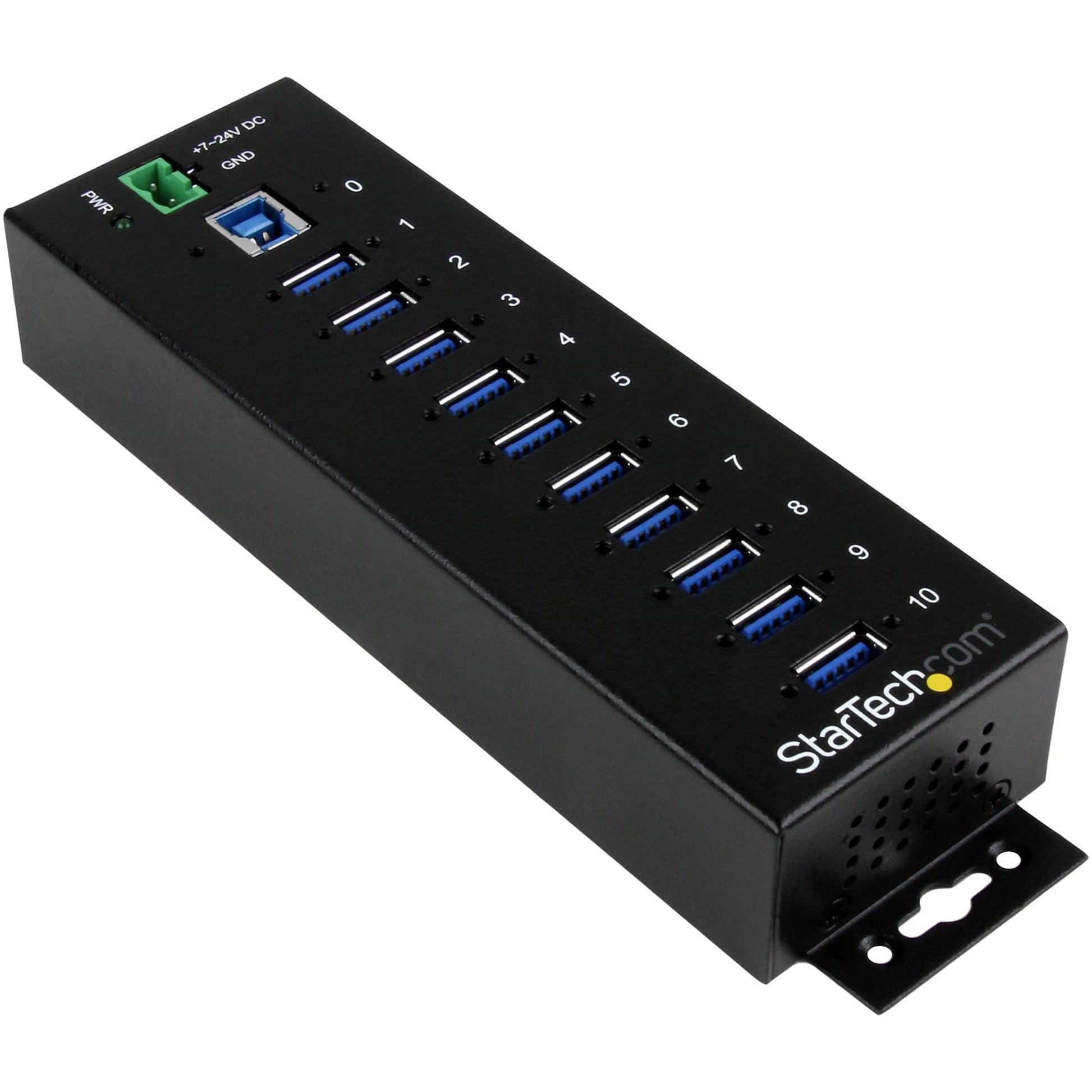

StarTech 10-Port Industrial USB 3.0 Hub, Metal, DIN Mount, 5Gbps

VENDOR: STARTECH Mfg Part#: ST1030USBM UPC#: 065030863001
1 5
Photo is for illustration purposes only. Actual product may be different.
$255.00
$255.00
Sale Sold out
MSRP: $257.00
Shipping calculated at checkout.
  • Provides 10 USB 3.0 Type-A ports with 5 Gbps transfer rates
  • Industrial-grade metal housing with DIN rail or wall mounting compatibility
  • Supports wide 7–24V DC input via terminal block for flexible power options
  • Offers 15kV ESD and 350W surge protection for robust device protection
  • Operating temperature range of 0°C to 70°C with TAA compliance
  • Compact dimensions: 2.2" W x 7.8" D x 1.2" H, weight: 12.6 oz

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for industrial environments with rugged metal housing, wide temperature tolerance, and DIN rail mounting
  • Maximizes USB connectivity with ten high-speed USB 3.0 ports and 5 Gbps bandwidth
  • Reliable protection for connected devices via integrated 15kV ESD and 350W surge safeguards

Product Overview

Add ten USB 3.0 (5Gbps) ports with this DIN rail or surface-mountable metal hub - 15kV ESD 350W Surge Protection - DIN Rail / Wall-Mountable USB Hub - Rugged Housing - 10 port SuperSpeed USB3 Hub w/ terminal block power wide operating temperature

Specifications

Product Overview
Type Industrial USB Hub
Form Factor DIN Rail / Wall-Mountable
Weight 12.6 oz
Power Requirements 7–24 V DC input via terminal block or DC barrel
Enclosure Color Black
Warranty 2 Years

Physical & Environmental
Dimensions (W x D x H) 2.2 x 7.8 x 1.2 inches
Minimum Operating Temperature 0°C (32°F)
Maximum Operating Temperature 70°C (158°F)
Minimum Storage Temperature -20°C (-4°F)
Maximum Storage Temperature 85°C (185°F)
Housing Material Aluminum
Mounting Options DIN Rail, Wall-Mount
Surge Protection 350W Surge Protection
ESD Protection 15kV Air, 8kV Contact ESD protection
Cooling Method Passive
Humidity (Operating) 5% to 95% RH (non-condensing)

Cloud Management & Licensing
Cloud Management
Software Licensing

Interfaces
Total USB Ports 10
USB Port Type USB 3.0 Type-A (9-pin)
USB Version USB 3.2 Gen 1
Data Transfer Rate Up to 5 Gbps
USB Upstream Port 1 x USB Type-B (host connection)
Downstream USB Ports 10 x USB 3.0 Type-A
Connection Interface USB 3.0 (USB 3.2 Gen 1)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, REACH, RoHS
Compliance Standards USB Battery Charging Specification 1.2

Advanced Security Features
Over-Current Protection Per-port protection
Isolation Withstands 15kV ESD events
Device Protection Features Surge and ElectroStatic Discharge (ESD) Protection
