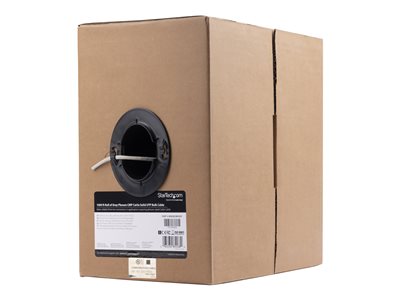

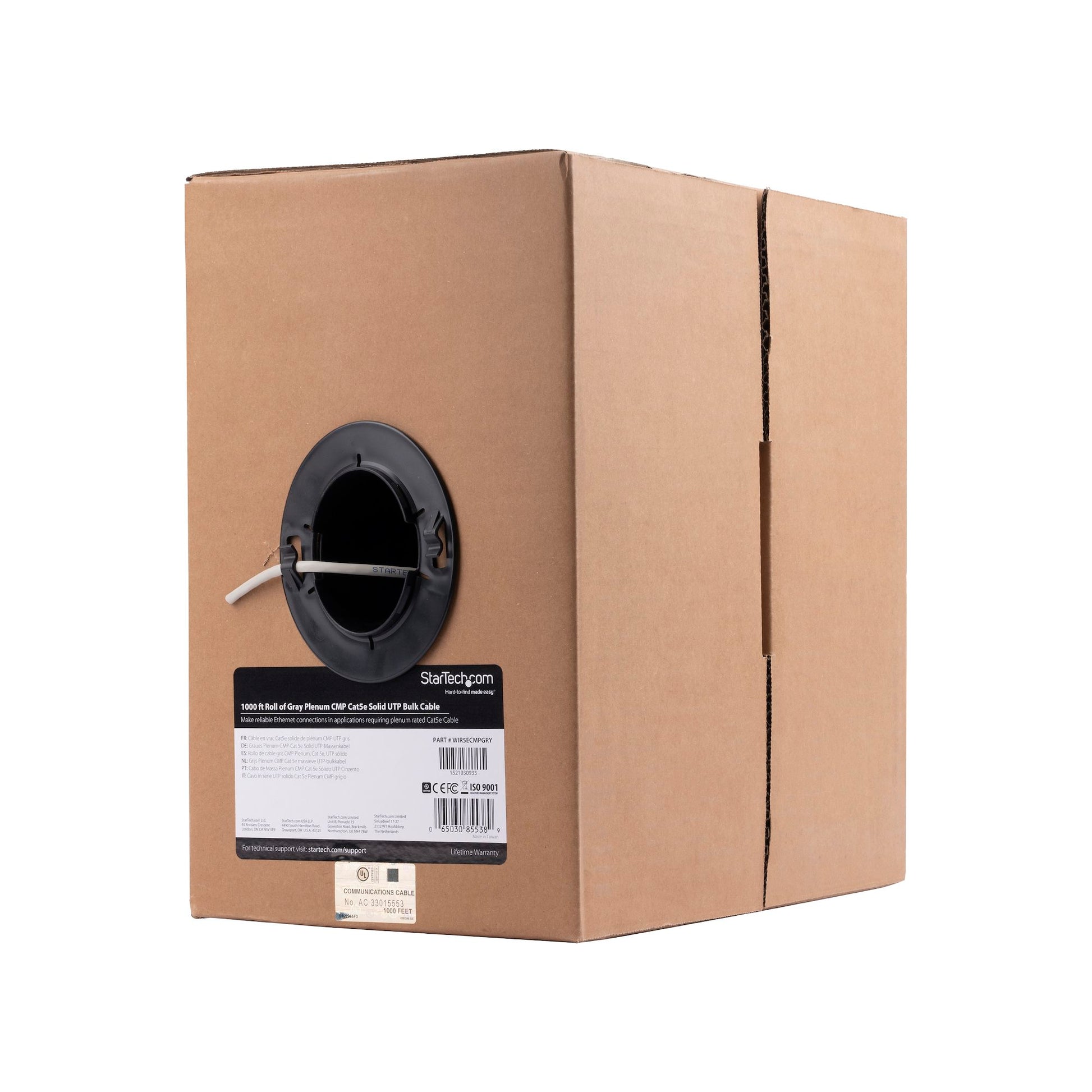

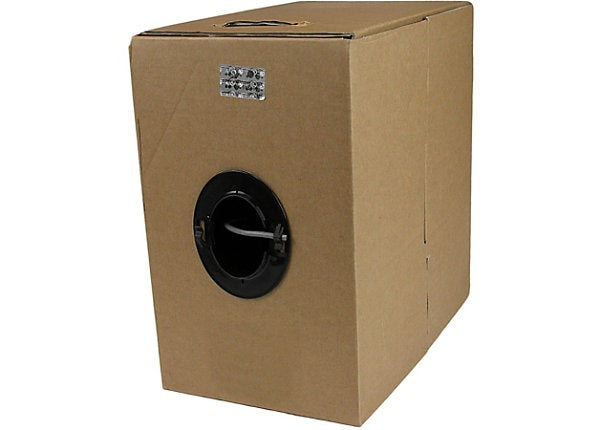

StarTech 1000 ft Cat5e Plenum CMP Ethernet Cable, Gray, Solid 24AWG, TAA

VENDOR: STARTECH Mfg Part#: WIR5ECMPGRY UPC#: 065030855389
1 5
Photo is for illustration purposes only. Actual product may be different.
$524.00
$524.00
Sale Sold out
Shipping calculated at checkout.
  • 1000 ft. solid UTP Cat5e cable for 10/100/1000 Mbps networks
  • Supports frequencies up to 350 MHz for enhanced bandwidth
  • Plenum-rated CMP/FT6 jacket suitable for air-handling spaces
  • Constructed with 24 AWG pure bare copper for optimal conductivity
  • Supports Power over Ethernet (PoE) applications
  • TAA compliant and backed by a lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for plenum installations where CMP or FT6 rating is required by building codes.
  • Supports Gigabit Ethernet and PoE, offering flexibility and performance for enterprise networks.
  • Backed by a lifetime warranty ensuring long-term reliability and reduced total cost of ownership.

Product Overview

1000 ft. Gray UTP Cat5e cable for 1000 Mbps networks - High-quality copper conductors - Keep Near End Crosstalk (NEXT) within acceptable limits - For installations where CMP Plenum is required - 350 MHz; PoE; UTP; Solid; 24AWG; CMP/FT6 Plenum; TAA

Specifications

Product Overview
Product Type Cat5e Ethernet Cable
Cable Type Unshielded Twisted Pair (UTP)
Form Factor Bulk Roll
Length 1000 feet
Conductor Type Solid
Conductor Material Pure Bare Copper
Wire Gauge 24 AWG
Color Gray
Frequency Rating 350 MHz
Plenum Rating CMP / FT6
Power over Ethernet (PoE) Support Yes
Jacket Material PVC - Polyvinyl Chloride
Packaging Type Box

Physical & Environmental
Cable Length 1000 ft (304.8 meters)
Cable Construction Solid Core
Minimum Installation Temperature 0°C (32°F)
Operating Temperature Range -20°C to 75°C (-4°F to 167°F)
Storage Temperature Range -25°C to 75°C (-13°F to 167°F)
Jacket Fire Rating CMP (Plenum)
Sheath Rating FT6

Cloud Management & Licensing
Cloud Managed
License Required

Interfaces
Category Rating Cat5e
Maximum Data Rate 1000 Mbps (1 Gbps)
Twisted Pair Type Unshielded Twisted Pair (UTP)
Impedance 100 Ohms
Number of Pairs 4

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
UL Listed Yes
ETL Verified Yes
CSA Certified Yes
CE Certification Yes

Advanced Security Features
Flame Retardant Yes (CMP Plenum rated)
Low-Smoke Rating Yes
