StarTech 16-Port USB to RS232 Serial Adapter Hub, Rackmount, Terminus Chipset

VENDOR: STARTECH Mfg Part#: ICUSB23216FD UPC#: 065030864763
1 5

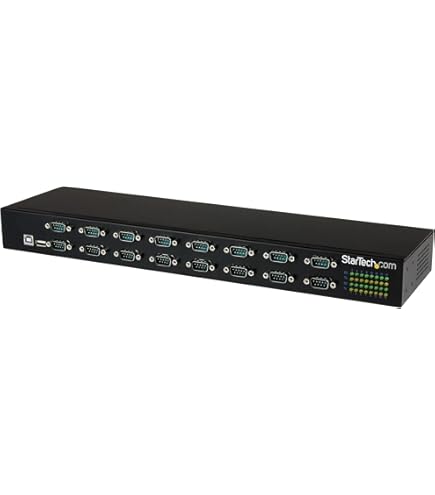

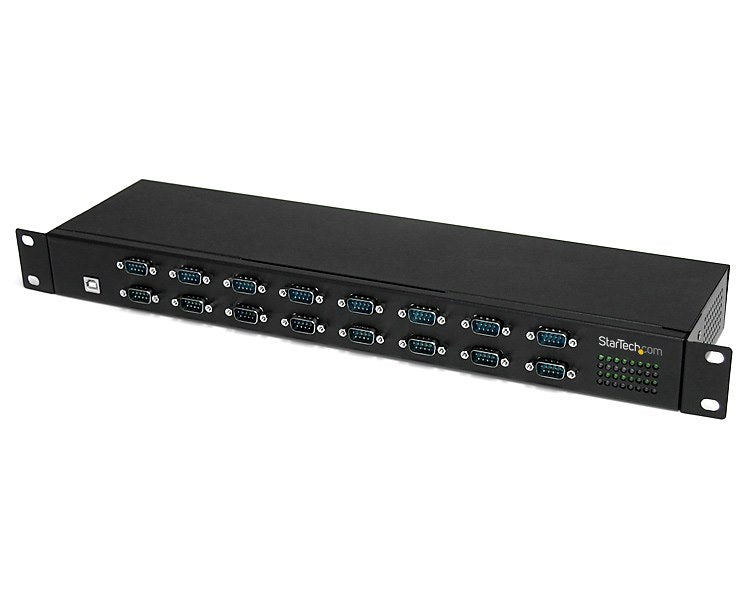

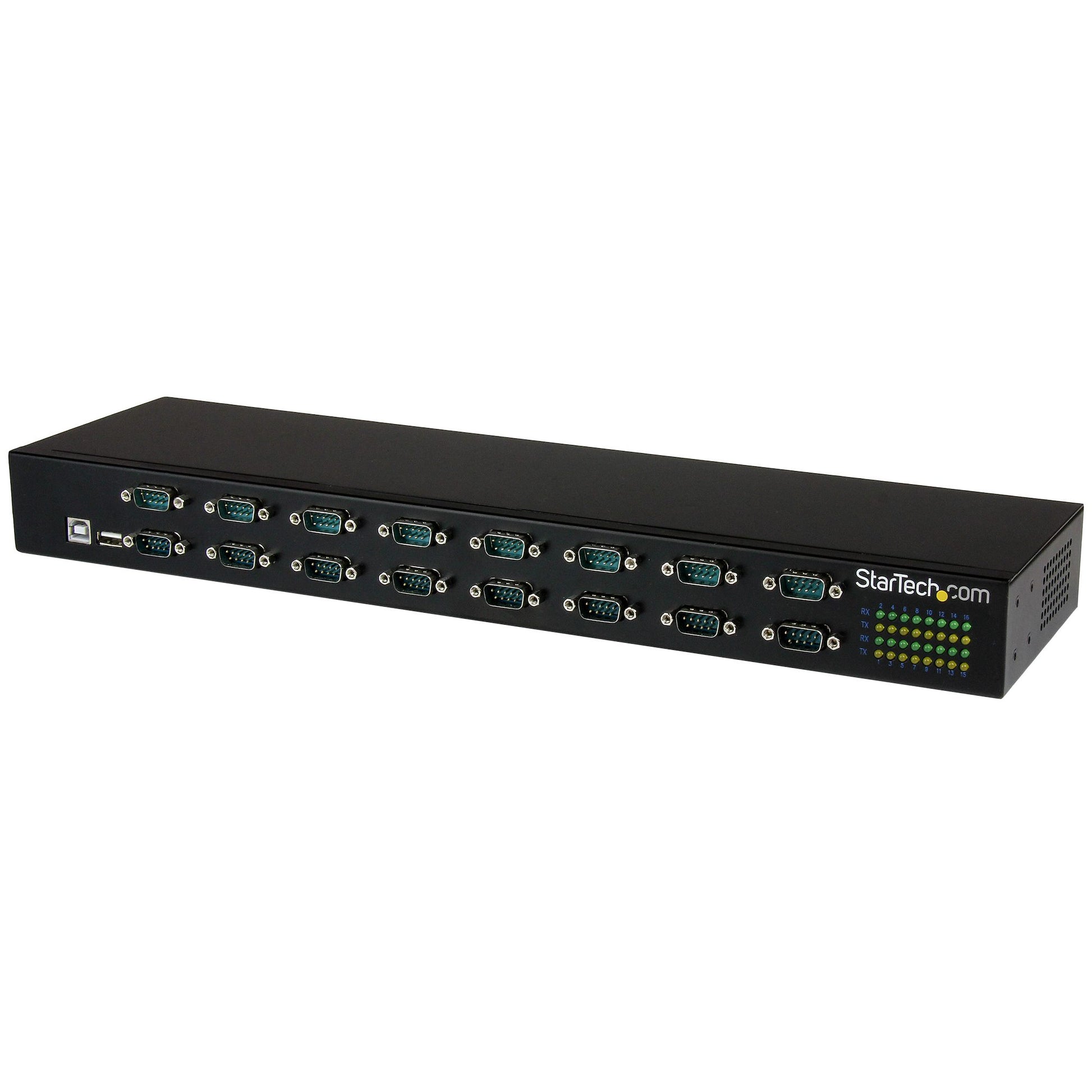

Photo is for illustration purposes only. Actual product may be different.
$758.00
$758.00
Sale Sold out
Shipping calculated at checkout.
  • 16 RS232 ports via a single USB connection for scalable serial expansion
  • Daisy-chainable rackmount design with Terminus chipset for high reliability
  • Data transfer rate up to 480 Mbps for efficient communication
  • Wired connectivity with 1 x USB B (4-pin) interface and 36W operational power
  • COM port retention feature ensures consistent port mapping
  • RoHS and TAA compliant; manufactured in Taiwan with 2-year support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables scalable serial connectivity with 16 RS232 ports, ideal for industrial or data center applications
  • Rackmountable chassis with daisy-chaining and COM port retention features supports complex deployments
  • Complies with RoHS and TAA regulations, backed by a 2-year warranty for institutional and government use

Product Overview

Convert a USB port into 16 RS232 serial ports in an industrial rack-mountable chassis, and daisy chain multiple hubs for a scalable solution - 16-Port USB-to-Serial Adapter Hub - USB to RS232 port adapter with Terminus chipset and COM port retention

Specifications

Product Overview
Product Type Hub
Form Factor External
Chipset Terminus
Power Consumption (Operational) 36 Watt
Input Voltage 100 - 240V AC
Output Voltage 12V DC
Power Supply Type External Power Adapter
Mounting Option Rackmount
Color Black
LED Indicators Power, TX/RX per port

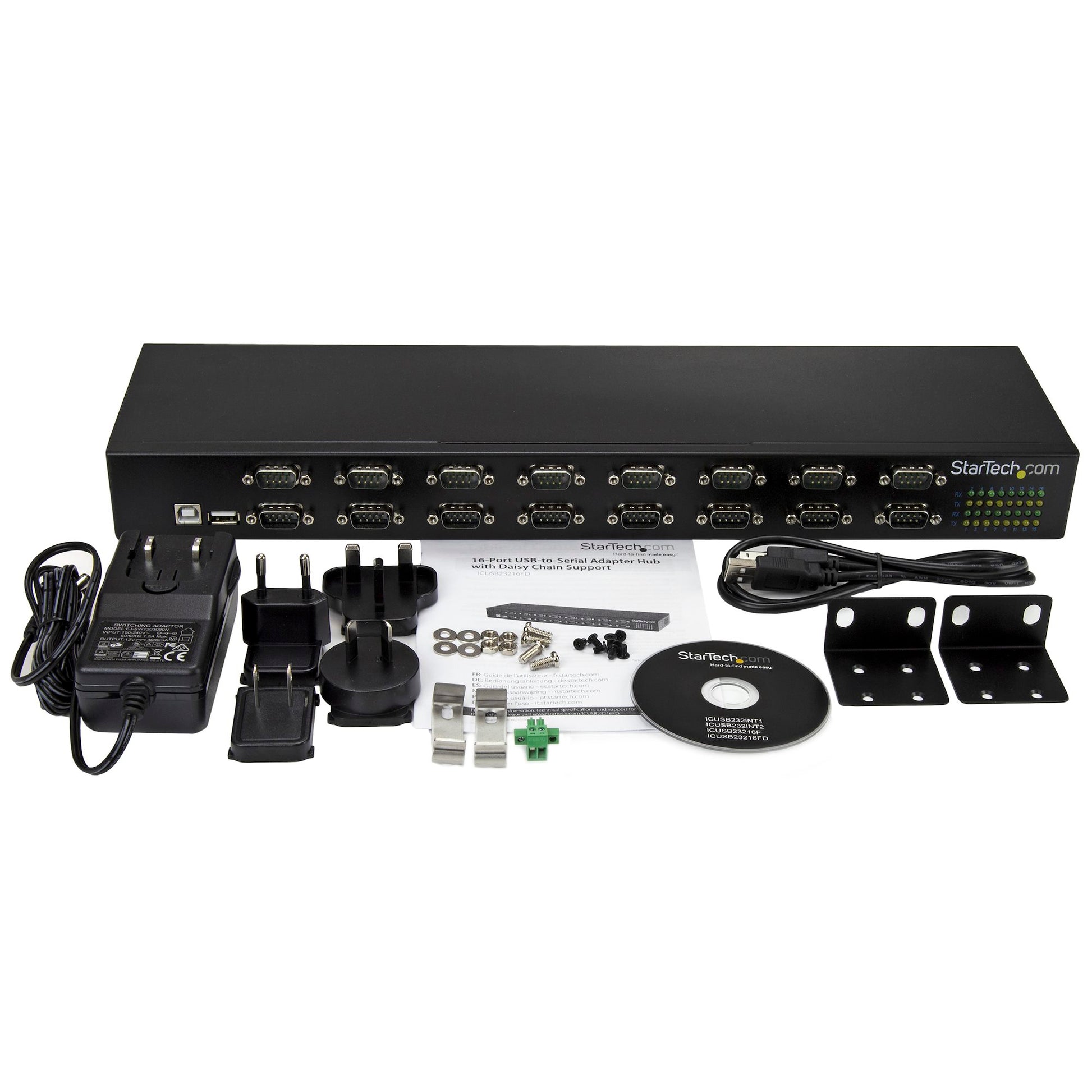

Included Accessories USB-B to USB-A cable, mounting brackets, power adapter
Operating System Compatibility Windows, Linux, macOS
Warranty 2 Years

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
RoHS Compliant Yes
TAA Compliant Yes
Certifications CE, FCC, REACH
Environmental Standards RoHS, WEEE

Advanced Security Features
ESD Protection 15 kV
Surge Protection 600W per port

Interfaces
Serial Interface Standard RS-232
Number of Serial Ports 16
Connector Type (Input) USB-B (4 pin)
Connector Type (Output) DB9 (male, x16)
USB Interface Version USB 2.0
Data Transfer Rate 480 Mbps (USB), 921.6 Kbps (RS-232)
Daisy Chain Capable Yes (up to 4 units)
Signal Type Asynchronous RS-232
Flow Control Hardware and Software

Physical & Environmental
Width 4.7 Inch
Depth 16.9 Inch
Height 1.8 Inch
Weight 2.2 kg (approx.)
Material Steel
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Humidity (Operating) 5% to 95% RH (non-condensing)
Cooling Method Passive

Cloud Management & Licensing
Cloud Management No
Driver Support Available for Windows, macOS, Linux
