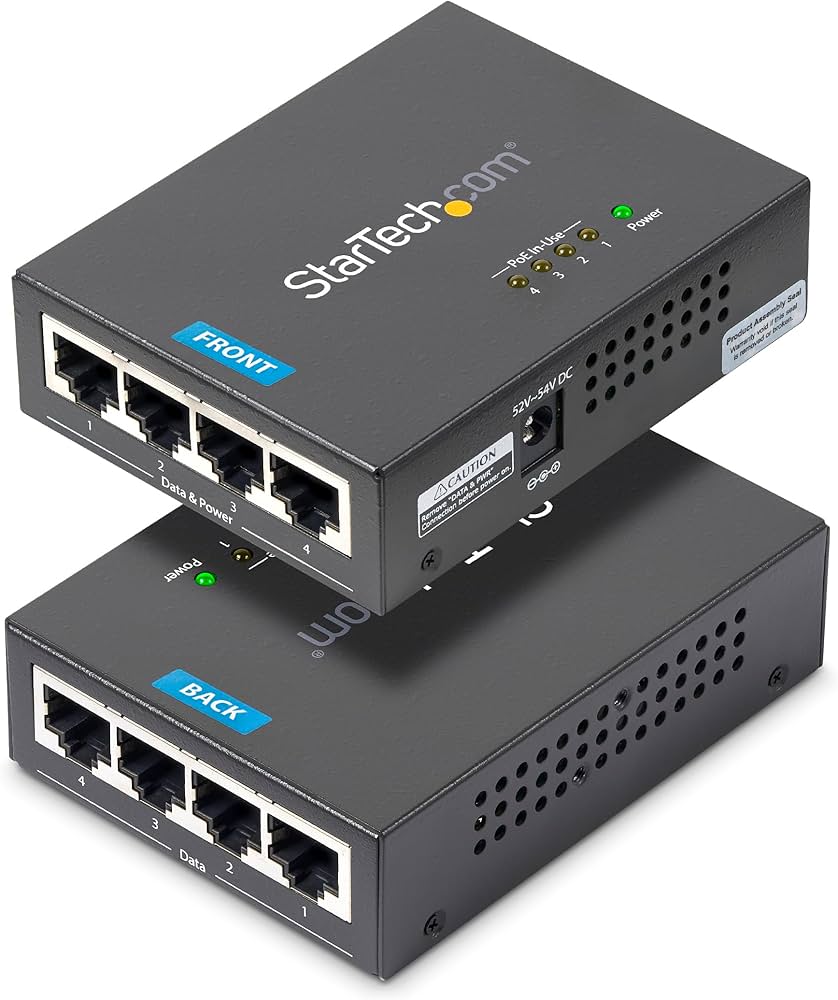

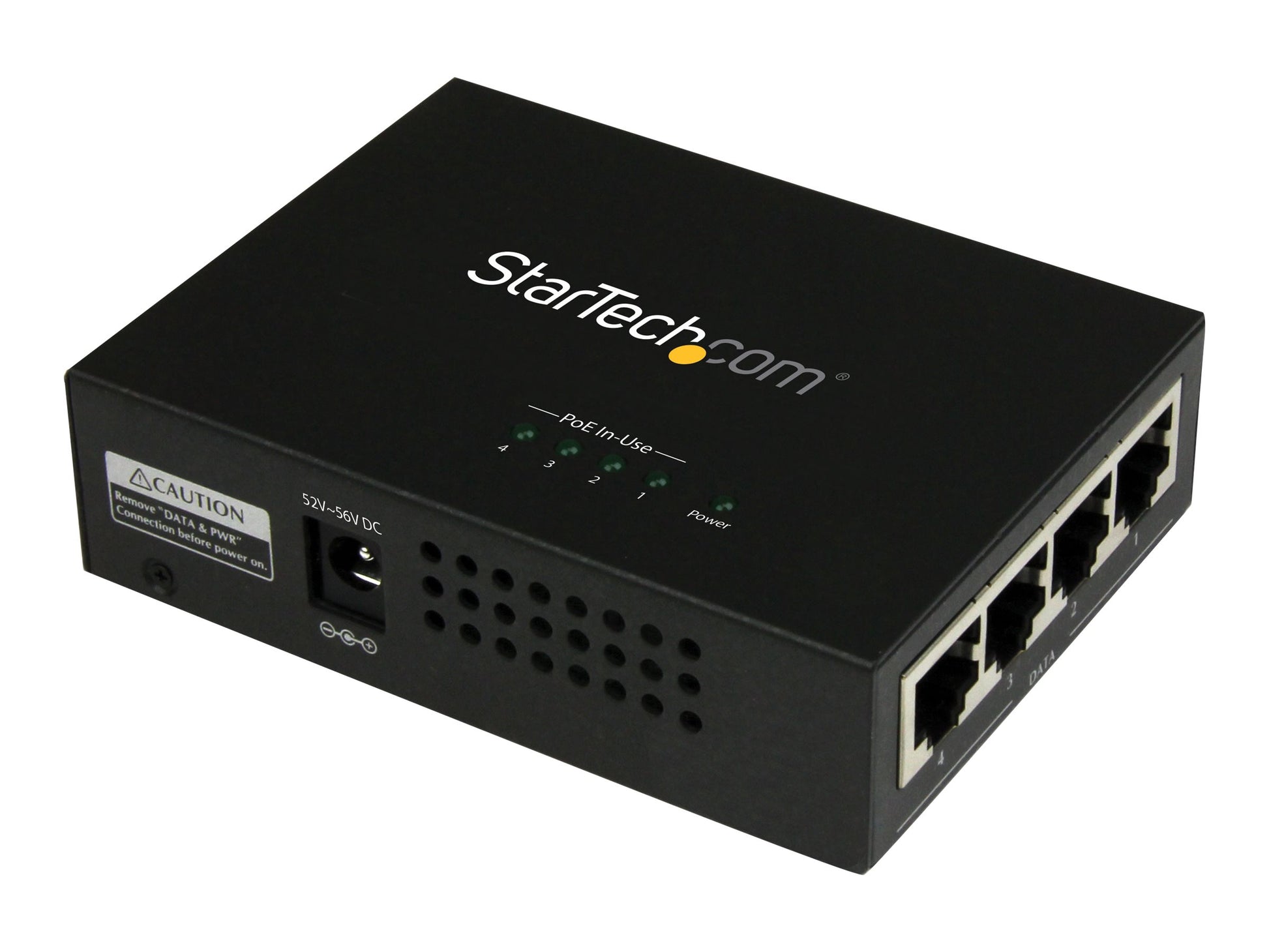

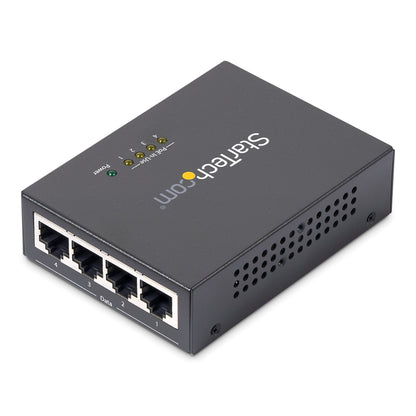

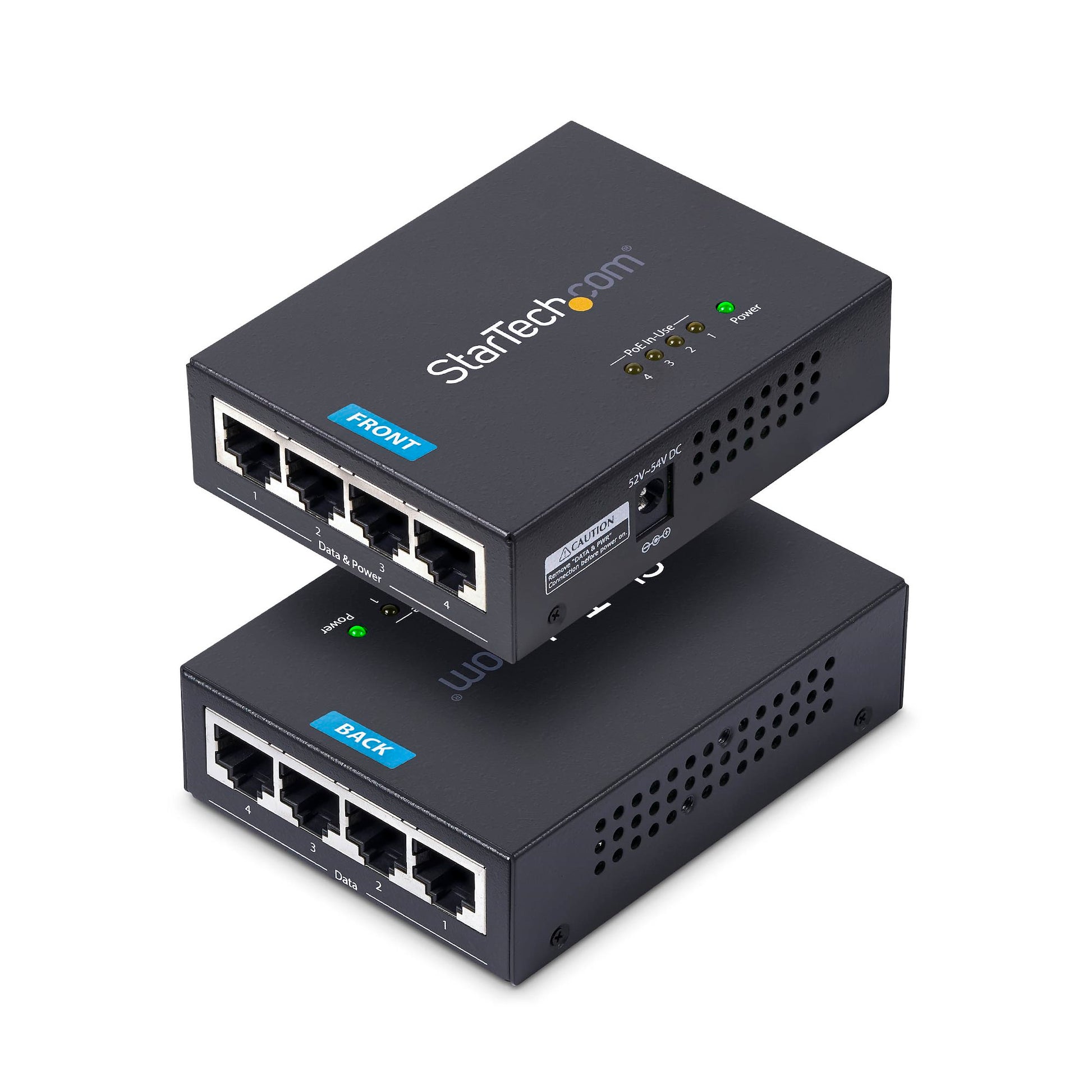

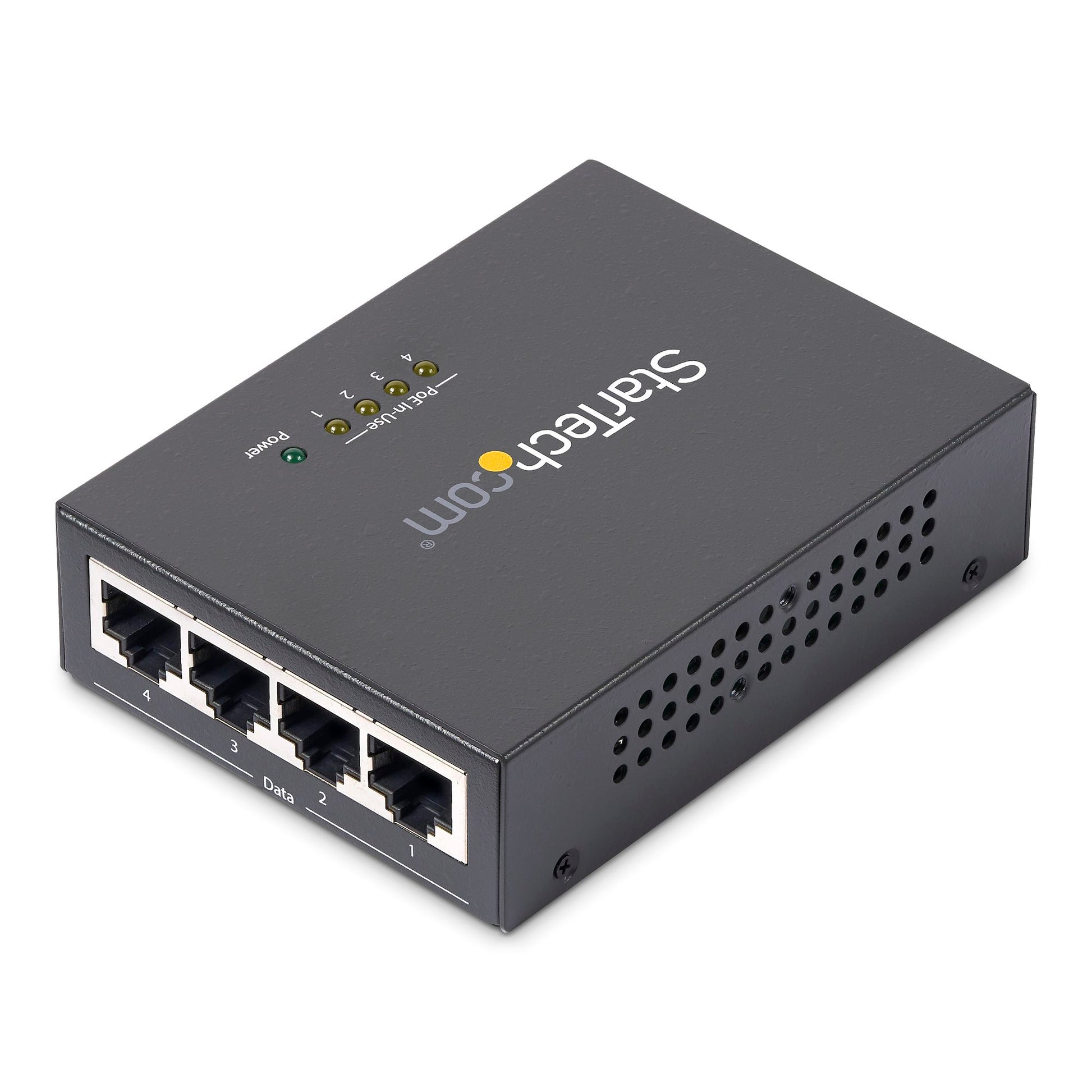

StarTech 4-Port Gigabit PoE+ Midspan Injector, 802.3af/at, Wall-Mountable

VENDOR: STARTECH Mfg Part#: POEINJ4G UPC#: 065030859752
1 5
Photo is for illustration purposes only. Actual product may be different.
$215.00
$215.00
Sale Sold out
MSRP: $217.00
Shipping calculated at checkout.
  • Supports up to 30.8W per port for power-hungry PoE+ devices
  • IEEE 802.3af and 802.3at compliant for broad device compatibility
  • Gigabit Ethernet data link protocol ensures high-speed connectivity
  • Space-efficient design at only 2.8" x 3.7" x 1"; wall-mountable
  • TAA-compliant and manufactured in Taiwan
  • Includes 2-year manufacturer warranty for added support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for powering multiple PoE/PoE+ devices without upgrading your Ethernet switch
  • Compact, discreet form factor enables easy wall or ceiling mounting in tight IT deployments
  • TAA compliance and 2-year warranty make it a viable choice for government and enterprise networks

Product Overview

Deliver power and data to four PoE-powered devices (PD) using this wall-mountable PoE+ midspan hub -4 Port Gigabit Power over Ethernet Midspan -802.3at 802.3af -Wall-mountable Power over Ethernet Injector -Up to 30.8 Watts per port -Easy setup

Specifications

Product Overview
Product Type Gigabit PoE+ Midspan Injector
Form Factor Wall-mountable
Enclosure Color Black
Power Requirements 100-240V AC, 50/60Hz
Power Consumption Max 130W
Maximum Power Per Port 30.8 Watts
Total PoE Budget 123.2 Watts
Warranty 2 Years
What's Included 1 - 4 Port Gigabit PoE+ Injector

Wireless Features

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC, RoHS, UL
Compliance Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Green Compliance RoHS

Advanced Security Features
Surge Protection 15kV ESD Protection

Interfaces
Network Ports 4 x RJ45 LAN PoE+ Output, 4 x RJ45 LAN Input
Data Link Protocol Gigabit Ethernet
Network Speed 10/100/1000 Mbps
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Ports 4
Power Output Pins 4/5 (+), 7/8 (-)
Ethernet Pass-Through Ports Yes

Physical & Environmental
Width 2.8 in (70 mm)
Depth 3.7 in (94 mm)
Height 1 in (25 mm)
Weight 0.6 lb (270 g)
Mounting Option Wall-mountable
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 85°C (14°F to 185°F)
Operating Humidity 10% to 90% RH (non-condensing)
Storage Humidity 10% to 90% RH (non-condensing)

Cloud Management & Licensing
Web Management No
Cloud Managed No
Software Licensing Required No
