StarTech 4-Port Industrial USB 2.0 Hub, -40°F to 185°F, 480Mbps, DIN-Mountable

VENDOR: STARTECH Mfg Part#: HB20A4AME UPC#: 065030878623
1 5
Photo is for illustration purposes only. Actual product may be different.
$245.00
$245.00
Sale Sold out
MSRP: $246.00
Shipping calculated at checkout.
  • 480 Mbps USB 2.0 data transfer across 4 Type-A ports
  • Supports operating temperatures from -40°F to 185°F and 5%–95% RH
  • ESD protection: 15kV air and 8kV contact discharge
  • DIN rail and ear mountable with included mounting bracket
  • Wide DC power input range (7V to 48V) and 14W power consumption
  • Rugged black and silver industrial enclosure with TAA compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights

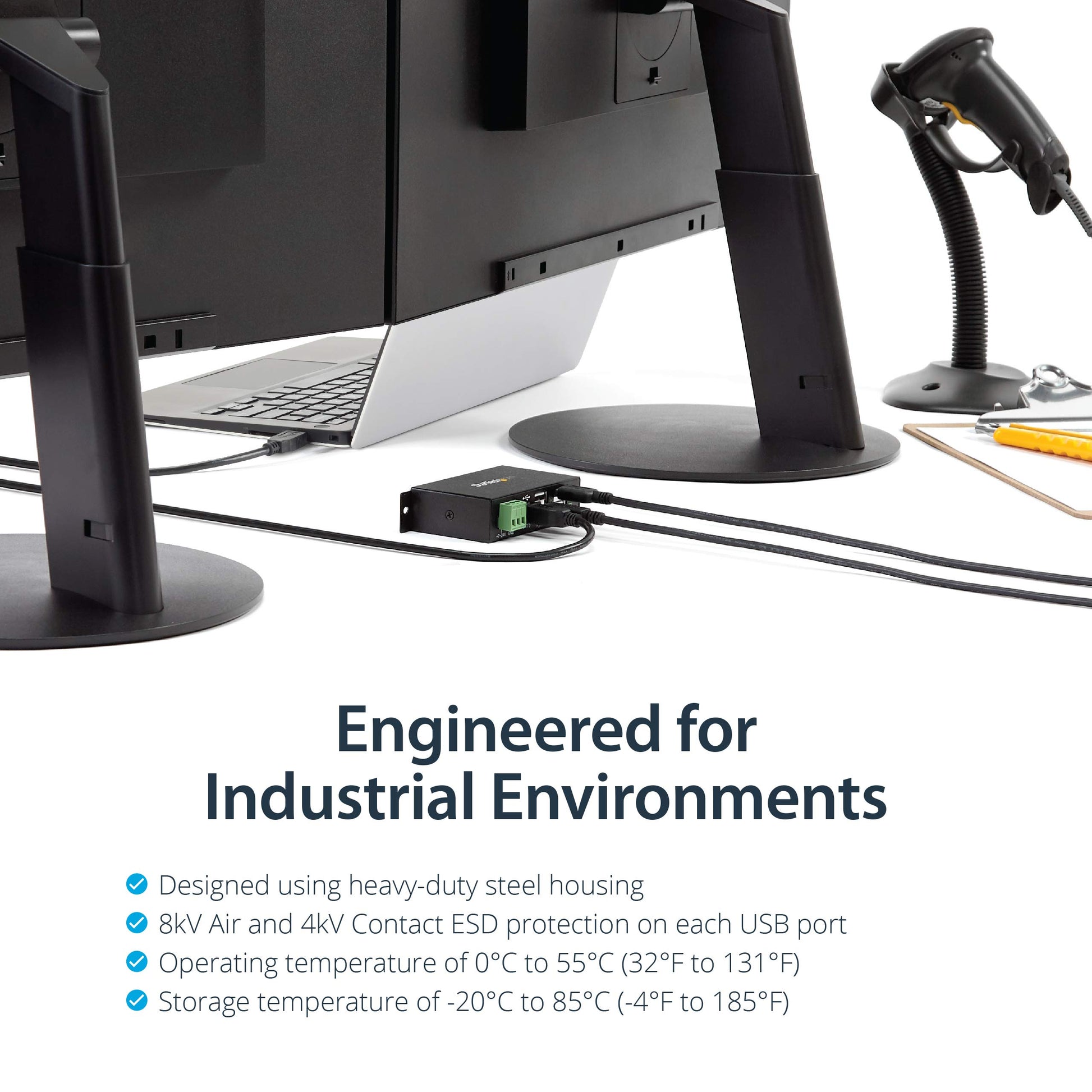

  • Designed specifically for harsh industrial environments, tolerating extreme temperatures and high humidity.
  • Equipped with high-level ESD and surge protection to ensure operational stability.
  • DIN/ear mounting options and compact design allow flexible installations in space-constrained control panels.

Product Overview

Industrial 4 port USB 2.0 hub w/ USB Type-A ports (status LEDs) 480Mbps - Rugged metal USB hub/15kV Air/8kV Contact ESD - 350W surge protection - Ear/DIN mountable (bracket incl) - Operating temp -40F to 185F/RH 5% 95% - 7 to 48VDC power terminal

Specifications

Product Overview
Product Type Industrial USB Hub
Model Number HB20A4AME
Form Factor DIN-rail/Surface Mountable
Weight 0.29 kg
Enclosure Material Metal
Power Input Type Terminal Block (7-48V DC)
Power Consumption 14 W
Power Source External DC Power Supply (not included)

Physical & Environmental
Width 3.7 in (94 mm)
Depth 2.2 in (56 mm)
Height 1.3 in (33 mm)
Mounting Options DIN-Rail & Surface Mount (brackets included)
Operating Temperature Range -40°F to 185°F (-40°C to 85°C)
Storage Temperature Range -40°F to 185°F (-40°C to 85°C)
Humidity Range 5% to 95% (non-condensing)

Cloud Management & Licensing
Remote Management
Cloud Networking Capabilities

What's Included
Included Accessories DIN Mounting Brackets, User Manual

Interfaces
USB Ports 4 x USB 2.0 Type-A
USB Type USB 2.0
Data Transfer Rate 480 Mbps
Port Type USB Type-A (4 pin)
Number of USB Downstream Ports 4
Upstream Port 1 x USB Type-B
Surge Protection 350W
ESD Protection Air ±15kV, Contact ±8kV
LED Indicators Port Status LEDs

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
Warranty 2 Years Standard Manufacturer Warranty
Compliance Standards USB 2.0, ESD IEC 61000-4-2

Advanced Security Features
Hardware Security ESD & Surge Protection Built-in
Tamper-proof Design Yes
