StarTech 4x4 HDMI Matrix Switch with Audio Support, 4K 60Hz

VENDOR: STARTECH Mfg Part#: VS424HD4K60 UPC#: 065030880800
1 5

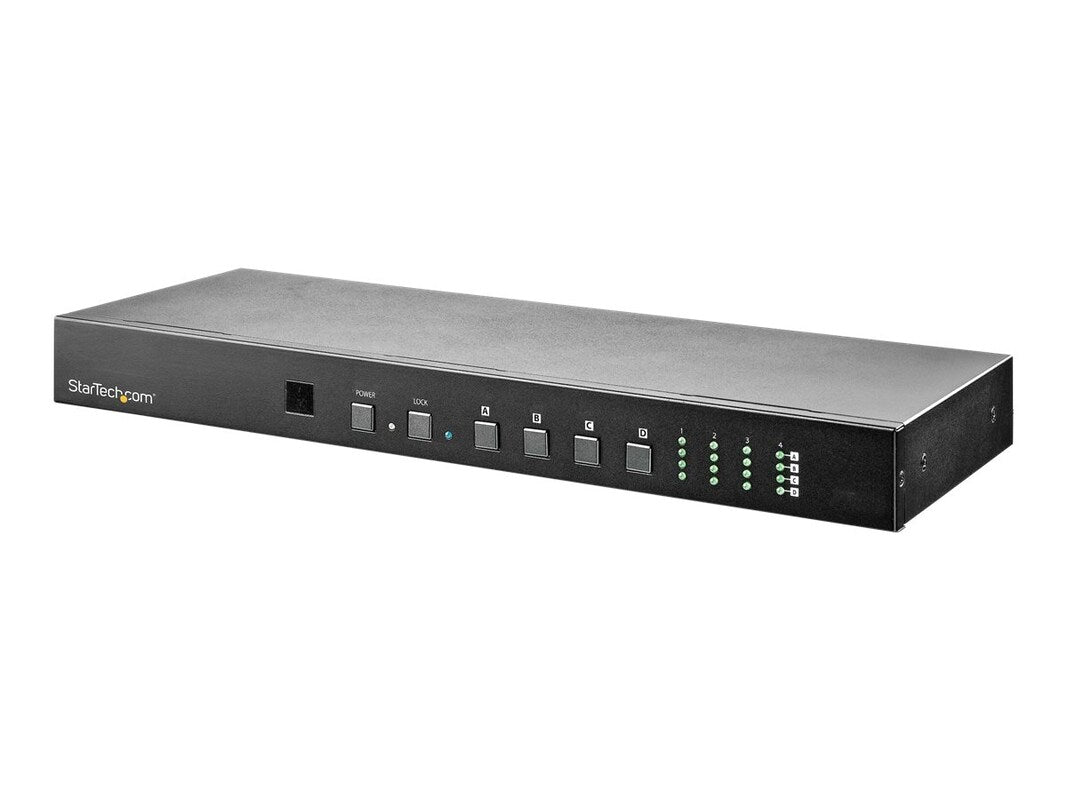

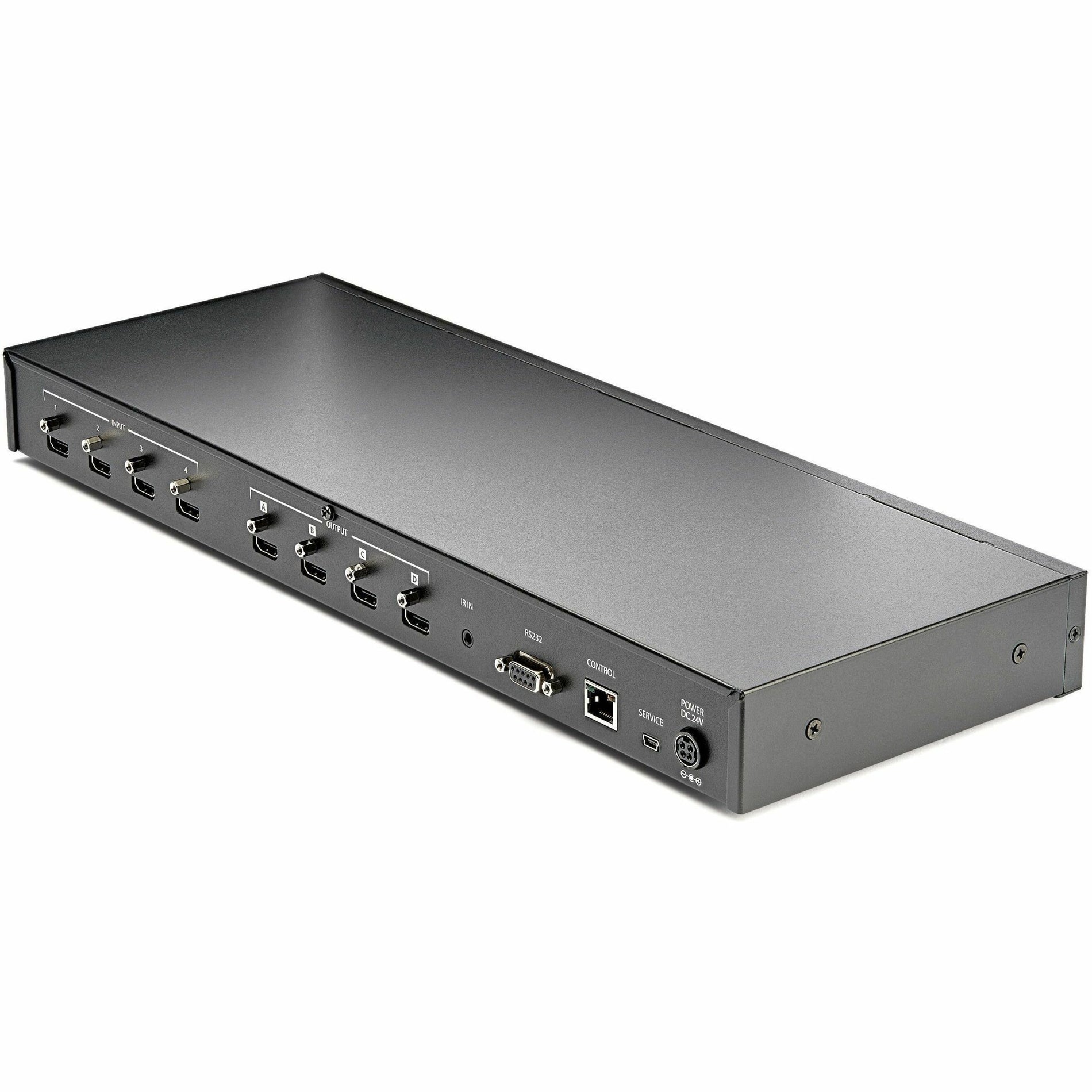

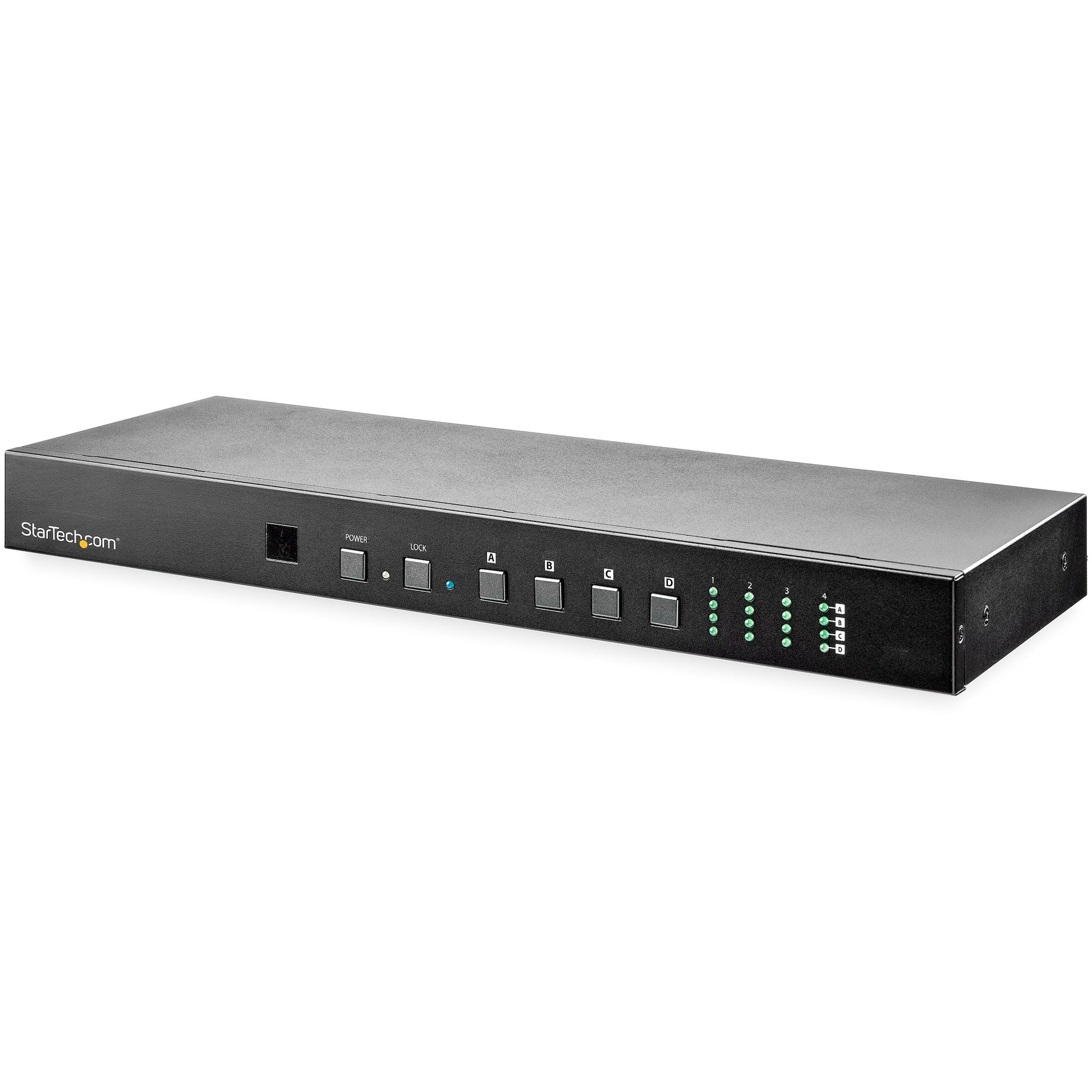

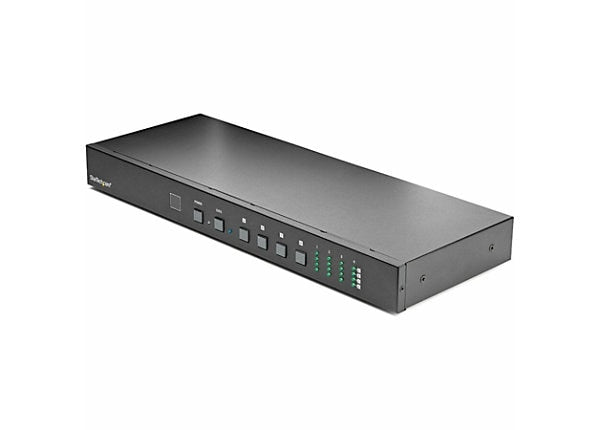

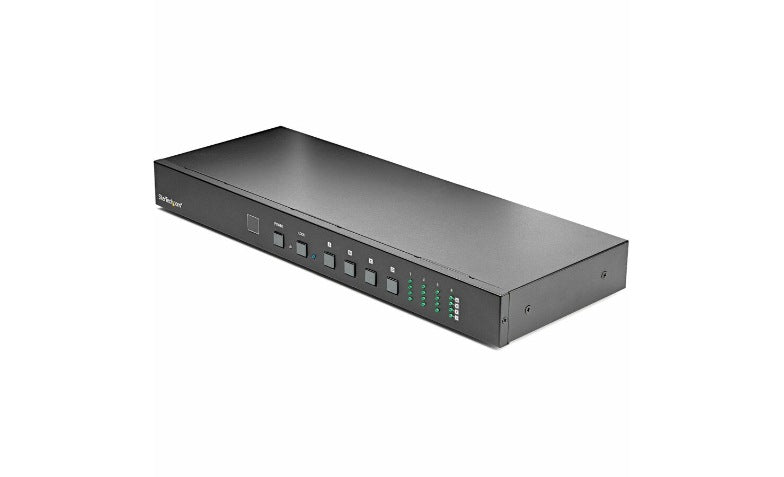

Photo is for illustration purposes only. Actual product may be different.
$867.00
$867.00
Sale Sold out
Shipping calculated at checkout.
  • Supports 4x4 HDMI matrix switching with up to 4K 60Hz resolution
  • Offers both wired and wireless connectivity options
  • Includes 10 USB 3.2 Gen 1 Type-A ports (5Gbps)
  • TAA compliant and manufactured in Taiwan
  • Operating temperature range from 0°C to 50°C; storage from -20°C to 70°C
  • Supports remote management via integrated WebGUI

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers stunning 4K 60Hz resolution across four displays, ensuring exceptional AV quality for professional applications
  • Combines rugged construction with broad operating temperature range, ideal for industrial and enterprise deployments
  • TAA compliance and 2-year warranty make it ideal for government and institutional procurement

Product Overview

Share and switch four distinct HDMI AV signals between four separate displays in a matrix configuration-WebGUI enables users to control the 4x4 HDMI Matrix Switch remotely- Enjoy astonishing picture quality with support for resolutions up to 4K 60Hz

Specifications

Product Overview
Product Type HDMI Matrix Switch
Form Factor Rack-mountable (1U)
Weight 4.5 lbs.
Power Requirements 100 - 240V AC, 50/60Hz
Model Number VS424HD4K60
Enclosure Color Black
Included Accessories 1 - HDMI Matrix Switch
Display Resolution Support Up to 4K 60Hz (3840x2160 @ 60Hz)
Video Bandwidth 18 Gbps
Audio Support Yes, including LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio
HDCP Support HDCP 2.2 and 1.4 compliant

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS

Advanced Security Features
Authentication for Remote Access Web GUI password protection

Interfaces
Input Ports 4 x HDMI (Type-A)
Output Ports 4 x HDMI (Type-A)
HDMI Version HDMI 2.0
Ethernet Port 1 x RJ45 for Web GUI control
Serial Control 1 x DB9 RS-232
IR Port 1 x IR Receiver
USB Port 1 x USB (for firmware update)

Physical & Environmental
Width 17.2 in
Depth 6.3 in
Height 1.7 in
Minimum Operating Temperature 0 °C
Maximum Operating Temperature 50 °C
Minimum Storage Temperature -20 °C
Maximum Storage Temperature 70 °C
Humidity (Operating) 10% to 80% RH (non‑condensing)
Humidity (Storage) 5% to 95% RH (non‑condensing)

Cloud Management & Licensing
Remote Management Capability Yes, via Web GUI
Management Interface Web-based GUI and RS-232 CLI
Firmware Upgradable Yes, via USB
