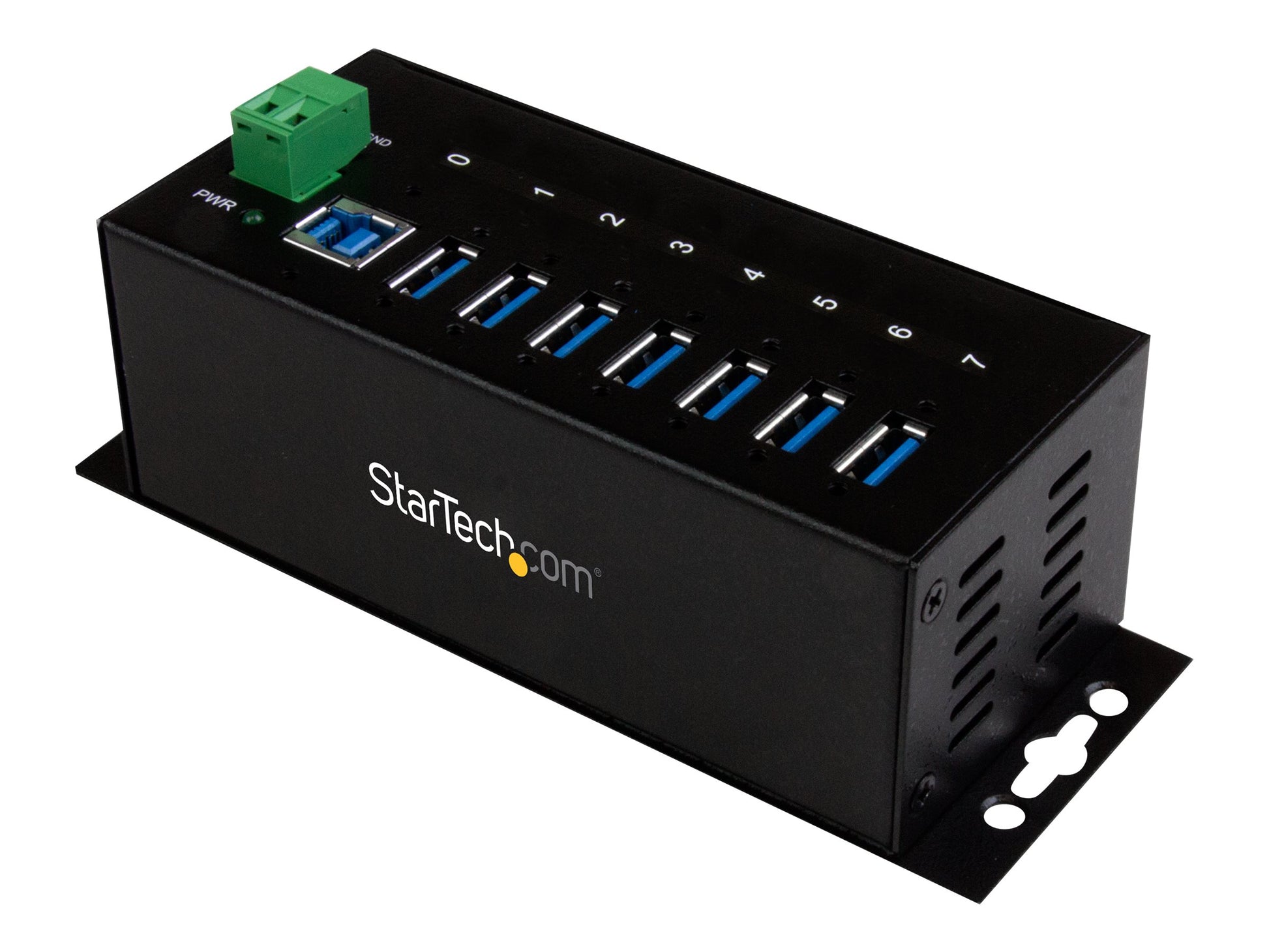

STARTECH 7-Port Industrial USB 3.0 Hub with ESD/Surge Protection

VENDOR: STARTECH Mfg Part#: HB30A7AME UPC#: 065030881876
1 4
Photo is for illustration purposes only. Actual product may be different.
$209.00
$209.00
Sale Sold out
MSRP: $211.00
Shipping calculated at checkout.
  • - 7 USB 3.1 Gen 1 (USB 3.0) Type-A ports supporting 5 Gbps data transfer
  • - Rugged industrial-grade metal housing for durability
  • - 15kV air / 8kV contact ESD protection and 350W surge protection
  • - Supports +7 to +48V power input with up to 65W maximum consumption
  • - Wall, desk, and DIN rail mountable for flexible deployment
  • - Includes USB cable and AC adapter; TAA compliant and made in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - Offers superior electrical protection with 15kV/8kV ESD and 350W surge safeguards, reducing risk of device failure
  • - Designed for flexible industrial deployment with wall, desk, and DIN rail mounting options
  • - High-performance 5 Gbps data transfer across seven ports supports demanding workflows and large device arrays

Product Overview

Industrial USB 3.0 hub w/ rugged metal housing. 15kV/8kV ESD protection and 350W surge protection. Mountable to desk, wall or DIN rail. Powered +7-48 volt range, 35W max (shared). 7 USB 3.0 (3.1 Gen 1) 5Gbps ports. USB cable and AC adapter included.

Specifications

Product Overview
Product Type Industrial USB 3.0 Hub
Form Factor Desktop Mountable / Wall Mountable / DIN Rail Mountable
Enclosure Type Rugged Metal
Power Requirements 7V to 48V DC
Maximum Power Output 35W (shared across all ports)
Maximum Power Consumption 65W
Included Accessories USB 3.0 cable, Universal power adapter
Warranty 2 Years

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
ESD Protection 15 kV (Air) / 8 kV (Contact)
Surge Protection 350W surge protection

Advanced Security Features

Interfaces
Total USB Ports 7
USB Port Type USB 3.1 Gen 1 Type-A (9 pin)
Interface Standard USB 3.1 Gen 1 (5 Gbps), backward compatible with USB 2.0/1.1
Data Transfer Rate Up to 5 Gbps
USB Downstream Ports 7 x USB 3.1 Gen 1 Type-A female
Host Connector USB Type-B (USB 3.0) female

Physical & Environmental
Width 140 mm (5.5 in)
Depth 65 mm (2.6 in)
Height 24 mm (0.94 in)
Weight 390 g (13.8 oz)
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% RH (non-condensing)
Storage Humidity 5% to 95% RH
Mounting Options Surface mount, Wall mount, DIN rail mount
