STARTECH 8-Port USB to RS232/RS422/RS485 Serial Hub Adapter

VENDOR: STARTECH Mfg Part#: ICUSB234858I UPC#: 065030878579
1 5

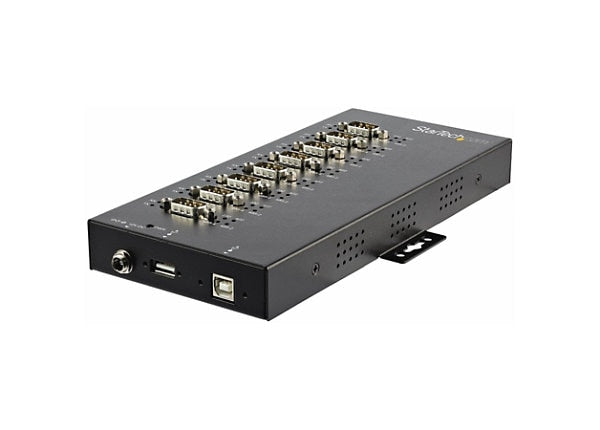

Photo is for illustration purposes only. Actual product may be different.
$640.00
$640.00
Sale Sold out
Shipping calculated at checkout.
  • 8 DB9 ports individually configurable to RS232, RS422, or RS485 (2- or 4-wire)
  • Supports data transfer rates up to 921.6 Kbps
  • Industrial-grade metal enclosure with IP30 rating and 15kV ESD protection
  • USB 2.0 connectivity with wired interface
  • Flexible mounting options: desk, wall, or DIN rail
  • Includes 6ft USB cable and 12V power adapter; TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports diverse serial communication standards (RS232/RS422/RS485), ideal for legacy and industrial systems
  • Industrial-grade build with IP30 metal housing and 15kV ESD protection enhances durability and uptime
  • Includes complete installation accessories and power options, simplifying deployment in varied environments

Product Overview

Industrial 8 port serial hub 15kV Level 4 ESD - IP30 rating Metal USB to serial adapter converter w/ each DB9 port set to RS232/RS422/RS485(2wire/4wire) baud rates up to 921.6Kbps - Desk/wall/DIN rail mount - 6ft USB cable - 12V power adapter/5V USB

Specifications

Product Overview
Product Type Adapter
Form Factor External
Enclosure Color Black
Weight 680 g
Mounting Options Desk, wall, or DIN rail
Included Accessories 6ft USB cable, 12V power adapter
Power Source External power adapter or USB-powered
Power Input 12V DC, 1.5A
Baud Rate Support Up to 921.6 Kbps
Number of Ports 8

Wireless Features

Compliance & Origin
Country of Origin TAIWAN
Certifications CE, FCC, RoHS, REACH
TAA Compliant Yes
Environmental Compliance RoHS, REACH

Advanced Security Features
Serial Port ESD Protection 15kV Air and Contact Discharge
Secure Mounting Option DIN Rail mounting hardware included

Interfaces
Interface Type USB 2.0
Serial Port Configuration Each port configurable to RS232, RS422, or RS485 (2-wire/4-wire)
Serial Connector Type DB-9 (9-pin male D-Sub)
USB Connector Type USB Type-B
Supported Protocols RS232, RS422, RS485
Isolation Protection 15kV ESD Level 4 (Air/Contact Discharge)

Physical & Environmental
Width 5 inch
Depth 8.6 inch
Height 1 inch
Housing Material Steel
Enclosure Rating IP30
Operating Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Operating Humidity 5% to 95% RH (non-condensing)
Storage Humidity 5% to 95% RH (non-condensing)
MTBF 219,169 hours @ 25°C

Cloud Management & Licensing
Management Interface
Licensing Required No
