| Product Type | Industrial USB Hub |
| Model | HB20A7AME |
| Form Factor | Rugged Industrial (Metal Enclosure) |
| Enclosure Color | Black & Silver |
| Weight | 0.4 kg |
| Power Consumption Operational | 28 Watt |
| Power / Voltage Required | 7 ~ 48 V DC |
| Power Input Type | 3-Wire Terminal Block (DC Power) |
| Mounting Options | DIN and Wall Mountable (bracket included) |

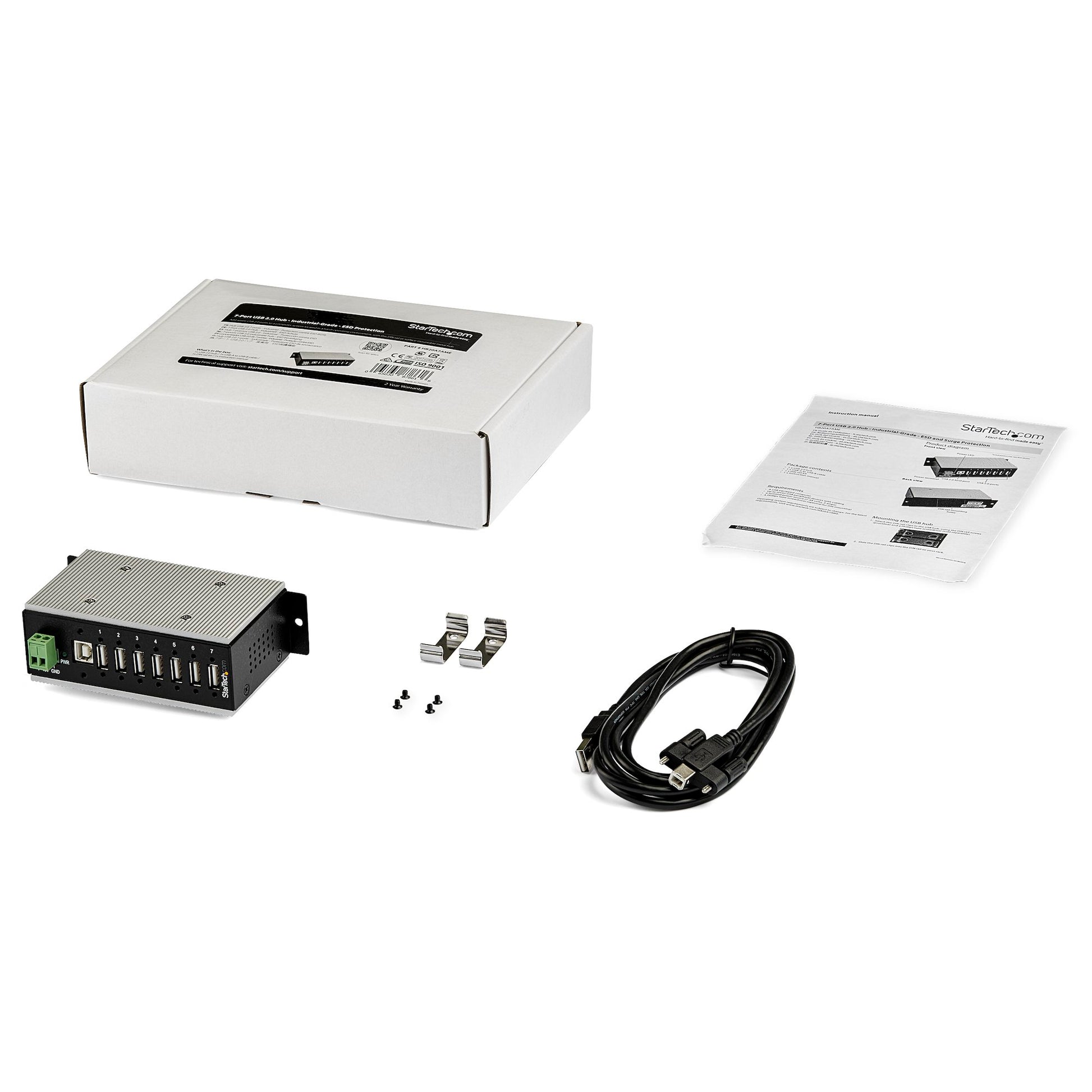

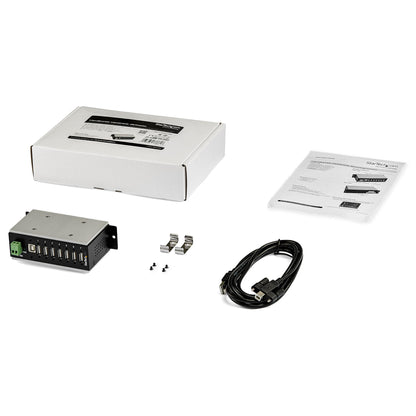

| Included Accessories | DIN Mounting Bracket, User Manual |
| Service & Support Type | 2 Years Warranty |

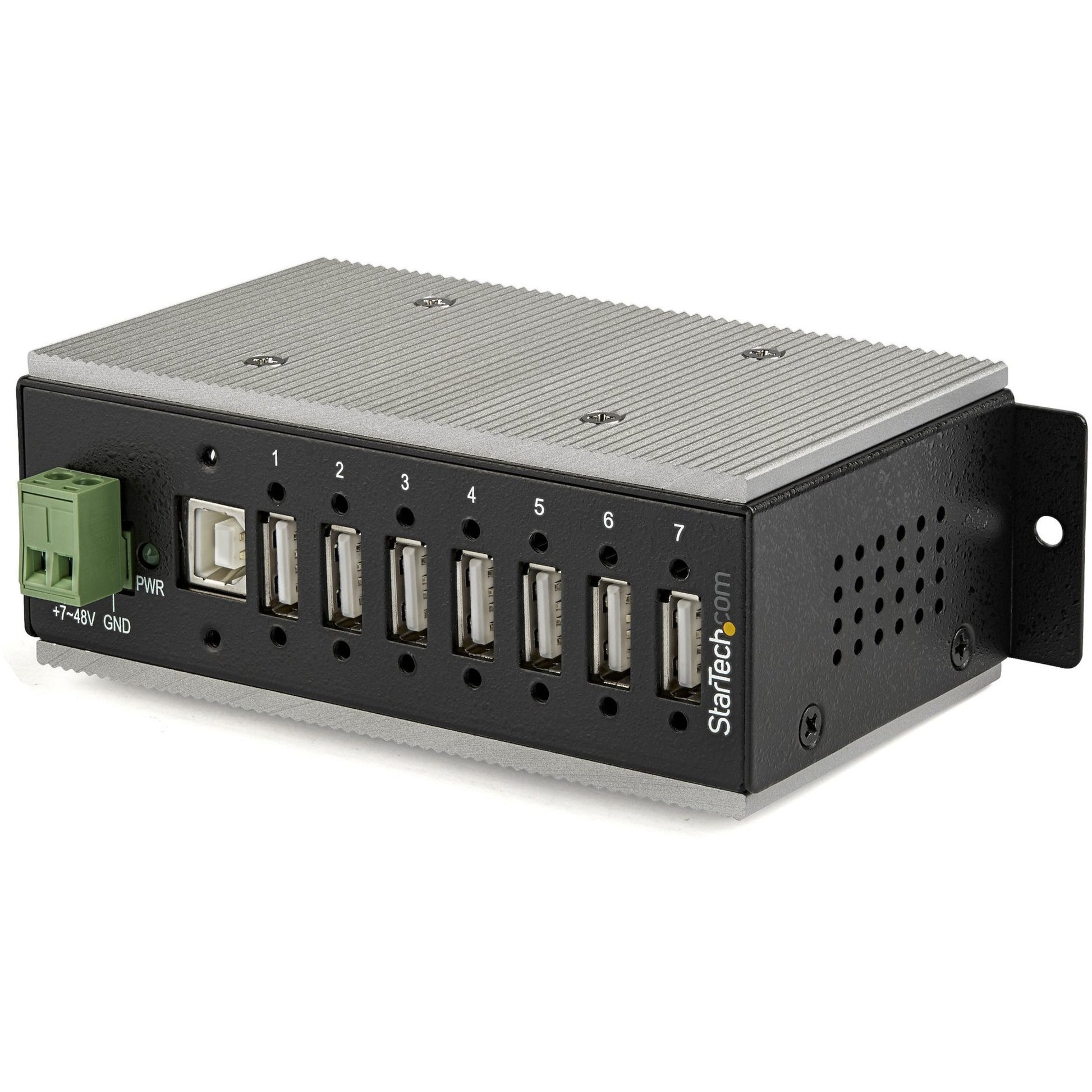

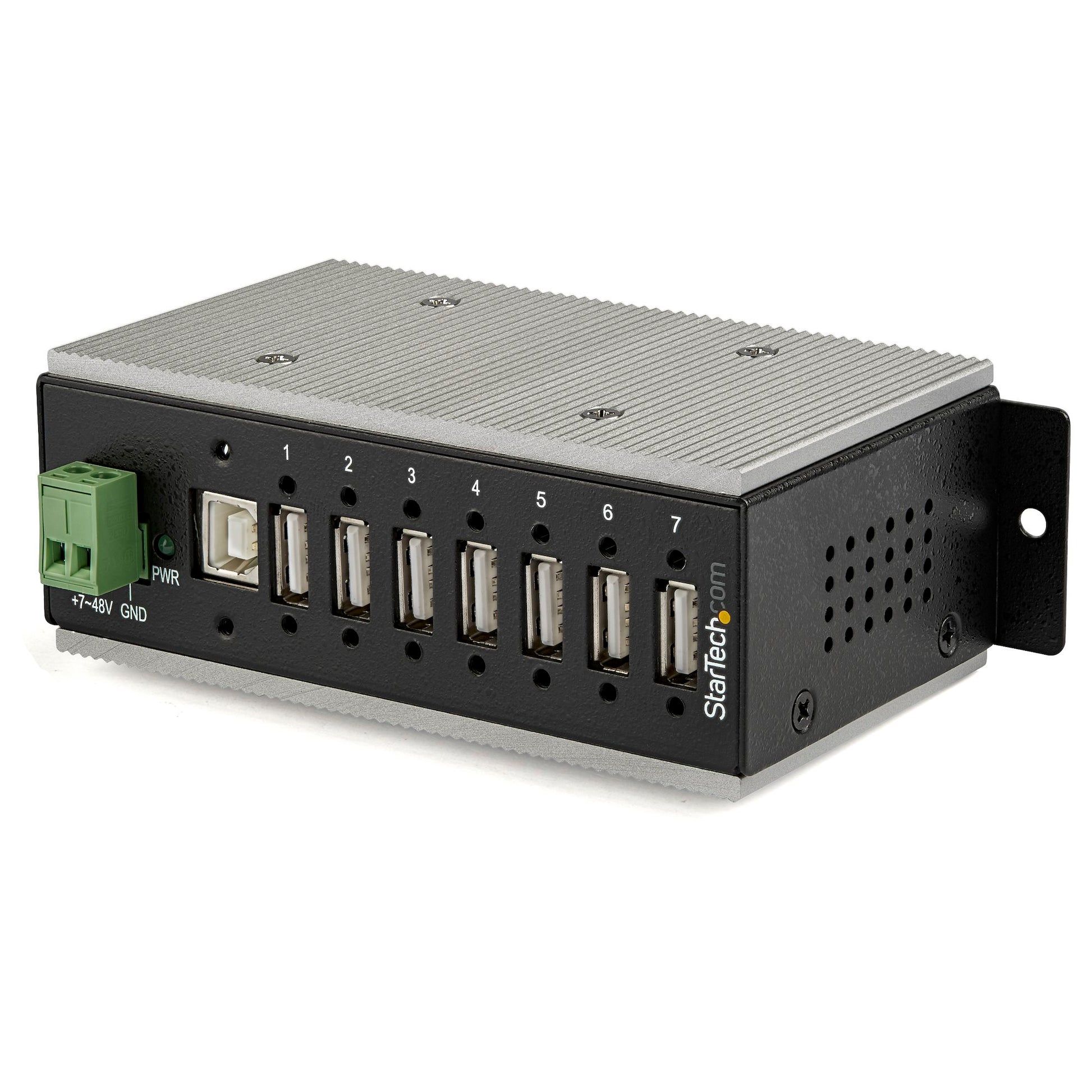

StarTech HB20A7AME Industrial 7-Port USB 2.0 Hub with Surge Protection
Photo is for illustration purposes only. Actual product may be different.
Regular price
$308.00
Regular price
Sale price
$308.00
Unit price
per
MSRP: $311.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Industrial-grade 7-port USB 2.0 hub with screw-lock Type-A connectors
- Operating temperature range: -40°F to 185°F with 15kV Air / 8kV Contact ESD protection
- Surge protection up to 350W to protect connected devices
- Supports wide input voltage range of 7–48V DC via terminal block
- DIN and wall-mount compatible with rugged metal enclosure
- 480 Mbps transfer rates over wired USB connections
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Ideal for harsh environments with extended temperature support and ESD/surge protection
- Flexible installation with both DIN-rail and wall mount options included
- Wide voltage input and screw-lock USB ports ensure secure, reliable performance in industrial applications
Product Overview
Industrial 7 port USB 2.0 hub w/USB Type-A screw lock ports 480Mbps - Rugged metal USB hub with 15kV Air/8kV Contact ESD - 350W surge protection - Ear/DIN mountable (bracket incl) - Operating temp -40F to 185F RH 5%-95% - 7 to 48V DC power terminalSpecifications
Product Overview
Physical & Environmental
| Width | 5.2 in (132 mm) |
| Depth | 2.5 in (64 mm) |
| Height | 1.7 in (43 mm) |
| Material | Steel |
| Min Operating Temperature | -40 °F (-40 °C) |
| Max Operating Temperature | 185 °F (85 °C) |
| Min Storage Temperature | -4 °F (-20 °C) |
| Max Storage Temperature | 158 °F (70 °C) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| Cooling | Passive |
Cloud Management & Licensing
| Remote Management |
Interfaces
| USB Port Type | USB 2.0 Type-A (with screw lock) |
| Total USB Ports | 7 |
| Host Connection Interface | USB Type-B Female (High Speed) |
| Data Transfer Rate | 480 Mbps |
| Port Protection | 15kV Air / 8kV Contact ESD Protection |
| Surge Protection | 350W on each port |
| Power Delivery per Port | 500 mA (per USB 2.0 spec) |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | CE, FCC, RoHS, REACH |
| ESD Protection Rating | 15kV (Air), 8kV (Contact) |
| Lead-Free Status | Yes |
| Conflict Minerals Status | Compliant |
