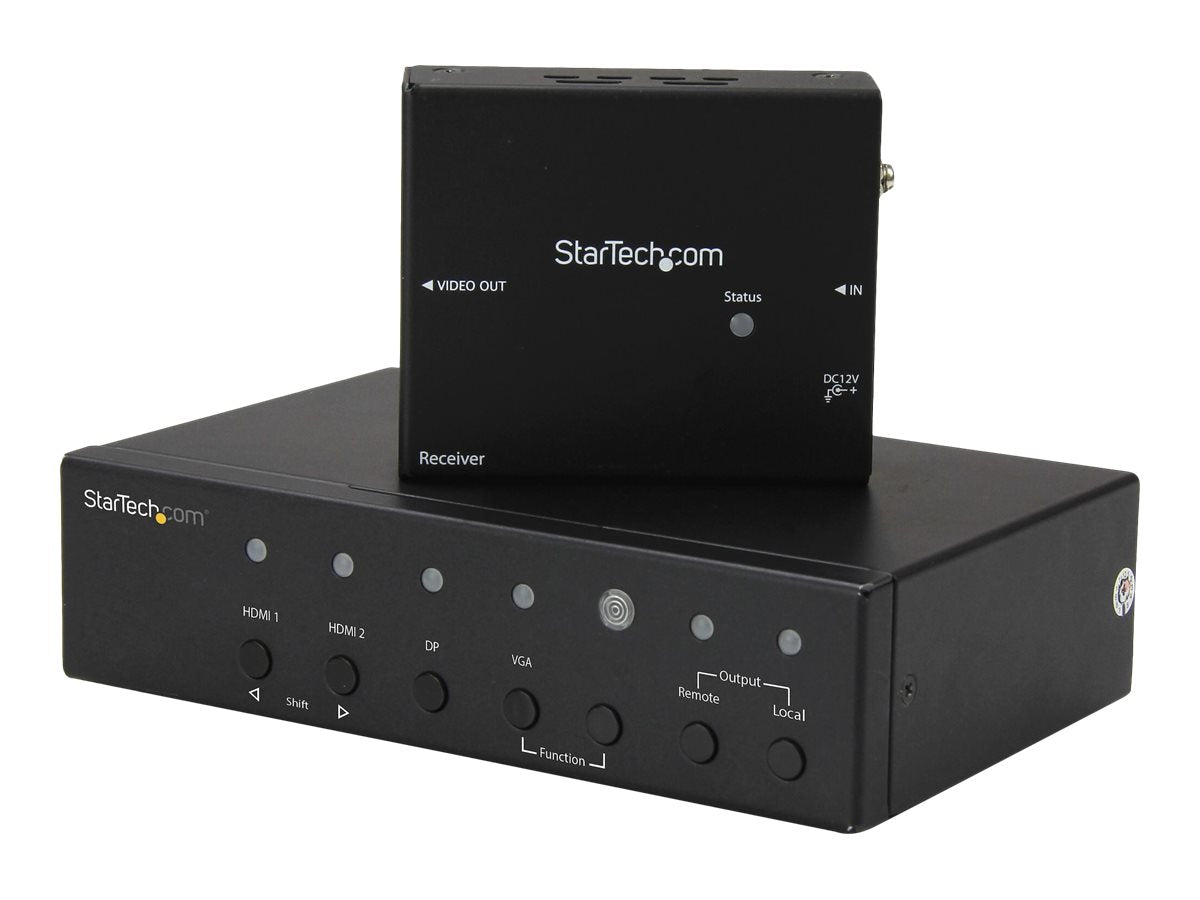

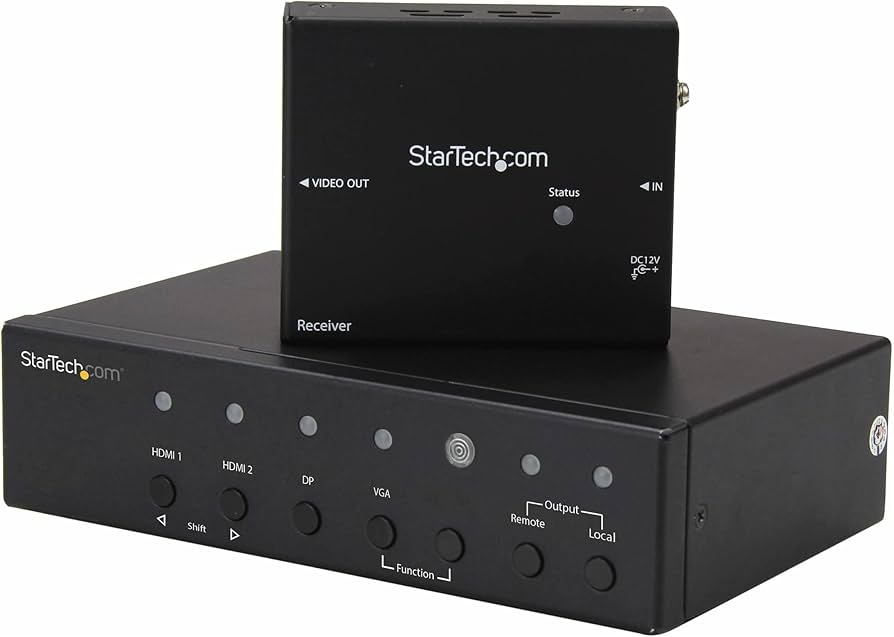

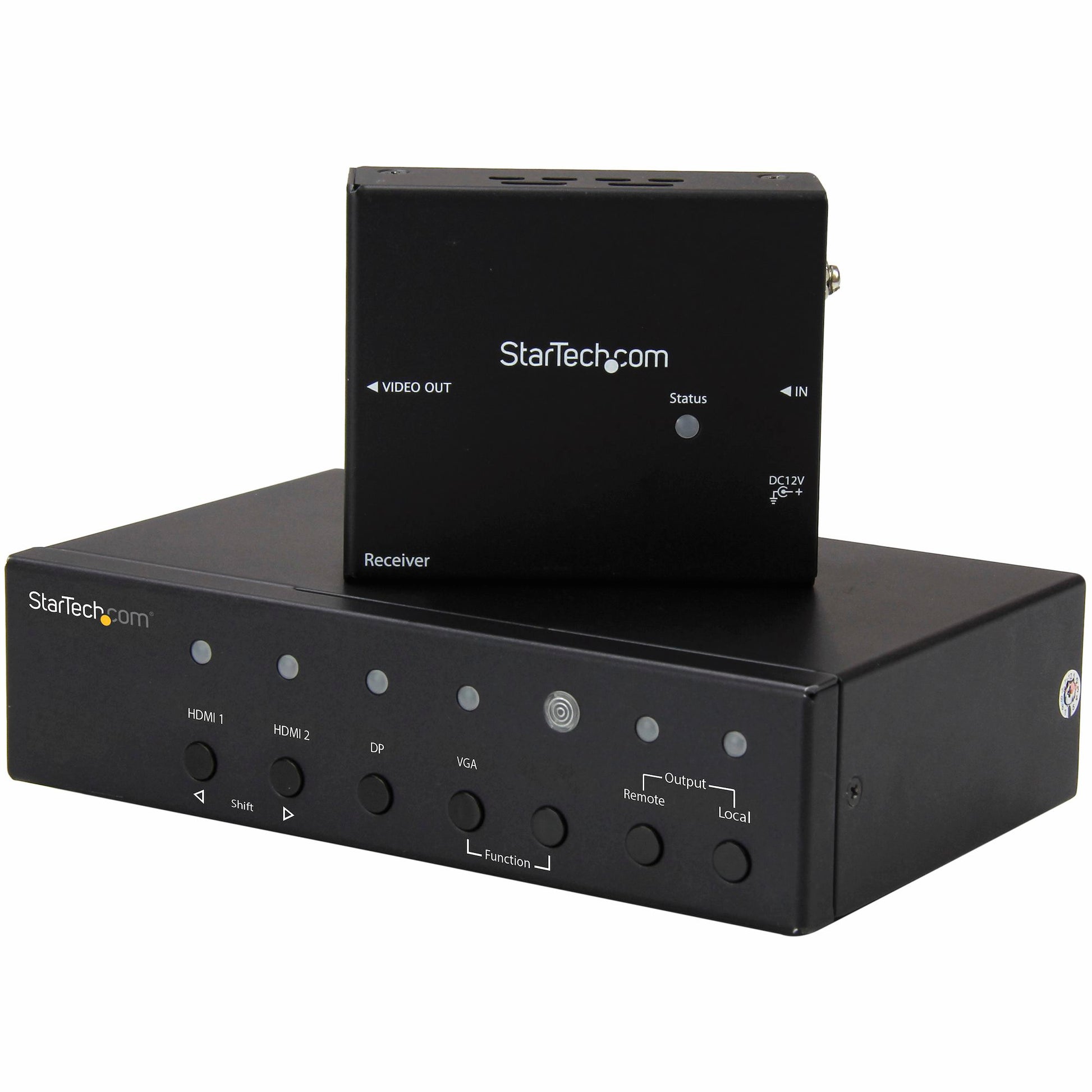

StarTech HDBaseT VGA/DP/HDMI Extender Over Cat5e/6 – 4K, 70m

VENDOR: STARTECH Mfg Part#: STDHVHDBT UPC#: 065030864572
1 5
Photo is for illustration purposes only. Actual product may be different.
$811.00
$811.00
Sale Sold out
Shipping calculated at checkout.
  • - Supports video input via HDMI, DisplayPort, or VGA over Cat5e or better cabling
  • - HDBaseT technology enables signal transmission up to 70 meters
  • - Maximum external resolution of 4096 x 2160 (4K) @ 30 Hz at 35 meters
  • - Wired Ethernet-based connectivity for reliability
  • - Compact black enclosure with dimensions of 6.3 x 3.9 x 1.6 inches
  • - TAA-compliant and includes 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - Consolidated device compatibility allows seamless switching between HDMI, DP, and VGA sources
  • - Up to 70 meters signal transfer supports flexible installation across large spaces
  • - 4K resolution capability ensures high-quality visuals for professional applications

Product Overview

Connect your laptop to a remote display over standard CAT5 or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources - HDBaseT Extender - Resolutions up to 4K - HDMI over CAT5 or CAT6 - HDMI VGA DisplayPort to HDMI over CAT6 or CAT5

Specifications

Product Overview
Type HDBaseT Video Extender
Form Factor External
Power Requirements Powered via 12V DC, 2A adapter (included)
Enclosure Color Black
Weight 508 g (1.1 lb)
Service & Support Type 2 Years

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Environmental Certifications RoHS, REACH
Certifications CE, FCC, UL

Advanced Security Features
Encryption No encryption (unsecured HDBaseT transmission)
Content Protection HDCP 1.4 supported
Firewall
IDS/IPS
Malware Protection
Authentication

Interfaces
Cabling Type Cat 5e UTP or better
Input Interfaces 1 x HDMI, 1 x VGA, 1 x DisplayPort (via switch)
Output Interfaces 1 x HDBaseT RJ45 (transmitter); 1 x HDMI (receiver)
Audio Support Yes, HDMI and DisplayPort audio pass-through
Max Resolution 4096 x 2160 (4K) @ 30 Hz (35 meters)
Max Distance 70 meters (1080p), 35 meters (4K)
Data Link Protocol HDBaseT over Ethernet
Connectivity Technology Wired

Physical & Environmental
Width 160 mm (6.3 in)
Depth 100 mm (3.9 in)
Height 40 mm (1.6 in)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 10% to 90% RH (non-condensing)
Mounting Options Wall-mountable and surface-mountable
Material Steel

Cloud Management & Licensing
Cloud Management
Licensing Required No
Management Interface Hardware switch input selection (manual control)
