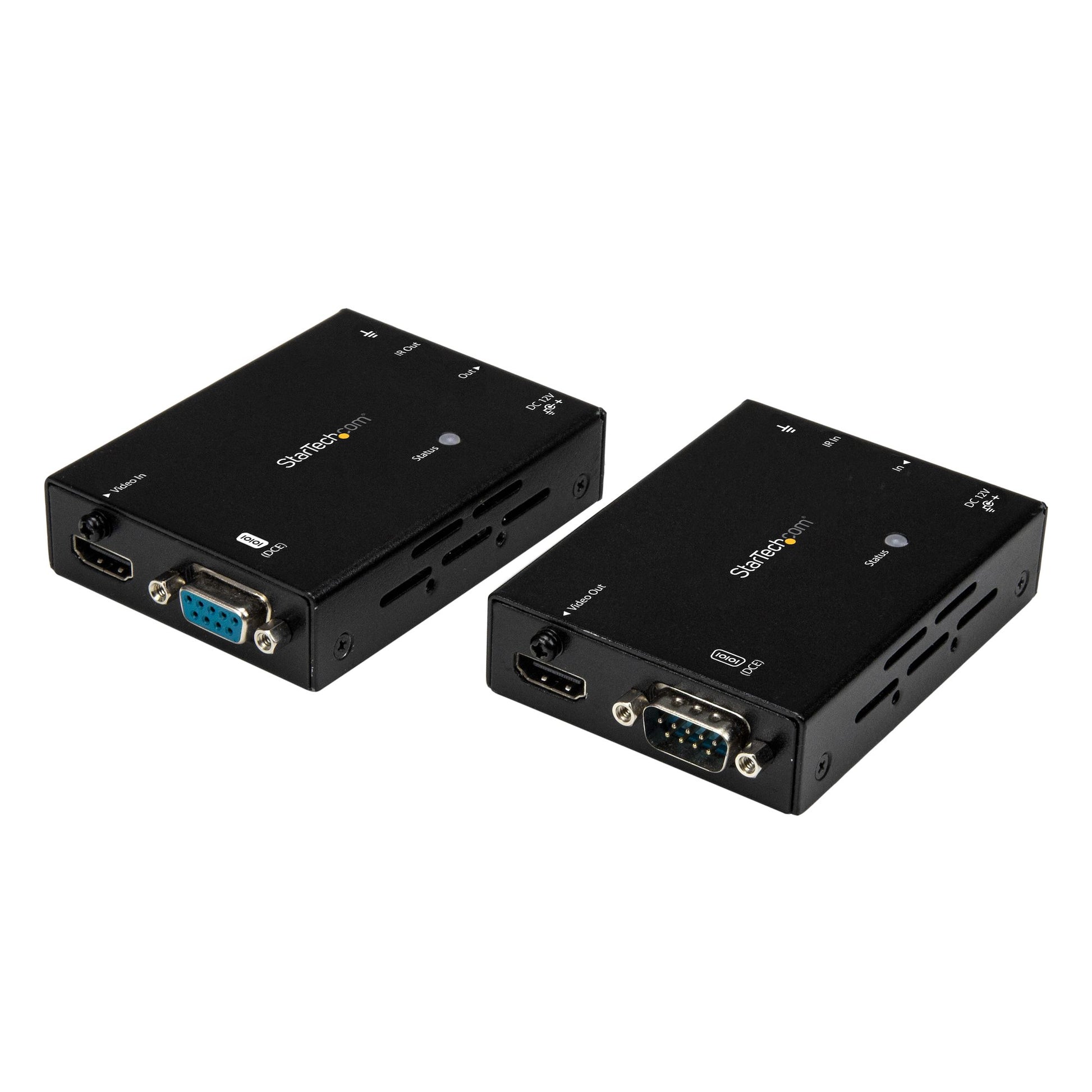

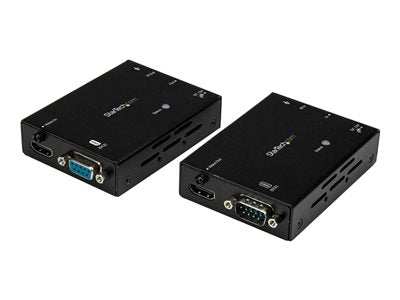

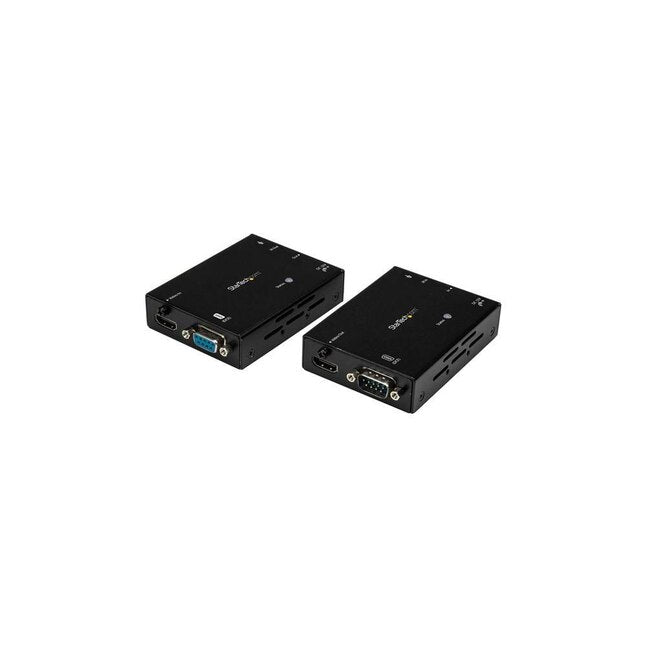

STARTECH HDMI Over Cat5e HDBaseT Extender - 4K, ST121HDBTL

VENDOR: STARTECH Mfg Part#: ST121HDBTL UPC#: 065030868396
1 5
Photo is for illustration purposes only. Actual product may be different.
$527.00
$527.00
Sale Sold out
Shipping calculated at checkout.
  • Supports HDMI over Cat5e/6 cabling up to 70 meters
  • Maximum resolution of 4096 x 2160 (4K) at 30 Hz at 35 meters
  • Wired connectivity using Ethernet protocol
  • RS-232 serial and IR passthrough for control integration
  • Compact housing: 2.6" width x 3.6" depth x 1.1" height
  • TAA compliant and includes 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Extends 4K HDMI signals up to 70 meters over standard Cat5e/6 cabling, reducing A/V infrastructure cost
  • Integrated RS-232 and IR control for seamless communication with remote devices and displays
  • TAA compliance and robust build from Taiwan make it suitable for government and enterprise installations

Product Overview

Extend HDMI over CAT6 or CAT5 cabling with RS232 serial and IR control - HDBaseT extender - Video extender - HDMI over CAT5 extender - CAT5 HDMI extender - HDBaseT extender - HDMI booster - HDMI CAT 5 extender - HDMI repeater - HDMI extension

Specifications

Product Overview
Type HDMI over Cat5e/Cat6 Extender
Form Factor Standalone
Enclosure Color Black
Weight 290 g
Power Requirements 12V DC, 1.5A

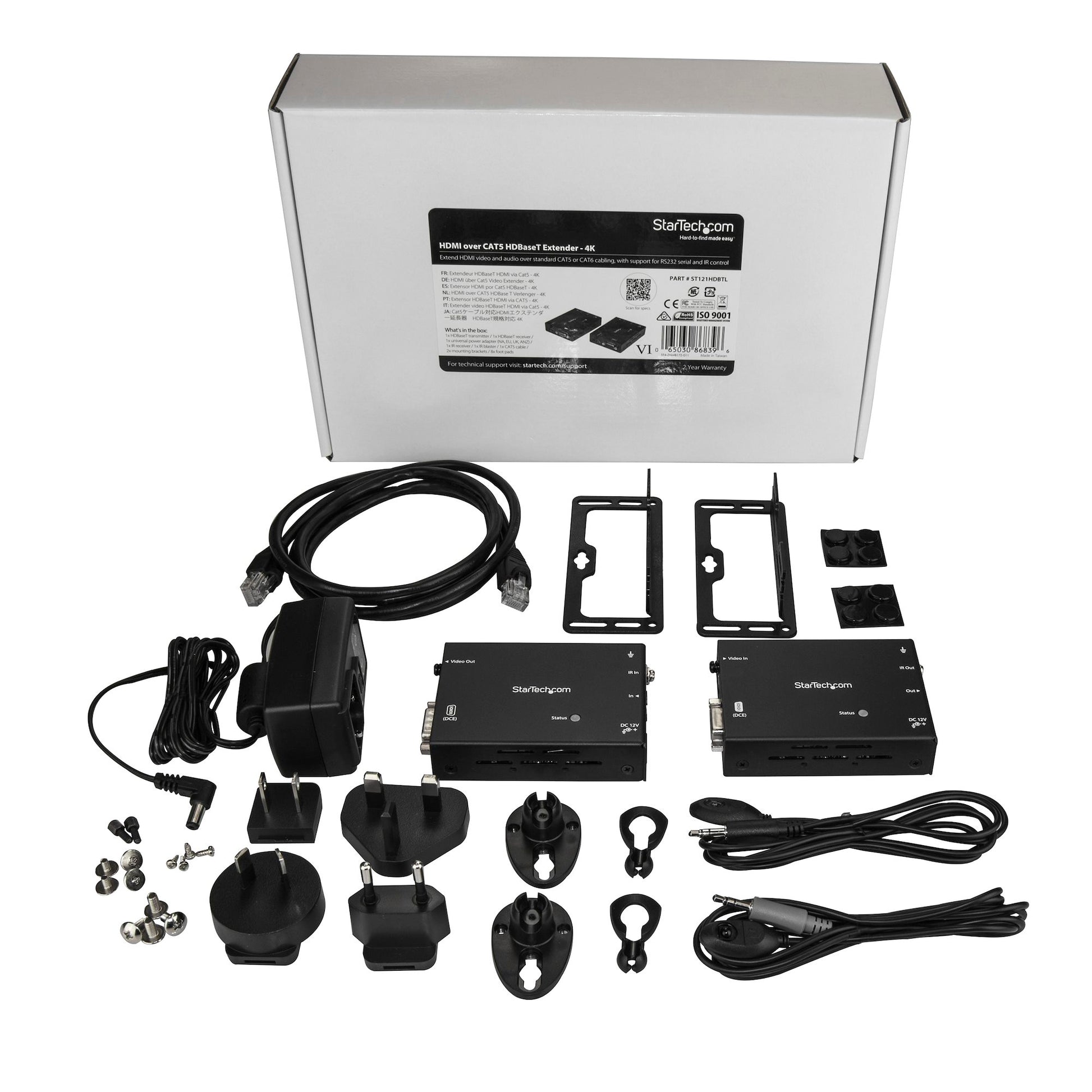

Included Accessories IR blaster and receiver, RS-232 cable, universal power adapter
Power Consumption Up to 6W
Mounting Option Wall-mountable

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC, REACH

Advanced Security Features
Encryption Support HDCP 1.4 (High-bandwidth Digital Content Protection)
Content Protection Yes (HDCP pass-through)

Interfaces
Input Interface 1 x HDMI (Type A) - TX unit
Output Interface 1 x HDMI (Type A) - RX unit

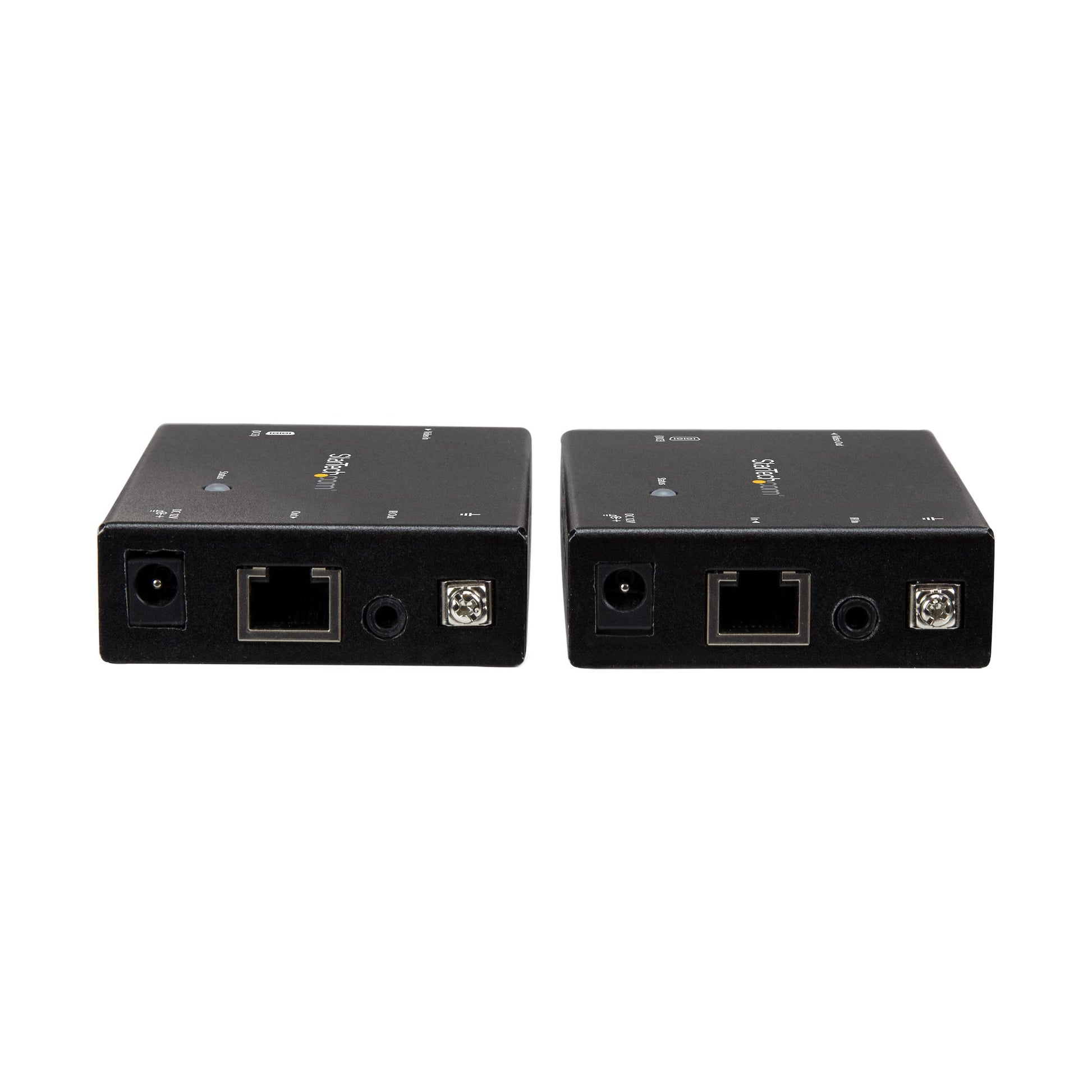

Other Interfaces 1 x RJ-45 (HDBaseT), 1 x IR In, 1 x IR Out, 1 x RS-232 (DB9)
Extension Technology HDBaseT
Video Bandwidth 10.2 Gbps
Supported HDMI Features HDCP 1.4, 3D Video, Deep Color
Maximum Extension Distance (Cat5e) 35 m (4K @30Hz)
Maximum Extension Distance (Cat6) 70 m (1080p)
IR Control Support Yes
RS-232 Serial Control Yes

Physical & Environmental
Width 2.6 in (66 mm)
Depth 3.6 in (92 mm)
Height 1.1 in (28 mm)
Housing Material Aluminum
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Humidity 10% to 85% RH, non-condensing

Cloud Management & Licensing
Cloud Management No
Licensing Requirements No licenses required
