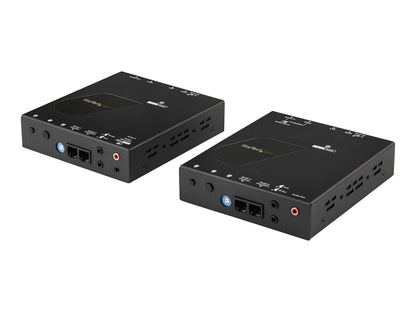

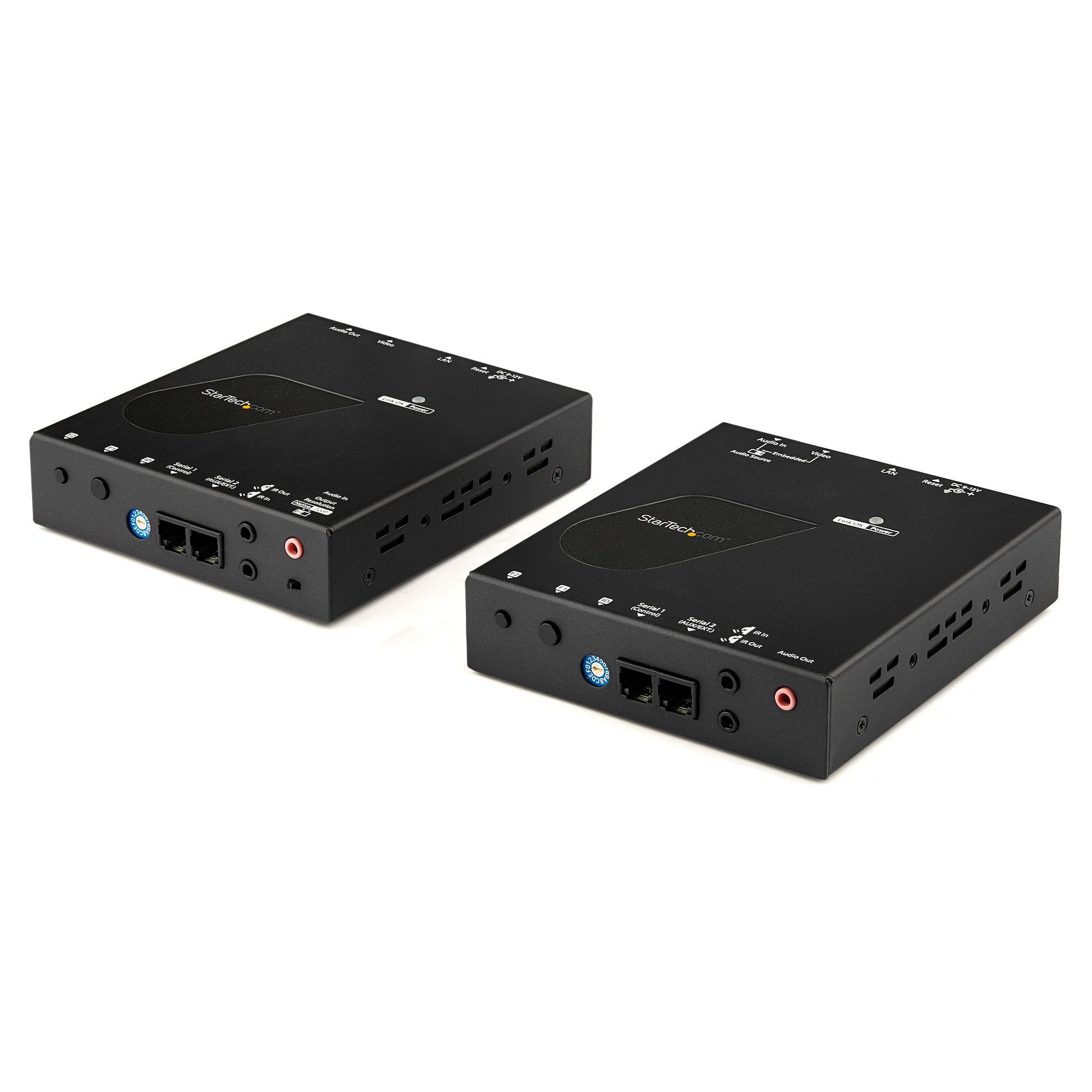

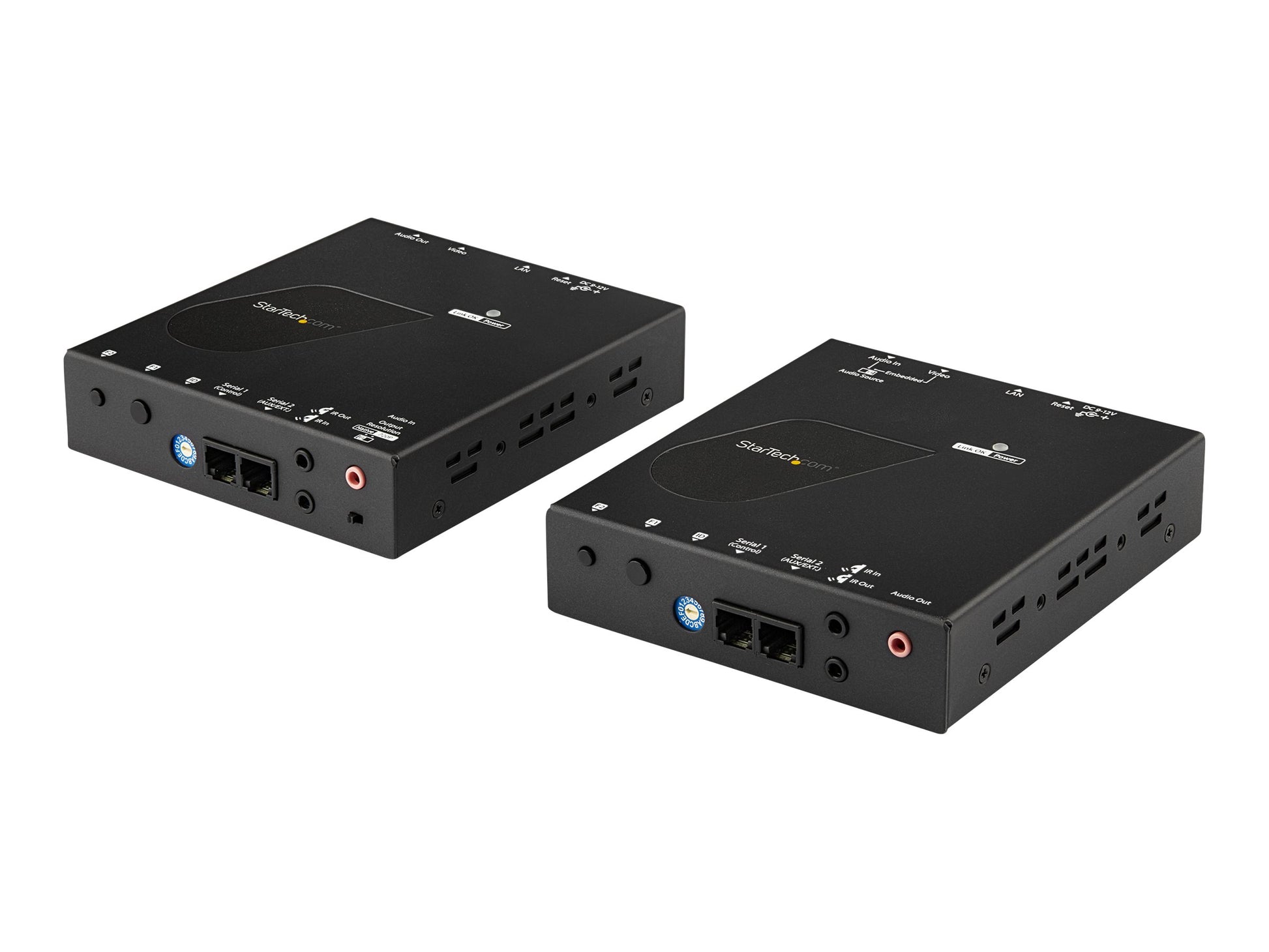

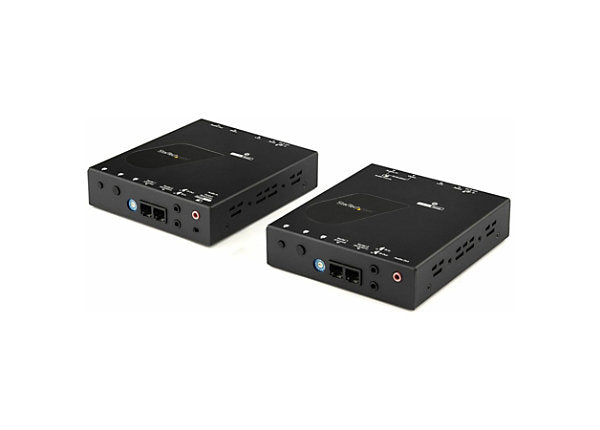

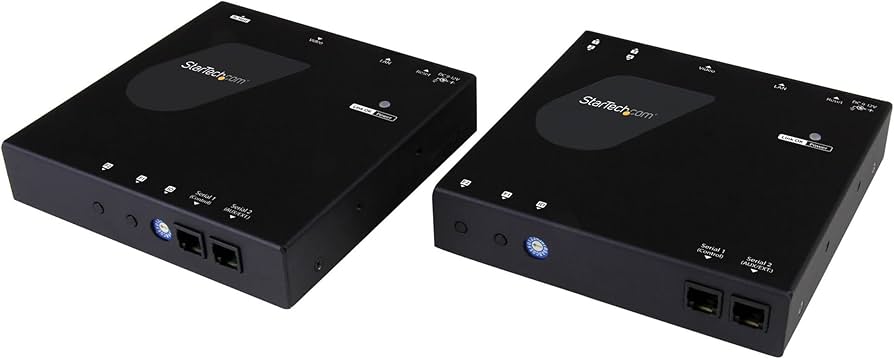

STARTECH HDMI over IP Extender Kit with 1080p Video Wall Support

VENDOR: STARTECH Mfg Part#: ST12MHDLAN2K UPC#: 065030878456
1 5
Photo is for illustration purposes only. Actual product may be different.
$765.00
$765.00
Sale Sold out
Shipping calculated at checkout.
  • Extends HDMI signals up to 100 meters using Cat5e or better cabling
  • Supports maximum video resolution of 1920x1080 @60Hz
  • Includes HDMI, RJ-45, RJ-11, and 3.5 mm mini-jacks on both transmitter and receiver
  • Supports RS232 control and scalable video wall configurations
  • Black enclosure with 4.6" x 5.2" x 1.2" dimensions
  • TAA-compliant and includes 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for digital signage and video wall applications requiring scalable HDMI distribution over IP
  • TAA-compliant and supported by a 2-year warranty, suitable for government or enterprise IT procurement
  • Mobile app management and RS232 support enhance control and integration flexibility

Product Overview

HDMI over IP Extender Kit - Video wall support - HDMI transmitter receiver kit extends HDMI signal RS232 control - HDMI over Ethernet extender supports resolutions up to 1080p - HDMI over Cat5 Cat6 extender w/ mobile app to manage digital signage

Specifications

Product Overview
Product Type HDMI over IP Extender Kit
Form Factor Standalone unit (Transmitter & Receiver included)
Connectivity Technology Cable
Maximum Transmission Distance 100 meters
Max Supported Resolution 1920 x 1080 @ 60Hz
Enclosure Color Black
Included Components 1 x HDMI Transmitter, 1 x HDMI Receiver, Power Supplies, Mounting Hardware
Power Source External AC Adapter
Power Consumption Up to 5W per unit
Warranty 2 Years

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC, REACH

Advanced Security Features
Content Encryption AES-128 bit encryption
Network Segmentation Support Yes (Managed via switch VLANs)

Interfaces
Video Input Connector (Transmitter) 1 x HDMI (19-pin)
Video Output Connector (Receiver) 1 x HDMI (19-pin)
Ethernet Interface 1 x RJ-45 (per unit)
Audio Interface 2 x 3.5mm Audio Jack (per unit)
RS232 Interface 2 x RJ-11 (per unit)
IR Interface 2 x 3.5 mm Mini-Jack (3 Position) (per unit)
Supported Cabling Type Cat 5e or better UTP
HDCP Support Yes
HDMI Version HDMI 1.3

Physical & Environmental
Width 4.6 inches (117 mm)
Depth 5.2 inches (132 mm)
Height 1.2 inches (30 mm)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Humidity Range 10% to 90% RH, non-condensing
Material Metal enclosure
Mounting Type Wall-mountable or shelf

Cloud Management & Licensing
Management Interface Mobile App for Display Management
Software Included Video Wall Control Software
Firmware Upgradeable Yes
