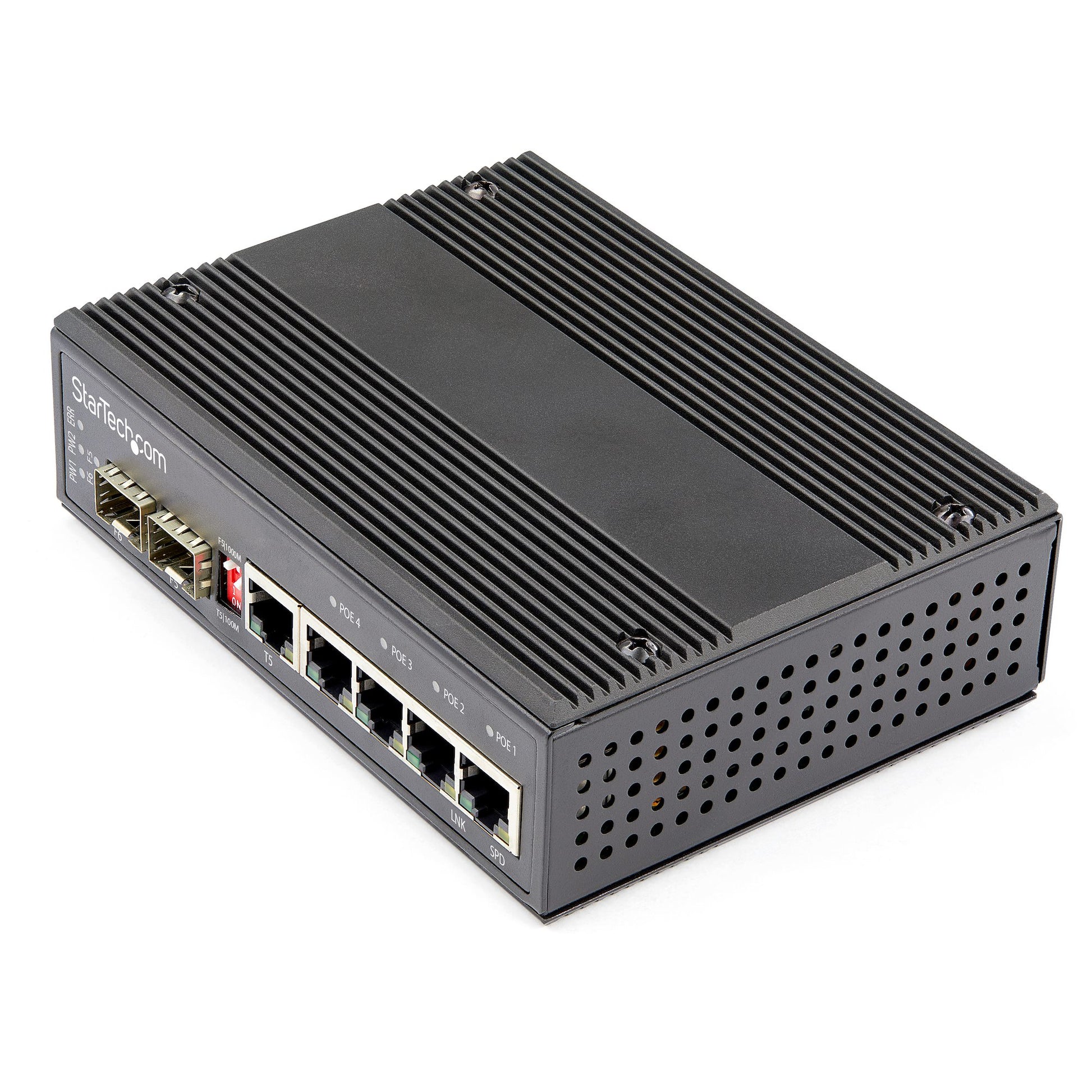

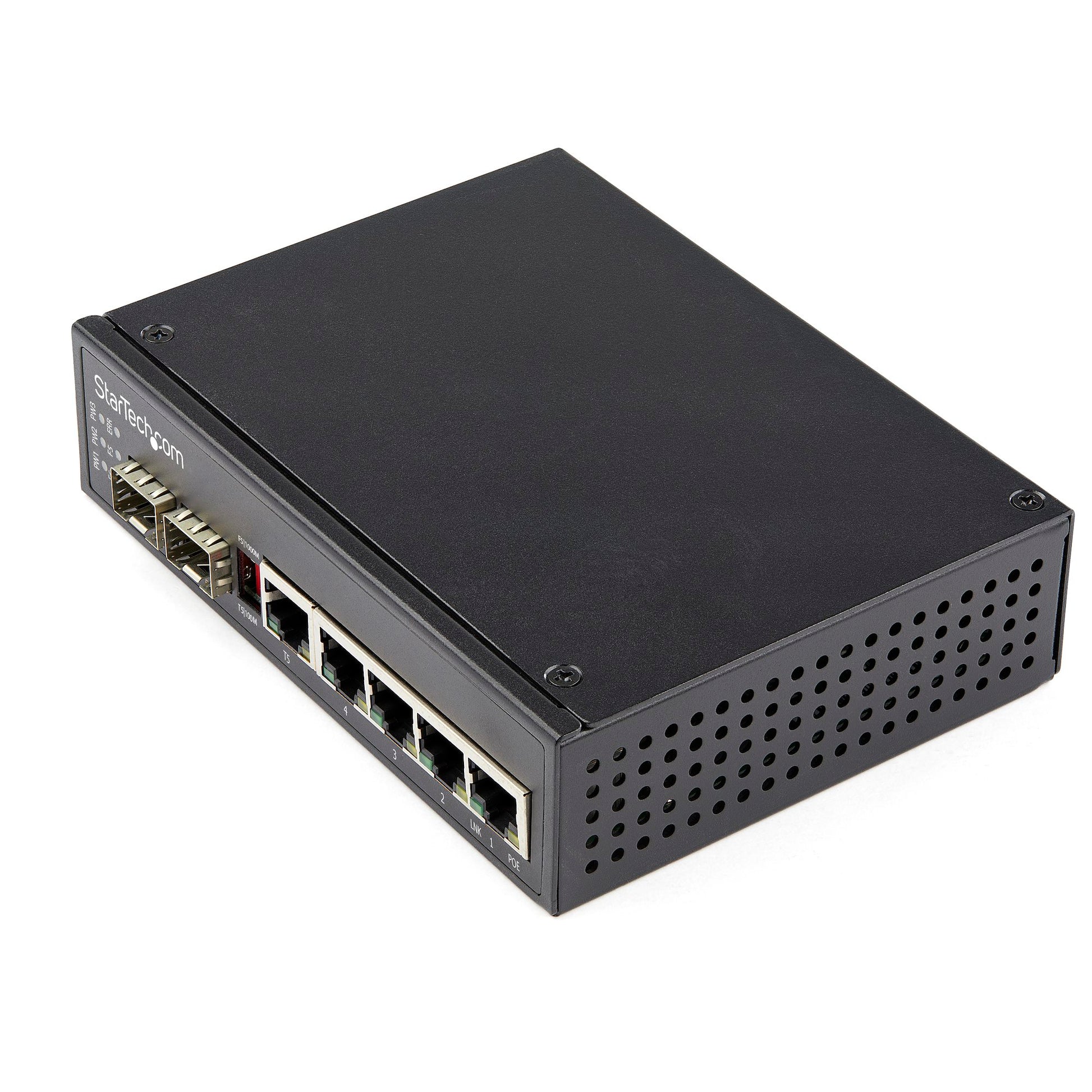

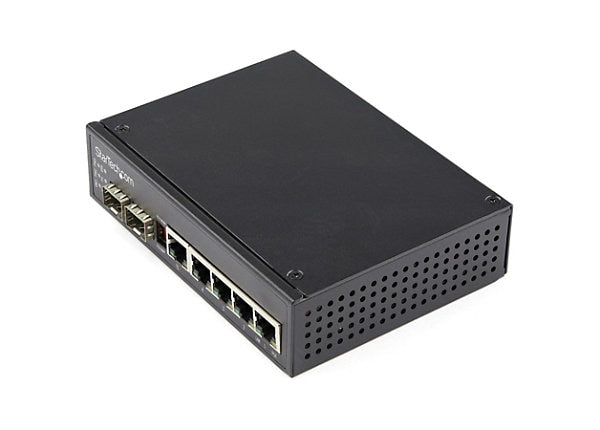

StarTech Industrial 6-Port Gigabit PoE+ Switch with SFP & 30W PoE

VENDOR: STARTECH Mfg Part#: IES1G52UP12V UPC#: 065030889834
1 5
Photo is for illustration purposes only. Actual product may be different.
$549.00
$549.00
Sale Sold out
Shipping calculated at checkout.
  • Unmanaged industrial-grade switch with 7-port configuration (4 PoE+, 2 SFP)
  • PoE+ support delivering up to 30W per port for powered devices
  • Gigabit Ethernet support with 1 Gbps data transfer on all ports
  • Hardened IP-30 steel housing with shock, vibration, and free-fall ratings
  • Extreme temperature operation range from -40°C to 75°C
  • TAA-compliant and manufactured in Taiwan for government-grade deployments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for harsh environments with wide -40°C to 75°C temperature support, ensuring consistent uptime.
  • Simplifies infrastructure with PoE+ ports delivering both power and data to connected devices.
  • Flexible deployment via DIN rail or wall mount and dual SFP uplinks for scalable networking.

Product Overview

Industrial 5 Port Gigabit Ethernet Switch - Up to 30W per 4 PoE ports - 75C to -40C hardened 10/100/1000 Mbps - 2 open SFP slots MSA - IP-30 steel housing MTBF 500k + hrs @ 25C Vibration/shock/free fall rated - Unmanaged DIN rail/wall mount 2yr warr

Specifications

Product Overview
Type Unmanaged Industrial Gigabit PoE+ Switch
Form Factor DIN Rail / Wall Mount
Power Requirements 12~58 V DC Input
PoE Power Budget 120 W
PoE per Port 30 W (IEEE 802.3at)
MTBF 500,000+ hours @ 25°C
Housing Material IP30-rated steel
Warranty 2 Years

Physical & Environmental
Operating Temperature -40°C to 75°C
Storage Temperature -40°C to 85°C
Operating Humidity 5% to 95% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Vibration Resistance EN 60068-2-6
Shock Resistance EN 60068-2-27
Free Fall Resistance EN 60068-2-32
ESD Protection 6KV DC Ethernet protection
Dimensions (H x W x D) 139 mm x 99 mm x 30 mm
Weight 0.67 kg

Cloud Management & Licensing
Management Interface Unmanaged (No Web Interface)
Cloud Management
License Requirement None

Interfaces
Total Ports 7
PoE Ports 4 x RJ-45 (PoE+ 10/100/1000 Mbps)
Non-PoE Ports 1 x RJ-45 (10/100/1000 Mbps)
SFP Slots 2 x SFP (100/1000 Mbps)
Max Data Transfer Rate 1 Gbps per port
Network Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at
Switching Capacity 14 Gbps
MAC Address Table 8K entries
Auto-Negotiation Supported
Auto MDI/MDIX Supported
Jumbo Frame Support Up to 9K bytes
Flow Control IEEE 802.3x (Full-Duplex), back-pressure (Half-Duplex)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS, REACH
EMI/EMS FCC Part 15 Class A, EN55032, EN61000-6-4
Safety Standards EN60950-1, IEC60950-1

Advanced Security Features
Security Features Industrial-rated power surge and ESD protection
