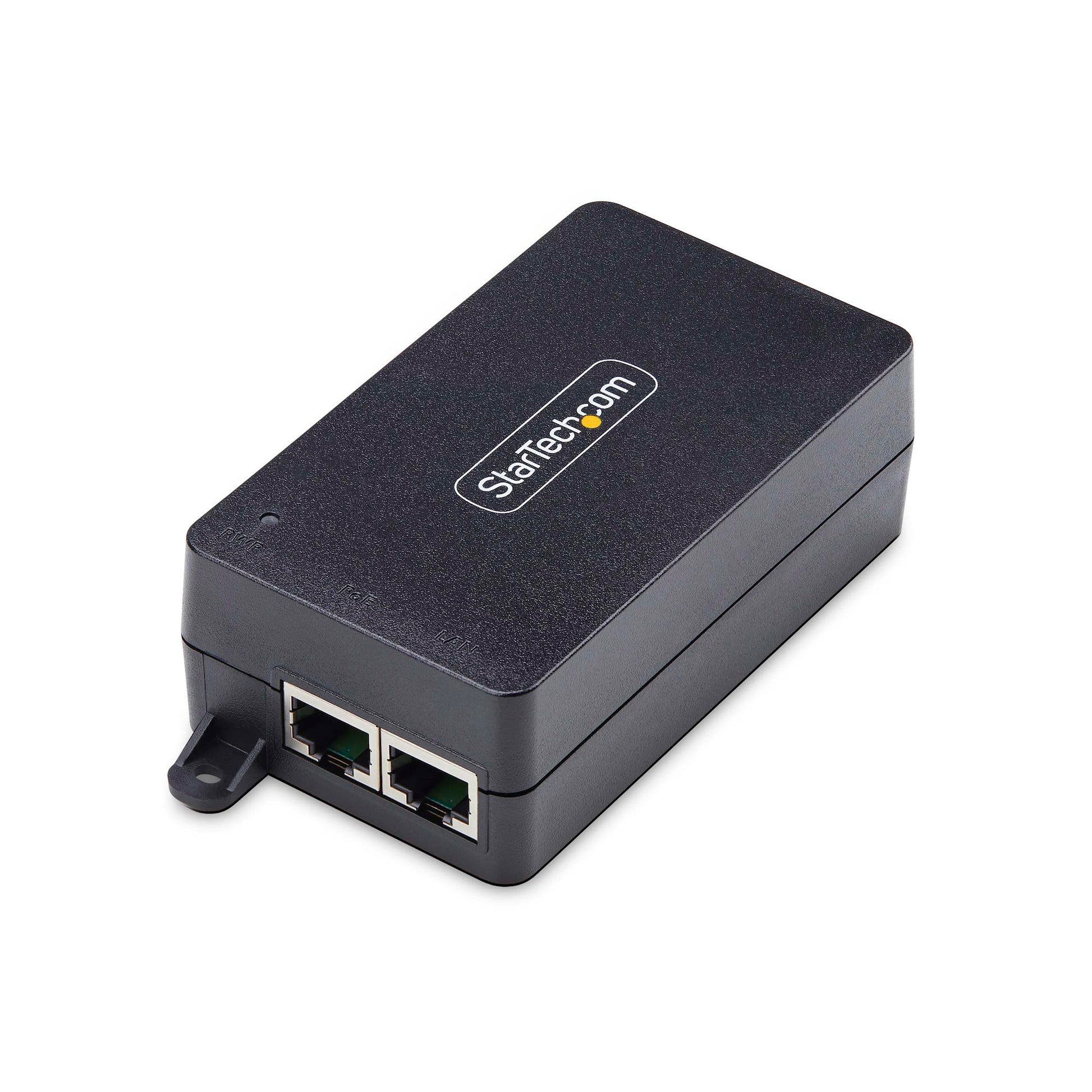

StarTech Industrial Gigabit PoE+/PoE Injector, 30W, 802.3af/at, DIN Mount

VENDOR: STARTECH Mfg Part#: POEINJ30W UPC#: 065030891363
1 5
Photo is for illustration purposes only. Actual product may be different.
$172.00
$172.00
Sale Sold out
MSRP: $185.00
Shipping calculated at checkout.
  • Delivers up to 30W of Power over Ethernet (PoE+) to compliant devices
  • Supports Gigabit Ethernet data transfer at 1 Gbps
  • Compatible with IEEE 802.3af and IEEE 802.3at standards
  • IP-30 rated housing with wide -40°C to 75°C operating temperature
  • 48V–56V DC terminal block power input
  • TAA compliant and includes a 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Designed for industrial use, with IP-30 rated housing and extreme temperature tolerance from -40°C to 75°C
  • Supports high-performance applications with 1 Gbps Gigabit Ethernet and 30W PoE+ output
  • Backed by a 2-year warranty and 600K+ hours MTBF for long-term reliability in critical deployments

Product Overview

Industrial Gigabit Ethernet PoE Injector - Power over Ethernet Injector - Up to 30W of pwr (midspan) to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) MTBF 600k+hrs IP-30 housing -40C to 75C temp DIN/Wall mount 48V-56VDC input w/terminal block pwr 2yr warr

Specifications

Product Overview
Manufacturer StarTech
Model Name Industrial Gigabit PoE+/PoE Injector
Manufacturer Part Number POEINJ30W
Device Type Media Converter
Power Delivery Standard IEEE 802.3af / IEEE 802.3at (PoE/PoE+)
Power Output Up to 30W
Mounting Type DIN Rail / Wall Mount
Enclosure Type IP-30 Rated Industrial Housing
Mean Time Between Failures (MTBF) 600,000 hours
Input Voltage Range 48V to 56V DC
Redundant Power Input Yes
Warranty 2 Years

Physical & Environmental
Product Dimensions (W x D x H) 30 mm x 95 mm x 140 mm
Weight 360 g
Operating Temperature Range -40°C to 75°C
Storage Temperature Range -40°C to 85°C
Operating Humidity 5% to 95% RH (non-condensing)
Storage Humidity 5% to 95% RH
Cooling Method Passive

Cloud Management & Licensing
Cloud Management Support
Licensing Required No
Management Interface Unmanaged (Plug-and-Play)

Interfaces
Network Ports 2 (1 x Data-IN, 1 x Data+Power OUT)
Port Type RJ-45 (Gigabit Ethernet)
Port Configuration 1 PoE injector port (midspan)
Data Link Protocol Gigabit Ethernet
PoE Standards Supported IEEE 802.3af, IEEE 802.3at
Data Transfer Rate 1 Gbps
Surge Protection EN61000-4-5 (6kV)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, UL, EN55032 Class A, RoHS
EMC Standards EN61000-6-2, EN61000-6-4
Shock Resistance IEC 60068-2-27
Vibration Resistance IEC 60068-2-6
IP Rating IP30

Advanced Security Features
Surge Protection Level 6kV on DC Line
Over Current Protection Yes
Reverse Polarity Protection Yes
