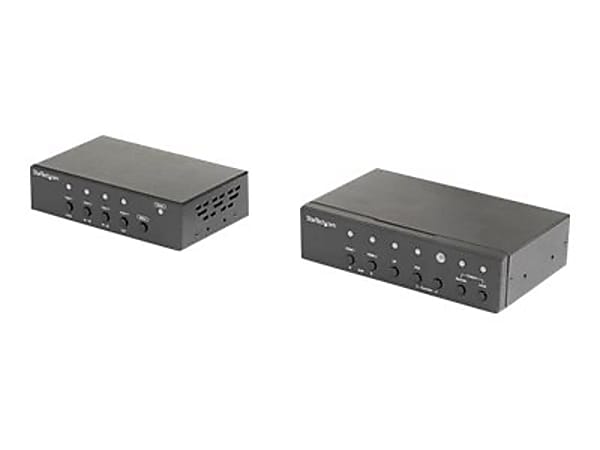

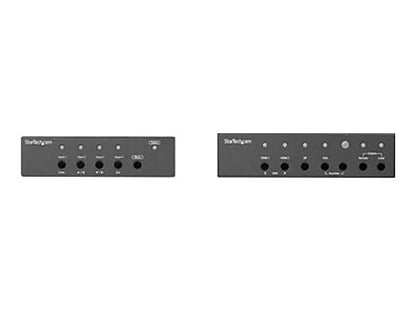

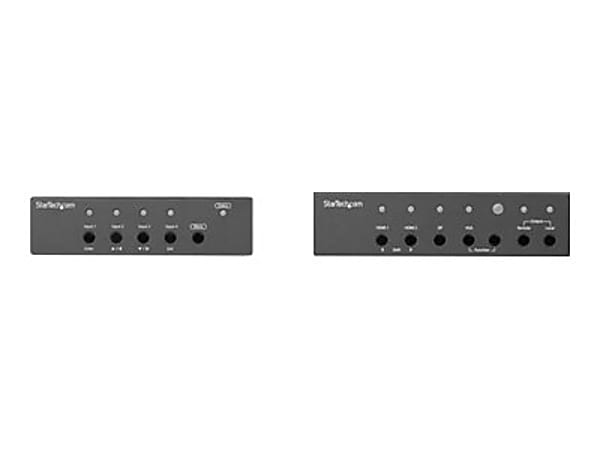

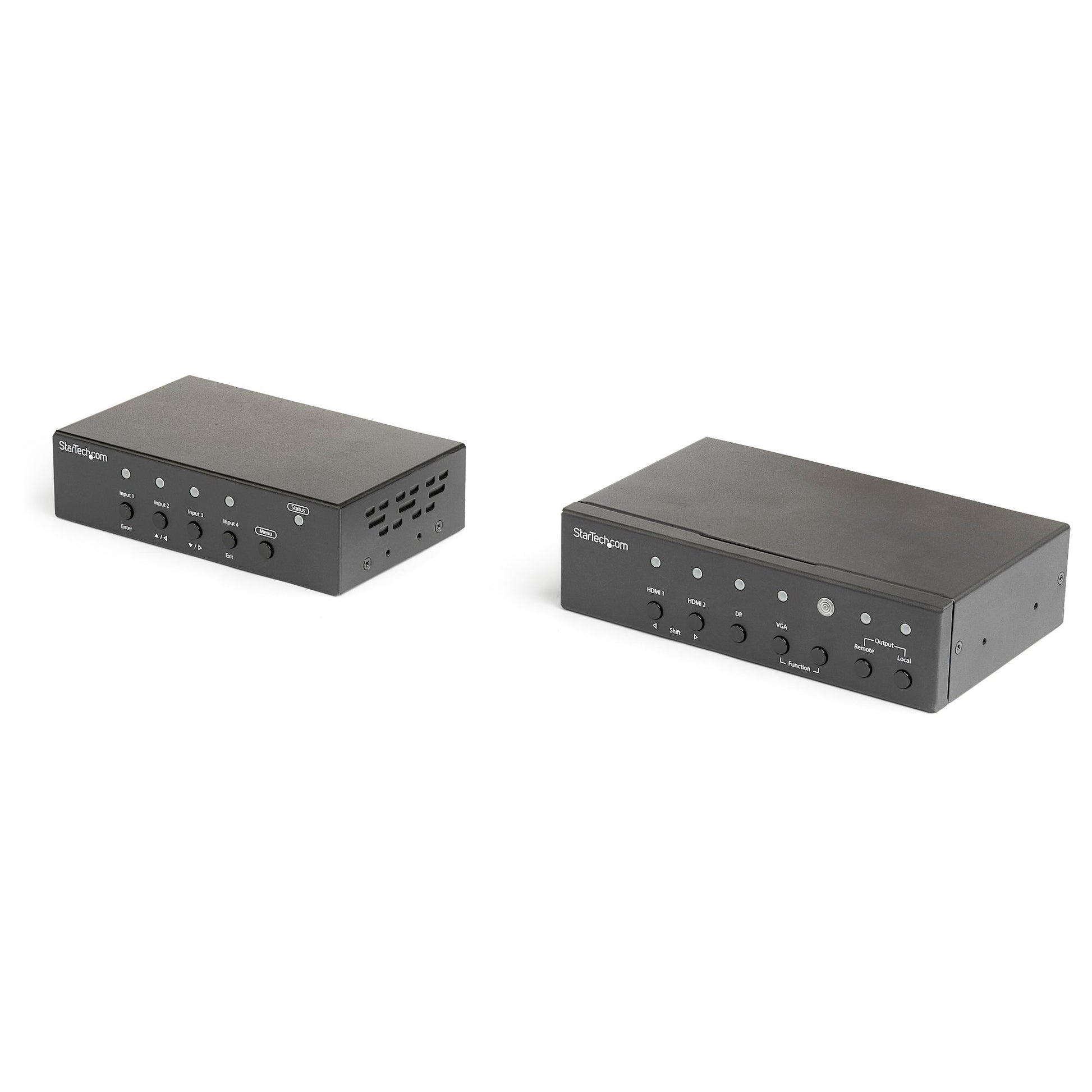

StarTech Multi-Input HDBaseT Extender Kit - ST121HDBTSC

VENDOR: STARTECH Mfg Part#: ST121HDBTSC UPC#: 065030879200
1 5
Photo is for illustration purposes only. Actual product may be different.
$866.00
$866.00
Sale Sold out
Shipping calculated at checkout.
  • Supports HDMI, DisplayPort, and VGA inputs for versatile source compatibility
  • Extends video signals up to 70 meters over CAT5e or better cabling
  • Delivers high-definition resolution up to 1920x1200 at 60 Hz
  • Wired Ethernet-based HDBaseT connectivity for consistent performance
  • TAA-compliant and manufactured in Taiwan for government/regulatory use
  • Compact dimensions (2.4" W x 4.2" D x 2.6" H) with a durable black enclosure

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Eliminates the need for multiple converters by supporting HDMI, DP, and VGA inputs
  • Delivers reliable HD video signal over long distances using existing CAT5e/6 cabling
  • TAA compliance ensures suitability for enterprise and government procurement

Product Overview

Connect four video sources to a remote HDMI display over CAT5/CAT6 cabling and easily scale and switch between HDMI DP or VGA video sources - HDBaseT extender kit - Video Scaler - DisplayPort extender - HDBaseT HDMI extender - HDMI and VGA over CAT6

Specifications

Product Overview
Type Multi-Input HDBaseT Extender Kit
Form Factor Standalone
Weight 647 g
Power Requirements 12V DC, 2A (power adapter included)
Max Resolution 1920x1200 @ 60 Hz
Mounting Options Desktop or Wall-Mountable (mounting brackets included)
Video Input Types HDMI, DisplayPort, VGA
Video Output Type HDMI
HDBaseT Support Yes

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
Warranty 2 Years

Advanced Security Features
Encryption
Security Features HDCP authentication

Interfaces
Video Input Ports 1 x HDMI, 1 x DisplayPort, 1 x VGA
Video Output Ports 1 x HDMI (Remote display via HDBaseT)
Local HDMI Output Yes
Audio Input Ports 1 x 3.5mm Stereo Audio for VGA
Serial Port 1 x RS-232 (Terminal Block)
IR Ports 1 x IR In, 1 x IR Out
Ethernet 1 x RJ-45 (HDBaseT)
USB Ports None
Supported Cable Types Cat5e, Cat6, Cat6a, Cat7 UTP/STP (solid)
Maximum Transmission Distance 70 m over Cat6 (1080p)
HDMI Version 1.4
HDCP Support Yes, HDCP 1.4
EDID Management Yes

Physical & Environmental
Width 2.4 in (61 mm)
Depth 4.2 in (106 mm)
Height 2.6 in (66 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Operating Humidity 10% to 85% RH, non-condensing
Housing Material Aluminum
Enclosure Color Black
Cooling Type Passive

Cloud Management & Licensing
Cloud Management Platform
License Requirement No licensing required
