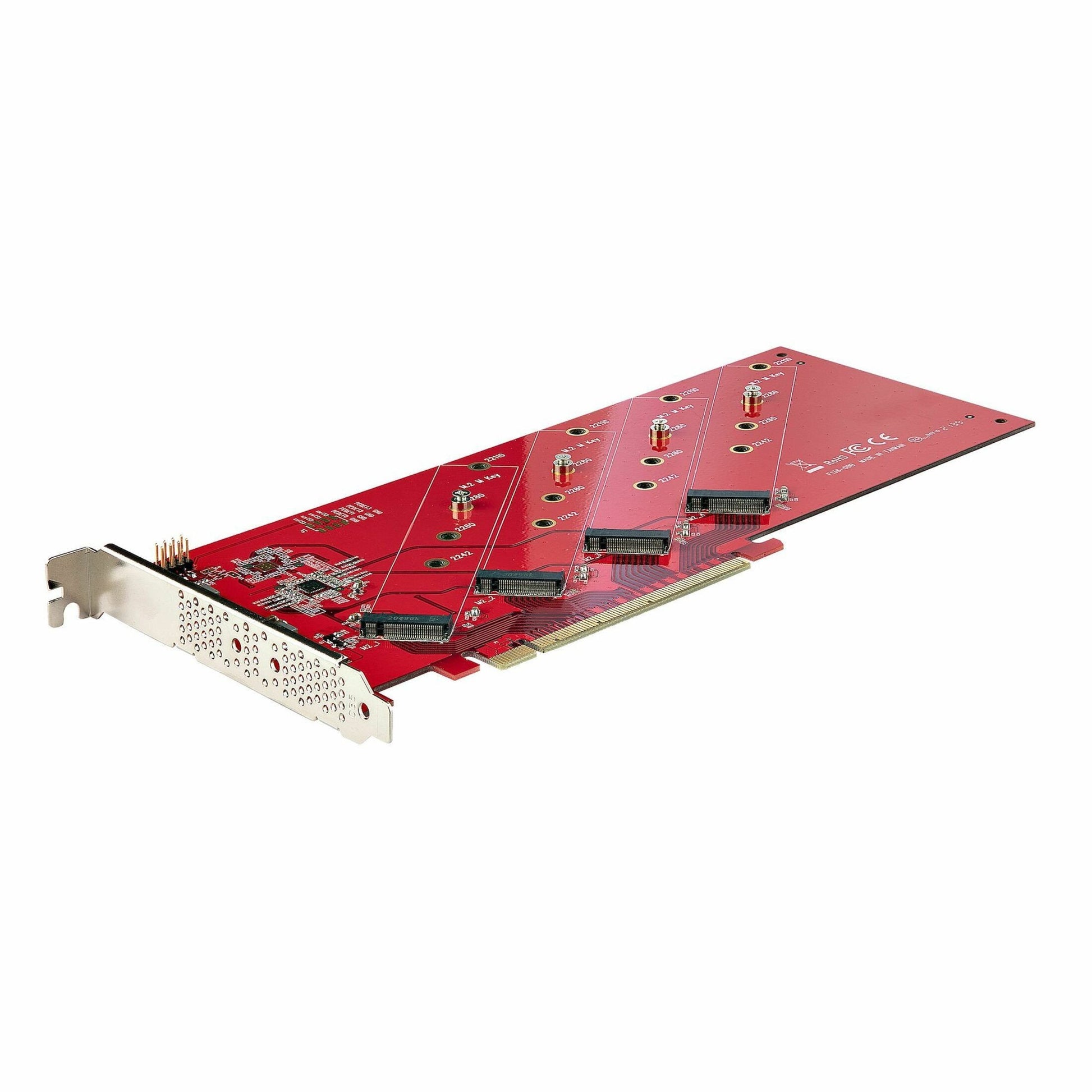

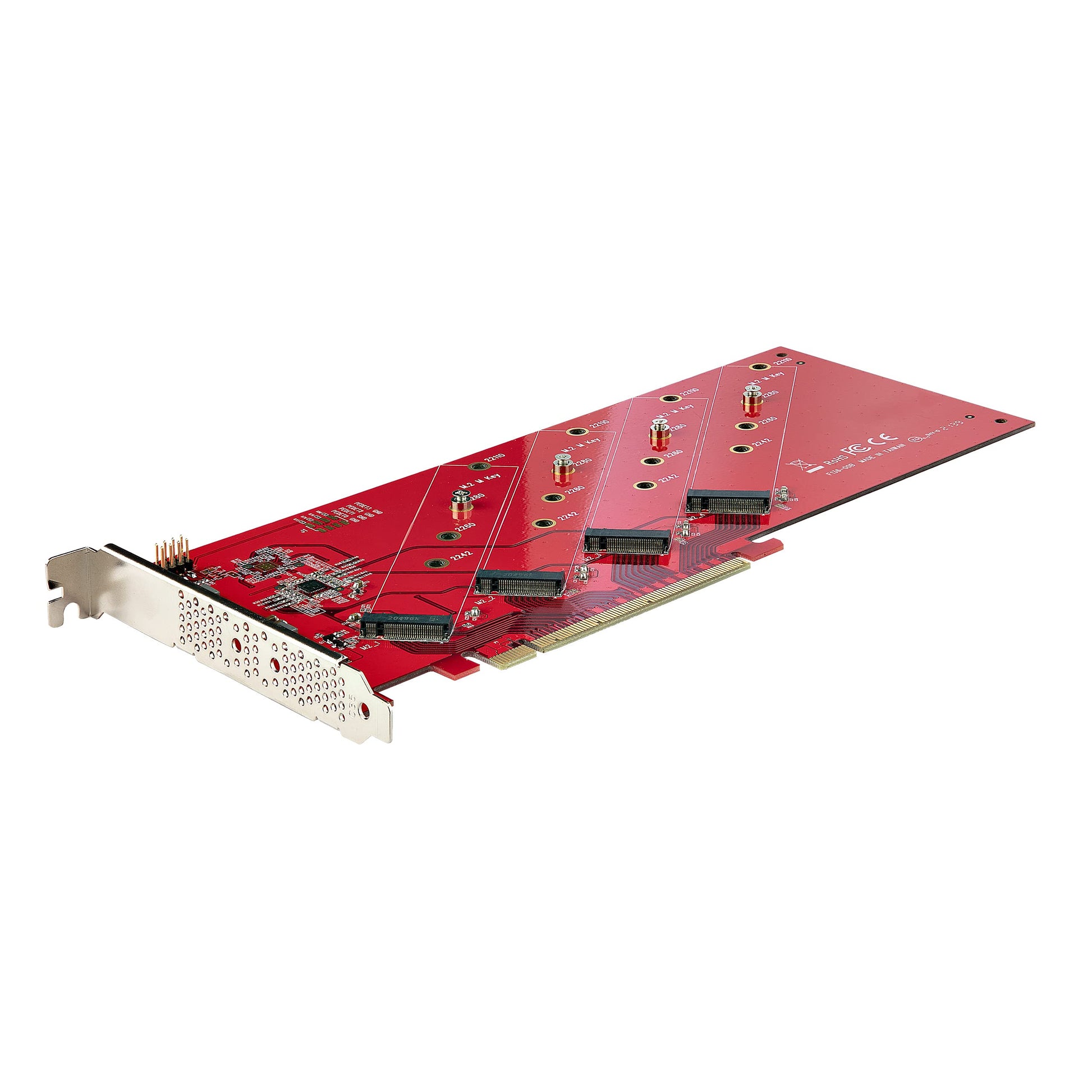

StarTech Quad M.2 PCIe 4.0 Adapter Card, x16 to 4x NVMe/AHCI SSDs

VENDOR: STARTECH Mfg Part#: QUAD-M2-PCIE-CARD-B UPC#: 065030895606
1 5
Photo is for illustration purposes only. Actual product may be different.
$221.00
$221.00
Sale Sold out
MSRP: $223.00
Shipping calculated at checkout.
  • Supports installation of up to 4x NVMe or AHCI M.2 SSDs via PCIe x16 slot
  • PCI Express 4.0 interface enables up to 7.8GBps read/write per drive
  • Requires motherboard support for PCIe bifurcation
  • Compatible with Windows and Linux operating systems
  • Includes vented full-profile bracket for optimal cooling
  • TAA compliant and backed by a 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables high-throughput performance with each of four drives supporting up to 7.8GBps via PCIe 4.0 interface
  • Ideal for power users with support for quad NVMe/AHCI SSD configurations in a single x16 slot, maximizing density and performance
  • TAA compliance and a 2-year warranty make it enterprise-ready and ideal for professional environments

Product Overview

Quad M.2 PCIe Adapter Card enables installation of 4x PCIe M.2 SSDs (NVMe/AHCI) through an x16 PCI Express 4.0 slot; Read/write speeds up to 7.8GBps/drive; PCIe Bifurcation support is required; Windows/Linux; Vented full-profile bracket pre-installed

Specifications

Product Overview
Product Type PCIe Adapter Card
Form Factor Full Height (Full Profile)
Bracket Type Vented Full-Profile Bracket (Pre-Installed)
Chipset ASMedia ASM2824
Operating System Support Windows, Linux
Power Requirements Powered via PCI Express Slot
Weight 84 g

Physical & Environmental
Height 0.9 inch (2.3 cm)
Width 11.4 inch (29 cm)
Depth 5.0 inch (12.7 cm)
Product Color Black
Material Steel and PCB
Cooling Passive Vented Bracket; Heatsink support (not included)
Operating Temperature 0°C to 70°C
Storage Temperature -25°C to 85°C
Humidity (Operating) 20% to 80% non-condensing

Cloud Management & Licensing
Management Interface None
Software Required No Drivers Required (OS Native NVMe Support)
Licensing Not Applicable

Interfaces
Host Interface PCI Express 4.0 x16
Connector Type 4 x M.2 M-Key Slots
Drive Interface Support PCIe (NVMe) & AHCI
M.2 Drive Support 2230 / 2242 / 2260 / 2280
Bifurcation Required Yes (x4/x4/x4/x4 from BIOS)
Max Drives Supported 4
Data Transfer Rate Up to 7.8 GB/s per drive
Bus Type PCI Express 4.0
Total Bandwidth Up to 64 Gbps

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC
Warranty 2 Years

Advanced Security Features
Hardware Encryption Support Drive Dependent (if SSD supports it)
Bootable Support Yes (System Dependent with Bifurcation Enabled)
