Products Network Stuff STARTECH USB 2.0 Extender o...

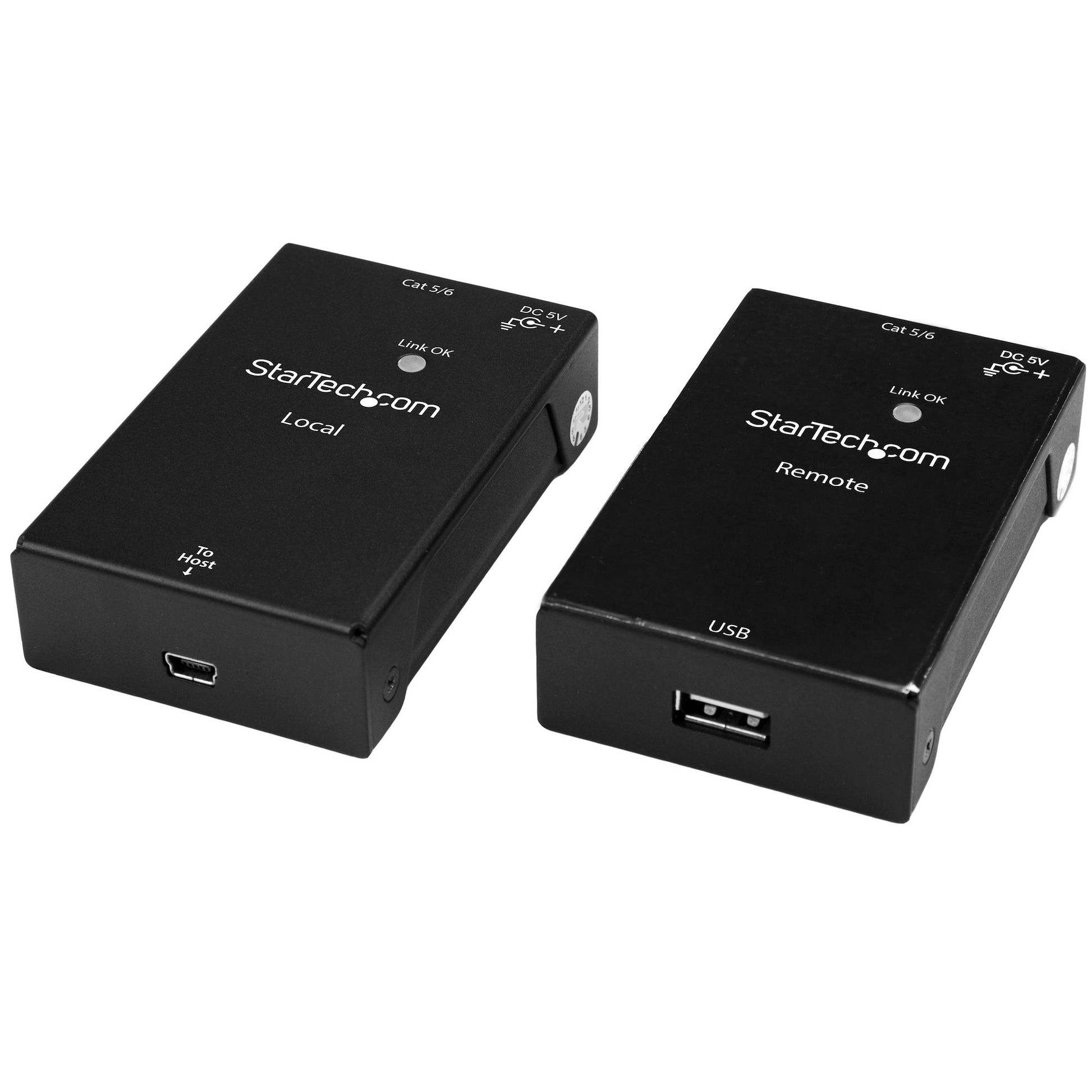

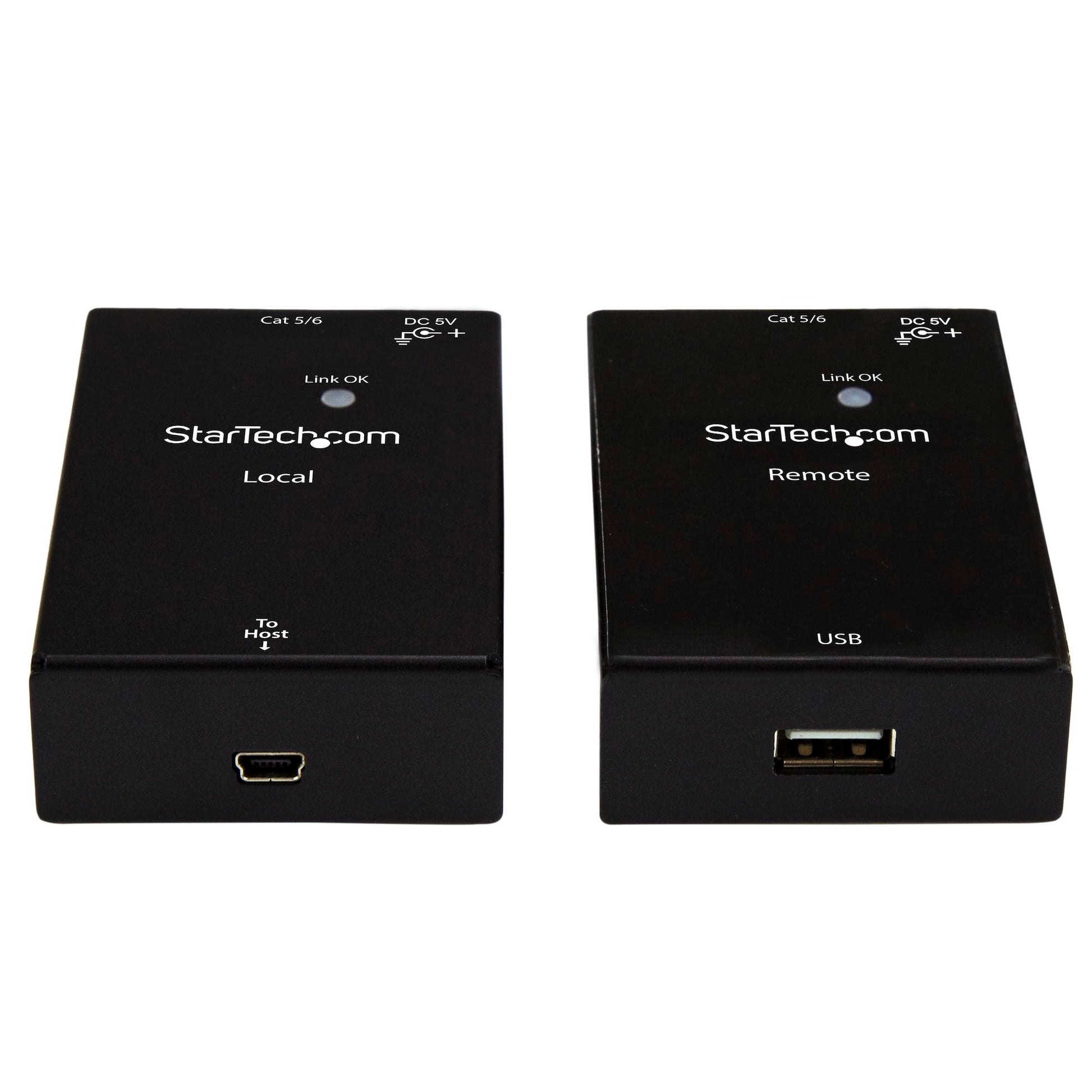

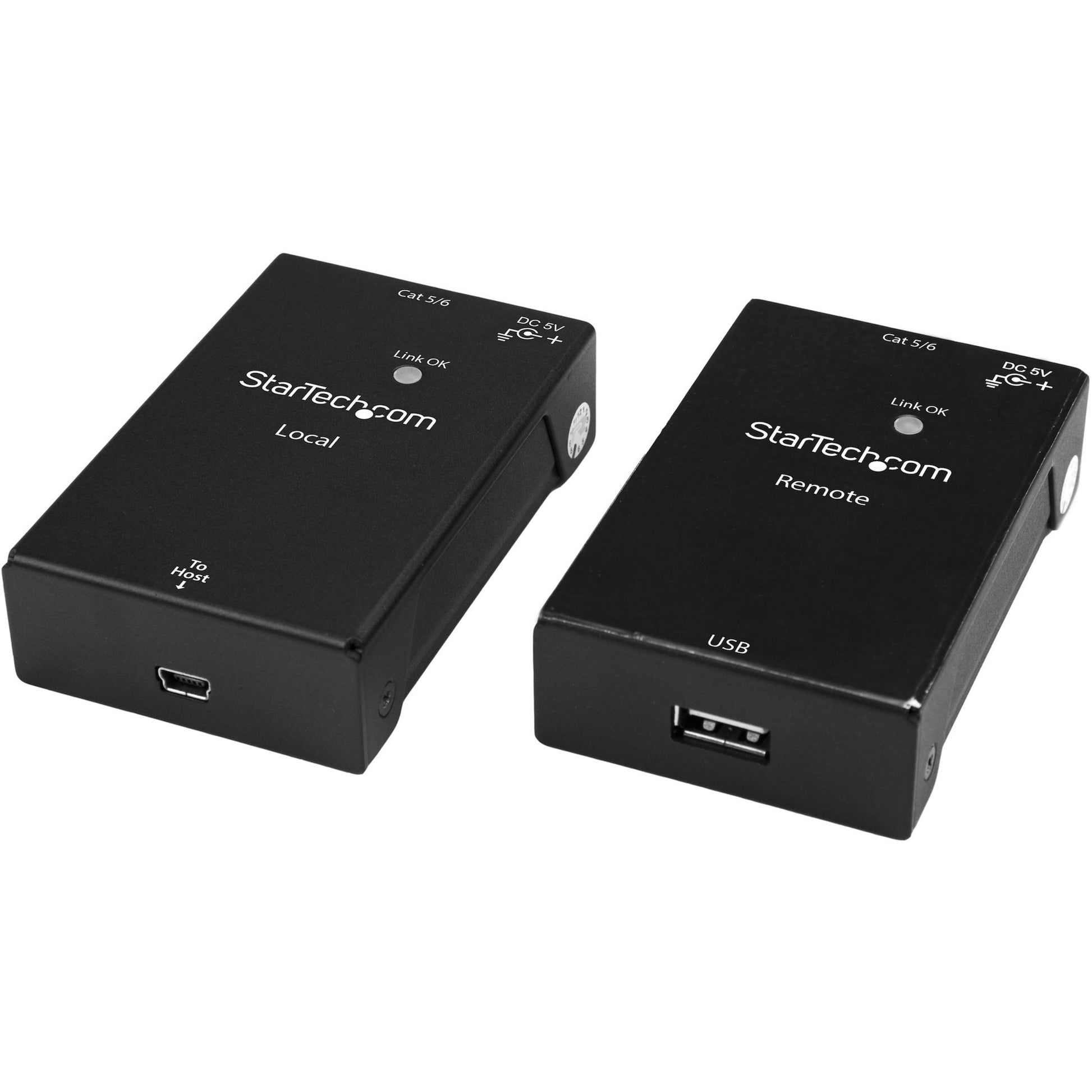

STARTECH USB 2.0 Extender over Cat5e/Cat6, 165ft, USB2001EXTV

VENDOR: STARTECH Mfg Part#: USB2001EXTV UPC#: 065030866132
1 5
Photo is for illustration purposes only. Actual product may be different.
$223.00
$223.00
Sale Sold out
MSRP: $225.00
Shipping calculated at checkout.
  • Extends USB 2.0 device connectivity up to 165ft (50m) over Cat5 UTP or better
  • Supports data transfer rates up to 480 Mbps via wired Ethernet connection
  • Includes 10W power adapter at remote end delivering up to 0.5A power
  • OS-independent operation with USB bus power at the local unit
  • Compact design with durable black metal housing (2 x 3.1 x 0.9 inches)
  • Covered under 2-year STARTECH warranty and TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal solution for extending USB peripheral connections in industrial and commercial environments
  • OS-independent setup ensures plug-and-play functionality without drivers or software
  • Reliable long-distance USB transmission up to 165ft supports high-speed communication for critical devices

Product Overview

USB extender kit connects 1x USB 2.0 device up to 165ft/50m over CAT5e/CAT6 ethernet cable 480Mbps - Metal housing - Incls 24in USB cable - 10W power adapter (remote receiver) supplies up to 0.5A to device - USB bus powered (local) - OS independent

Specifications

Product Overview
Manufacturer StarTech
Product Name USB 2.0 Extender over Cat5e/Cat6, 165ft
Manufacturer Part Number USB2001EXTV
Product Type USB 2.0 Extender Kit
Form Factor External
Power Source (Local Unit) USB Bus-Powered
Power Source (Remote Unit) 10W Power Adapter
Power Output to Device 0.5 A (500 mA)
Housing Material Metal
Color Black
Warranty 2 Years

Physical & Environmental
Width 2 in (50.8 mm)
Depth 3.1 in (78.7 mm)
Height 0.9 in (22.9 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Operating Humidity 20% to 80% RH, non-condensing
Storage Humidity 10% to 90% RH, non-condensing

Cloud Management & Licensing
Management Interface
Cloud Licensing
Software Included OS Independent - No Software Required

Interfaces
Host Interface USB Type-A (Male)
Device Interface USB Type-A (Female)
Ports (Total) 1 x USB 2.0
USB Specification USB 2.0
Data Transfer Rate Up to 480 Mbps
Extension Interface RJ-45 (Cat5e/Cat6 Ethernet)
Maximum Extension Distance 165 ft (50 m)
Cable Requirements Cat5e or Cat6, UTP Recommended

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC, RoHS
Environmental Standards RoHS Compliant
