| Product Type | 2-Way Ceiling Speaker |
| Speaker System Type | Full range, Bass reflex |
| Form Factor | Ceiling mount |
| Nominal Power | 30W Program Power |
| Transformer Tap Settings | 30W, 15W, 7.5W, 3.8W (@70V); 30W, 15W, 7.5W (@100V) |
| Impedance | 8Ω (Bypass) |
| Number of Speakers per Unit | 1 |
| Mounting Type | Ceiling-mount with O-ring and tile rails (sold separately) |
| Installation Features | Anti-drop tabs, Double-threaded screws, Easy-carry handles |

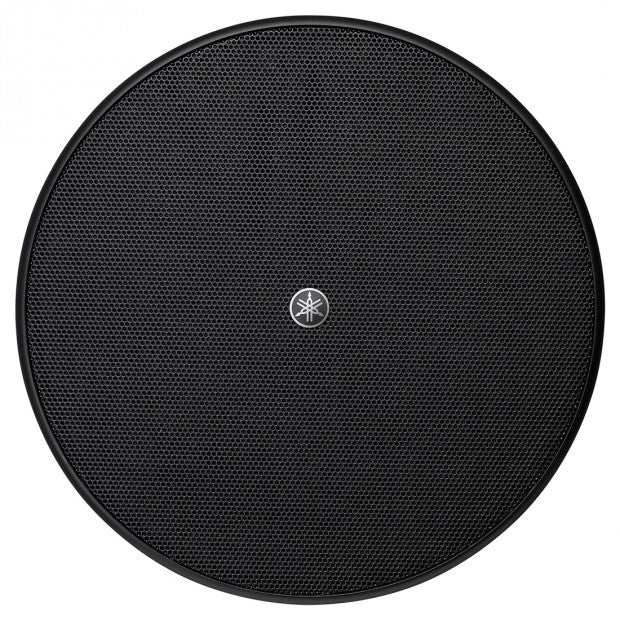

YAMAHA VXC2FB 2.5" 2-Way Ceiling Speaker, Full Range, 30W, 70V/8Ω
Photo is for illustration purposes only. Actual product may be different.
Regular price
$159.00
Regular price
Sale price
$159.00
Unit price
per
MSRP: $244.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Full-range 2.5" driver with bass reflex speaker design
- 8Ω or 70V operation via selectable transformer taps (7.5W/3.8W/1.9W/1W)
- 30W power handling (program) at 8 ohms
- Includes O-ring and tile rail for secure ceiling mounting
- Built-in transformer for high-impedance distributed audio systems
- Easy installation with anti-drop tabs and double-threaded screws
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Supports both 8Ω and 70V configurations, ideal for scalable commercial audio systems.
- Compact 2.5" design delivers full-range sound while preserving ceiling aesthetics.
- Installation-friendly with safety features like anti-drop tabs and integrated mounting hardware.
Product Overview
The YAMAHA VXC2FB is a 2.5-inch full-range ceiling speaker with a bass reflex design and selectable 70V/8Ω configurations, handling up to 30W program power. It is engineered for seamless distributed audio applications such as retail, office, or hospitality environments. Installation features include anti-drop tabs, double-threaded screws, easy-carry handles, and support for tile rails via its O-ring mount. Made in China, this compact yet capable unit aligns with Yamaha’s reputation for reliable professional audio systems.
Specifications
Product Overview
Physical & Environmental
| Speaker Driver Size | 2.5 inch full-range driver |
| Dimensions (Diameter × Depth) | 225 mm × 131 mm (8.86 in × 5.16 in) |
| Cutout Diameter | 186 mm (7.32 in) |
| Backcan Depth | 117 mm (4.61 in) |
| Weight | 2.1 kg (4.63 lbs) |
| Operating Temperature Range | 0°C – 40°C (32°F – 104°F) |
| Storage Temperature Range | -20°C – 60°C (-4°F – 140°F) |
| Color | Black (VXC2FB model) |
| Grille Material | Perforated metal with black finish |
| Cabinet Material | ABS (UL94-V0 flame-resistant plastic) |
Audio Performance
| Frequency Response (-10dB) | 80 Hz – 20 kHz |
| Coverage Angle (Horizontal × Vertical) | 150° conical |
| Maximum SPL (Calculated, 1m) | 91 dB SPL (100 Hz – 20 kHz pink noise) |
| Sensitivity (1W/1m) | 83 dB SPL |
| Crossover Type | Full-range (no crossover) |
| Speaker Protection Circuitry | PTC and protection circuit included |
Packaging & Distribution
| UPC | 889025125512 |
| Manufacturer Part Number | VXC2FB |
| Package Quantity | 1 unit per package |
Interfaces
| Input Connection | Euroblock (4-pin) connector |
| Wiring Type | Single cable for audio + loop-through |
Compliance & Origin
| Country of Origin | China |
| Certifications | UL1480, UL2043, CE, RoHS |
| Plenum Rating | UL2043-compliant for use in air handling spaces |
| Fire Resistance | UL94-V0 flame resistant |
Compatibility & Accessories
| Compatible Mounting Hardware | Optional tile rails and O-ring |
| Optional Accessories | CBR-VXC2FB back can, R96-CVR-T (tile rails), R96-CVR-O (O-ring) |
| Included Accessories | Cutout template, Euroblock connector, Safety wire, Grille |
