| Product Type | Ceiling Speaker |
| Speaker System Type | Full range, Bass reflex |
| Form Factor | In-ceiling mount |
| Driver Size | 2.5 inch |
| Color | White |
| Power Handling (Program) | 30 W |
| Power Handling (RMS) | 15 W |
| Transformer Tap Settings | 7.5W / 3.8W / 1.9W / 1W |
| Impedance | 8 Ω or 70V |
| Sensitivity (1W, 1m) | 86 dB SPL |
| Maximum SPL (Calculated, 1m) | 97 dB SPL |
| Frequency Response (-10 dB) | 80 Hz – 20 kHz |
| Frequency Range (-10 dB) | 80 Hz – 20 kHz |
| Nominal Coverage | 170° conical |
| Weight | 0.9 kg (2.0 lbs) |

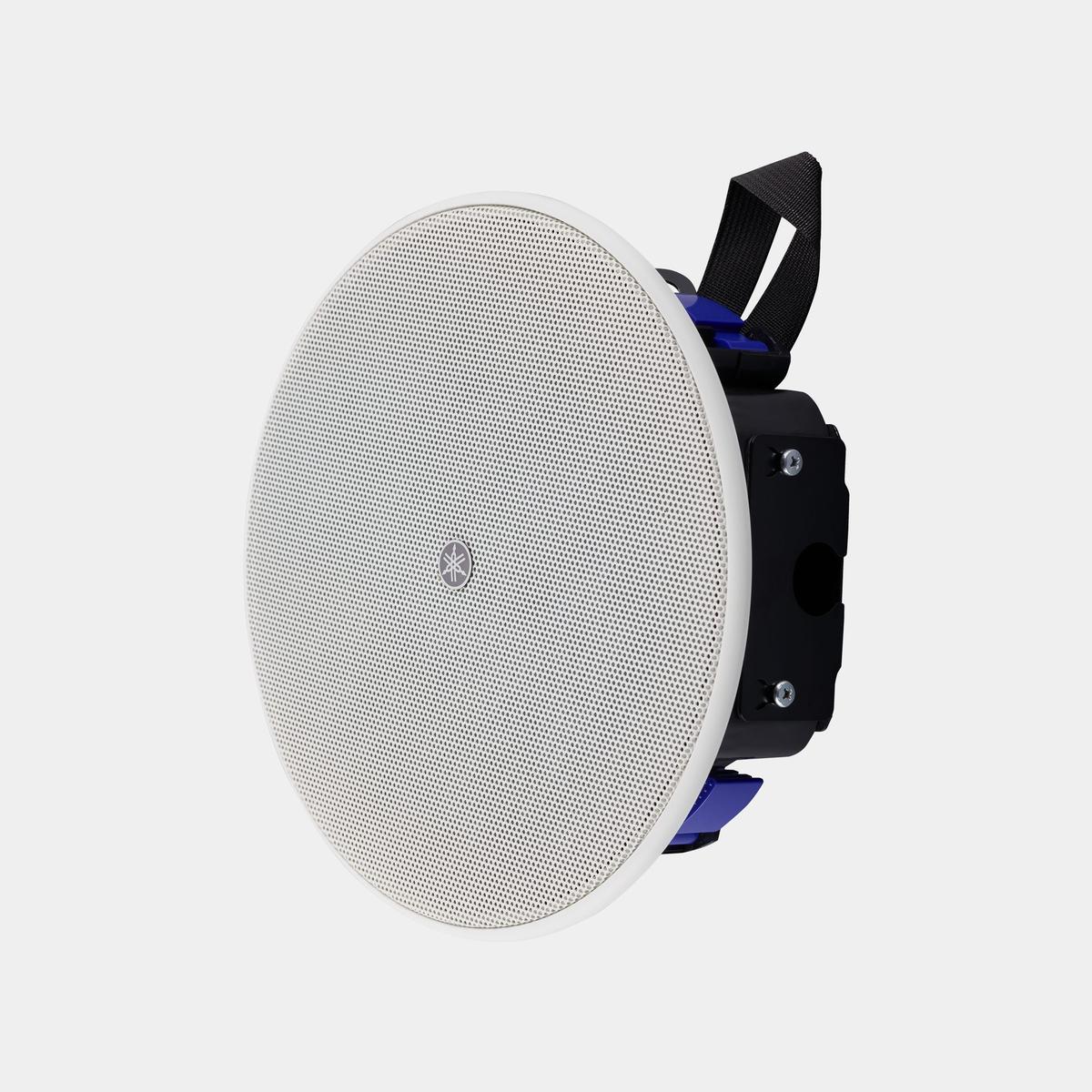

YAMAHA VXC2FW 2.5" White Ceiling Speaker, 8Ω/70V Configuration
Photo is for illustration purposes only. Actual product may be different.
Regular price
$159.00
Regular price
Sale price
$159.00
Unit price
per
MSRP: $244.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Full-range 2.5-inch bass reflex ceiling speaker for embedded audio applications
- Selectable 8Ω and 70V high-impedance operation with integrated transformer
- Supports 30W program power at 8Ω; 7.5W/3.8W/1.9W/1W tap settings at 70V
- Equipped with safety features: carry handles, anti-drop tabs, double-threaded screws
- Neutral white finish for seamless ceiling integration
- Manufactured in China
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Flexible 8Ω and 70V operation allows integration in both residential and commercial audio systems
- Compact form factor and included safety features simplify overhead installation
- Versatile tap settings and 30W power rating enable effective use in background music and paging setups
Product Overview
The YAMAHA VXC2FW is a compact, full-range ceiling speaker designed for versatile installation in both commercial and residential settings. Its 2.5-inch bass reflex driver allows for clear and reliable audio, with a built-in transformer supporting selectable 8Ω or 70V high-impedance operation at 7.5W, 3.8W, 1.9W, and 1W. Engineered for safety and convenience, the VXC2FW features carry handles, anti-drop tabs, and double-threaded screws to streamline installation workflows.
While compact in size, this speaker supports up to 30W program power and fits naturally into ceiling environments with its neutral white finish. Please note that O-ring and tile rail are not included. Designed and manufactured in China, it offers dependable distributed audio performance for venues relying on audible clarity and cost-effective deployment.
Specifications
Product Overview
Wireless Features
Compliance & Origin
| Country of Origin | China |
| Certifications | UL1480, UL2043, RoHS compliant |
| CE Marking | Yes |
| Safety Standards | UL Listed for Commercial and Professional Use |
Advanced Security Features
Interfaces
| Speaker Input Connector | Euroblock (4-pin) x1 (input: +/-, loop-thru: +/-) |
Physical & Environmental
| Dimensions (Diameter × Depth) | 225 mm × 97 mm (8.9 in × 3.8 in) |
| Cutout Size | 186 mm (7.32 in) |
| Mounting Depth | 92 mm (3.62 in) |
| Operating Temperature | 0°C – 40°C (32°F – 104°F) |
| Construction Material | ABS resin (UL94-V0 compliant) |
| Baffle Grille Material | Powder-coated steel with anti-drop tab |
| Included Accessories | Grille, Cutout template |
| Mounting Features | Double-threaded screws, Anti-drop tabs, Carrying band |
